American Range Green Flame 36-Inch Gas Range with 24-Inch Left Griddle, 2 Open Burners, and Storage Base

SKU: ARGF-24G-2B-SB
$9,145.65
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

American Range Best Sellers Commercial Gas Ranges Commercial Ranges Cooking Equipment Equipment Gas Ranges New Arrivals Ranges Restaurant Equipment

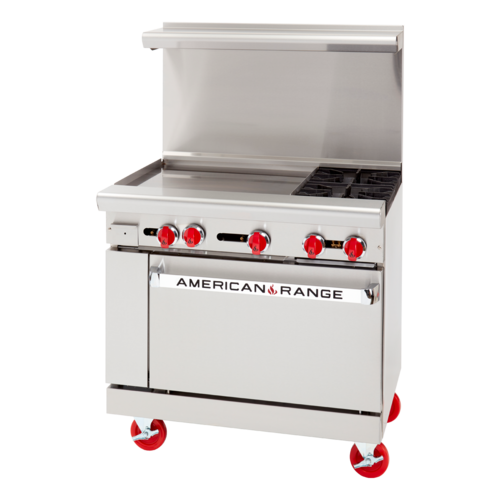

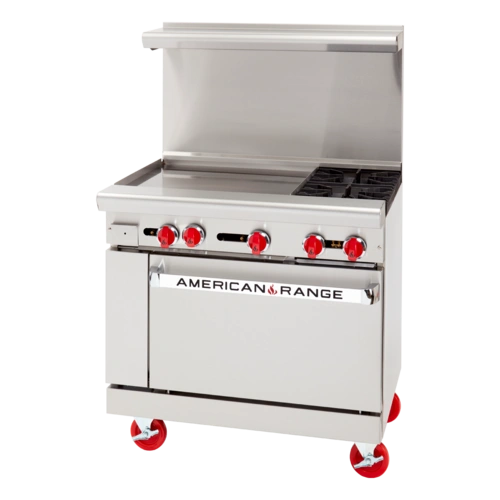

American Range Green Flame 36-Inch Gas Range with 24-Inch Left Griddle, 2 Open Burners, and Storage Base

Stainless Steel Front and Sides, Manual Griddle Controls, 115V Ignition

This versatile 36-inch gas range combines a 24-inch griddle, two open burners, and a storage base in a durable stainless-steel footprint.

  • 24-inch left-side griddle with a 1-inch thick steel plate
  • Two 22,000 BTU open burners with electronic ignition and no standing pilots
  • Storage cabinet base replaces the standard oven for added under-range storage
  • Stainless steel front, sides, backriser, and shelf for a durable, easy-to-clean build
  • Adjustable 6-inch steel legs for floor installation and leveling
  • 115V power connection required; plug and cord are provided

Overall Dimensions:

24.0"W x 32.25"D x 56.0"H

Product Weight:

370.0 lb

Left-Side Griddle

24-inch griddle with a 1-inch thick steel plate and manual control valves for responsive heat management.

Open Burners

Two 22,000 BTU/hr. burners with electronic ignition and no standing pilots for dependable day-to-day cooking.

Heavy-Duty Burner Design

Lift-off, no-clog burners and 12" x 12" cast iron top grates help simplify cleaning and maintenance.

Storage Cabinet Base

Storage base replaces the standard oven to provide convenient under-range storage.

Stainless Steel Construction

Stainless steel front, sides, backriser, shelf, and 6-inch deep front landing ledge provide a durable commercial finish.

Adjustable Legs

6-inch steel legs make the unit floor-ready and help with leveling during installation.

Electrical Connection

Requires a 115V power connection; plug and cord are included.

Gas Hookup

Rear gas connection and pressure regulator are included for installation convenience.

Type Gas Range
Style Griddle Top / Open Burner
Installation Type Floor Model
Controls Manual
Cooking Surface Width 24 Inches
BTU 89,000 BTU
Voltage 115 Volts
Plug Type 3-Prong
Gas Connection Size 3/4 Inch NPT
Material Stainless Steel
Country of Origin USA
Shipping Weight 380 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

2-year limited parts-and-labor warranty.

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. The -SB version uses a storage cabinet base instead of a standard oven.
This model includes one 24-inch left griddle and two open burners.
Yes. It requires a 115V power connection, and a plug and cord are provided.
Natural gas or LP are available; specify the gas type when ordering.
-SB indicates a storage base.
Yes. The line offers a 6-inch high stainless steel stub back, high riser, or high riser with shelf at no charge.
