American Range  |  SKU: ARGF-24G-2B-C

American Range ARGF-24G-2B-C Gas Ranges

$11,061.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

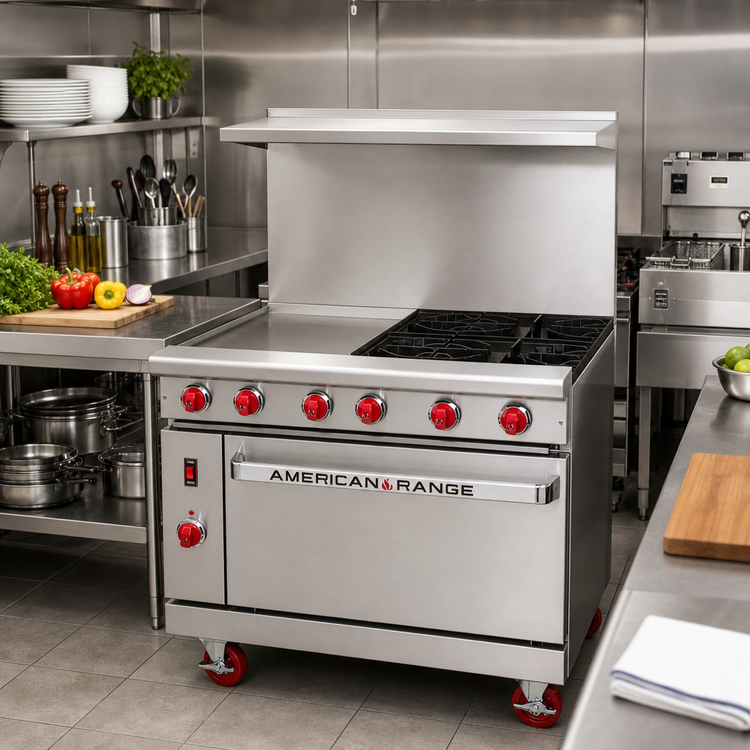

American Range 36" Green Flame Range – 24" Griddle, 2 Open Burners & Convection Oven

Model ARGF-24G-2B-C | 120,000 BTU | cETLus & ETL-Sanitation

Built in the USA for the busiest commercial kitchens, the American Range Green Flame series delivers pilotless ignition, rugged construction and chef-preferred performance—all in a compact 36" footprint.

At a Glance

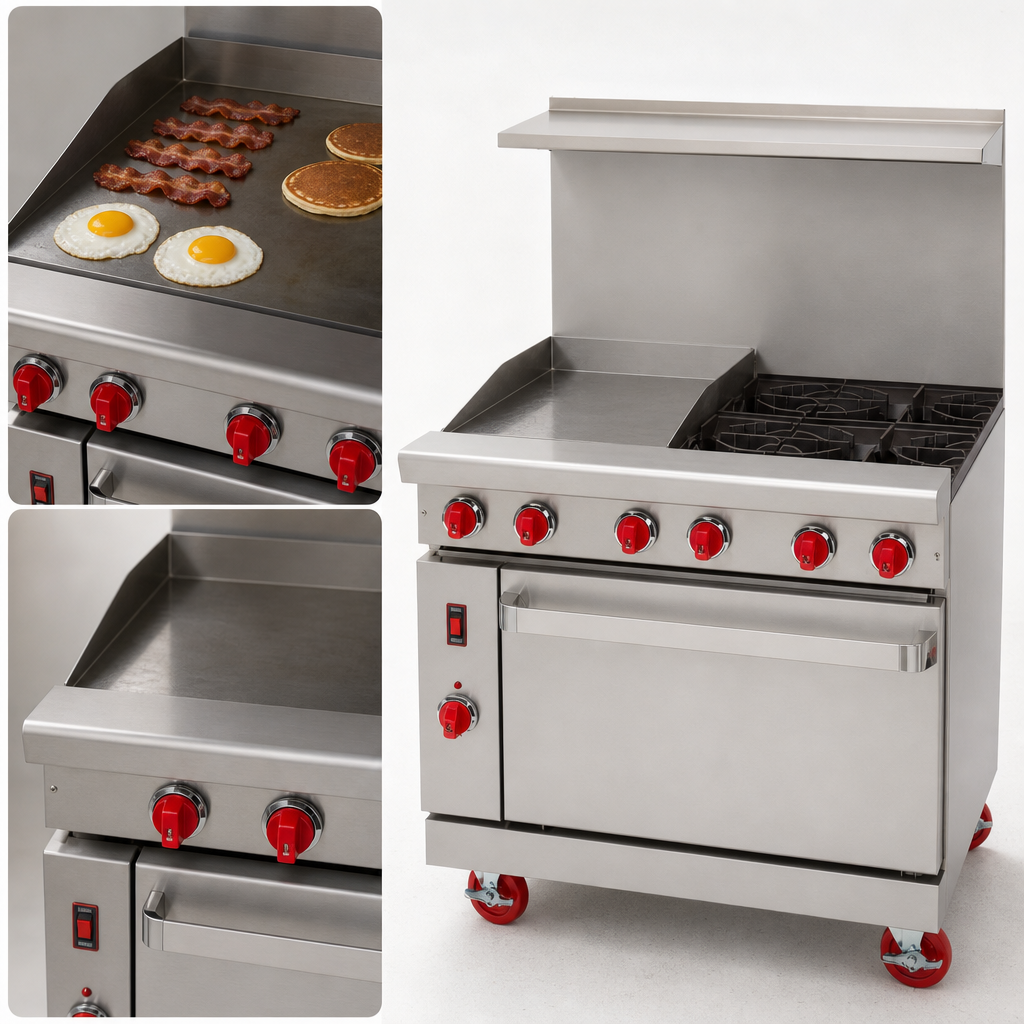

  • 36" wide gas range with space-saving left-side 24" manual griddle
  • Two 25,000 BTU open burners with electronic ignition – no standing pilots
  • Full-size 26-1/2" convection oven; includes 2 chrome racks
  • Total input: 120,000 BTU (35 kW)
  • Stainless steel front, sides & 6" deep landing ledge
  • 6" adjustable chrome-plated legs (casters optional)
  • Choice of 20" high riser, high shelf, or 6" stub back at no extra cost
  • Designed & built in the USA; 2-year parts & labor warranty

Performance You Can Taste

  • Green Flame electronic ignition lights griddle, burners & oven instantly—saving energy and reducing downtime.

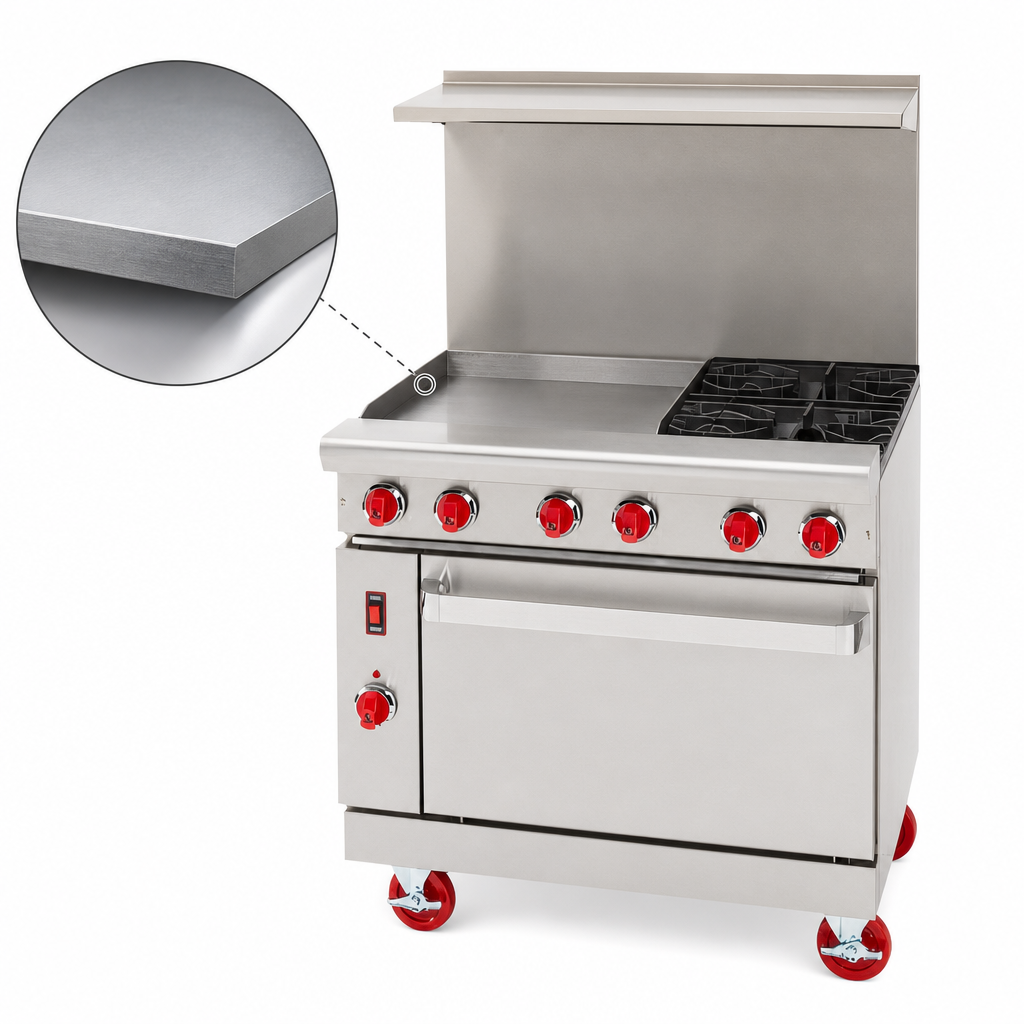

  • 1" thick steel griddle plate resists warping and maintains even heat under heavy loads.
  • Heavy-duty 12" × 12" cast-iron top grates lift off for quick cleaning.
  • Convection oven’s 30,000 BTU burner and high-velocity blower cut cook times and improve browning.
  • Oven thermostat adjusts from 250 °F to 500 °F (121 °C – 260 °C) for maximum versatility.
  • Spring-assist, counter-weighted door stays where you leave it and seals tight every time.

Engineered for the Line

  • Full-width drip pan and removable crumb tray simplify end-of-shift cleanup.
  • Porcelain-enameled oven interior and door panel wipe clean in seconds.
  • 100 % gas shut-off valve enhances operator safety.
  • Shipped for Natural Gas; field-convertible to LP (kit sold separately).

Specifications

Overall width 36" (914 mm)
Overall depth 32-1/2" (826 mm) to landing ledge
Height 36" working height + 20" riser / 6" stub back
Open burners 2 × 25,000 BTU cast-iron
Griddle plate 24" W × 24" D × 1" thick steel, manual control
Oven 26-1/2" convection, 30,000 BTU burner
Rack positions / racks supplied 4 / 2 chrome racks
Total gas input 120,000 BTU/hr (35 kW)
Electrical 115 V, 1 Ø, 15 A (6' cord, NEMA 5-15P)
Agency listings cETLus, ETL-Sanitation
Shipping weight ≈ 523 lb (237 kg)

What’s Included

  • Green Flame 36" range with factory-installed 24" griddle & convection oven
  • 2 chrome oven racks
  • 6" adjustable chrome legs
  • Pressure regulator & 6' power cord
  • Choice of riser (20" riser, high shelf, or 6" stub back)
  • 2-year limited parts & labor warranty
Important Installation Note: Unit must be installed on non-combustible floors with adequate ventilation. Maintain 12" (305 mm) clearance from combustible side walls and 4" (102 mm) from rear surfaces. Follow all local gas and electrical codes.

Need casters, extra oven racks or an LP conversion kit? Contact us for factory-approved accessories and same-day quotes.

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

36.0in

Width

36.0in

Depth

32.5in

Shipping Weight

513.0lbs

Plate Thickness

1.000" = 1"

Vent

backriser with hi-shelf

Top

(2) open burners

Base

(1) standard oven

Exterior Finish

all stainless steel exterior

Specifications

Green Flame Range, gas, 36", (1) 24" griddle, 1" thick plate, manual controls, (2) 22,000 BTU open burners, (1) 26-1/2" convection oven, (2) racks, pilotless burner, griddle and oven ignition systems, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 35.0kW, 120,000 BTU, cETLus, ETL-Sanitation, Made in USA
