American Range ARGF-12G-4B Gas Ranges
Description
American Range 36" Green Flame Range with 12" Griddle & 4 Burners
Model ARGF-12G-4B | Natural or LP GasBring powerful, pilot-free performance to the line with the Green Flame Series. In just 36 inches of width you get a 1" thick steel griddle, four high-output open burners and a full-size oven—all wrapped in easy-clean stainless steel and proudly built in the USA.
Highlights
- Four open burners rated at 25,000 BTU each with electronic ignition—no standing pilots.

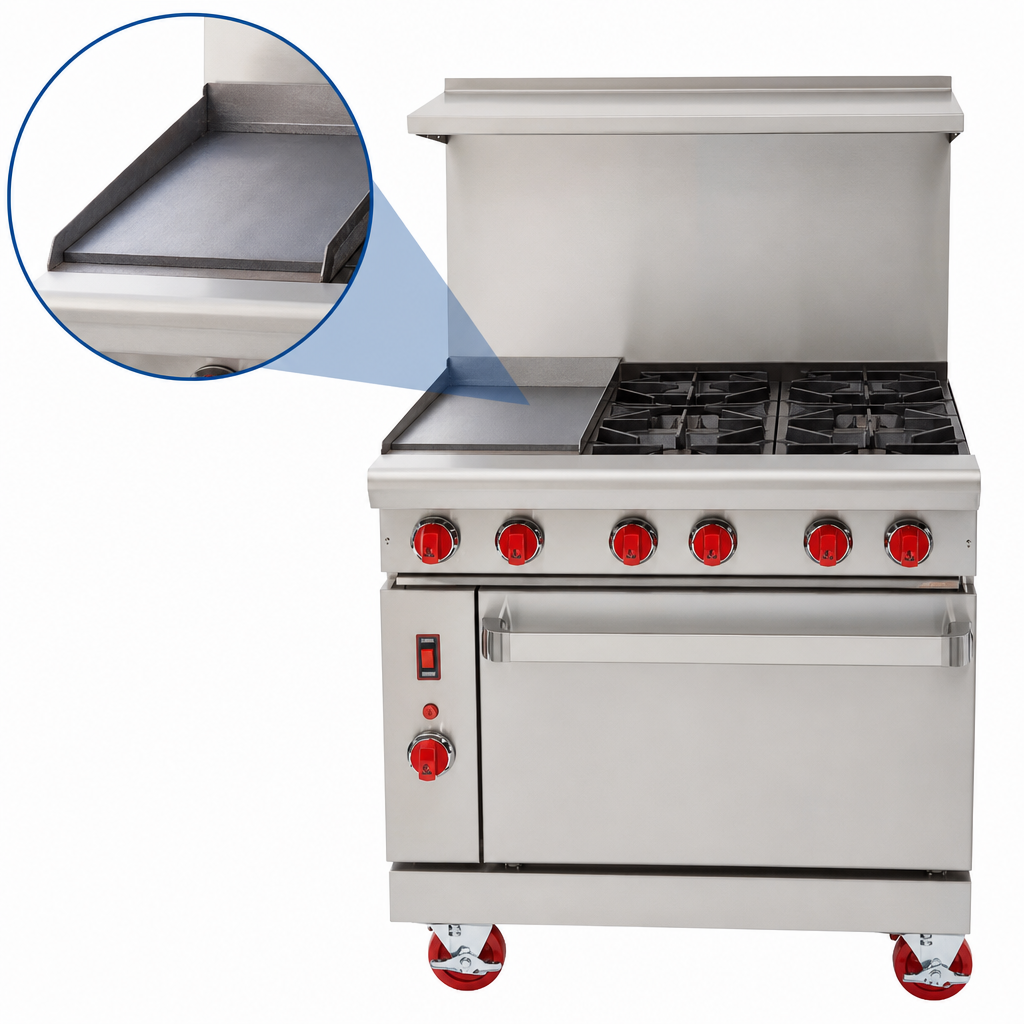

- Left-side 12" manual-control griddle; 1" thick plate distributes heat evenly (20,000 BTU).
- Standard oven delivers 35,000 BTU with spring-assisted door, porcelain interior and two chrome racks.
- Total input: 155,000 BTU (45.0 kW) for fast recovery during peak service.
- Stainless steel front, sides and 6" deep landing ledge for lasting durability.
- Choose your backsplash: 6" stub back, 20" riser, or 20" riser with high shelf (no up-charge).
- 6" chrome-plated adjustable legs standard—swivel casters available.
- Full-width slide-out drip pan simplifies end-of-shift cleanup.
- Certified cETLus & ETL-Sanitation; two-year limited parts & labor warranty.
- Designed, engineered & Made in USA.
Technical Specifications
| Cooktop Configuration | (4) 25,000 BTU open burners + (1) 12" griddle |
|---|---|
| Griddle Plate | 1" (25 mm) thick polished steel |
| Oven Type / Burner | Standard gas oven | 35,000 BTU with electronic ignition |
| Oven Interior (W × D × H) | 26 1/2" × 22 1/2" × 13 1/2" |
| Racks / Positions | 2 chrome racks | 4 rack positions |
| Thermostat Range | 250 °F – 500 °F (121 °C – 260 °C) |
| Total Input | 155,000 BTU / hr (45.0 kW) |
| Gas Connection | 3/4" NPT (rear); specify Natural or LP |
| Electrical | 115 V, 1 ph, 15 A (ignition system) | 6' cord with NEMA 5-15P |
| Overall Dimensions | 36" W × 32 1/2" D × 56" H (with 20" riser & shelf) |
| Shipping Weight | Approx. 450 lb (204 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Country of Origin | United States |
Optional accessories include extra oven racks, casters, and propane-specific conversion kits. Contact our team for details and lead times.
