American Range ARGF-12 Gas Ranges
Description

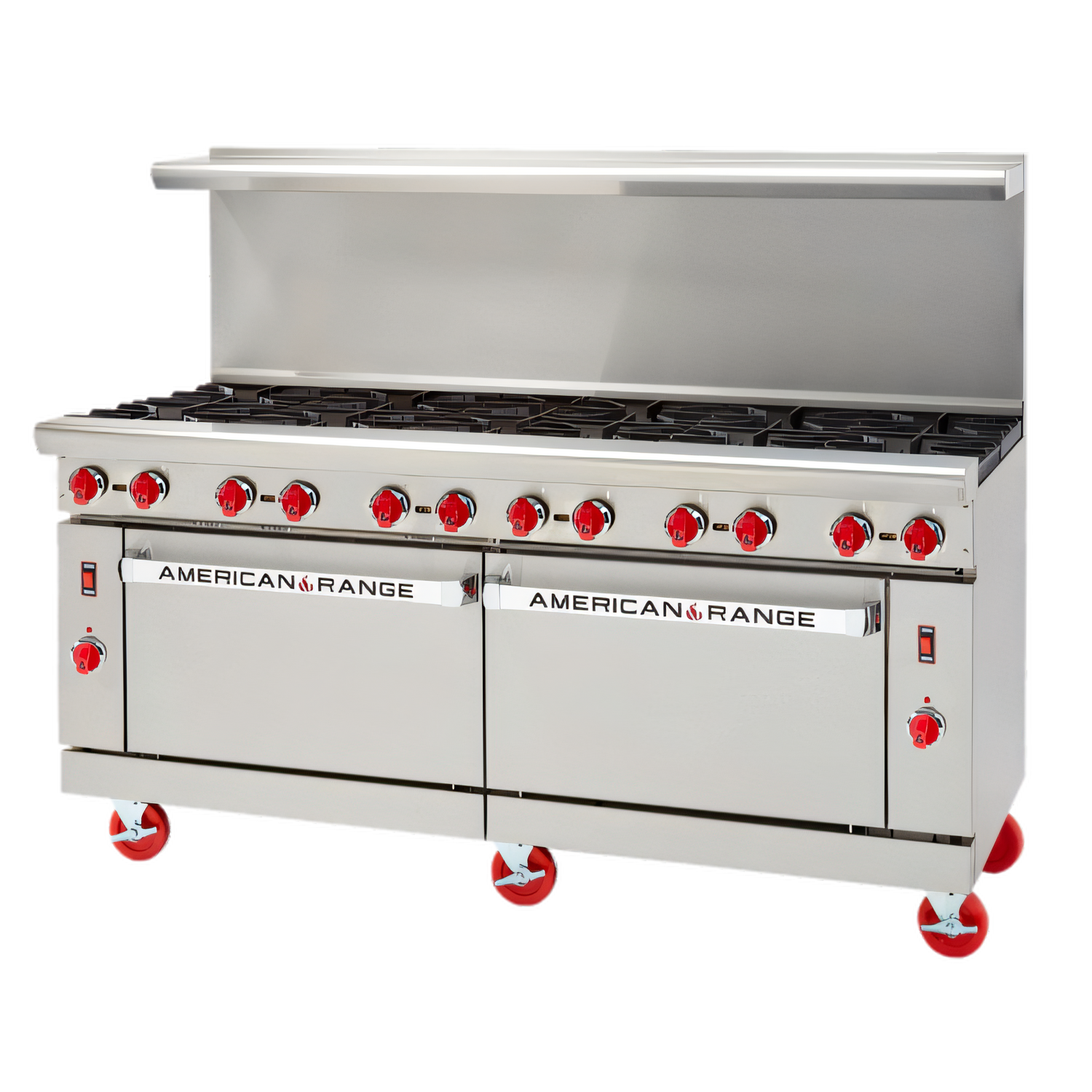

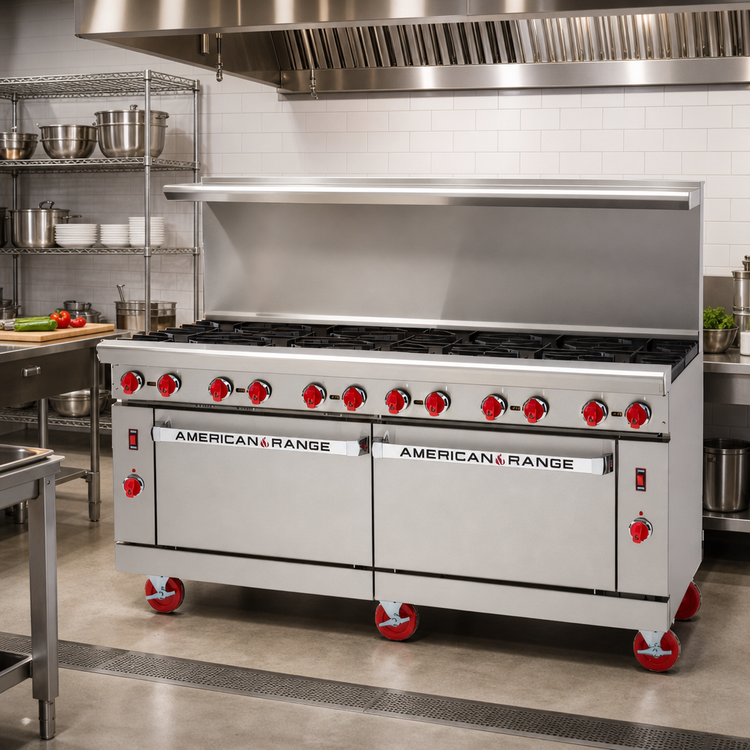

American Range 72" Green Flame™ Range – 12 Open Burners & Dual Standard Ovens (Model ARGF-12)
370,000 BTU | Pilotless Electronic Ignition | Made in the USAEngineered for the busiest commercial kitchens, the American Range Green Flame™ ARGF-12 delivers relentless power, rock-solid construction and money-saving pilotless ignition—all in a 72" footprint that keeps up with high-volume demand.
Performance & Convenience

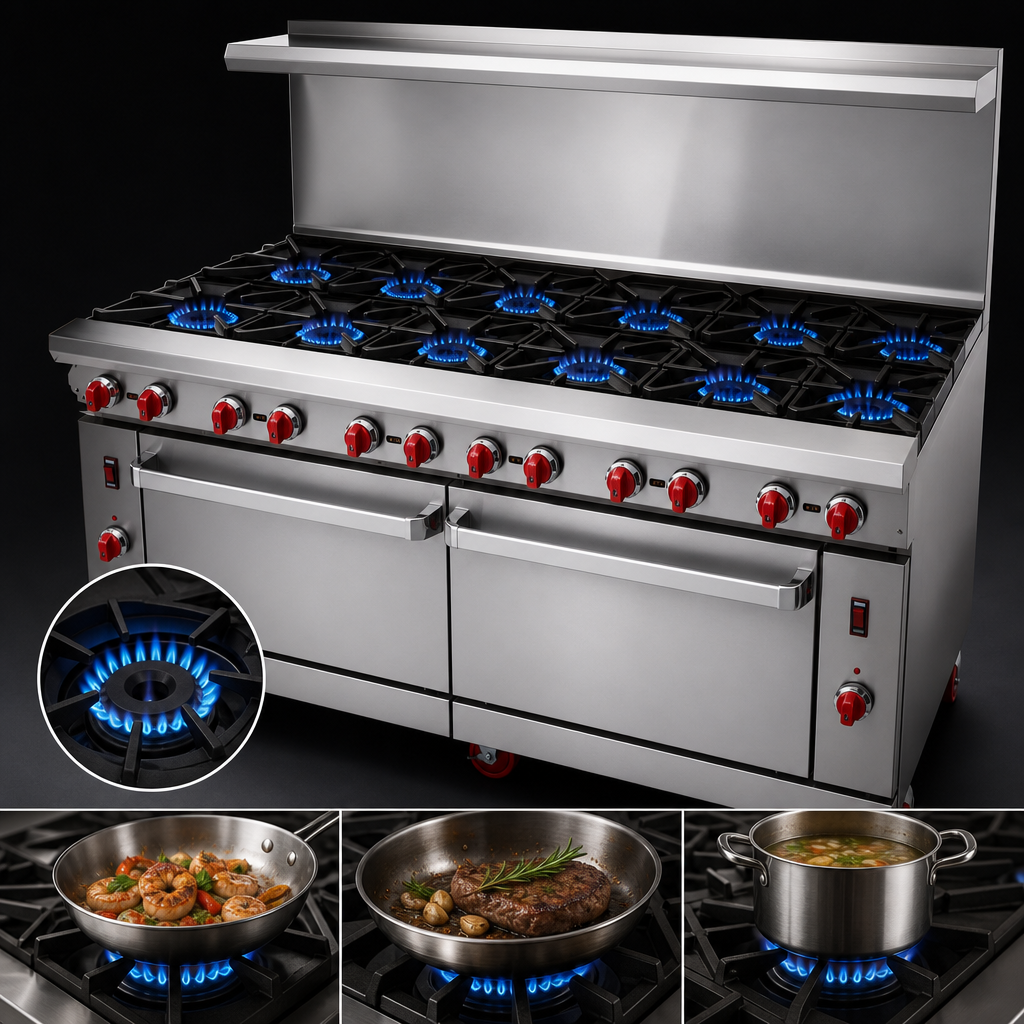

- Twelve 12" × 12" heavy-duty cast-iron grates with 25,000 BTU/hr open burners (total cook-top output 300,000 BTU).
- Electronic, pilot-free ignition on every burner for lower energy costs and a cooler kitchen.

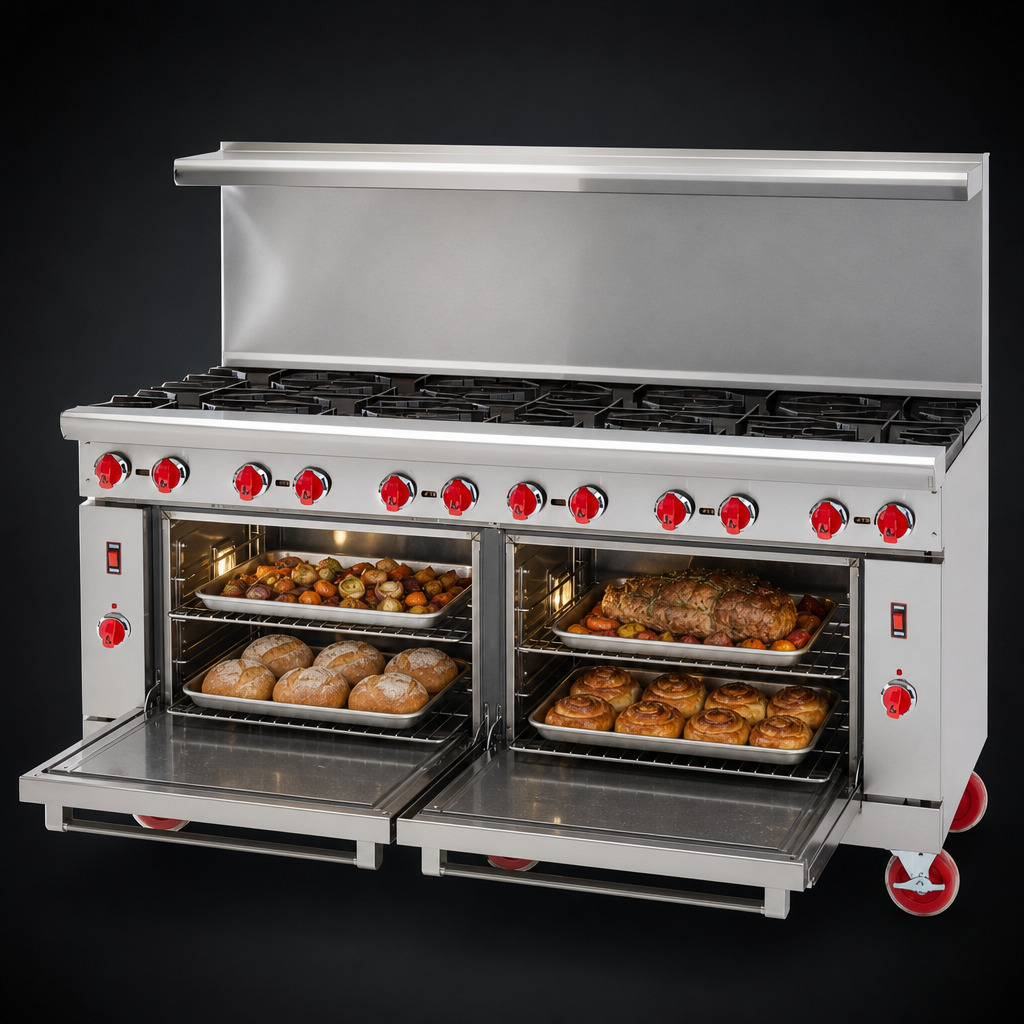

- Two full-size 26 1/2" standard ovens, each with a 35,000 BTU/hr steel burner, porcelain-enamel interior and 250 °F – 500 °F thermostat.
- Each oven ships with two chrome racks and two fixed rack positions; additional racks available.
- Spring-assisted, counter-weighted oven doors require no adjustment and stay open where you set them.
- Stainless-steel front, sides, 6" deep landing ledge and removable full-width crumb tray for easy clean-up.
- 6" adjustable chrome-plated legs included; optional locking casters available.
- Choose the back & shelf that suits your line: 6" stub back, 20" high riser or 24" high shelf/riser (optional).
- Rear 3/4" NPT gas connection with pressure regulator; 115 V, 15 A cord & plug supplied for ignition system.
Technical Specifications
| Model | ARGF-12 |
|---|---|
| Overall Dimensions (W × D × H) | 72" × 32 1/2" × 56" (with 6" legs & 24" riser) |
| Cooking Surface Height | 36" |
| Total BTU / kW | 370,000 BTU / 108 kW |
| Open Burners | 12 × 25,000 BTU/hr, 12" × 12" grates |
| Ovens | 2 Standard (35,000 BTU/hr each) – cavity 26 1/2" W × 22 1/2" D × 13 1/2" H |
| Thermostat Range | 250 °F – 500 °F (121 °C – 260 °C) |
| Gas Type | Natural or LP (specify when ordering) |
| Gas Inlet | 3/4" NPT (rear) |
| Electrical | 115 V / 60 Hz / 1-Ph, 4 A (3-prong cord included) |
| Certifications | cETLus, ETL-Sanitation |
| Origin | Designed & Built in the USA |
Why Choose Green Flame™?
- Energy Smart – Pilotless electronic ignition eliminates constant gas flow to standing pilots.
- Fast Recovery – High-output burners keep pace during peak service.
- Simplicity – No-tools lift-off burners and grates accelerate nightly cleaning.
- Reliability – All-stainless chassis resists corrosion; heavy-gauge components endure daily abuse.
- Service Friendly – Front-accessible gas shut-off and snap-in ignition parts reduce downtime.
Warranty
Backed by a two-year, parts & labor limited warranty with nationwide American Range authorized service. Replacement parts carry a 90-day warranty.
Combustible wall clearance: 0" sides/rear when installed under a compliant hood system.
Specifications subject to change without notice.
