American Range ARGF-12-CC Gas Ranges
Description

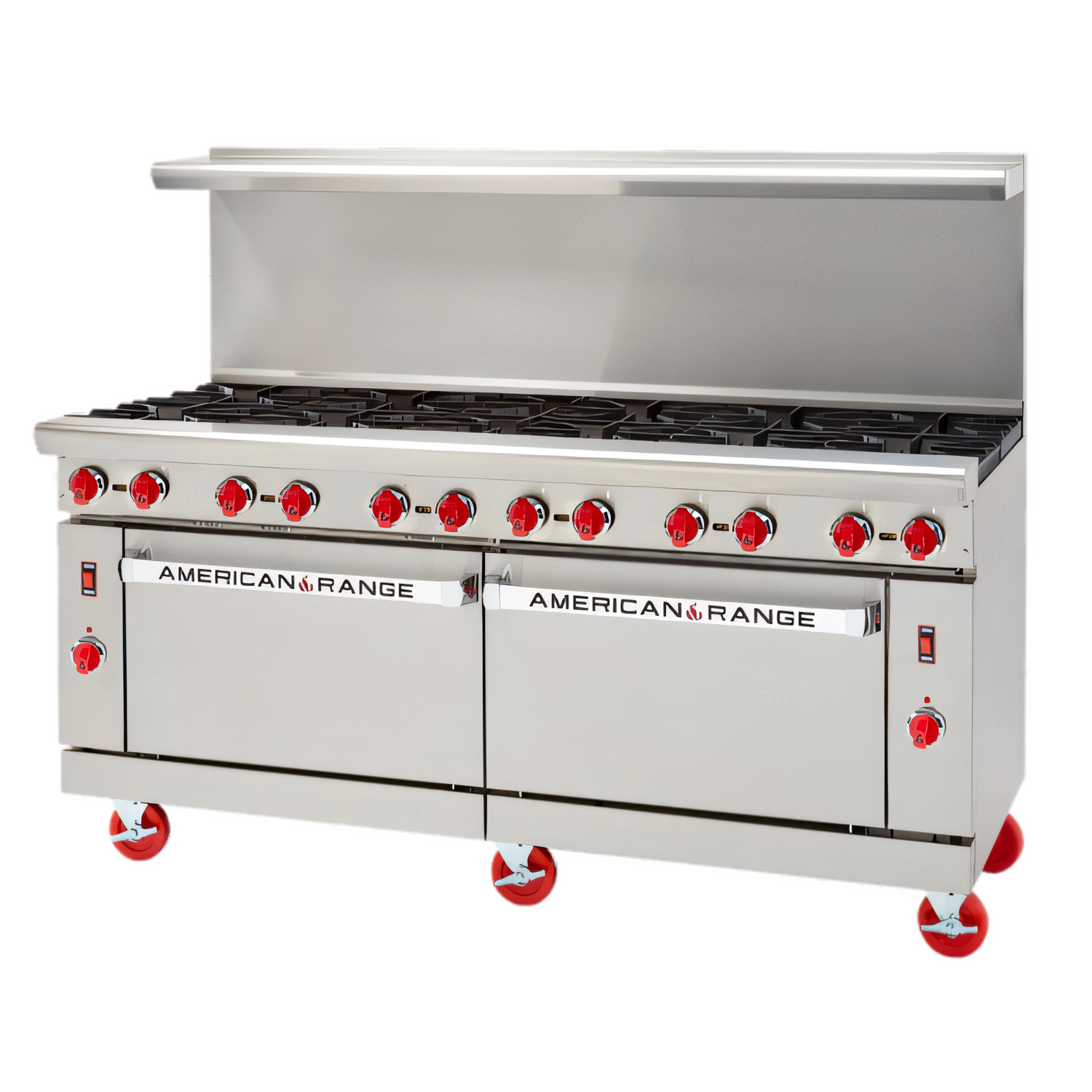

American Range 72" Green Flame Gas Range – 12 Open Burners & Double Convection Ovens
360,000 BTU • Pilotless Electronic Ignition • Made in USABuilt for demanding, high-volume kitchens, the Green Flame series from American Range delivers maximum cooking power while slashing energy waste. Twelve high-output burners, twin convection ovens and a rugged stainless-steel chassis make this 72" workhorse the centerpiece of any cook line.
Key Features

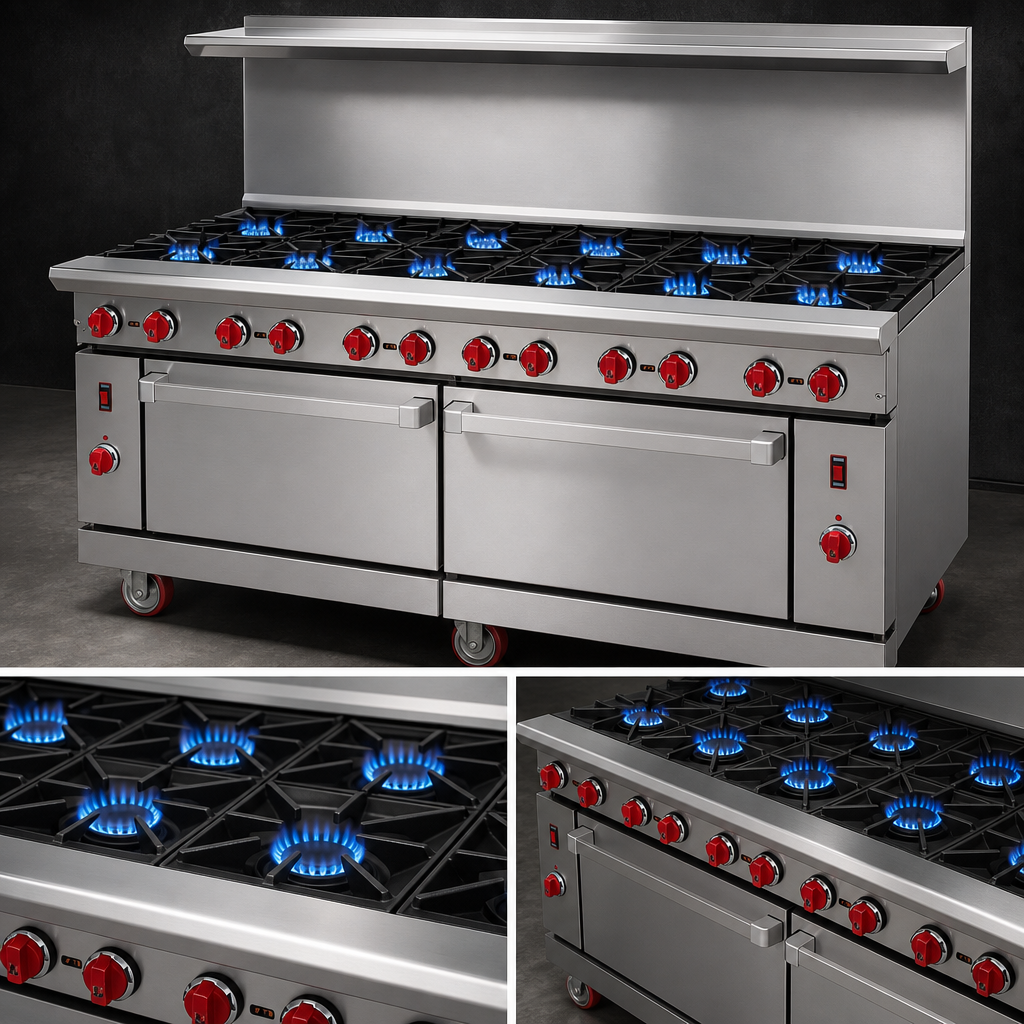

- 12 × 25,000 BTU open burners (300,000 BTU top) with pilotless electronic spark ignition
- Heavy-duty 12" × 12" cast-iron grates handle oversize stock pots with ease
- Full-width, slide-out drip pan for quick end-of-shift cleanup

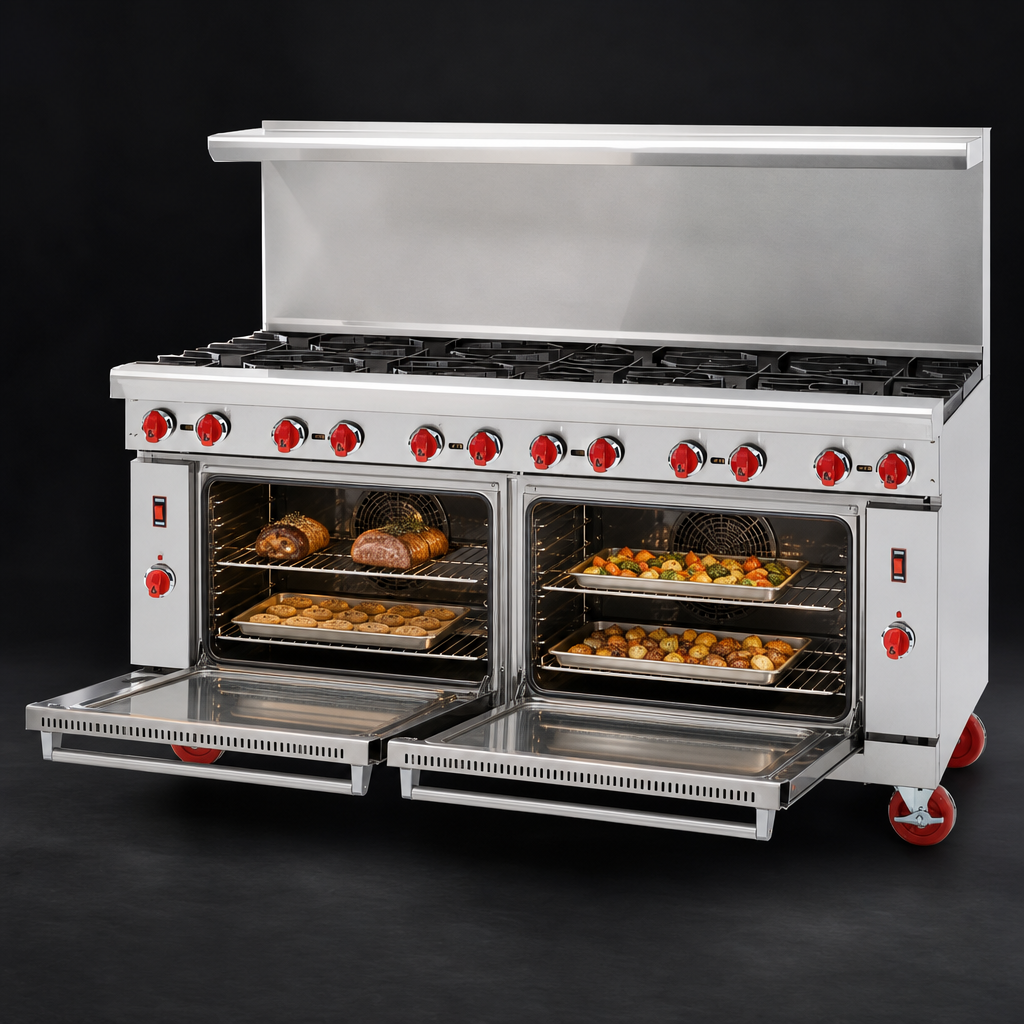

- Two 26-1/2" convection ovens, 30,000 BTU each, with porcelain interiors and five rack positions
- Includes two chrome-plated racks per oven (four total)
- Oven thermostats adjustable from 250 °F to 500 °F
- Stainless-steel front, sides and 6" deep landing ledge stand up to daily abuse
- Choice of 20" high riser with shelf or 6" stub back
- 6" chrome-plated adjustable legs (optional swivel casters available)
- cETLus & ETL-Sanitation listed for gas safety and hygiene compliance
- Proudly designed & built in the USA and backed by a 2-year parts & labor warranty
Technical Specifications
| Model | ARGF-12-CC (Green Flame Series) |
|---|---|
| Overall width | 72" (1829 mm) |
| Depth | 32-1/2" (826 mm) including 6" landing ledge |
| Height | 56" (1422 mm) with 20" riser & 6" legs |
| Work surface height | 36" (914 mm) |
| Open burners | 12 × 25,000 BTU (pilotless) |
| Ovens | 2 × 30,000 BTU convection |
| Total input | 360,000 BTU/hr (107 kW) |
| Gas connection | 3/4" NPT rear manifold |
| Manifold pressure | Natural 5.0" W.C. | LP 10.0" W.C. |
| Electrical | 115 V • 1 Ph • 4 A – 6' cord with NEMA 5-15P plug (ignition & fans) |
| Shipping weight | Approx. 1,167 lb (529 kg) |
| Approvals | cETLus • ETL-Sanitation |
Clearances: 0" from non-combustible surfaces. When next to combustible construction allow 12" (305 mm) on each side and 4" (102 mm) at the rear. Commercial ventilation is required.
Why Green Flame?
- Electronic ignition eliminates standing pilots—save up to 35 % in annual gas costs
- Reduces ambient heat, creating a cooler, more comfortable kitchen
- Instant, reliable burner lighting every time—no matches needed
What’s in the Box
- American Range 72" Green Flame range with 6" adjustable legs
- Four chrome oven racks
- Removable full-width drip pan
- Factory-installed 115 V power cord
- Owner’s manual & warranty registration card
Warranty
Your Green Flame range is protected by a two-year, parts & labor limited warranty. Register the unit within 90 days of shipment to activate full coverage.
