American Range ARGF-10-CL Gas Ranges
Description

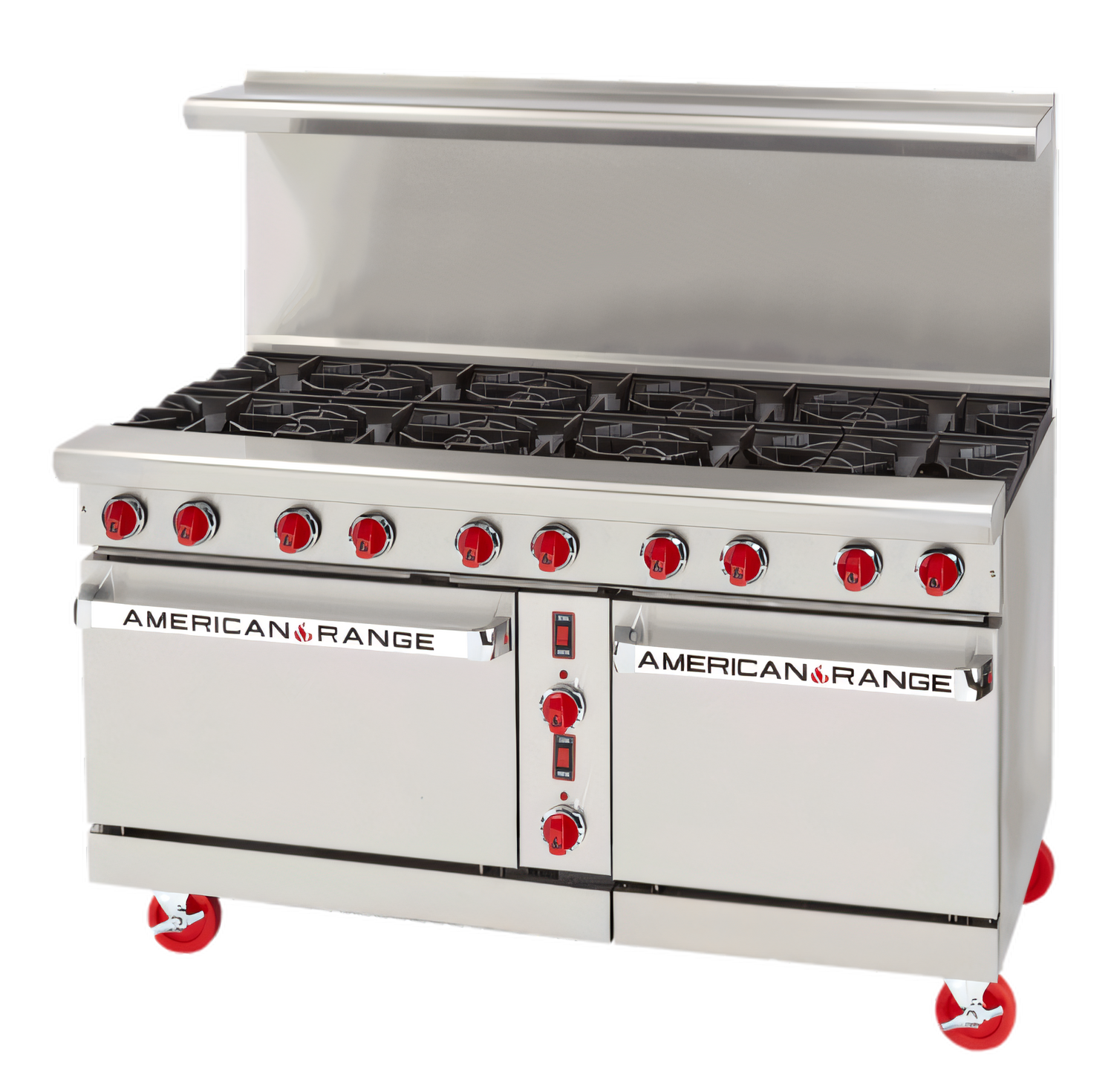

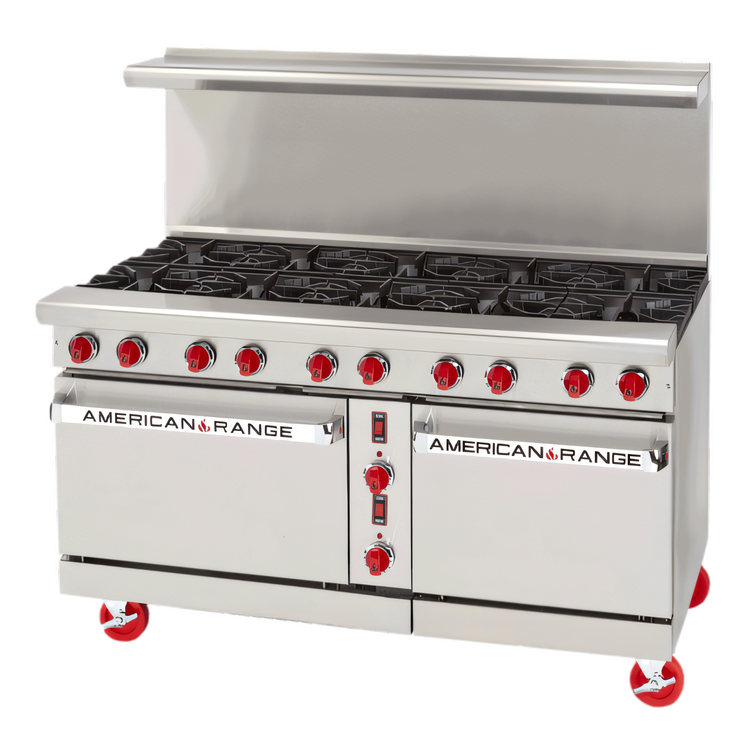

American Range 60" Green Flame™ Range – 10-Burner / Convection-&-Space-Saver Oven
Model ARGF-10-CL | Natural or LP GasBuilt for high-volume, energy-conscious kitchens, the 60-inch Green Flame™ range couples ten pilot-free open burners with a powerful convection oven on the left and a space-saving standard oven on the right. Rugged stainless construction, rapid electronic ignition and American-made reliability keep you cooking — not waiting.
Why you’ll love it

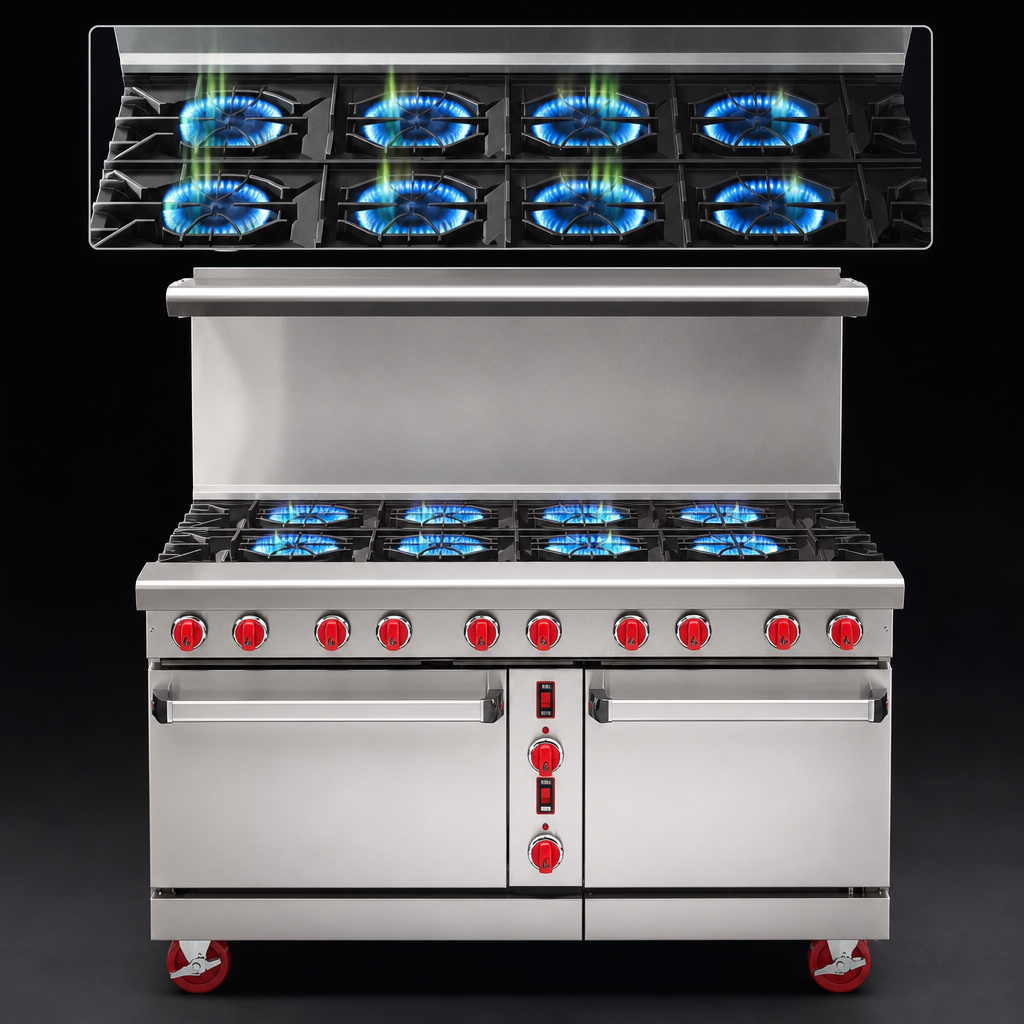

- 10 × 25,000 BTU cast-iron open burners with electronic, pilot-less ignition
- 12" × 12" lift-off grates & full-width drip pan for fast clean-ups

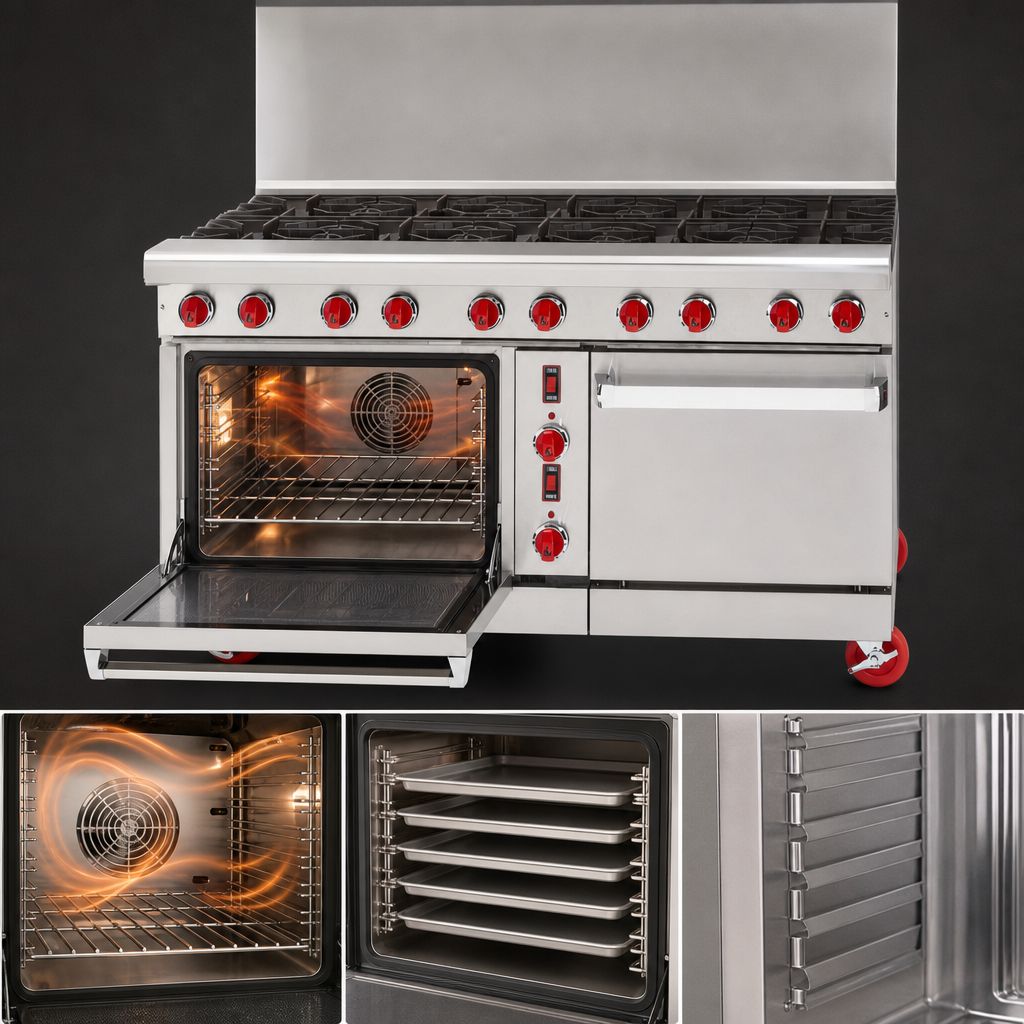

- 26-1/2" convection oven (left) – 35,000 BTU steel burner, porcelain interior, 3-speed fan for even bake
- 20" space-saver standard oven (right) – 27,000 BTU burner, porcelain interior
- Both ovens include two chrome racks & thermostats 250 – 500 °F (121 – 260 °C)
- Green Flame ignition on all burners and ovens – no standing pilots, lower utility costs
- Cool-touch, high-temperature burner knobs built to endure the rush
- 6" deep front landing ledge keeps pans & spices in easy reach
- Choice of 20" high shelf & riser, standard 20" riser, or 6" stub back – no added charge
- 6" adjustable chrome-plated legs (casters optional)
- 100 % gas safety shut-off valve for peace of mind
- cETLus & ETL-Sanitation listed – built to NSF/ANSI standards
- Proudly made in the USA & protected by a 2-year parts-and-labor warranty
Technical specifications
| Overall width | 60" (1524 mm) |
|---|---|
| Depth (to landing ledge) | 32-1/2" (826 mm) |
| Height | 56" (1422 mm) with high shelf 36-3/8" (924 mm) to cook surface |
| Open burners | 10 × 25,000 BTU (7.3 kW) each, cast-iron heads |
| Oven configuration | Left: 26-1/2" convection, 35,000 BTU Right: 20" space-saver standard, 27,000 BTU |
| Total gas input | 307,000 BTU/hr (90.0 kW) |
| Gas connection | 3/4" NPT rear manifold – 5" WC natural / 10" WC propane |
| Electrical (convection fan) | 120 V, 1-phase, 1.4 A – factory-installed cord & plug |
| Shipping weight | ≈ 816 lb (370 kg) |
| Construction | Stainless steel front, sides, back & landing ledge; porcelain oven liners |
| Country of origin | USA |
Looking for a griddle top, storage base or casters? Reach out — American Range customizes Green Flame™ ranges to match your exact cooking line.
