American Range  |  SKU: ARGB-24

American Range ARGB-24 Gas Griddles

$3,405.55
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Warranty sheet
Related Searches
American Range Bar Trays Gas Griddles Griddles & Flat Tops Smallwares Trays & Accessories

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

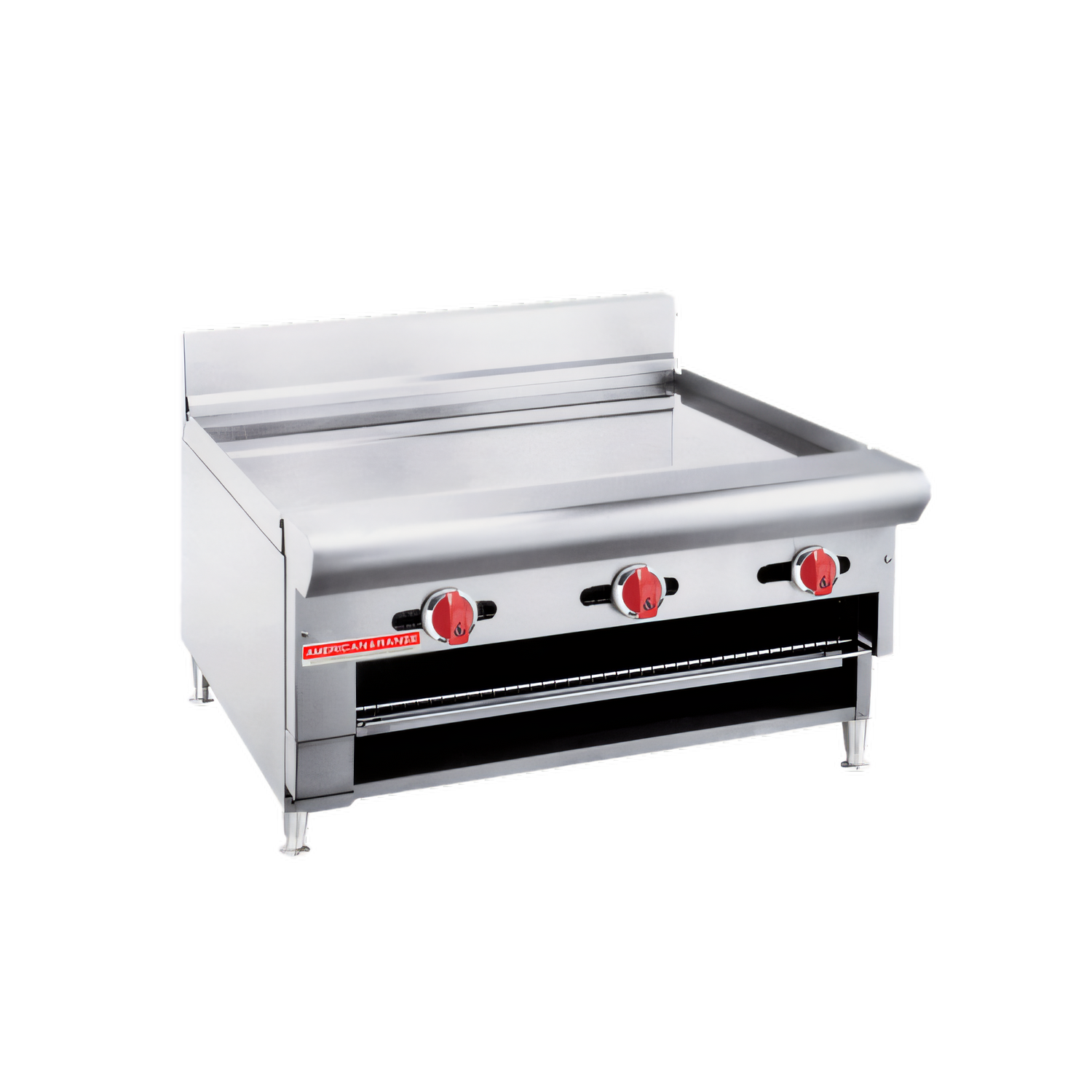

American Range ARGB-24 Raised Griddle / Broiler – 24" Gas Countertop

3/4" Polished Steel Plate | 40,000 BTU | Made in USA

Serve breakfast, lunch and dinner from one compact station. The American Range ARGB-24 combines a high-capacity griddle with a powerful radiant broiler, giving you sizzling grilling space on top and finishing power underneath—perfect for short-order lines, food trucks and satellite kitchens.

Key Features

  • 24" wide countertop unit delivers broiling and griddling in just 30" of depth.
  • 3/4" thick factory-polished steel griddle plate stores and evenly distributes heat.
  • (2) 20,000 BTU burners (40,000 BTU total) with individual manual controls and standing pilots.
  • Heat-deflector shields channel energy downward to the broiler for maximum efficiency.
  • Pull-out broiler rack with removable grease tray for easy access and cleanup.
  • 3" wide front grease trough plus a dedicated griddle grease tray keep work areas clean.
  • All-stainless front and sides resist corrosion and wipe down fast.
  • 4" adjustable stainless legs level the unit on any counter.
  • ETL Sanitation & cETLus listed for use in the USA and Canada.
  • Designed & built in California and backed by a two-year parts & labor warranty.

Specifications

Model ARGB-24
Cooking surface 24" W x 24" D (610 mm x 610 mm) griddle
Plate thickness 3/4" (19 mm) polished steel
Broiler rack Pull-out, removable with grease tray
Burners 2 radiant burners, 20,000 BTU each
Total output 40,000 BTU/hr (12 kW)
Controls Manual gas valves with standing pilots
Gas connection 3/4" NPT (rear) – specify Natural or LP
Overall dimensions 24" W x 30" D x 16" H (610 mm x 762 mm x 407 mm)
Clearances Non-combustible: 0" sides/rear  |  Combustible: 12" sides, 4" rear
Certifications ETL-Sanitation, cETLus
Warranty 2-year parts & labor (90 days broiler components)
Shipping weight ≈ 330 lb (150 kg)
Gas notice: Appliance must be installed by a qualified technician and connected to the correct gas type selected at purchase. Proper ventilation per NFPA 96 is required.

Also available in 36" and 48" widths. Contact us for details.

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

16.0in

Width

24.0in

Depth

32.0in

Shipping Weight

330.0lbs

Plate Thickness

3/4"

Broiler Rack

2 position pull out broiler rack

Construction

stainless steel

Specifications

Raised Griddle/Broiler, gas, 24" wide cooking surface, countertop, 3/4" thick polished griddle plate, (2) burners, manual controls, pull out broiler rack, removable broiler grease tray, 4" legs, 3" wide grease trough with grease tray, stainless steel front and sides, 12.0kW, 40,000 BTU, ETL-Sanitation, cETLus, Made in USA
