American Range ARCM-60 Cheese Melters
American Range ARCM-60 Cheese Melters is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range ARCM-60 Cheese Melters
Description

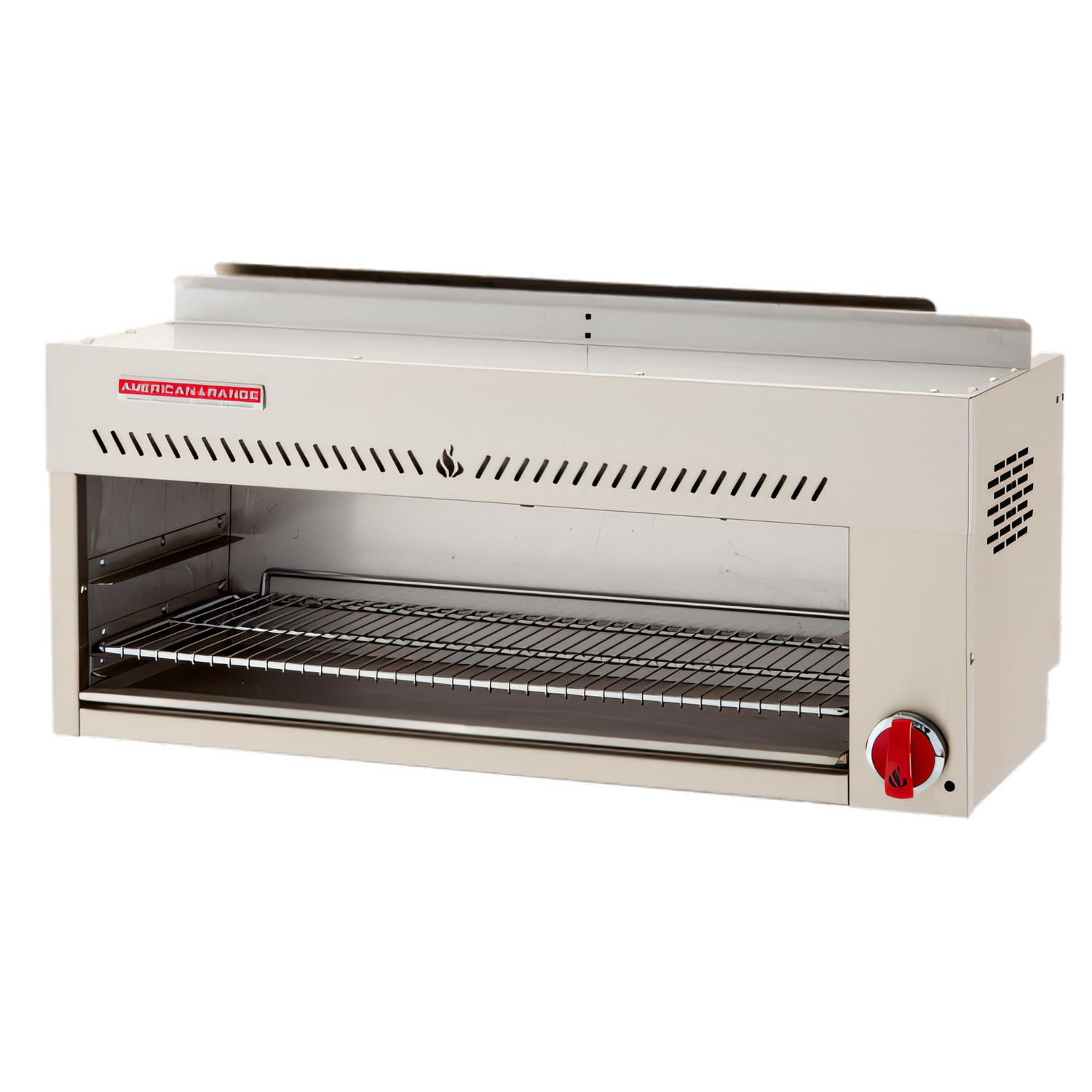

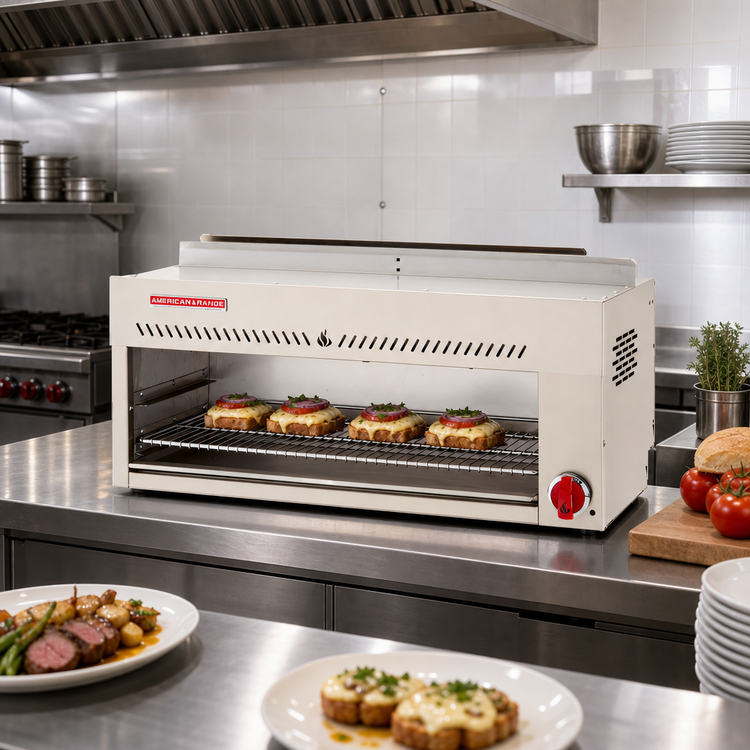

American Range ARCM-60 Infrared Gas Cheesemelter – 60"
55,000 BTU • Dual infrared burners • Made in USABuilt for the demands of busy commercial kitchens, the 60-inch American Range ARCM-60 cheesemelter finishes entrées, melts cheese, and browns casseroles in seconds. Dual atmospheric infrared burners blanket food with even, penetrating heat while manual control valves give chefs instant, precise command. Fabricated in heavy-gauge stainless steel and backed by a 2-year parts & labor warranty, this is the high-performance finishing station you can count on every shift.
Why You’ll Love It
- 55,000 BTU / 17.0 kW of concentrated infrared power for lightning-fast finishing

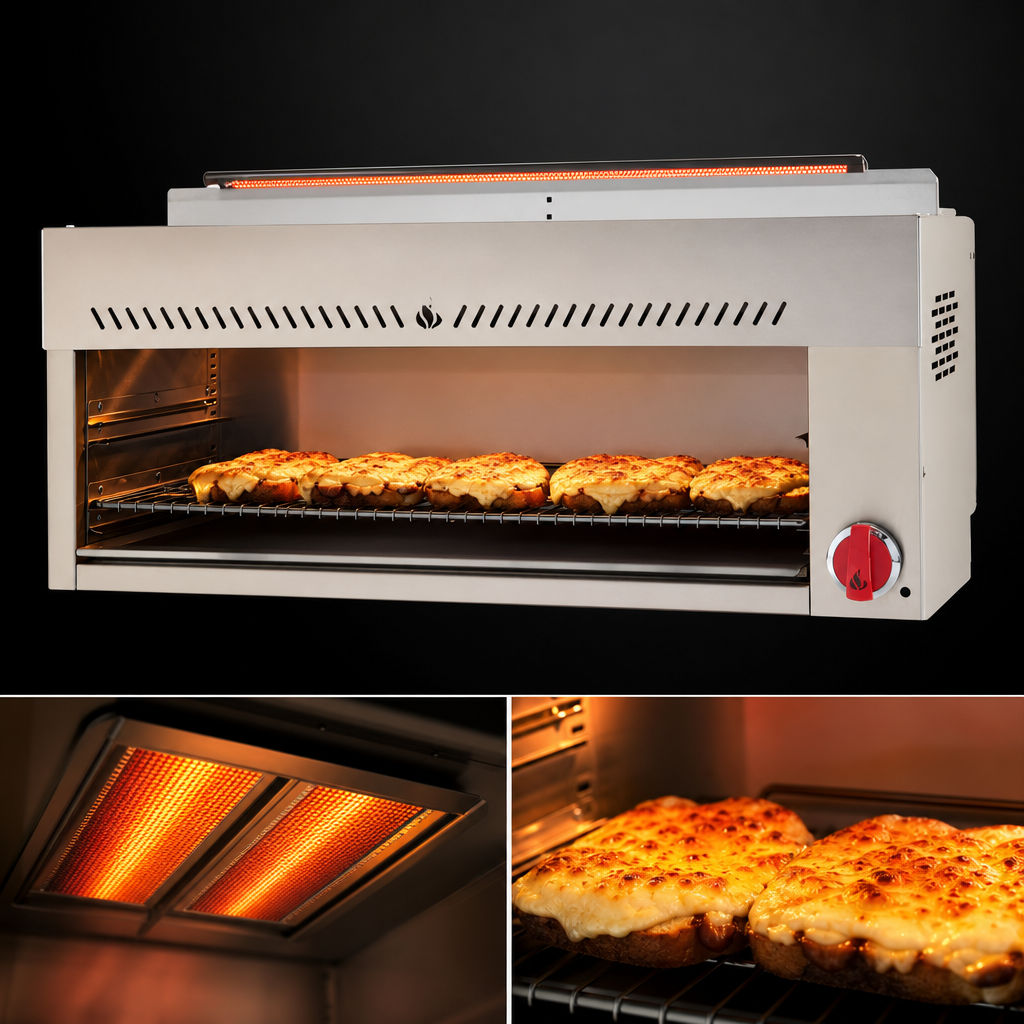

- Two independent burners with standing pilots—light instantly and run only where you need heat
- Manual infinite valves for effortless intensity adjustments on the fly
- One chrome-plated rack with three position guides—dial in perfect caramelization every time
- Removable full-width drip pan makes end-of-night cleanup quick and sanitary

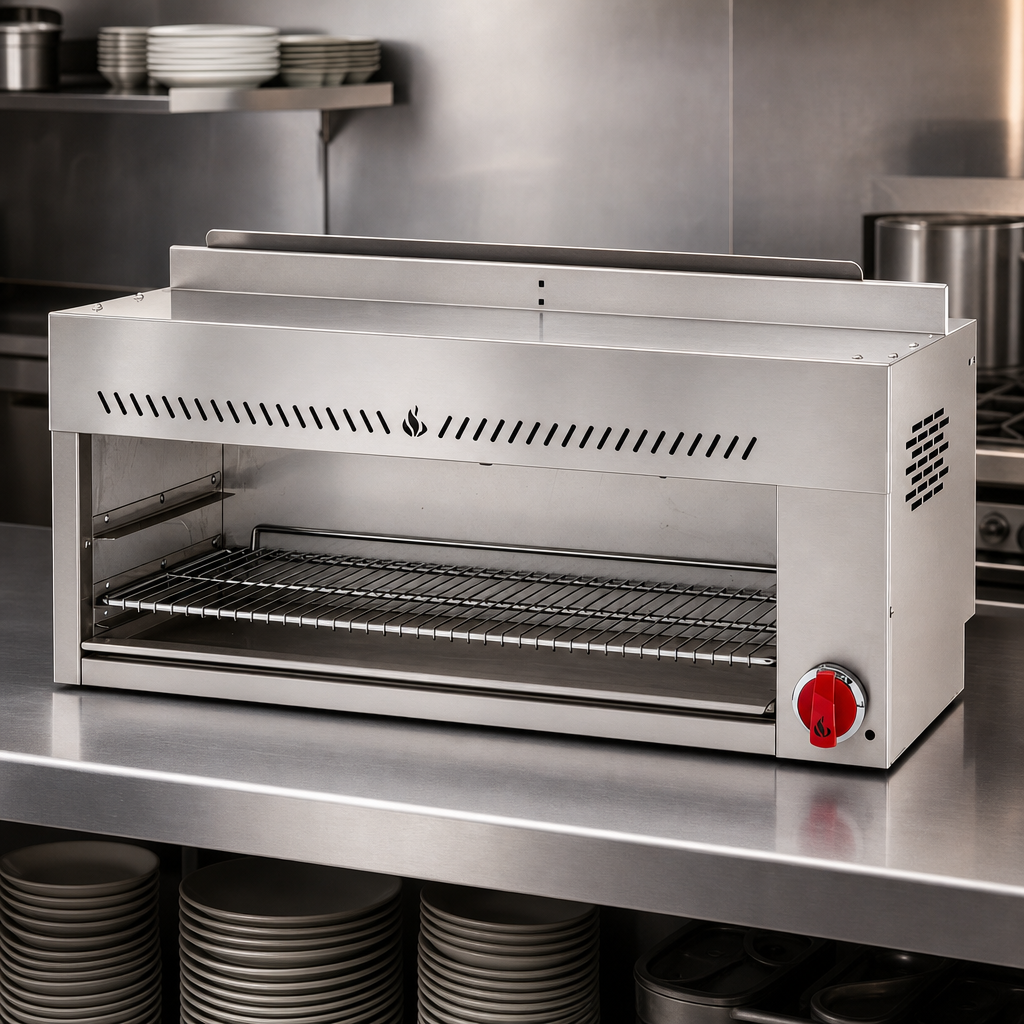

- Heavy-gauge stainless steel front, sides, and top stand up to daily abuse and wipe clean
- Flexible installation—countertop, wall-mounted, or shelf-mounted above American Range ranges
- ETL & ETL-Sanitation listed; 3/4" NPT rear gas inlet and pressure regulator included
- Designed, engineered, and built in California, USA
Technical Specifications
| Model | ARCM-60 |
|---|---|
| Heat Source | Gas (Natural or LP) Please specify at time of order |
| Total Output | 55,000 BTU/hr | 17.0 kW |
| Burners | 2 atmospheric infrared burners with standing pilots |
| Controls | Manual infinite valves (1 per burner) |
| Rack System | 1 chrome-plated food rack, 3 height positions |
| Exterior Dimensions | 60" W × 19 3/16" D × 15" H (1524 × 487 × 381 mm) |
| Gas Connection | 3/4" rear NPT (pressure regulator supplied) |
| Shipping Weight | Approx. 224 lb (102 kg) |
| Certifications | ETL, ETL-Sanitation (NSF equivalent) |
| Warranty | 2-year limited parts & labor |
Mounting & Clearance
- Ships ready for countertop use with rear flue deflector
- Optional wall-mount and range-top channel kits available
- 4" adjustable legs kit available for additional clearance
- For use on non-combustible surfaces only; clearance to non-combustible walls: 0"
Give every plate a picture-perfect finish—upgrade your kitchen lineup with the American Range ARCM-60 cheesemelter today.
