American Range  |  SKU: ARCM-48

American Range ARCM-48 Cheese Melters

$2,308.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Mounting instructions 1 Mounting instructions 2 Mounting instructions 3 Wall mount instructions Warranty sheet
Related Searches
Broilers Charbroilers & Grills Cheese Melters Cheesemelters Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

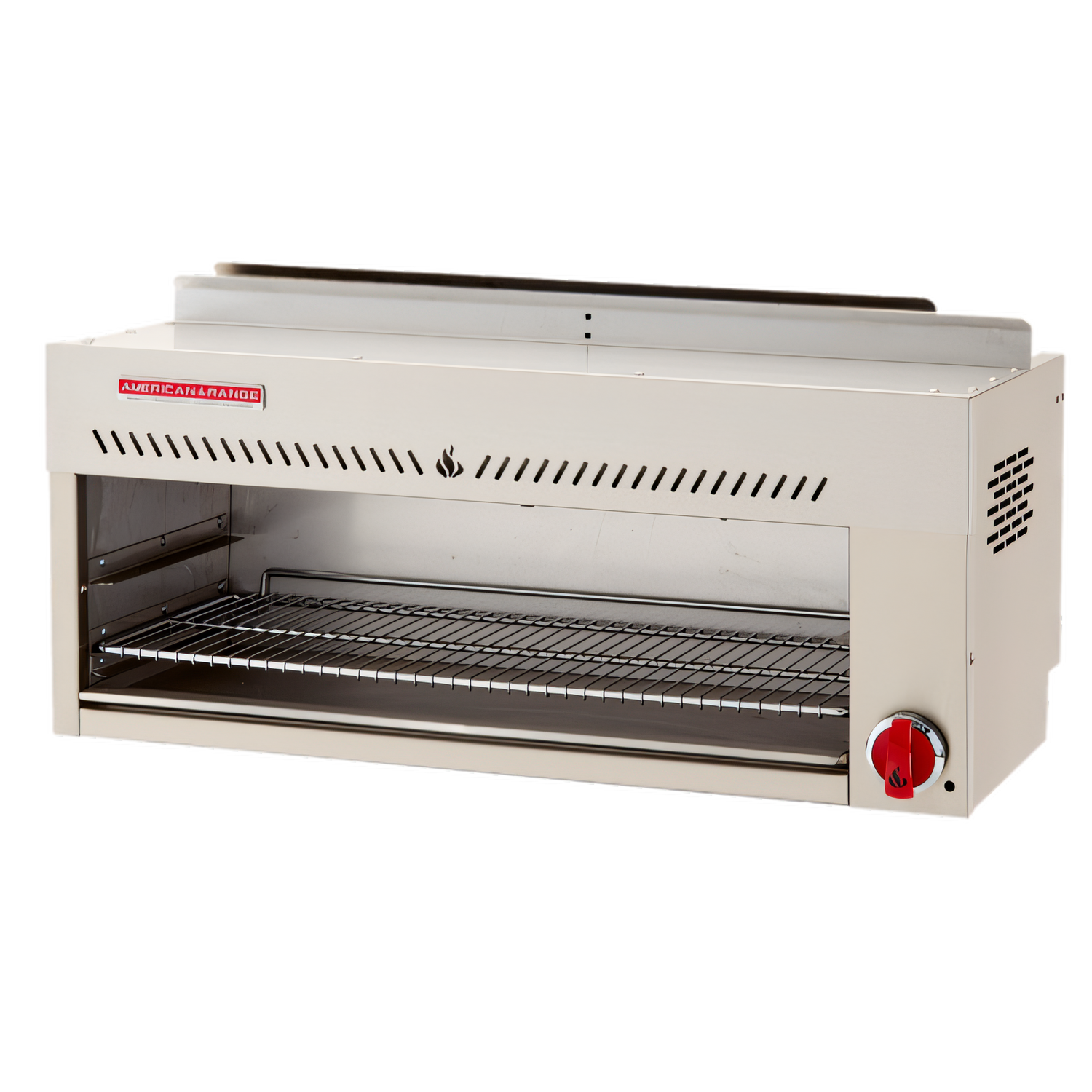

American Range ARCM-48 Gas Infrared Cheesemelter – 48"

40,000 BTU | 2 Infrared Burners | Made in USA

Finish, melt and brown with speed and consistency right on the line. The 48" ARCM-48 Cheesemelter from American Range delivers 40,000 BTU of intense infrared heat in a heavy-duty, all-stainless package engineered for daily commercial use.

Key Features

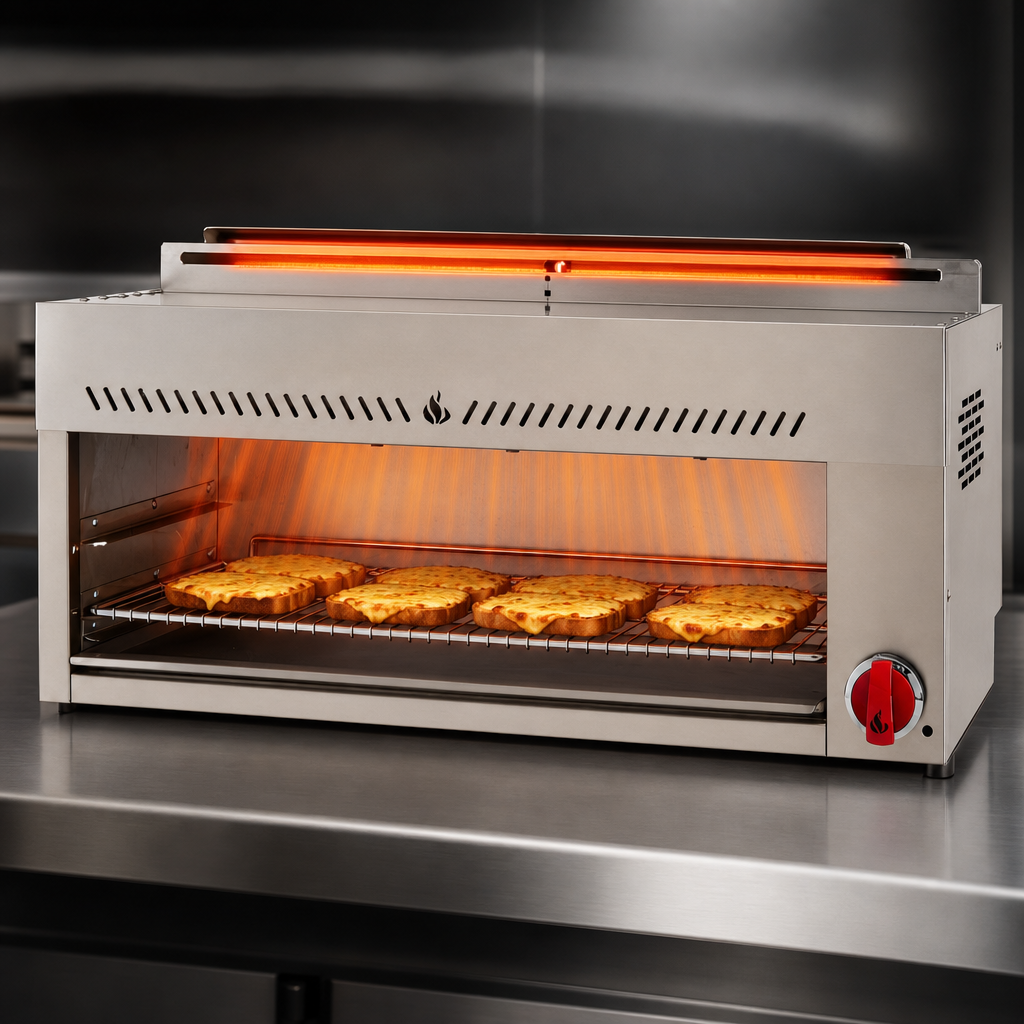

  • Two atmospheric infrared burners for instant, even heat distribution

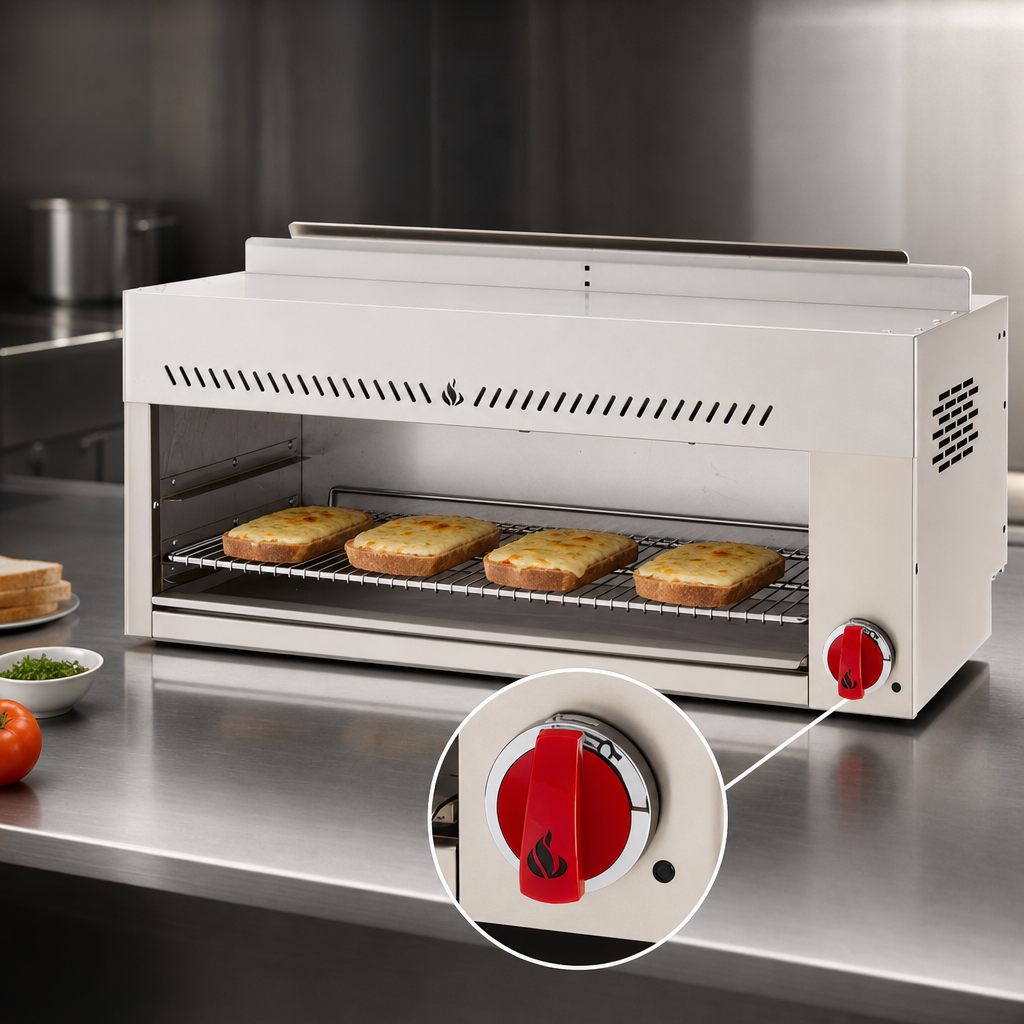

  • Individual manual gas valves with standing pilots – ignite either side on demand to save energy
  • Chrome-plated food rack with 3 height positions for precise finishing control
  • Full-width, removable drip pan for fast, tool-free cleanup
  • Heavy-gauge stainless steel front, sides & top for maximum durability
  • Countertop, wall-mount or range-mount installation flexibility (kits sold separately)
  • ETL & ETL-Sanitation listed
  • Built, tested and supported in California, USA

Specifications

Model ARCM-48
Gas Type Natural or LP (field convertible)
Total BTU 40,000 BTU/hr (12 kW)
Burners 2 atmospheric infrared
Controls Manual valves with standing pilots
Cooking Rack 1 chrome rack, 3-position guides
Exterior Dimensions 48" W × 19 3/16" D × 15" H (1219 × 487 × 381 mm)
Gas Inlet 3/4" NPT (rear connection)
Manifold Pressure Natural 5.0" W.C. | LP 10.0" W.C.
Shipping Weight Approx. 188 lb (85 kg)
Certifications ETL, ETL-Sanitation
Warranty 2-year limited parts & labor

Installation Options

  • Countertop (standard)
  • Wall-mount bracket kit (PN 70308/70309)
  • Range-mount channels for American Range AR-Series ovens
  • Adjustable 4" legs

Mounting hardware and legs are optional accessories unless specified at time of order.

Perfect For

  • Melting cheese on burgers, nachos or open-face sandwiches
  • Browning casseroles, au gratin, or potato dishes
  • Flash-heating plated entrées without overcooking
  • Caramelizing desserts such as crème brûlée
Gas Notice: Unit must be connected by a licensed professional and installed under an adequate ventilation hood. Specify gas type and altitude (over 2,000 ft) when ordering.

Upgrade your finishing station with the reliability chefs trust—order the American Range ARCM-48 today!

Features & Specs

Manufacturer

American Range

Certifications

ETL, Made in USA

Height

21.5in

Width

48.0in

Depth

18.0in

Shipping Weight

188.0lbs

Exterior Finish

stainless steel front & sides

Rack Positions

3

Width (side - side)

37" - 48"

Heat type

infrared

Mounting

specify

Specifications

Cheesemelter, gas, 48" wide, (2) infrared burners, manual controls with pilot, (1) rack with 3-rack position, stainless steel construction, 12.0kW, 40,000 BTU, ETL, Made in USA
