American Range AR-8B-24RG-DSB Gas Ranges
Description
American Range 72" Gas Restaurant Range w/ 24" Raised Griddle & Twin Storage Bases – 296,000 BTU
Model AR-8B-24RG-DSB | Made in the USAPush more plates through the pass with this heavy-duty 72-inch American Range. Eight powerful open burners sit alongside a raised 24-inch griddle/broiler, all over two full-width storage bases—giving chefs a versatile cooking station that stands up to the punishing pace of a commercial kitchen.
Key Features

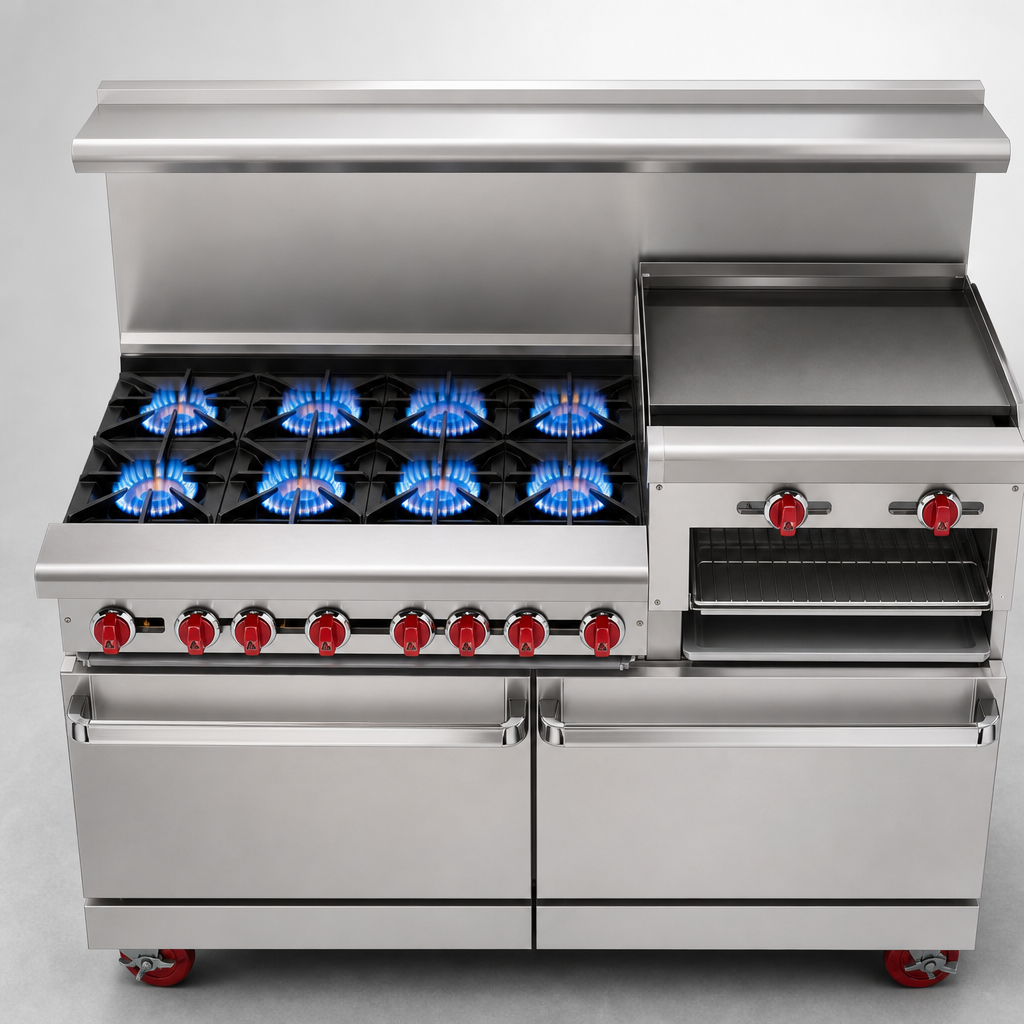

- Eight 32,000 BTU lift-off open burners with 12" × 12" cast-iron top grates.
- Full-width removable drip pan for quick, tool-free cleanup.

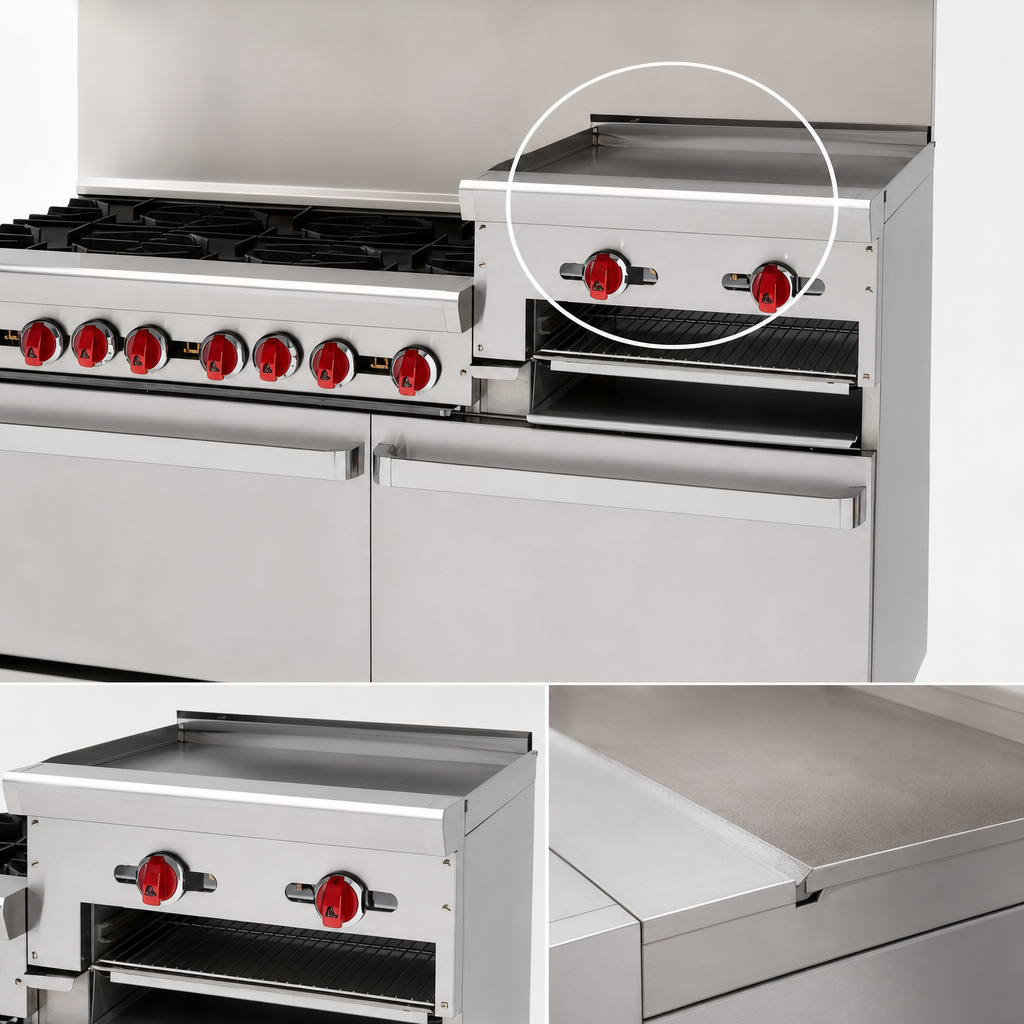

- Right-side 24" raised griddle/broiler:
- 3⁄4" thick polished steel plate distributes heat evenly and recovers fast.
- Two 20,000 BTU burners (one every 12").
- Lower broiler rack—perfect for finishing steaks, melts or gratins.
- 3" wide grease trough with large-capacity collector.
- Two 26-1/2" wide storage bases keep sheet pans, stock pots and utensils right where you need them.
- All-stainless steel front, sides, landing ledge and 6" deep front rail.
- Choice of 20" high back riser with shelf or 6" stub back (included).
- 6" adjustable chrome-plated legs level the unit on uneven floors.
- Simple, dependable manual gas valves—no electronics to service.
- Field convertible Natural or LP gas (specify at order); 3/4" rear NPT connection.
- cETLus & ETL-Sanitation listed to NSF/ANSI standards.
- Backed by a 2-year limited parts & labor warranty.
Performance & Specs
| Total Input | 296,000 BTU/hr (87 kW) |
|---|---|
| Open Burners | 8 × 32,000 BTU |
| Griddle/Broiler Burners | 2 × 20,000 BTU |
| Griddle Plate | 24" W | 3⁄4" (19 mm) thick steel |
| Dimensions (W × D) | 72" × 32-1/2" (1829 × 826 mm) |
| Cook Height | 36" to burner grate | 44" to griddle surface |
| Backguard Options | 20" riser w/ shelf or 6" stub back |
| Gas Manifold Pressure | Natural 5.0" W.C. | LP 10.0" W.C. |
| Gas Inlet | 3/4" NPT (rear connection) |
| Shipping Weight | ≈ 745 lb (338 kg) |
Perfect For
- High-volume restaurants & diners
- Catering halls & banquet operations
- Commissary & ghost kitchens
- Institutional foodservice—schools, healthcare, corrections
Looking for convection ovens, thermostat-controlled griddles, or custom burner layouts? Contact us—American Range can build a configuration to match your exact workflow.
