American Range AR-8B-24RG-126L-SBR Gas Ranges

72" Gas Restaurant Range – 8 Burners & 24" Raised Griddle/Broiler

Built for high-volume kitchens that refuse to compromise on versatility, this American Range 72" restaurant range delivers searing power, precision baking, and a space-saving broiler in one rugged, USA-made platform.

Why you’ll love it

• 331,000 BTU total output (97 kW) – instant heat for every station.

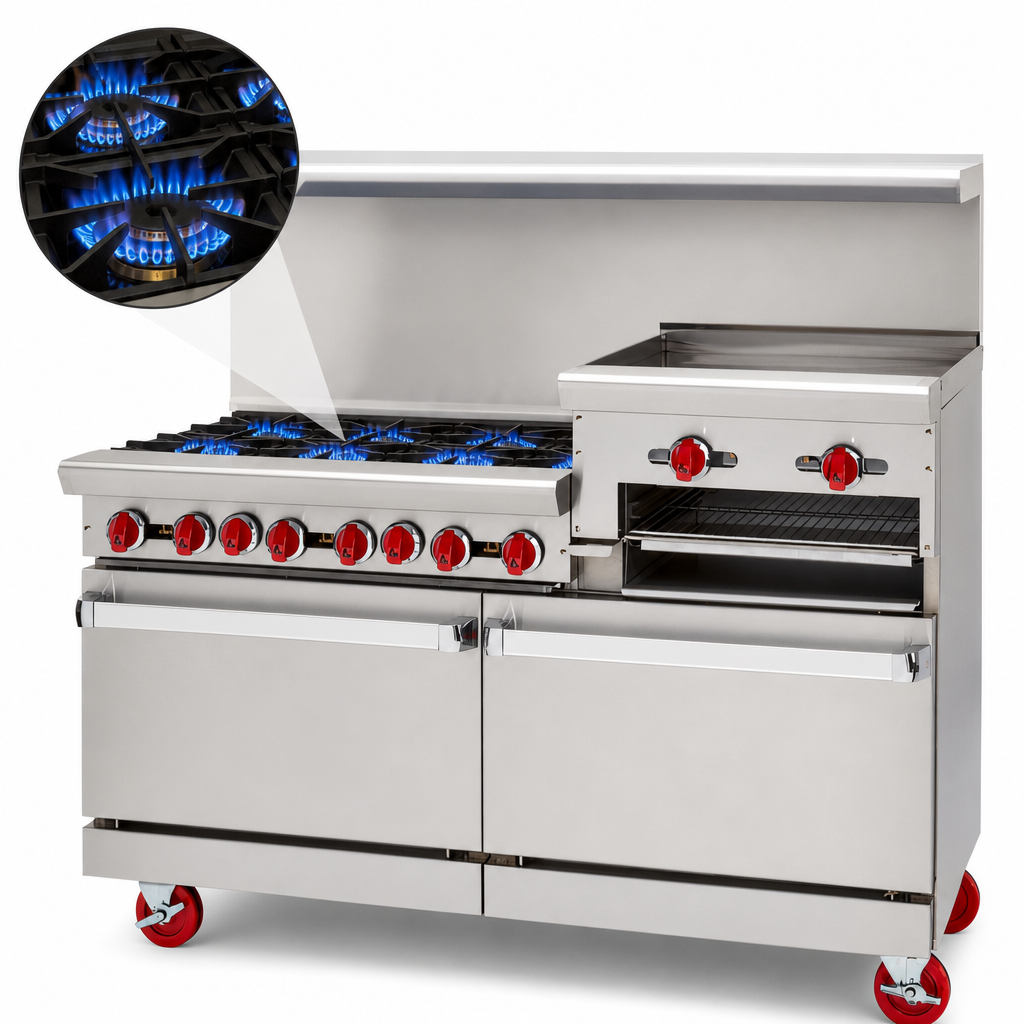

• Eight 32,000 BTU lift-off open burners with no-clog design & 12" × 12" cast-iron grates.

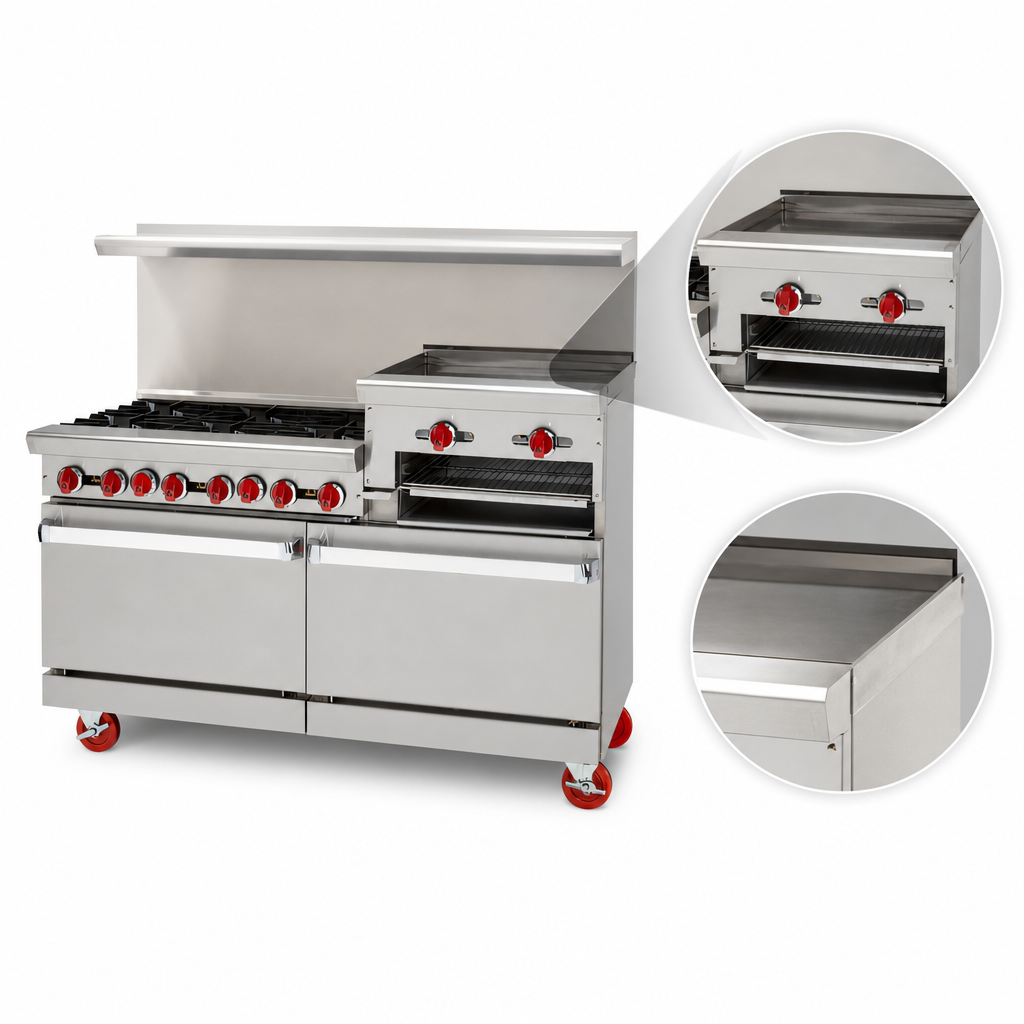

• Right-side 24" raised griddle/broiler with a ¾" thick steel plate and manual controls.
• Left-side 26½" standard oven (30,000 BTU) with thermostat from 250 °F – 500 °F & two chrome racks.
• Right-side 26½" storage base keeps sheet pans and utensils close at hand.
• Removable full-width drip pan and porcelain-enameled oven interior speed up end-of-shift clean-up.
• Stainless steel front, sides, landing ledge & backguard stand up to the busiest line.
• Choose your backsplash: 6" stub back, 20" riser, or high shelf – all at no extra charge.
• 6" adjustable chrome-plated legs level the unit on uneven floors.
• Certified cETLus & ETL-Sanitation; designed & built in the USA.

Cooktop performance

• Open burners include removable burner heads, standing pilots & individual manual controls.
• Raised griddle/broiler burner: 20,000 BTU per 12"; 3" grease trough simplifies fat management.
• Heavy-duty cast-iron top grates are reversible for wok or stock-pot work.
• Full-width drip tray pulls out for rapid cleaning.

Oven & base

• 26½" W × 22½" D × 13½" H oven cavity fits full-size sheet pans front-to-back.
• Spring-assist, counter-weight door stays cool to the touch.
• Storage base matches oven dimensions for uniform look & maximized under-counter capacity.

Technical specifications

Shipping weight: approx. 745 lb. Clearances, gas type & altitude above 2,000 ft must be specified when ordering.

Peace-of-mind warranty

American Range covers this unit with a two-year limited parts & labor warranty (90 days on broiler burners, grates & radiants). Register within 90 days of shipment to activate extended coverage.
