American Range AR-8-DSB Gas Ranges
Description
American Range AR-8-DSB 48" Gas Restaurant Range
8 × 32,000 BTU open burners • Dual 20" storage bases • 256,000 BTU totalBuilt for demanding commercial kitchens, the AR-8-DSB packs eight high-output burners and two full-width storage cabinets into a 48" frame. From fast boiling to low-simmer sauces, it delivers the firepower you need while providing a convenient place to keep sheet pans, stock pots, or smallwares right where you cook.
Why you’ll love it
- Eight 32,000 BTU lift-off open burners—256,000 BTU (75 kW) combined output.
- 12" × 12" cast-iron top grates stand up to daily abuse and distribute heat evenly.

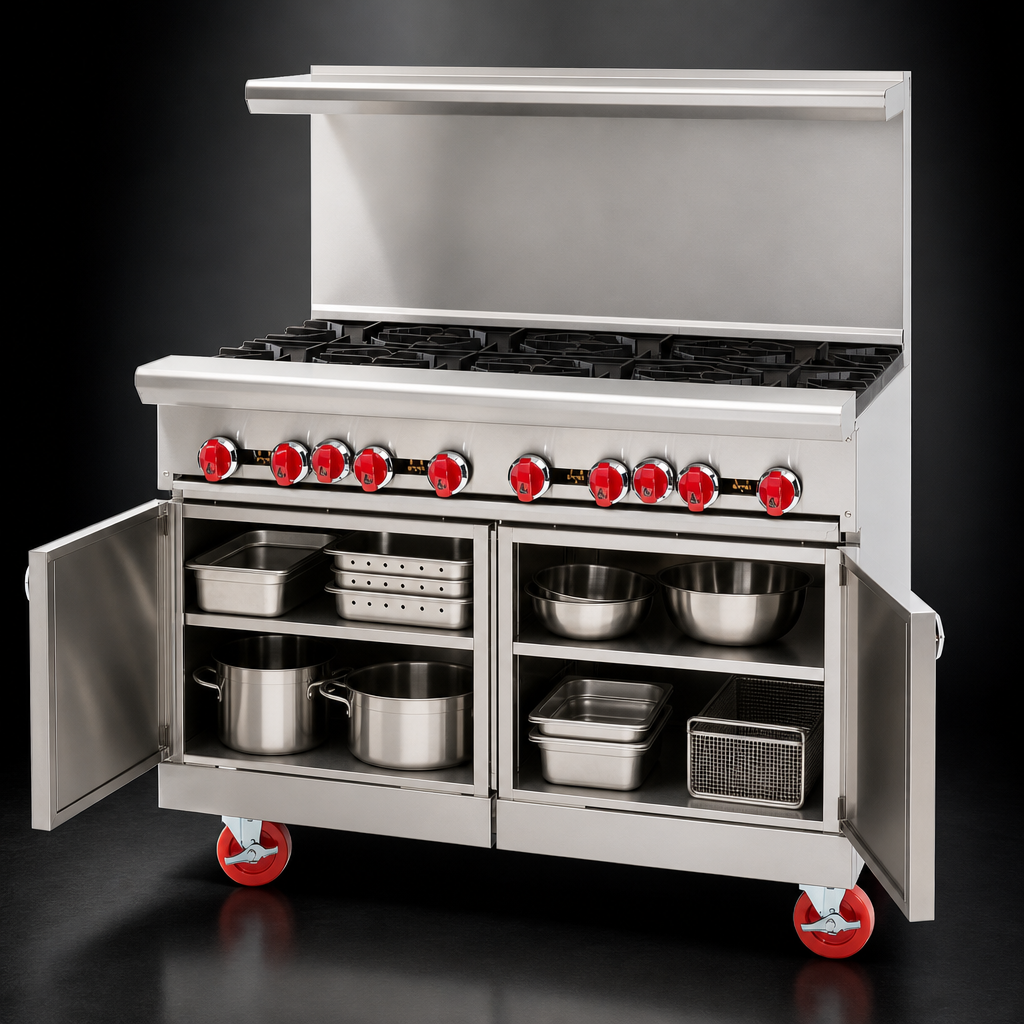

- Two 20" wide storage bases (dry cabinet) in place of ovens—ideal for sheet pans, lids, and utensils.
- Removable, full-width drip pan under the burner box speeds end-of-shift cleanup.
- Stainless steel front, sides, landing ledge, high shelf, and riser for unmatched durability and easy wipe-down.
- Choose the back you need at no extra cost: 6" stub, 20" riser, or high shelf with riser.
- 6" adjustable chrome-plated legs keep the range level on uneven floors.
- Field convertible for Natural Gas or LP (factory-set; specify when ordering).
- cETLus & ETL-Sanitation listed. Designed & built in the USA.
Technical Specs
| Model | AR-8-DSB (Double Storage Base) |
|---|---|
| Total Input | 256,000 BTU/hr • 75 kW |
| Open Burners | 8 × 32,000 BTU lift-off heads, individual manual valves |
| Range Width | 48" (1219 mm) |
| Depth (front to back) | 32 1/2" (826 mm) |
| Cooking Height | 36" (914 mm) to grate surface |
| Overall Height | 56" (1422 mm) with high shelf / 42" (1067 mm) with 20" riser / 41" (1041 mm) with 6" stub back |
| Storage Base Interior (each cabinet) |
20" W × 26 1/2" D × 13 1/2" H (508 × 673 × 343 mm) |
| Gas Connection | 3/4" NPT rear, 5.0" W.C. Natural / 10.0" W.C. LP |
| Shipping Weight | ≈ 460 lb (209 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | Two-year limited parts & labor (90 days on replacement parts & certain components) |
Installation & Clearance Notes
- For use only on non-combustible floors; legs or casters are required, or a 2" curb mount.
- 0" clearance to non-combustible walls. When next to combustible walls, maintain 12" (305 mm) sides and 4" (102 mm) rear clearance.
- Adequate ventilation per NFPA 96 “Vapor Removal from Cooking Equipment” is mandatory.
See full warranty terms and product registration instructions at AmericanRange.com.
