American Range AR-6B-36RG-126L-SBR Gas Ranges
Description
American Range 72" Gas Restaurant Range – 6 Burners, 36" Raised Griddle/Broiler
Standard oven + storage base • 286,000 BTU • Made in USABuilt, designed and certified for the demands of high-volume kitchens, this American Range 72" combo range unites six powerful open burners, a heavy-duty 36" raised griddle/broiler, a full-size standard oven and a convenient storage base in one space-saving platform. Stainless-steel construction, precise manual controls and a two-year parts-and-labor warranty make it a long-term workhorse you can count on shift after shift.
Why you’ll love it

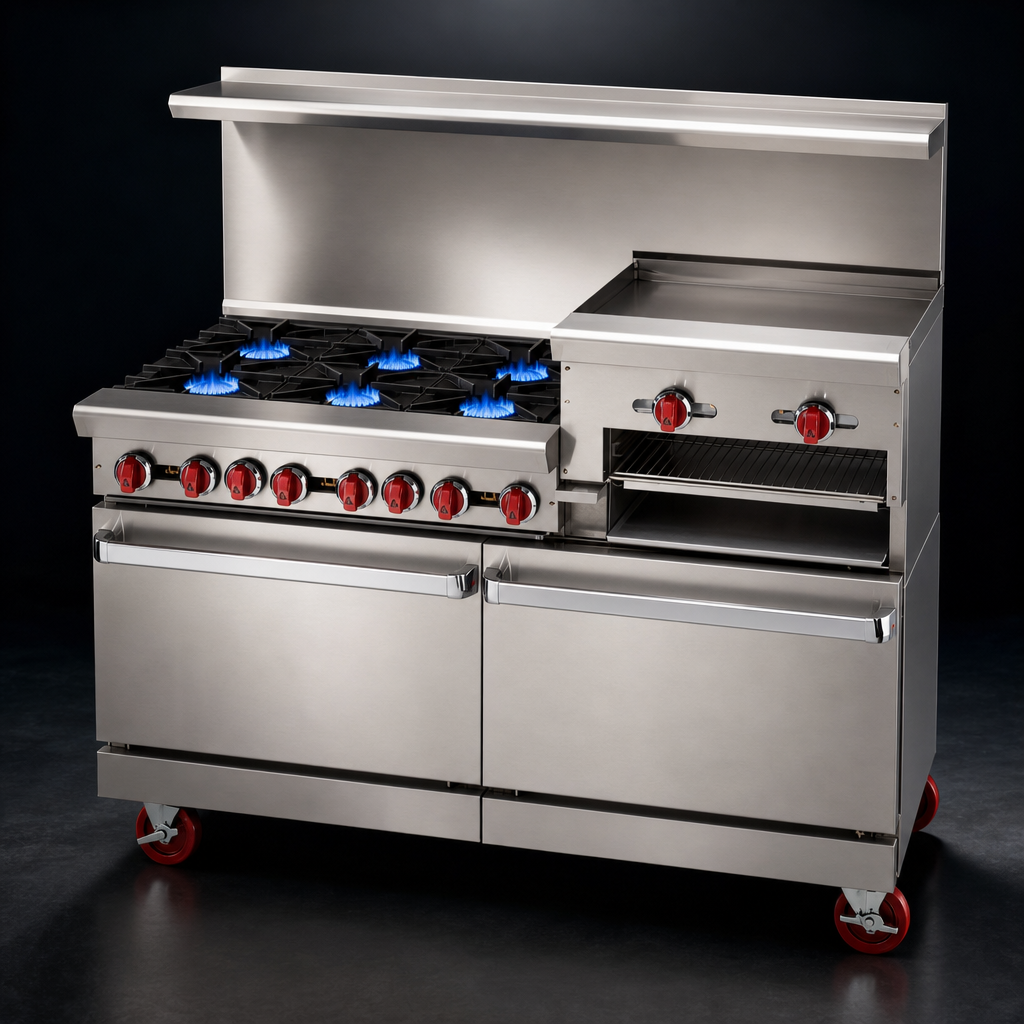

- Blazing burner power – Six lift-off 32,000 BTU open burners (192,000 BTU total) with 12" × 12" cast-iron grates.

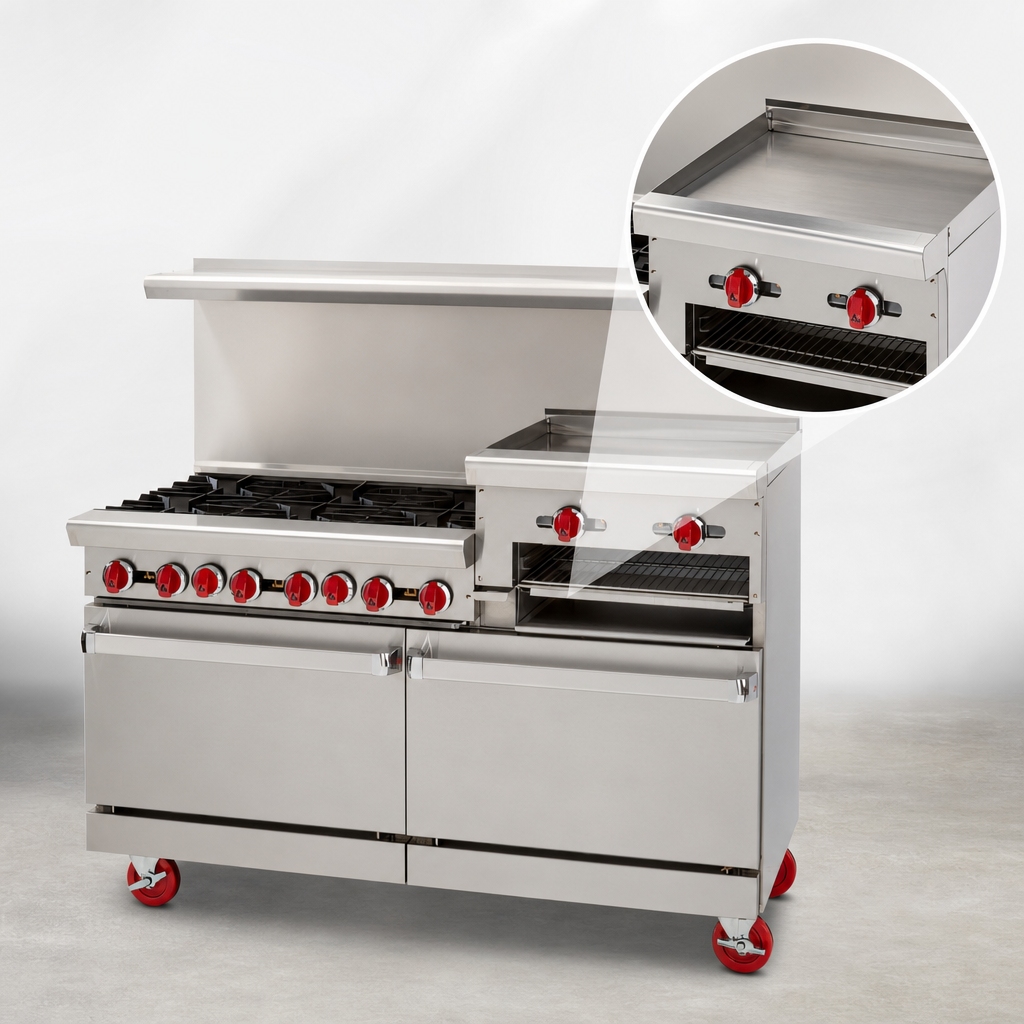

- 3/4" raised griddle & broiler – 36" polished steel plate over three 20,000 BTU burners (60,000 BTU total) for fast recovery and even heat; broiler rack below for finishing steaks, melts and more.
- Full-size oven on the left – 30,000 BTU steel burner, porcelain-enamel interior, 2 chrome racks (5 positions) and a 250 °F – 500 °F thermostat.
- Right-hand storage base – 26-1/2" wide stainless cavity keeps sheet pans, stock pots and utensils within arm’s reach.
- Built for the line – 6" deep front landing ledge, removable full-width drip pans and cool-to-the-touch burner knobs.
- Stainless inside and out – Front, sides, back-riser options and kick plate wipe clean fast and resist corrosion.
- Adjustable 6" chrome-plated legs standard; optional casters available.
- Certified & compliant – cETLus & ETL-Sanitation listed for commercial use.
At-a-glance specs
| Overall width × depth × height* | 72" W × 32 1/2" D × 56" H (with 20" riser) |
|---|---|
| Cooking height | 36" |
| Open burners | 6 × 32,000 BTU lift-off (192,000 BTU) |
| Raised griddle/broiler | 36" W, 3/4" plate, 60,000 BTU (one 20,000 BTU burner every 12") |
| Standard oven | 30,000 BTU; cavity 26 1/2" W × 22 1/2" D × 13 1/2" H; 250 °F – 500 °F |
| Total input | 286,000 BTU / 84.0 kW |
| Gas connection | 3/4" NPT (rear), 5.0" W.C. Natural / 10.0" W.C. LP |
| Construction | Stainless steel front, sides & kick plate; porcelain oven interior |
| Back options (no charge) | 20" high shelf & riser | 6" stub back |
| Certifications | cETLus, ETL-Sanitation |
| Origin | Designed & built in the USA |
*Height to cooking surface is 36"; overall height varies by selected back-riser.
Peace-of-mind warranty
American Range backs this unit with a 2-year limited parts & labor warranty (90-day coverage on broiler burners, grates and radiants). Register your range within 90 days of shipment to maximize coverage.
• Specify gas type (Natural or LP) and altitude above 2,000 ft when ordering.
• For use on non-combustible floors with proper ventilation in accordance with NFPA 96.
• 2" (51 mm) side and 4" (102 mm) rear clearance required from combustible walls.
• Legs or casters must be fitted; curb mounting is not permitted.
Need a different base, convection oven or casters? Chat with us — American Range combo configurations are factory-built to order.
