American Range AR-6B-24RG-126L-SBR Gas Ranges
Description

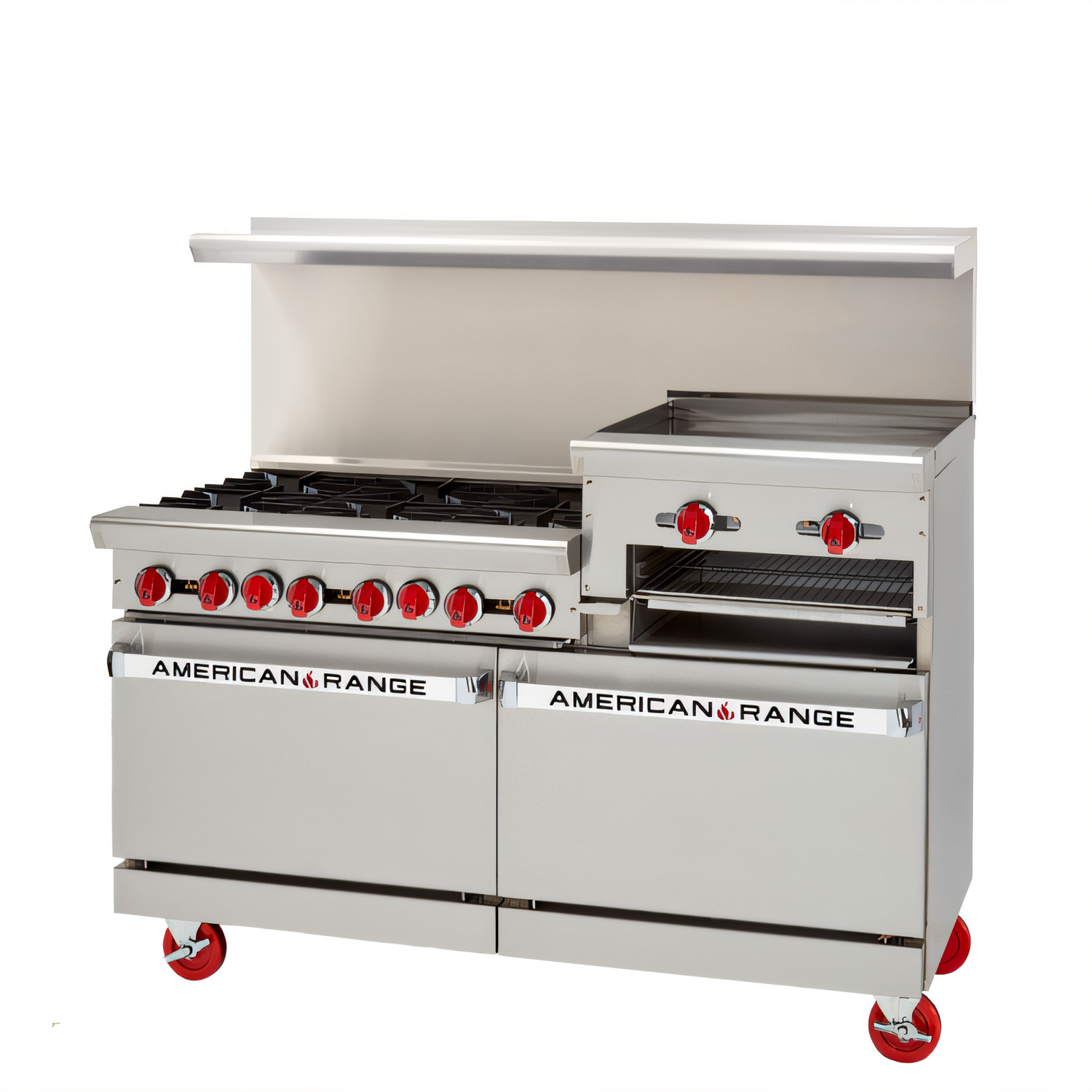

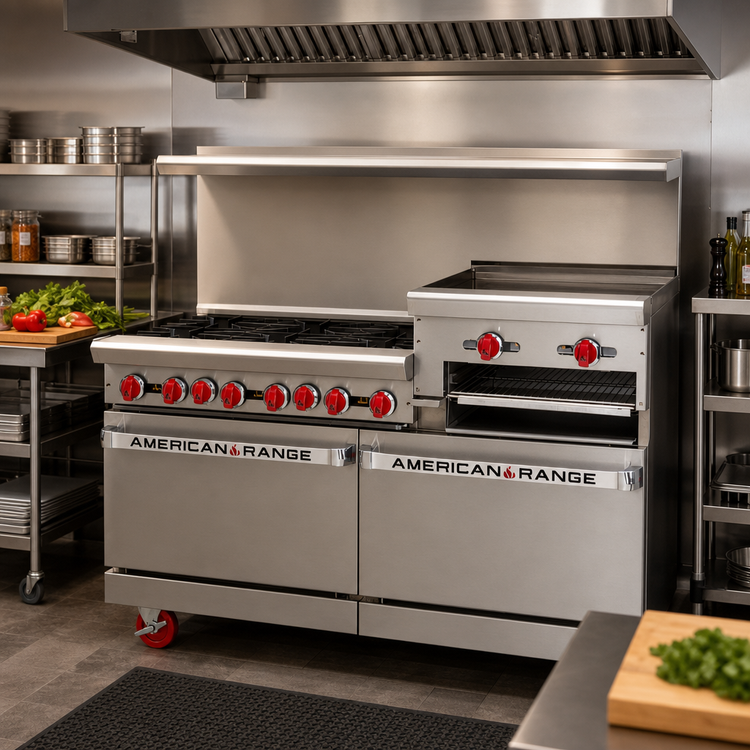

American Range 60" Gas Restaurant Range – 6 Burners, 24" Raised Griddle & Standard Oven
Model AR-6B-24RG-126L-SBR | 267,000 BTU (79 kW)Built, engineered, and certified in the USA, this American Range 60" raised-griddle range gives busy kitchens the power and versatility of six high-performance open burners, a heavy-duty elevated griddle/broiler, a full-size standard oven, and convenient dry-storage — all in one rugged stainless-steel footprint.
Key Features

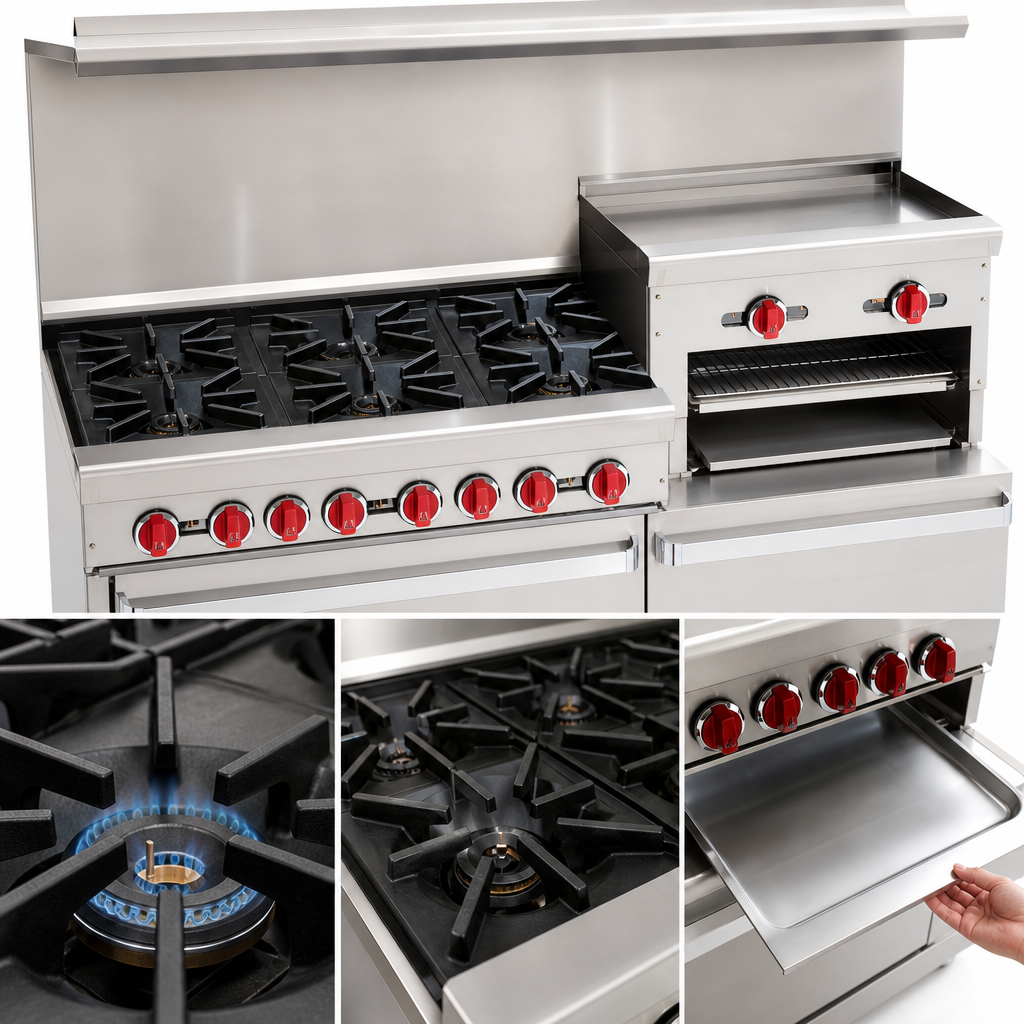

- Six 32,000 BTU lift-off open burners with 12" × 12" cast-iron grates
- 24" raised griddle/broiler on the right
- 3/4" thick steel cooking plate
- Two 20,000 BTU griddle burners (manual controls)
- 3" wide front grease trough & integral broiler below
- 26-1/2" standard oven on the left
- 35,000 BTU steel burner
- Thermostat 250 °F – 500 °F (121 °C – 260 °C)
- Porcelain-enameled cavity & door liner for easy cleanup
- Includes two chrome-plated racks / two fixed positions
- Spring-assisted, counter-weighted door
- 26-1/2" dry storage base on the right keeps sheet pans and smallwares close at hand
- Stainless-steel front, sides, landing ledge, and drip pan
- Choice of backguard at no extra charge: 6" stub back, 20" riser, or 20" riser with high shelf
- 6" adjustable chrome-plated legs (field-installed; optional casters)
- 100 % safety gas shut-off & individual standing pilots for every burner
- cETLus & ETL-Sanitation listed for gas restaurant equipment
- Two-year limited parts & labor warranty
- Proudly Made in USA
Technical Specifications
| Overall width | 60" (1524 mm) |
|---|---|
| Depth (front to back) | 32 1/2" (826 mm) |
| Cooking height | 36" (914 mm) to cooktop surface |
| Total input | 267,000 BTU/hr (79.0 kW) |
| Open burners | 6 × 32,000 BTU (192,000 BTU total) |
| Raised griddle | 24" width, 3/4" plate, 40,000 BTU |
| Standard oven | 35,000 BTU | Cavity 26 1/2"W × 22 1/2"D × 13 1/2"H |
| Gas connection | 3/4" NPT (rear) |
| Manifold pressure | 5.0" W.C. Natural | 10.0" W.C. LP |
| Shipping weight | Approx. 710 lb (322 kg) |
Need additional oven types or caster kits? Contact us for custom configurations & accessories.
