American Range AR-60G Gas Ranges
Description
American Range 60" Gas Restaurant Range with 60" Manual Griddle & (2) Standard Ovens
Model AR-60G | 170,000 BTU | Made in USABuilt for high-volume kitchens that refuse to compromise on power or durability, the American Range AR-60G combines a full 60-inch, 1-inch-thick griddle with two spacious standard ovens—delivering everything you need to sear, sauté, bake, and finish in one rugged unit. Heavy-gauge stainless steel, manual burner controls, and legendary American-made craftsmanship ensure season-after-season reliability on the cookline.
Why you’ll love it

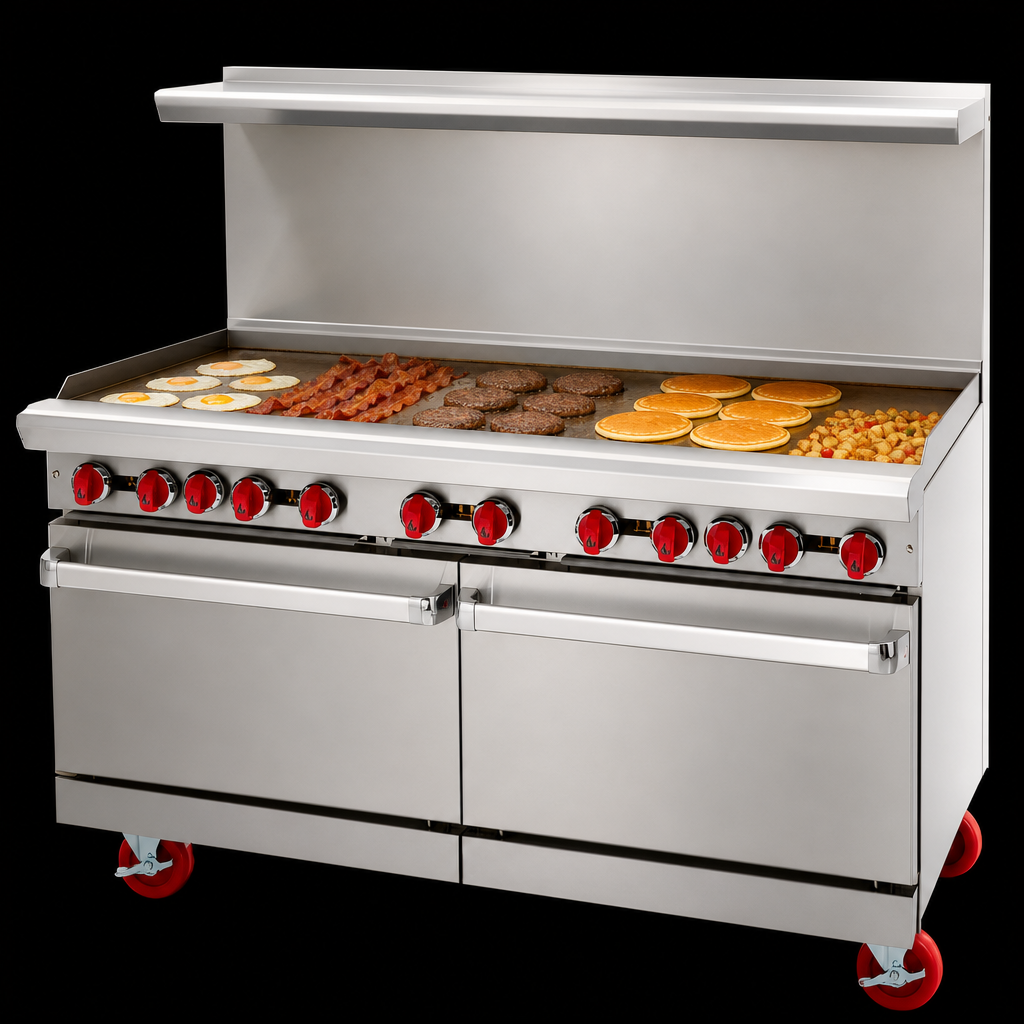

- Massive 60" griddle: five 12" sections, each heated by a dedicated 20,000 BTU burner for fast recovery and even heat.
- 1" thick griddle plate: retains heat for consistent browning and reduced temperature swings during heavy rushes.
- (2) 26-1/2" standard ovens: 35,000 BTU steel burners with 250-500 °F thermostats—ideal for everything from biscuits to braised dishes.
- Five-position chrome rack guides with two chrome racks included in each oven.
- All-stainless exterior: front, sides, landing ledge, and kick plate for quick wipe-downs and a professional look.
- Configurable back: choose a 6" stub back, 20" back riser, or full high shelf & riser at no extra charge.
- 6" adjustable chrome-plated legs for easy leveling on uneven floors (casters optional).
- Certified & guaranteed: cETLus & ETL Sanitation listed and backed by a 2-year parts & labor limited warranty.
Technical specifications
| Overall width | 60" / 1524 mm |
|---|---|
| Overall depth (w/ handle) | 39 1/2" / 1003 mm |
| Cook surface height | 36" / 914 mm |
| Griddle plate | 60" W × 24" D, 1" thick steel |
| Griddle burners | (5) × 20,000 BTU manual, total 100,000 BTU |
| Standard ovens | (2) × 35,000 BTU steel tube burners; 250-500 °F thermostats |
| Oven interior (each) | 26 1/2" W × 22 1/2" D × 13 1/2" H; porcelain-enameled |
| Rack positions / racks supplied | 5 / 2 per oven (chrome-plated) |
| Total input | 170,000 BTU/hr (50.0 kW) |
| Gas connection | 3/4" NPT (rear); Natural 5.0" W.C. | LP 10.0" W.C. |
| Construction | Stainless steel front, sides, landing ledge & kick plate |
| Back options (select one) | 6" stub back | 20" low riser | high riser w/ shelf |
| Legs / optional casters | 6" adjustable chrome legs (casters shipped loose) |
| Certifications | cETLus, ETL-Sanitation |
| Shipping weight | Approx. 780 lb / 354 kg |
| Limited warranty | 2 years parts & labor (USA & Canada) |
Installation notes
- For use only on non-combustible floors; 2" (51 mm) clearance required when curb-mounted.
- Minimum clearance from combustibles: 12" (305 mm) sides, 48" (1220 mm) top.
- Connect to an adequate ventilation system in accordance with local codes and NFPA 96.
- Specify gas type (natural or LP) and altitude (if over 2,000 ft/610 m) when ordering.
Warranty is subject to proper installation, operation, and maintenance as outlined in the manufacturer’s instructions. Full terms available upon request or at AmericanRange.com.
