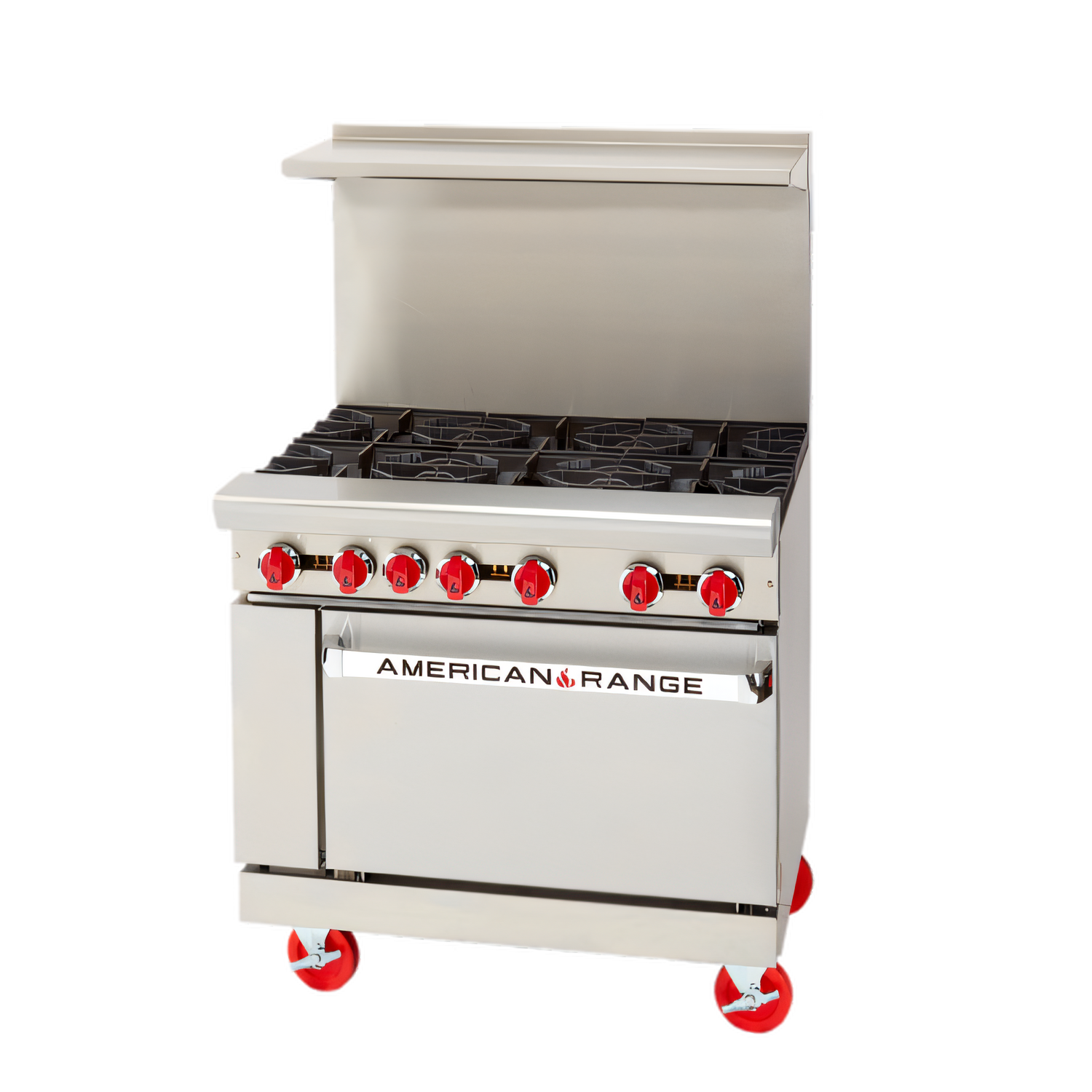

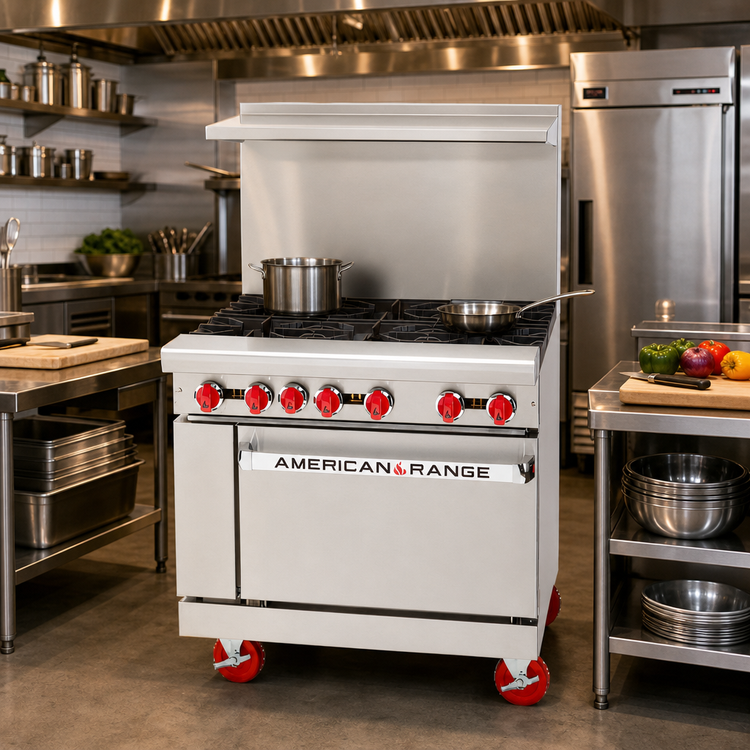

American Range AR-6 36" Gas Restaurant Range – 6 Open Burners & Standard Oven
227,000 BTU | Natural or LP | Made in USAEngineered for high-volume kitchens, the AR-6 pairs six powerful open burners with a spacious, easy-clean oven—delivering the rugged reliability chefs expect from American Range.
Key Features

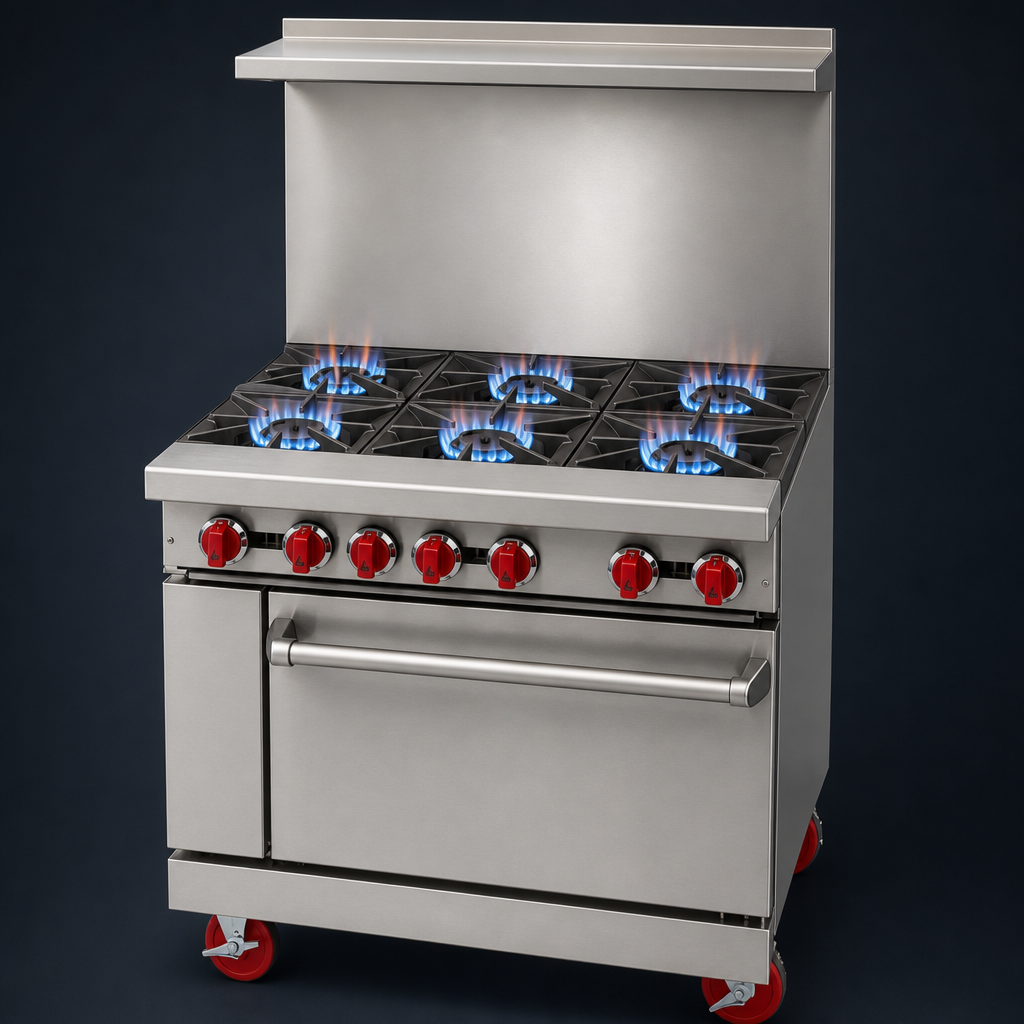

- (6) 32,000 BTU lift-off open burners with anti-clog cast-iron heads
- 12" × 12" heavy-duty cast-iron grates provide a consistent cooking surface
- Full-width, removable drip pan keeps the cooktop spotless

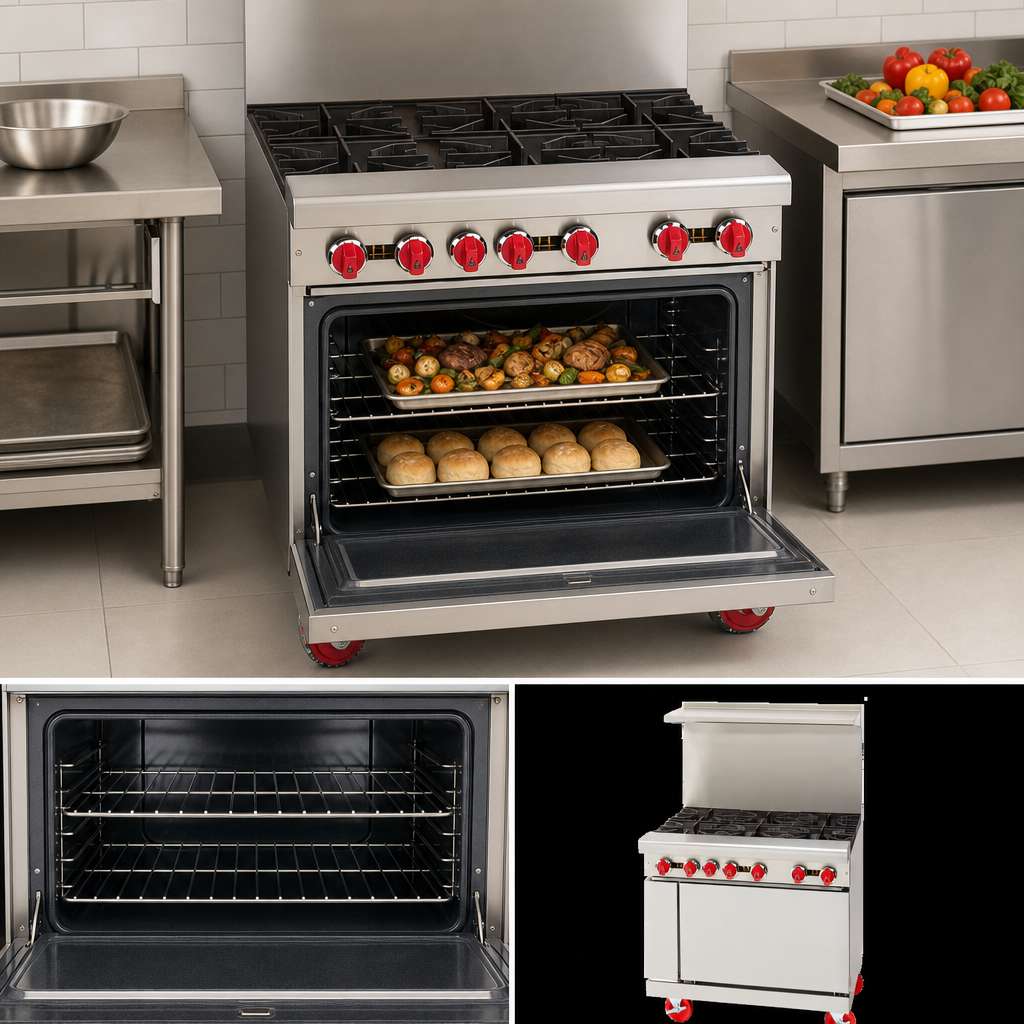

- 35,000 BTU standard oven with thermostat from 250 °F – 500 °F (121 °C – 260 °C)
- 26 ½" W × 22 ½" D × 13 ½" H porcelain-enameled oven cavity for effortless cleanup
- Two chrome-plated oven racks; additional racks optional
- 100 % safety gas shut-off plus rear gas connection & pressure regulator
- Stainless steel front, sides & 6" deep landing ledge stand up to daily abuse
- Choice of 6" stub back, 20" flue riser, or high riser with shelf – no extra charge
- 6" adjustable chrome-plated legs for quick leveling
Performance at a Glance
- Total output: 227,000 BTU (67 kW)
- Cooking height: 36" (914 mm)
- Commercial depth: 32 ½" (826 mm)
- cETLus & ETL-Sanitation listed
- Designed & built in North Las Vegas, NV
Specifications
| Model | AR-6 |
|---|---|
| Overall width | 36" (914 mm) |
| Overall depth | 32 ½" (826 mm) |
| Overall height* | 56" with high riser / 30" body only |
| Open burners | 6 × 32,000 BTU |
| Oven burner | 35,000 BTU steel tube |
| Oven interior | 26 ½" W × 22 ½" D × 13 ½" H |
| Total BTU | 227,000 BTU |
| Gas connection | ¾" NPT rear |
| Manifold pressure | Natural 5.0" W.C. / LP 10.0" W.C. |
| Shipping weight | ≈ 410 lb (186 kg) |
| Warranty | 2-year parts & labor (90-day on select components) |
*Height varies with chosen backguard.
What's Included
- (2) chrome-plated oven racks
- Pressure regulator (factory-installed)
- Backguard of your choice (6" stub, 20" riser, or high shelf & riser)
- Owner’s & installation manual
Popular Accessories
- Swivel caster kit (set of 4 – front brakes included)
- Additional oven racks
