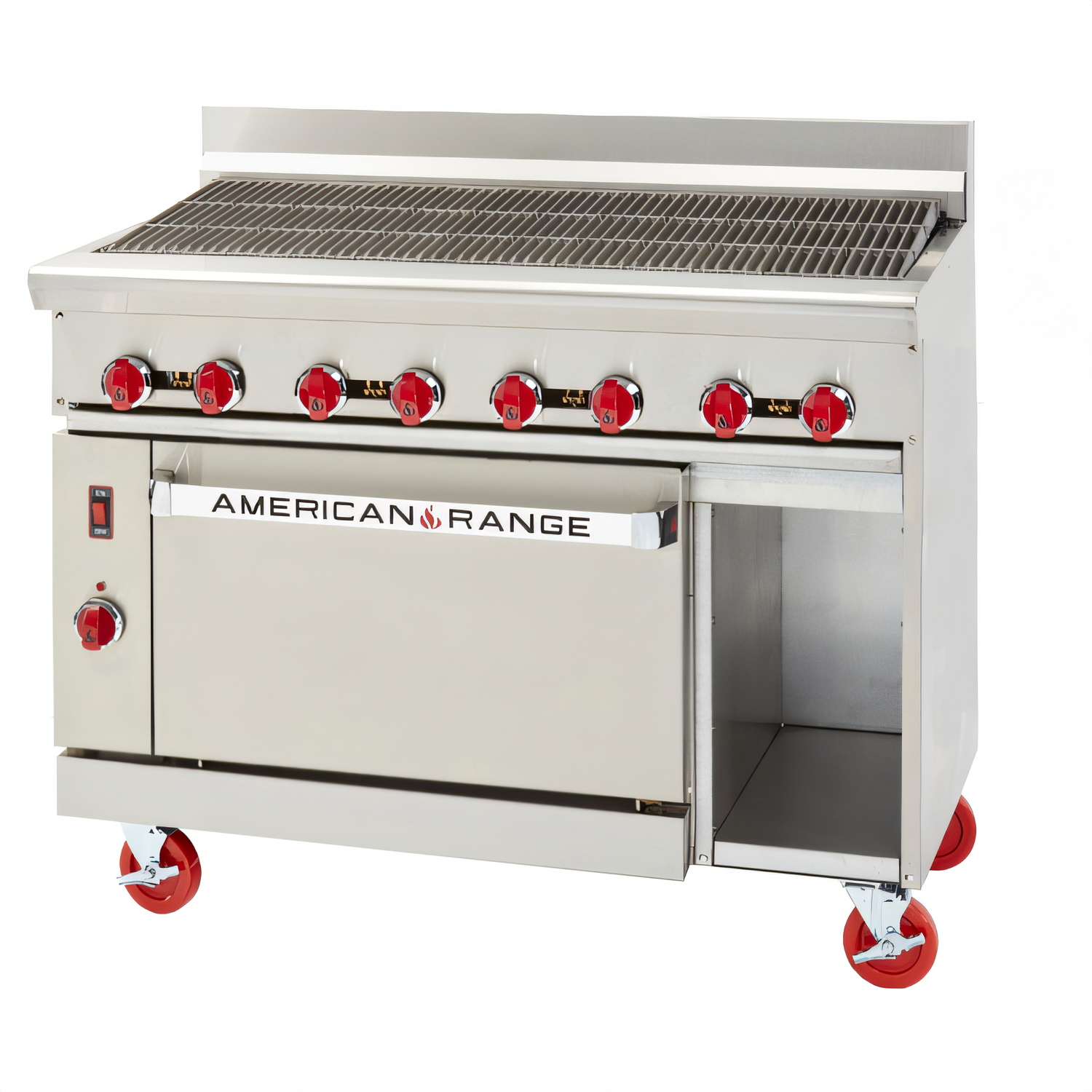

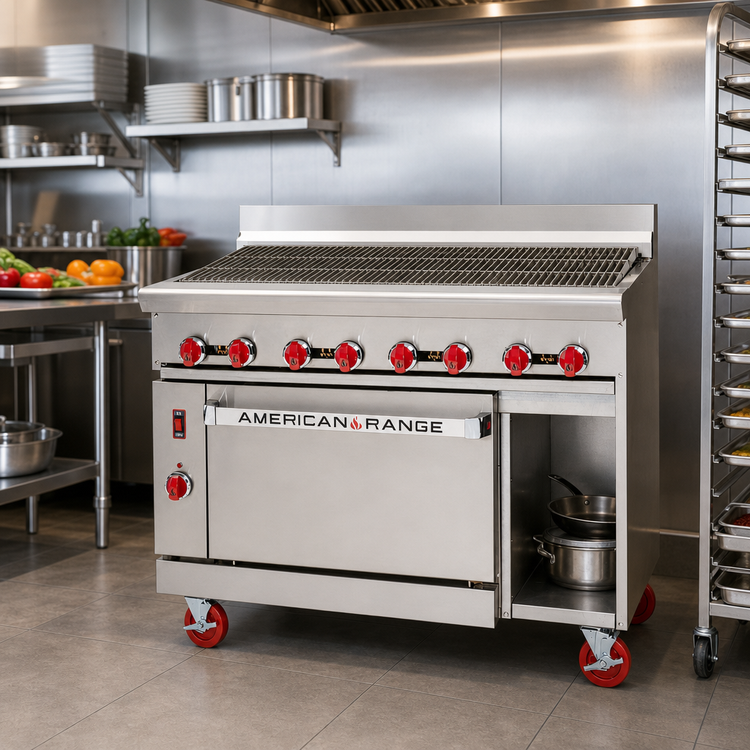

American Range 48-Inch Gas Radiant Broiler Range with 26-1/2-Inch Standard Oven Left and Storage Base Right
American Range 48-Inch Gas Radiant Broiler Range with 26-1/2-Inch Standard Oven Left and Storage Base Right
Stainless Steel Front and Sides, Manual Controls, 155,000 BTU
Built for busy kitchens, this 48-inch radiant broiler combines a heavy-duty charbroiler top with a full-size oven and storage base in a durable stainless steel frame.
- 48-inch gas radiant broiler range with one 26-1/2-inch standard oven on the left and a storage base on the right.
- 15,000 BTU/hr steel burners every 6 inches deliver strong broiling performance across the cooking surface.
- Heavy-duty reversible cast-iron top grates and a removable full-width drip pan support easy, flexible operation.
- Standard oven includes a 35,000 BTU/hr burner, 250°F to 500°F thermostat, two racks, and a porcelain enamel interior.
- Stainless steel front and sides with a 6-inch stub back provide a clean, professional appearance.
- Made in the USA and backed by a 2-year limited warranty on parts and labor.
Overall Dimensions:
48.0"W x 32.25"D x 56.0"HProduct Weight:

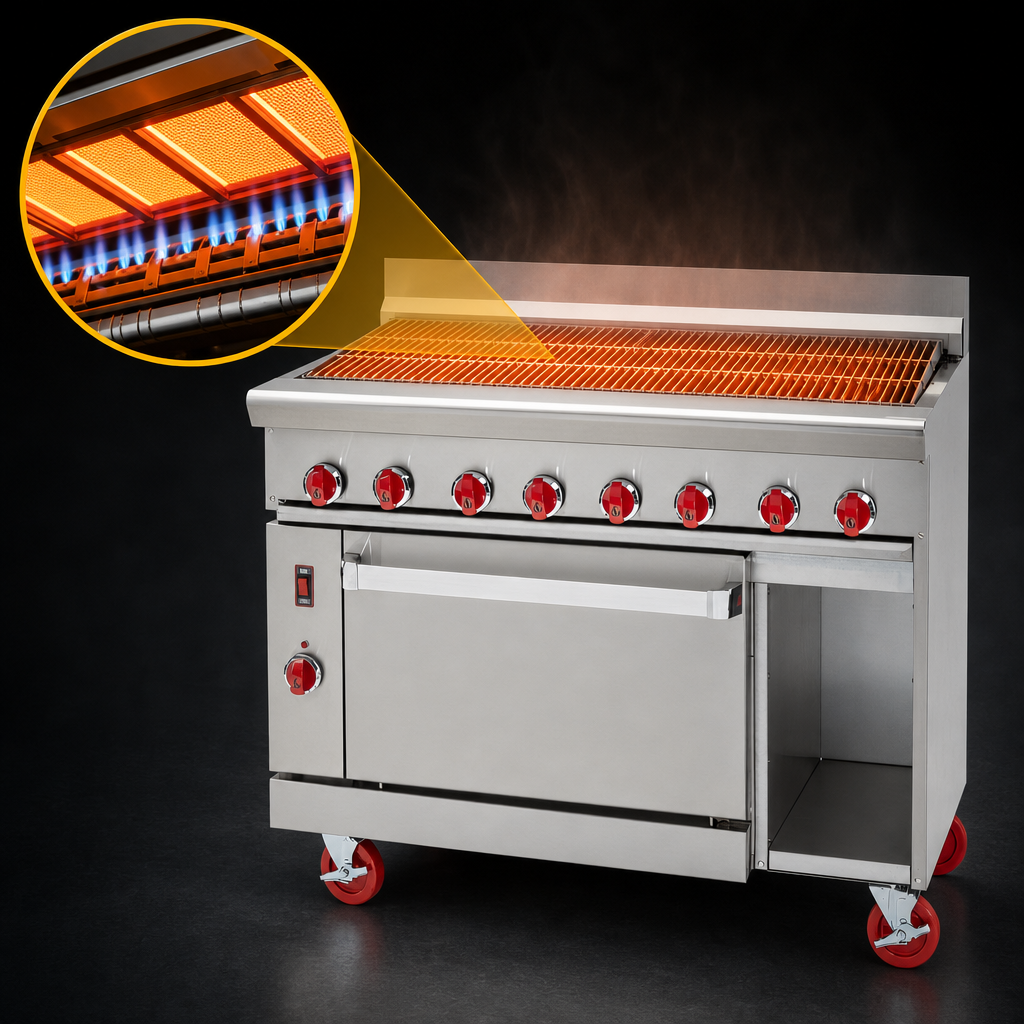

640.0 lbRadiant Broiler Top
Equipped with one 15,000 BTU/hr steel burner at every 6 inches of width for high-output broiling.

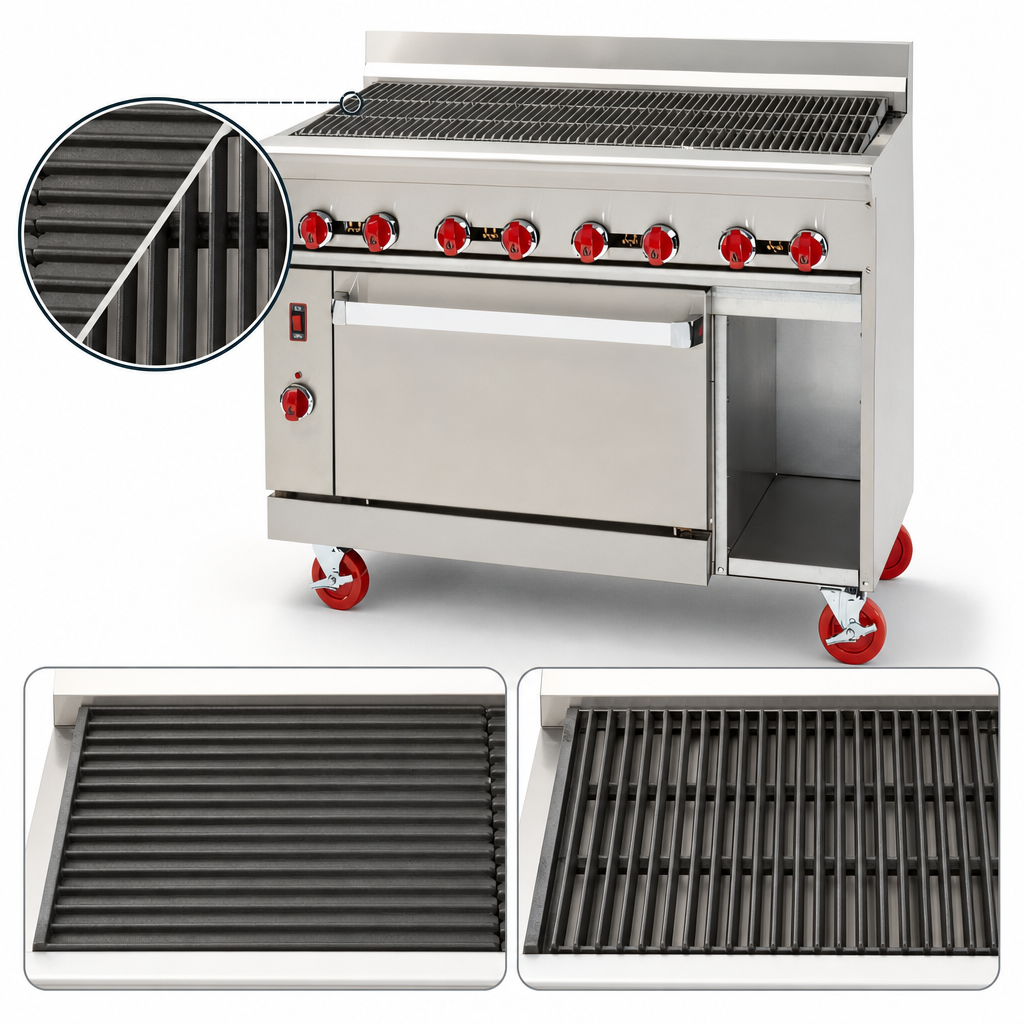

Reversible Cast-Iron Grates
Heavy-duty reversible top grates offer durability and cooking flexibility.
Standard 26-1/2-Inch Oven
Gas oven includes a 35,000 BTU/hr burner, thermostat range of 250°F to 500°F, two chrome-plated racks, and two fixed rack positions.
Spring-Assisted Oven Door
Counterweight door design requires no adjustment and supports smooth opening and closing.
Porcelain Enamel Interior
Easy-clean oven interior helps simplify maintenance.
Manual Burner Controls
One manual gas control valve per burner; cool-to-the-touch knobs are made from high-temperature material.
Storage Base Right
Built-in storage space replaces a second oven cavity for added kitchen convenience.
Stainless Steel Construction
Stainless steel front and sides with a 6-inch stub back for durability and a clean finish.
Rear Gas Connection
Rear gas connection and pressure regulator are included; the diagram shows a 3/4-inch NPT gas inlet.
Installation Requirements
For use on non-combustible floors only; proper ventilation and required clearances should be observed.
Optional Casters
Swivel caster set is available, with two front brakes.
Warranty & Protection
2-year limited warranty, parts and labor.
