American Range AR-4B-36RG Gas Ranges
Description

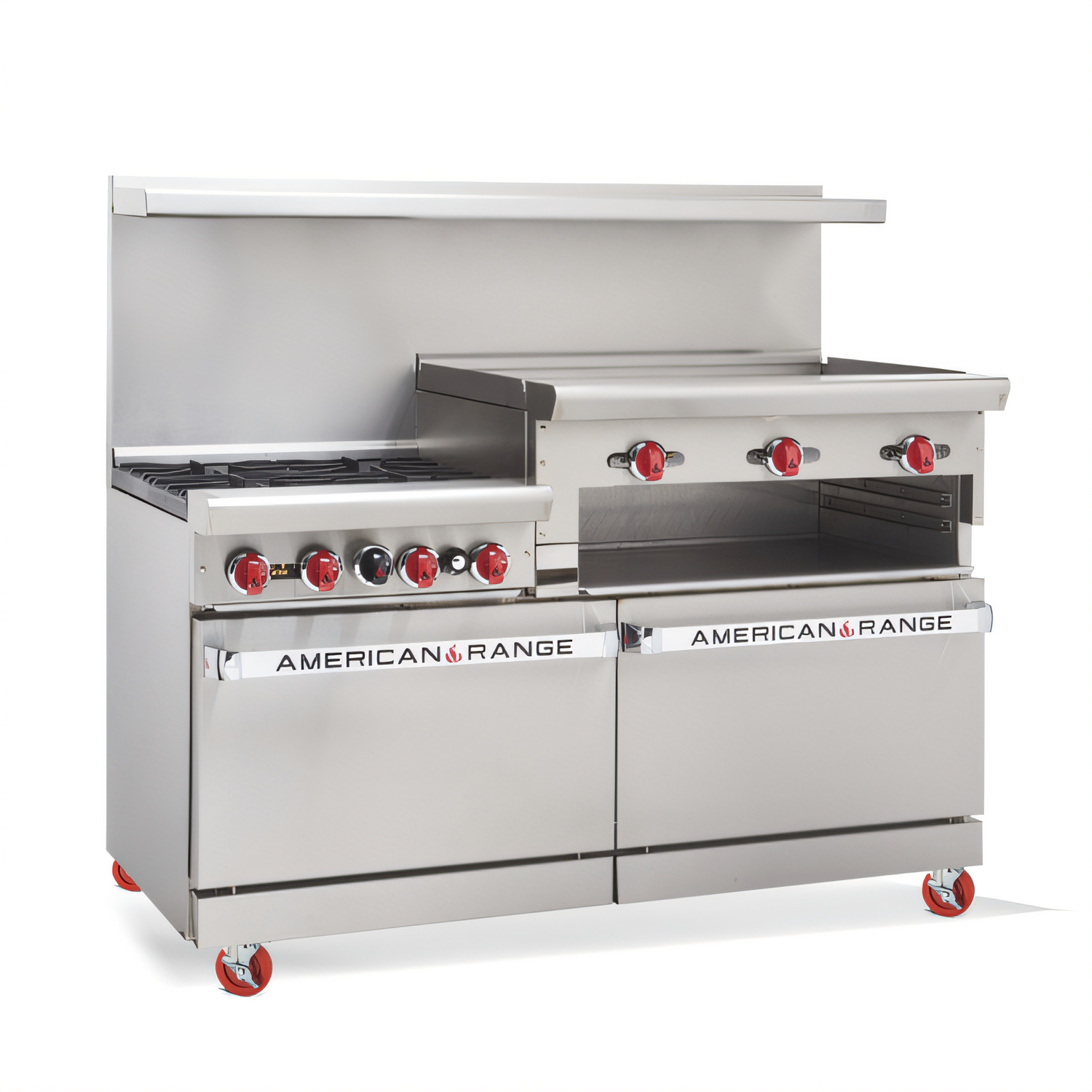

60" Gas Restaurant Range with 4 Burners & 36" Raised Griddle/Broiler
American Range Model AR-4B-36RGBuilt for high-output commercial kitchens, the American Range AR-4B-36RG combines four powerful open burners, a versatile raised griddle/broiler, and two full-size ovens in one 60-inch footprint. Its all-stainless exterior, heavy-duty components, and Made-in-USA craftsmanship deliver years of dependable service.
Key features
- 4 lift-off open burners on the left, each rated 32,000 BTU/hr with 12" x 12" cast-iron grates
- 36" raised griddle/broiler on the right
• 3/4" thick steel plate for even heat retention
• 3 burners (1 every 12") at 20,000 BTU/hr each
• 3" wide grease collector & manual controls for precise zone cooking - Two 26-1/2" standard ovens (side-by-side)
• 35,000 BTU/hr steel burner in each oven
• Temperature range 250 °F – 500 °F
• Porcelain-enameled interior, spring-assisted doors & two chrome racks per oven - Stainless steel front, sides, and 6" deep landing ledge—easy to clean and built to last
- Choice of 6" stub back, 20" riser, or high riser with shelf (no up-charge)
- 6" adjustable chrome-plated steel legs (casters available)
- Rear 3/4" NPT gas connection with pressure regulator included
- 2-year limited parts & labor warranty
- cETLus & ETL-Sanitation listed; Designed & Built in the USA
At-a-glance specs
| Exterior width | 60" (1524 mm) |
|---|---|
| Depth (front to back) | 32 1/2" (826 mm) |
| Cooking height | 36" (914 mm) | 44" to top of 20" riser |
| Total input | 258,000 BTU/hr (76.0 kW) |
| Open burners | 4 × 32,000 BTU/hr (128,000 BTU) |
| Raised griddle/broiler | 3 × 20,000 BTU/hr (60,000 BTU) |
| Ovens | 2 × 35,000 BTU/hr (70,000 BTU) | 26-1/2"W × 22-1/2"D × 13-1/2"H cavity |
| Gas type | Natural (5.0" W.C.) or Propane (10.0" W.C.) |
| Gas inlet size | 3/4" NPT (rear) |
| Shipping weight | Approx. 810 lb (367 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year limited parts & labor |
Need a custom configuration? Convection oven base, swivel casters, and other options are available—contact us for details.
