American Range | SKU:
AR-4B-36RG-126L-SBR
American Range AR-4B-36RG-126L-SBR Gas Ranges
$12,004.20
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
American Range AR-4B-36RG-126L-SBR Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range AR-4B-36RG-126L-SBR Gas Ranges
$12,004.20
Unit price
/
Unavailable
Description
60" Gas Restaurant Range w/ 4 Open Burners, 36" Raised Griddle & Storage Base
American Range Model AR-4B-36RG-126L-SBR • Made in USAPurpose-built for busy commercial kitchens, this 60 inch American Range provides the versatility of high-performance open burners, a heavy-duty raised griddle/broiler and a full-size oven—plus a convenient storage base to keep sheet pans and utensils close at hand. Certified for cETLus & ETL Sanitation and backed by a 2-year parts & labor warranty.
Why You’ll Love It
- Serious heat output – 223,000 BTU total (66.0 kW) keeps up with peak-hour volume.
- Four 32,000 BTU open burners with lift-off heads for rapid boil & easy cleaning.

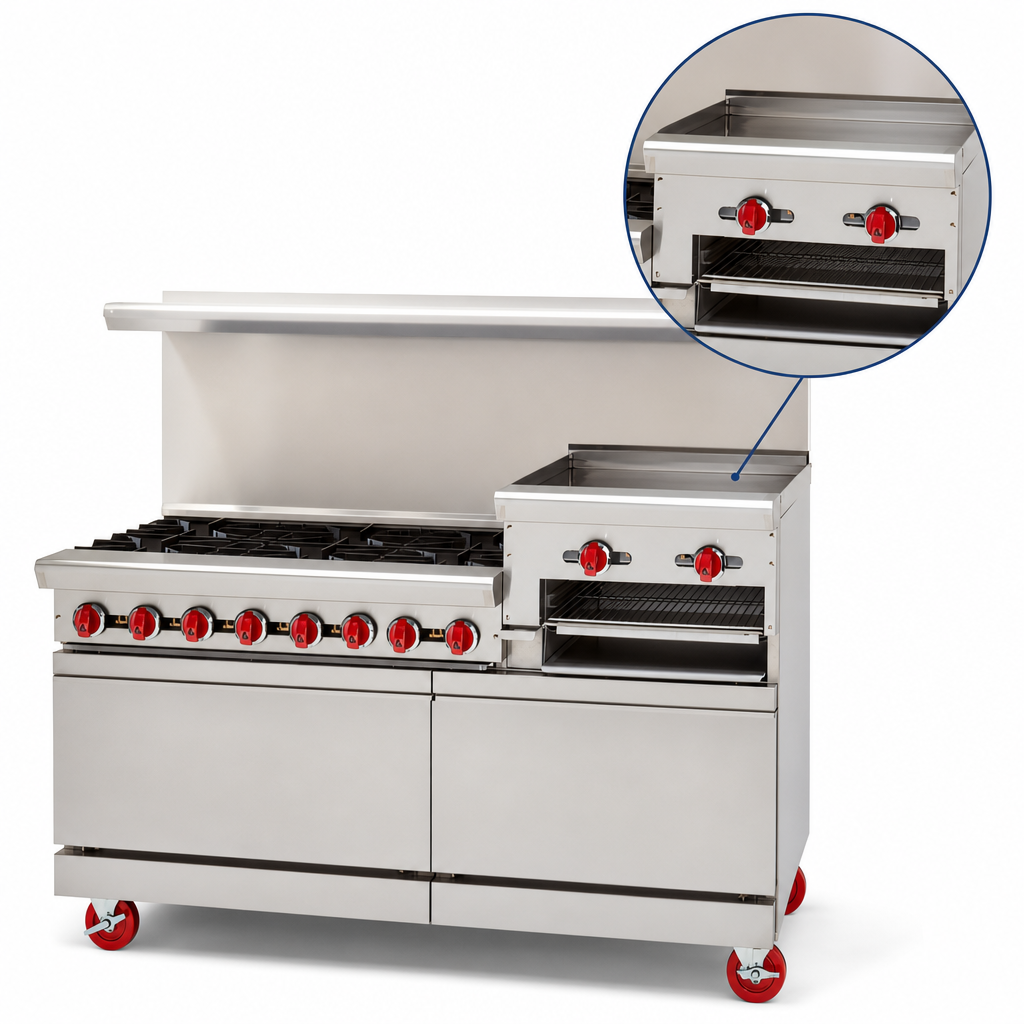

- 36" raised griddle/broiler (3/4" thick plate) handles burgers, breakfast or broiling with 20,000 BTU every 12".
- Left-side standard oven (26-1/2" W) includes two chrome racks and a 250-500 °F thermostat.
- Right-side storage base organizes sheet pans, hotel pans and smallwares.
- Stainless-steel front & sides withstand daily abuse and wipe clean fast.
- Choice of 20" riser, high riser with shelf, or 6" stub back—no up-charge.
- 6" adjustable chrome-plated legs level the range on any floor.
Technical Specs
| Model | AR-4B-36RG-126L-SBR |
|---|---|
| Overall Width | 60" (1524 mm) |
| Depth × Cooking Height | 32-1/2" × 36" (825 mm × 914 mm) |
| Open Burners | 4 × 32,000 BTU lift-off (12" × 12" cast-iron grates) |
| Raised Griddle/Broiler | 36" wide • 3/4" plate • 20,000 BTU per 12" section • Manual controls |
| Oven (Left) | Standard – 35,000 BTU • 26-1/2" W × 22-1/2" D × 13-1/2" H • 2 racks / 2 positions |
| Base (Right) | 26-1/2" stainless-steel storage cabinet |
| Total Input | 223,000 BTU /hr • 66.0 kW |
| Gas Connection | 3/4" NPT rear manifold • 5.0" W.C. Natural • 10.0" W.C. LP |
| Listings | cETLus • ETL Sanitation |
| Warranty | 2 years parts & labor (90 days on broiler grates/radiants) |
Install on a non-combustible floor with legs or casters (0" side / 4" rear clearance to combustibles). Commercial ventilation per NFPA 96 required.
Peace of Mind: Register your range within 90 days to secure full warranty coverage. Alterations or improper installation voids warranty.
Features & Specs
Features & Specs
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
56.0in
Width
60.0in
Depth
32.25in
Shipping Weight
725.0lbs
Top
(4) open burners, (1) 36" griddle/broiler
Base
(1) standard oven, (1) cabinet
Exterior Finish
stainless steel front & sides
Vent
backriser with hi-shelf
Plate Thickness
.750" = 3/4"
Control Type
manual controls
Specifications
Restaurant Range, gas, 60", (4) 32,000 BTU open burners, (1) 36" raised griddle/broiler on right, 3/4" thick plate, manual controls, (1) 26-1/2" standard oven left, (2) racks, (1) 26-1/2" storage base right, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 66.0kW, 223,000 BTU, cETLus, ETL-Sanitation, Made in USA
