American Range 48-Inch Gas Restaurant Range with 4 Open Burners, 24-Inch Raised Griddle/Broiler, Convection Oven and Storage Base
American Range 48-Inch Gas Restaurant Range with 4 Open Burners, 24-Inch Raised Griddle/Broiler, Convection Oven and Storage Base
Stainless Steel Front and Sides, 20-Inch Back Riser with Shelf, 6-Inch Adjustable Chrome-Plated Legs
This heavy-duty 48-inch gas range combines high-output burners, a 24-inch raised griddle/broiler, and a convection oven in one stainless-steel platform built for busy commercial kitchens.
- Four 32,000 BTU/hr lift-off open burners with heavy-duty cast-iron grates.
- 24-inch raised griddle/broiler with a 3/4-inch steel plate, manual controls, and dedicated grease collection.
- 26-1/2-inch convection oven on the left with two racks, chrome rack guides, and a 250°F to 500°F thermostat.
- 11-inch storage base on the right for additional underrange storage.
- Stainless steel front, sides, back riser, and shelf for durability and easy cleaning.
- 120V, 1-phase convection oven connection with a 15-amp three-prong cord included.
Overall Dimensions:
48.0"W x 32.25"D x 56.0"HProduct Weight:
590.0 lbHigh-Output Open Burners
Four lift-off burners are rated at 32,000 BTU/hr each and sit on 12" x 12" cast-iron grates with a removable full-width drip pan.

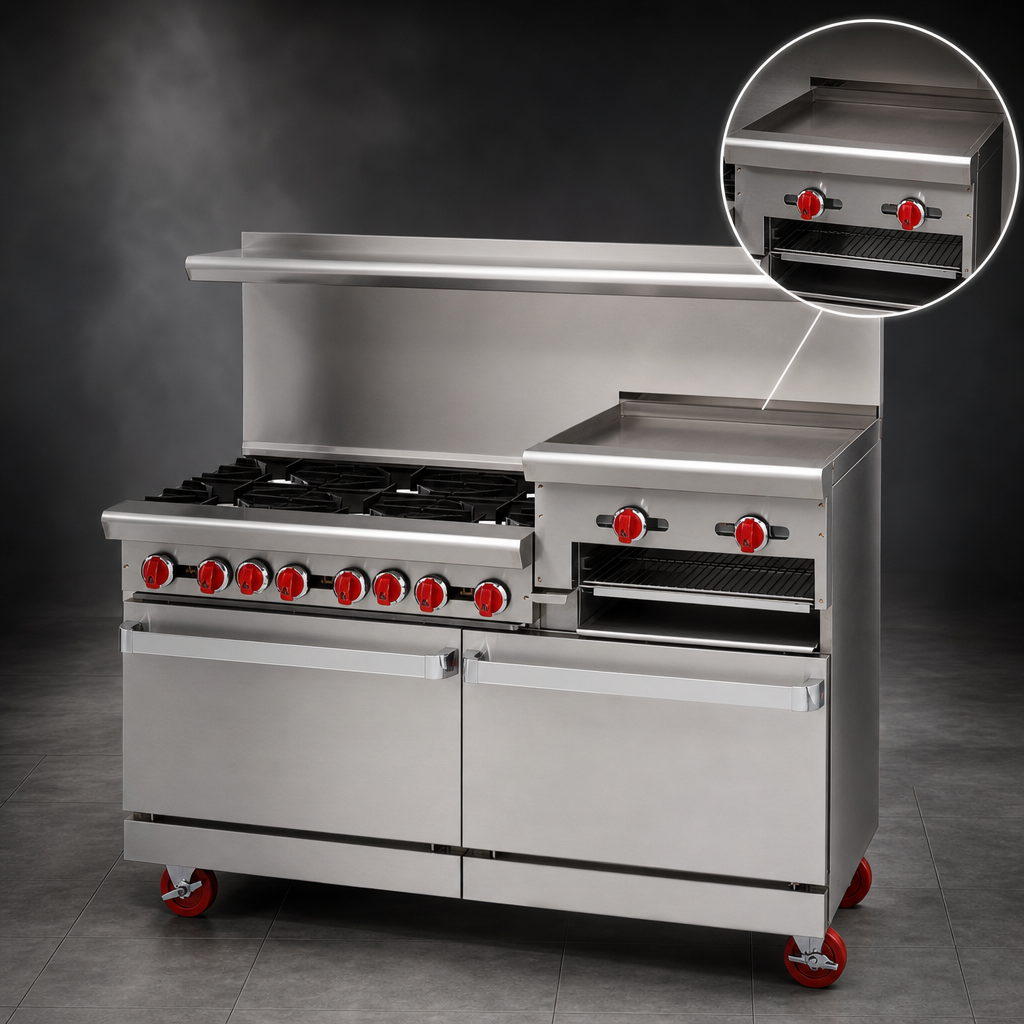

Raised Griddle/Broiler Section
The 24-inch griddle uses a 3/4-inch thick steel plate, 20,000 BTU/hr per 12-inch section, stainless steel pilots, and manual control valves.
Convection Oven
Left-side 26-1/2-inch convection oven includes fan-assisted heat transfer, a 250°F to 500°F thermostat, two chrome-plated racks, and chrome rack guides with five tray positions.
Storage Base
Right-side storage base adds underrange storage space for pans, tools, or other kitchen essentials.
Stainless Steel Construction
Stainless steel front, sides, back riser, shelf, and front landing ledge help improve durability and cleanup.
Gas and Electrical Connections
Rear gas connection with pressure regulator and a 3/4-inch NPT gas inlet; convection oven operates on 120V single-phase power.
Standard Support
Supplied with 6-inch adjustable chrome-plated legs for installation flexibility and leveling.
Certifications & Compliance
Warranty & Protection
2-year limited parts and labor warranty.
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
