American Range  |  SKU: AR-4B-12RG

American Range AR-4B-12RG Gas Ranges

$6,576.38
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

American Range 36" Gas Restaurant Range │ 4 Open Burners + 12" Raised Griddle/Broiler

Model AR-4B-12RG • 183,000 BTU • Standard Oven • Made in USA

Unlock true cook-line versatility in a single, heavy-duty appliance. Four 32,000 BTU open burners handle sauté, stock, and sauce work while a 12" raised griddle/broiler section on the right sears, toasts, and finishes under intense radiant heat. A full-size standard oven below rounds out the package—making this 36" American Range the workhorse your busy kitchen can count on shift after shift.

Key Advantages

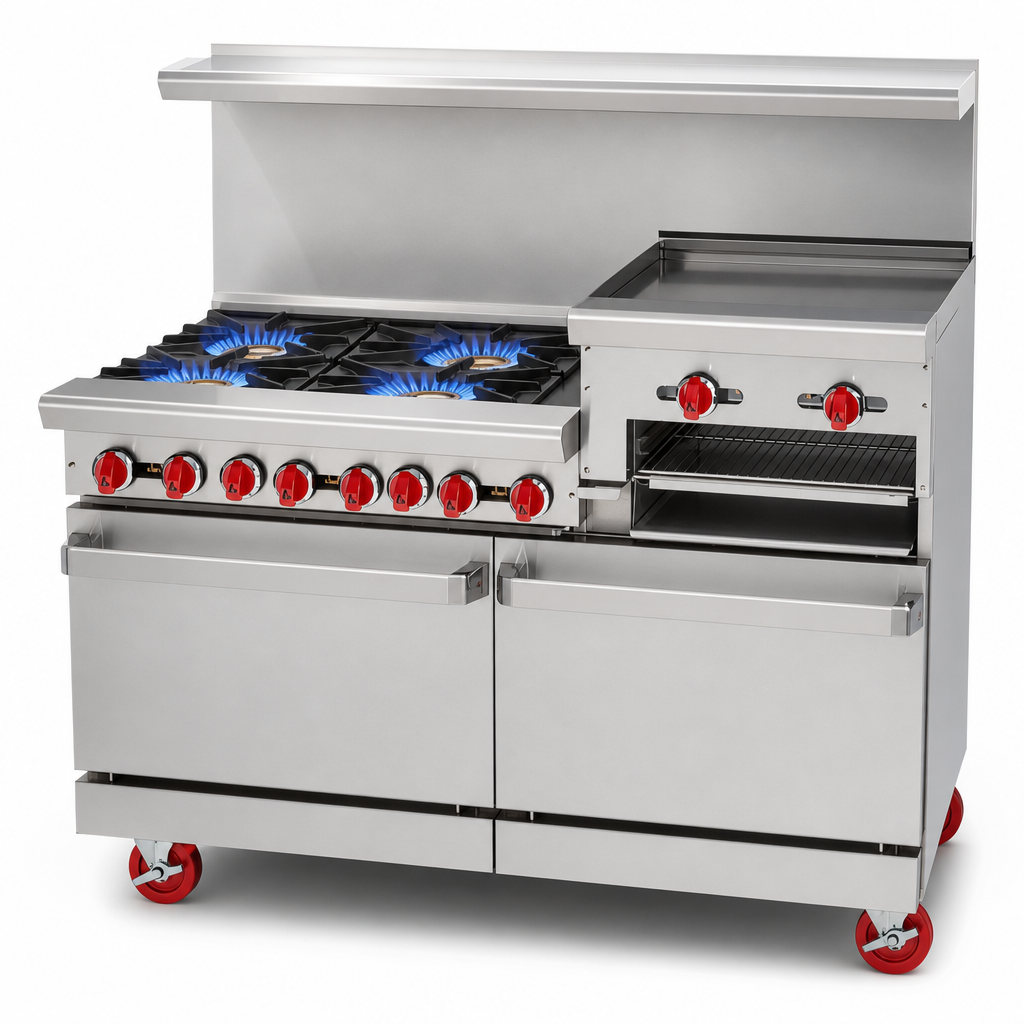

  • 4 lift-off open burners (32,000 BTU each) with anti-clog design for fast cleaning.

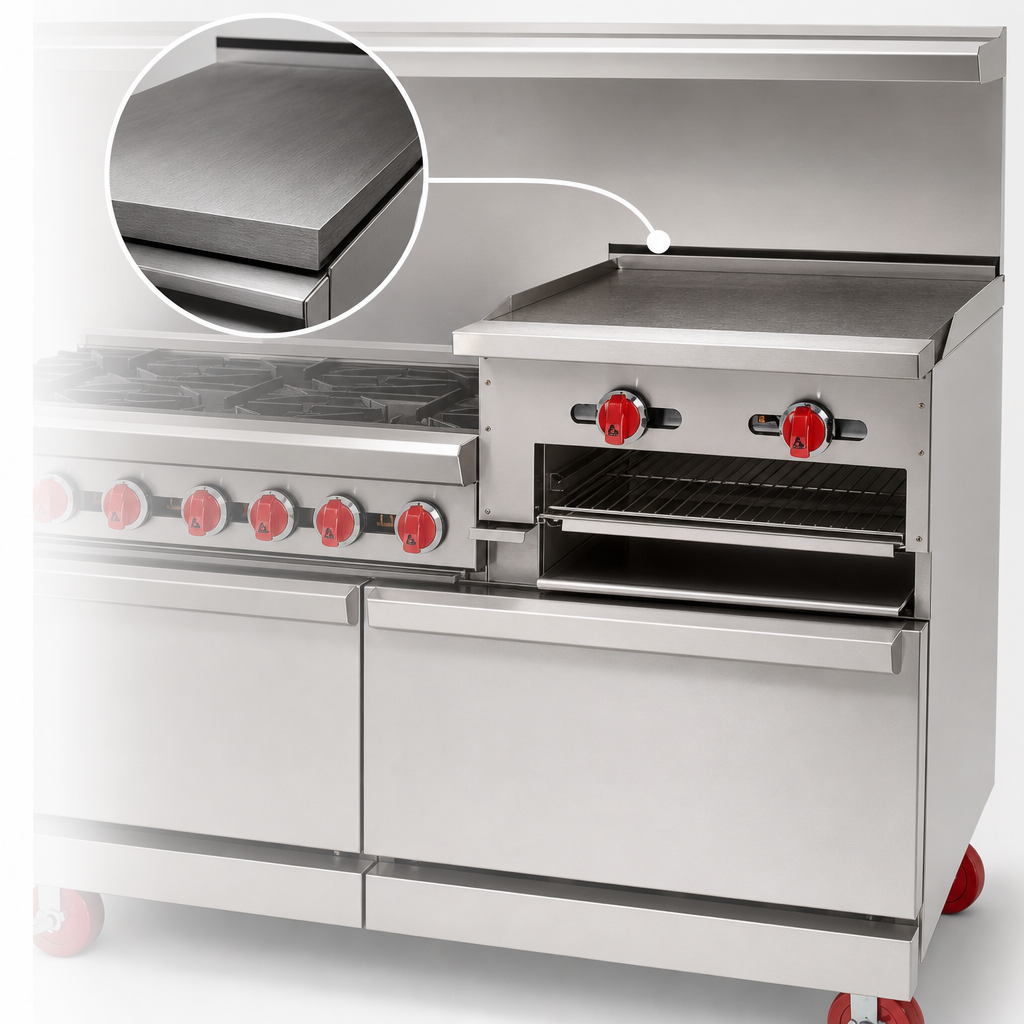

  • 12" raised griddle/broiler on right—3/4" thick steel plate with 20,000 BTU burner every 12".
  • 26 1/2" standard oven fits full-size sheet pans; 35,000 BTU steel burner.
  • Thermostat range 250 °F–500 °F, porcelain-enameled interior, two chrome racks included.
  • Heavy-duty 12" × 12" cast-iron top grates withstand continuous high-heat cooking.
  • Stainless steel front, sides, and 6" deep landing ledge resist corrosion and daily abuse.
  • Choice of 20" high shelf & riser or 6" stub back at no extra cost.
  • 6" adjustable chrome-plated legs level unit; optional locking casters available.
  • 100 % gas shut-off for added safety; manual, all-gas controls—no electricity required.
  • cETLus & ETL-Sanitation listed; backed by a 2-year parts & labor warranty.
Performance Details
  • Open-burner knobs stay cool to the touch—even during marathon services.
  • Full-width removable drip pan under burners speeds nightly clean-up.
  • Spring-assisted oven door opens smoothly and stays where you leave it.
Specifications
Overall width 36" / 914 mm
Overall depth 32 1/2" / 826 mm (to landing ledge)
Cooking height 36" / 914 mm (on 6" legs)
Total input 183,000 BTU/hr (54 kW)
Open burners 4 × 32,000 BTU lift-off heads
Raised griddle/broiler 12" section, 3/4" plate, 20,000 BTU
Oven burner 35,000 BTU; cavity 26 1/2"W × 22 1/2"D × 13 1/2"H
Gas connection 3/4" NPT rear
Manifold pressure: 5" W.C. Natural / 10" W.C. LP
Electrical Not required (manual, all-gas range)
Shipping weight ≈ 425 lb / 193 kg
Certifications cETLus, ETL-Sanitation
Origin Designed & built in the USA
Looking for convection oven, casters, or a thermostatic griddle? Contact us for factory-configured options and lead times.
Gas notice: Specify Natural or LP gas and altitude (over 2,000 ft) when ordering. Proper ventilation and fire-suppression systems are required by local code.
Warranty: 2-year limited parts & labor (broiler burners, grates, and radiants 90 days). Full terms available at American Range.

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

56.0in

Width

36.0in

Depth

32.25in

Shipping Weight

425.0lbs

Plate Thickness

.750" = 3/4"

Exterior Finish

all stainless steel exterior

Base

(1) standard oven

Top

(4) open burners, (1) 12" griddle/broiler

Vent

backriser with hi-shelf

Specifications

Restaurant Range, gas, 36", (4) 32,000 BTU open burners, (1) 12" raised griddle/broiler on right, 3/4" thick plate, manual controls, (1) 26-1/2" standard oven, (2) racks, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 54.0kW, 183,000 BTU, cETLus, ETL-Sanitation, Made in USA
