American Range AR-4B-12RG-C Gas Ranges
Description
American Range 36" Gas Restaurant Range – 4 Open Burners + 12" Raised Griddle/Broiler & Convection Oven
Model AR-4B-12RG-C | 178,000 BTU (51.0 kW)Power, versatility, and rugged American-made construction come together in this 36" restaurant range. Four high-output open burners, a right-side raised griddle/broiler, and a full-size convection oven let you sauté, sear, grill, and bake from one compact footprint.
Key Features
- 4 × 32,000 BTU lift-off open burners with anti-clog cast-iron heads

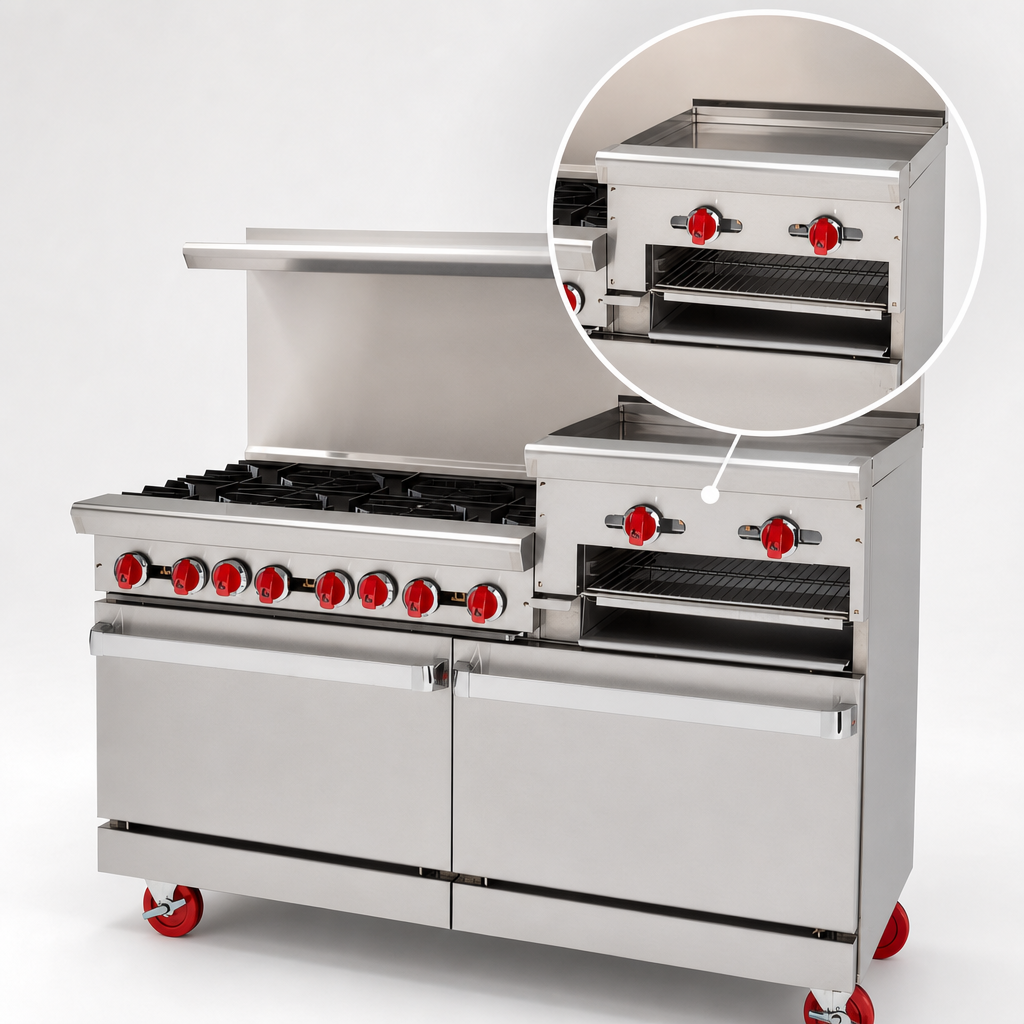

- 12" raised griddle/broiler (3/4" thick steel plate) with 20,000 BTU burner and 3" grease trough
- 26-1/2" convection oven, 30,000 BTU, porcelain-enameled interior, five rack positions & 2 chrome racks
- Manual, independently valved controls for precise flame adjustment
- Heavy-duty 12" × 12" cast-iron top grates—easy to lift for cleaning
- Removable full-width drip pan under burners for quick clean-up
- Stainless steel front, sides, landing ledge, and control panel
- 6" adjustable chrome-plated legs
- Choose your backsplash: 6" stub back, 20" riser, or high-shelf riser (included)
- Field convertible Natural Gas / LP, 3/4" NPT rear connection & pressure regulator
- cETLus & ETL-Sanitation listed • 2-year limited parts & labor warranty • Made in USA
Specifications
| Width | 36" (914 mm) |
|---|---|
| Depth | 32-1/2" (826 mm) - 39-1/2" (1 003 mm) with oven door |
| Cooking surface height | 36" (914 mm) |
| Riser options | 6" stub back, 20" backsplash, or high-shelf riser |
| Open burners | 4 × 32,000 BTU (128,000 BTU total) |
| Raised griddle/broiler | 12" section, 3/4" plate, 20,000 BTU |
| Convection oven burner | 30,000 BTU |
| Oven interior (W × D × H) | 26-1/2" × 22-1/2" × 13-1/2" |
| Total input | 178,000 BTU/hr (51.0 kW) |
| Gas connection / pressure | 3/4" NPT • 5.0" W.C. NG / 10.0" W.C. LP |
| Electrical (convection fan) | 120 V, 1 φ, 4 A (15 A cord & plug included) |
| Clearances to combustibles | 12" sides, 4" rear (0" to non-combustible) |
| Shipping weight | Approx. 505 lb (229 kg) |
What’s Included
- Restaurant range as described
- 2 chrome-plated oven racks
- Removable drip & grease pans
- Your choice of riser (stub, 20", or high-shelf)
- Factory-installed gas pressure regulator
- Owner’s manual & warranty registration
Looking for a different burner or oven configuration? Contact us—American Range offers a full line of 24"-72" ranges, griddle tops, salamanders, and more.
