American Range AR-48G Gas Ranges
Description

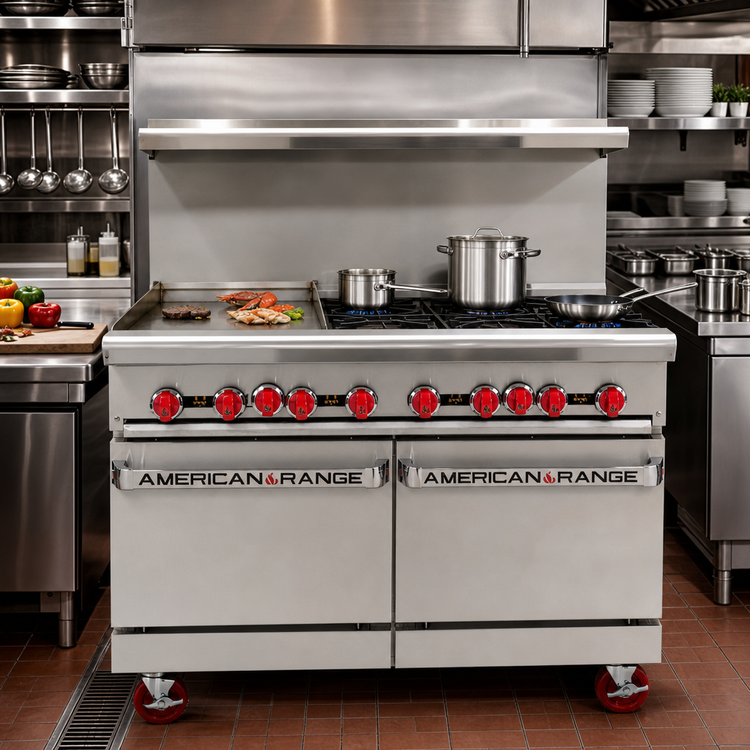

American Range AR-48G 48" Gas Restaurant Range with Full-Width Manual Griddle & Dual 20" Space-Saver Ovens
134,000 BTU | cETLus & ETL-Sanitation | Made in USABuilt for busy kitchens that demand versatility and durability, the American-made AR-48G combines a massive 1" thick steel griddle with two high-performance space-saver ovens—delivering the power of a full production line in just 48 inches of floor space.

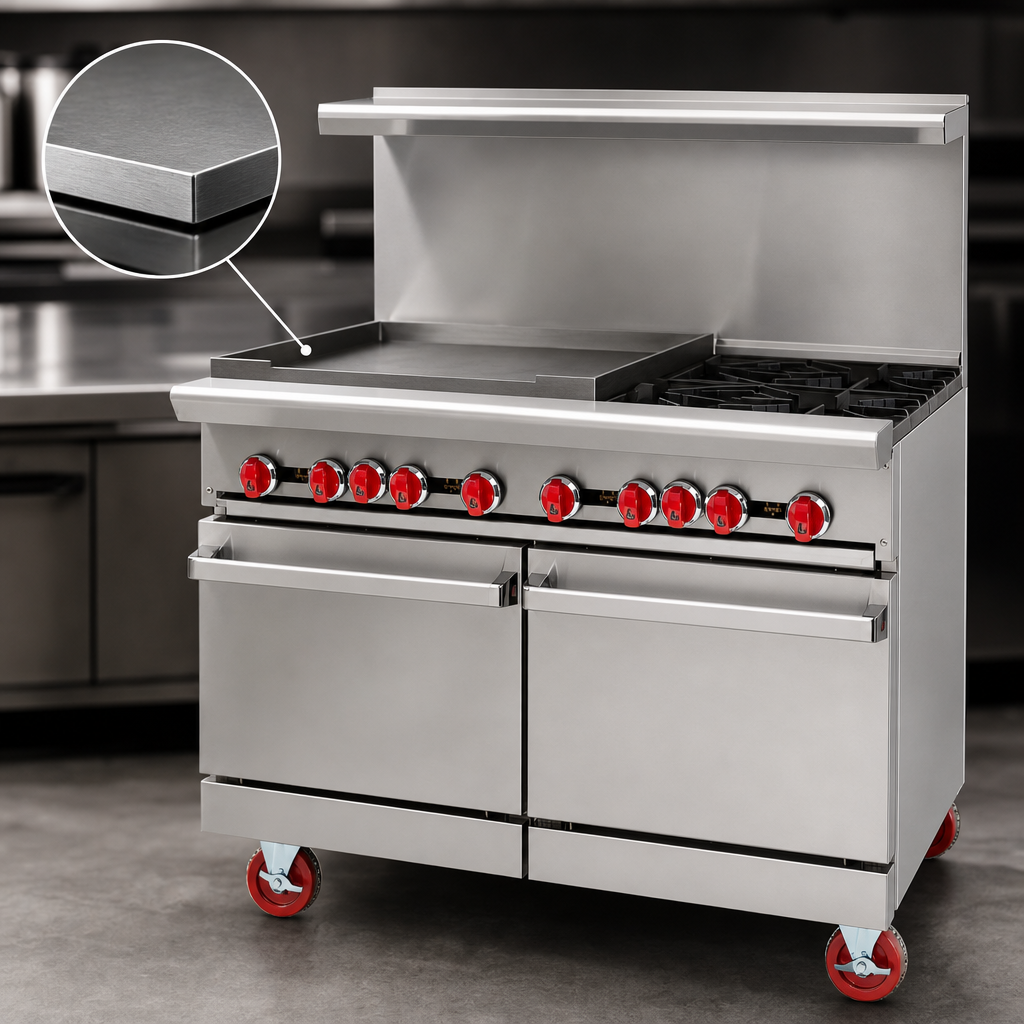

Key Features- 48" (1219 mm) wide griddle plate—polished 1" (25 mm) thick steel for exceptional heat retention & recovery
- Four independent 20,000 BTU burners (one every 12") for precise zone cooking — 80,000 BTU total griddle power
- 3" wide grease trough with large-capacity drawer keeps the cookline clean and efficient

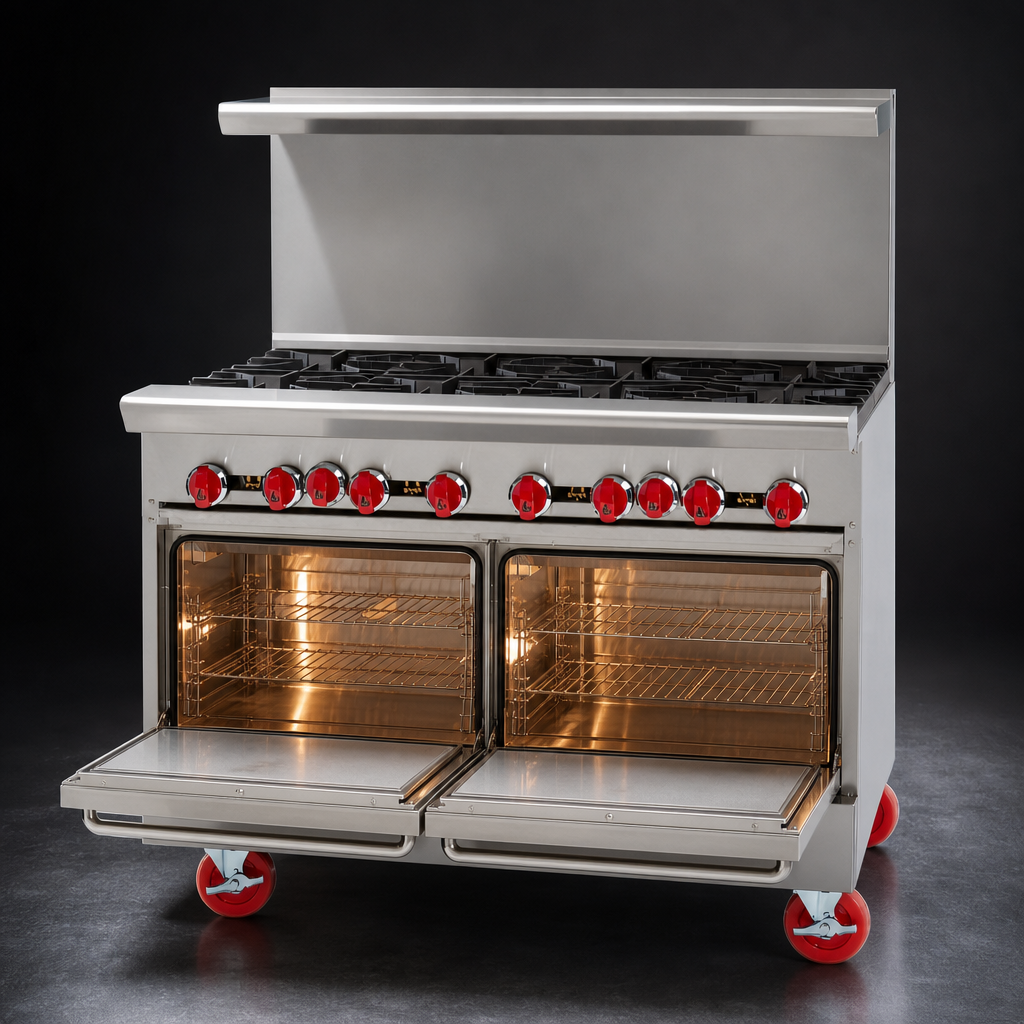

- Two 20" (508 mm) space-saver ovens, each with:
- 27,000 BTU steel burner & 100 % safety gas shut-off
- Thermostat range 250 °F – 500 °F (121 °C – 260 °C)
- 2 chrome-plated racks with multiple positions
- Porcelain-enameled interior for easy cleanup
- Manual griddle controls for instant heat adjustment (thermostatic upgrade available)
- Stainless steel front, sides, 6" deep landing ledge & control panel for long-lasting good looks
- 6" adjustable chrome-plated legs standard; optional casters with front brakes
- Choose your backsplash at no extra charge: 6" stub back, 20" riser, or 24" riser with shelf
- Field-convertible for Natural or LP gas • 3/4" NPT rear gas connection with pressure regulator
- Certified cETLus & ETL-Sanitation for gas & hygiene compliance
- Backed by a 2-year limited parts & labor warranty
| Model | AR-48G |
|---|---|
| Total Input | 134,000 BTU/hr (40.0 kW) |
| Griddle Power | 80,000 BTU/hr (4 × 20,000) |
| Oven Power | 2 × 27,000 BTU/hr |
| Griddle Size | 48" W × 24" D (1219 × 610 mm) |
| Griddle Plate | 1" (25 mm) thick polished steel |
| Oven Interior (each) | 20" W × 26 ½" D × 13 ½" H |
| Thermostat Range | 250 °F – 500 °F (121 °C – 260 °C) |
| Overall Dimensions | 48" W × 32 ½" D × 36" H to cook surface (56" H with 24" riser & shelf) |
| Gas Manifold | 3/4" NPT • 5.0" W.C. Natural • 10.0" W.C. LP |
| Shipping Weight | 660 lb (299 kg) |
| Origin | Designed & Built in the USA |
Looking for factory-installed casters or a thermostatic griddle upgrade? Chat with our equipment specialists for custom options, lead times, and volume pricing.
