American Range AR-48G-DSB Gas Ranges
Description
American Range AR-48G-DSB 48" Gas Griddle Range
Manual Control • 80,000 BTU • Dual 20" Storage BasesBuilt for demanding commercial kitchens, the American Range AR-48G-DSB delivers a full-width, 1" thick steel griddle and generous base storage in one rugged 48" footprint. Fast heat recovery, rock-solid construction, and Made-in-USA reliability make this unit a powerhouse for breakfast, lunch, and dinner service.
Highlights
- Four 20,000 BTU cast-iron burners (one every 12") — 80,000 BTU total

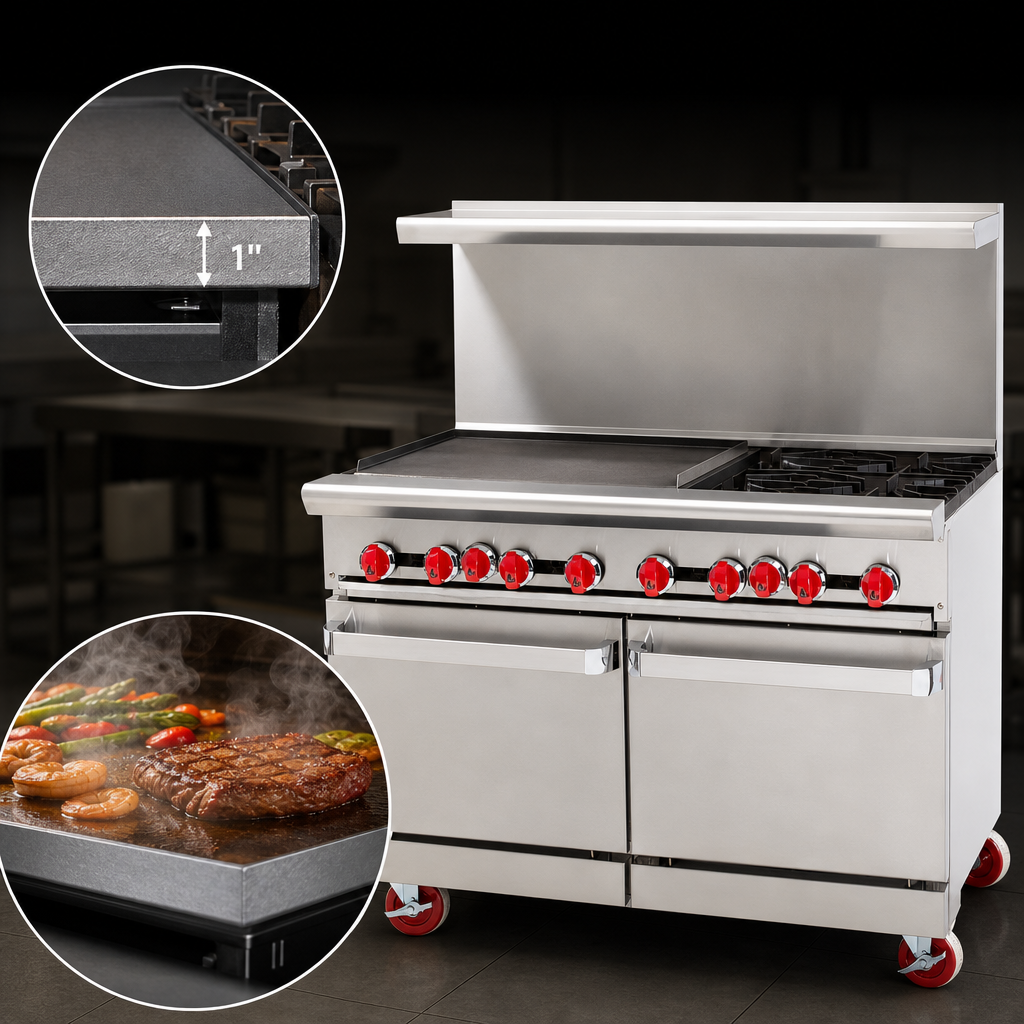

- 1" thick polished steel plate for superior heat retention & even searing
- 3" wide grease trough with large front collector speeds daily clean-up
- (2) 20" storage bases keep pans, utensils, or dry goods at arm’s reach
- Stainless steel front, sides, landing ledge, & bull-nose for long-life durability
- Rear flue options (no up-charge):
- 6" stub back (standard)
- 20" backguard
- 24" high riser with shelf
- 6" chrome-plated adjustable legs for easy leveling
- Field convertible Natural or Propane gas — 3/4" NPT regulator supplied
- cETLus & ETL-Sanitation listed
- Designed, engineered & manufactured in the USA
Why Operators Choose American Range
- Manual control valves give chefs instant flame adjustment for precision cooking.
- 1" plate minimizes temperature drop when loading, cutting ticket times during rushes.
- Two-year limited parts & labor warranty backed by a nationwide service network.
Specification Sheet
| Model | AR-48G-DSB |
|---|---|
| Gas Type | Natural or Propane (field convertible) |
| Total BTU | 80,000 BTU/hr (24.0 kW) |
| Griddle Size | 48" W × 24" D (1,219 mm × 610 mm) |
| Plate Thickness | 1" (25 mm) polished steel |
| Number of Burners | 4 (manual control) |
| Overall Width | 48" (1,219 mm) |
| Overall Depth | 32-1/2" (826 mm) |
| Cooking Height | 36" (914 mm) on 6" legs |
| Rear Options | 6" stub back, 20" riser, or 24" high riser w/ shelf |
| Base Style | (2) 20" storage compartments |
| Gas Connection | 3/4" NPT manifold • 5.0" W.C. Nat • 10.0" W.C. LP |
| Shipping Weight | ≈ 520 lb (236 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year limited parts & labor |

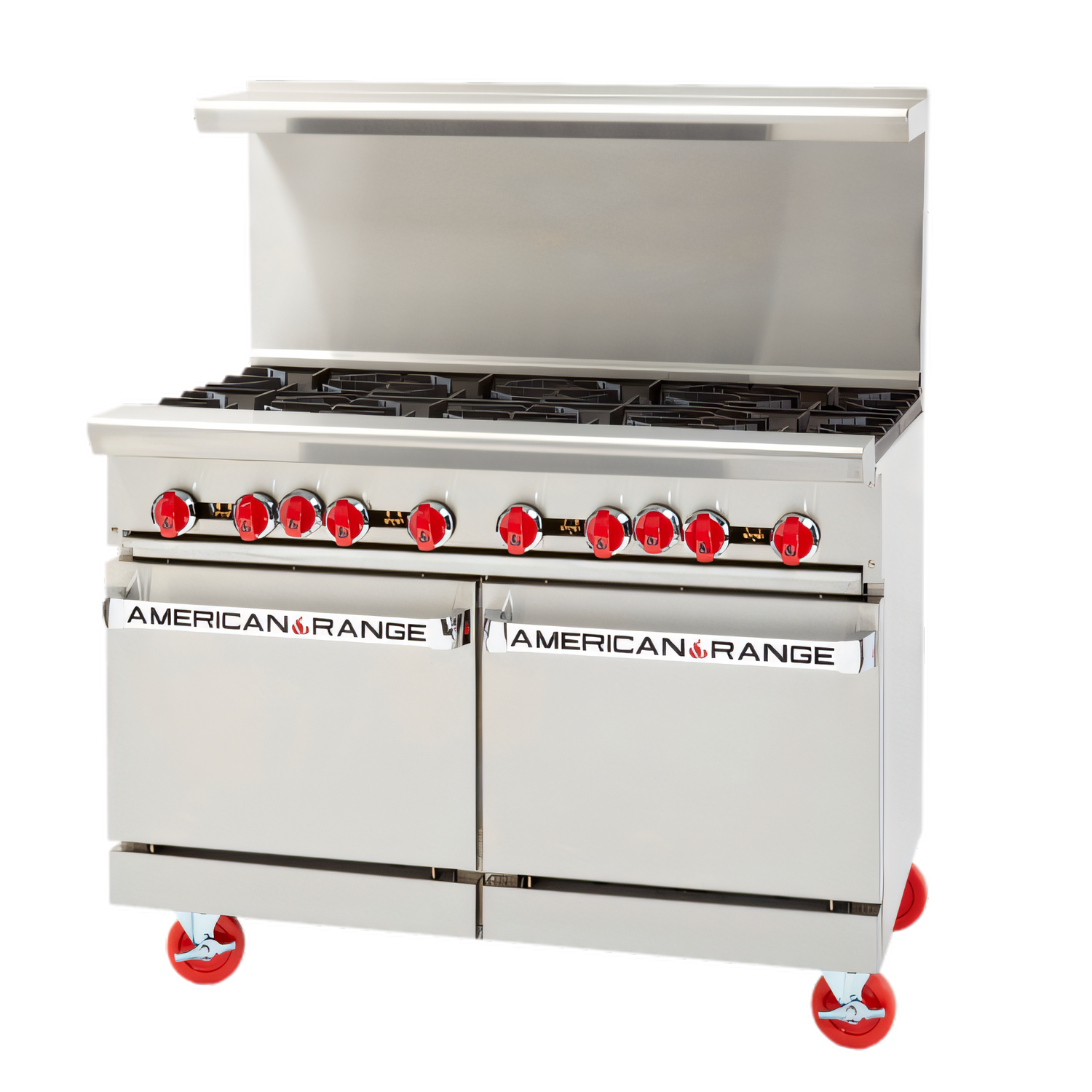

Image shown may include optional casters and accessories sold separately.
