American Range AR-48G-4B-DSB Gas Ranges
Description
American Range 72" Gas Restaurant Range – 48" Griddle / 4 Burners / Dual Storage Base
Model AR-48G-4B-DSB • 208,000 BTU • Made in USABuilt for high-volume commercial kitchens, this 72 inch American Range combines a full-size 48 inch manual griddle with four powerful open burners and two spacious storage bases. Heavy-duty construction, flexible rear backsplash options, and a 2-year parts & labor warranty make it the dependable workhorse your line needs.
Key Features

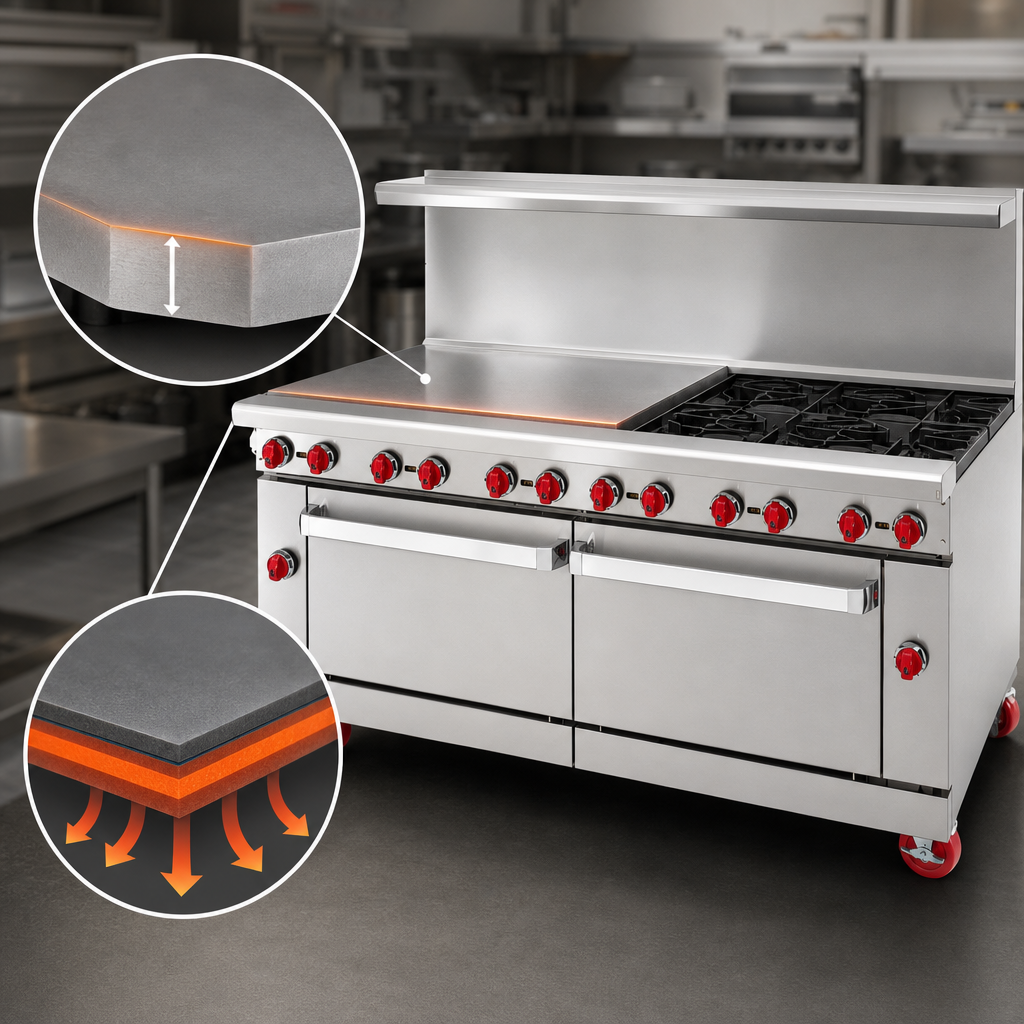

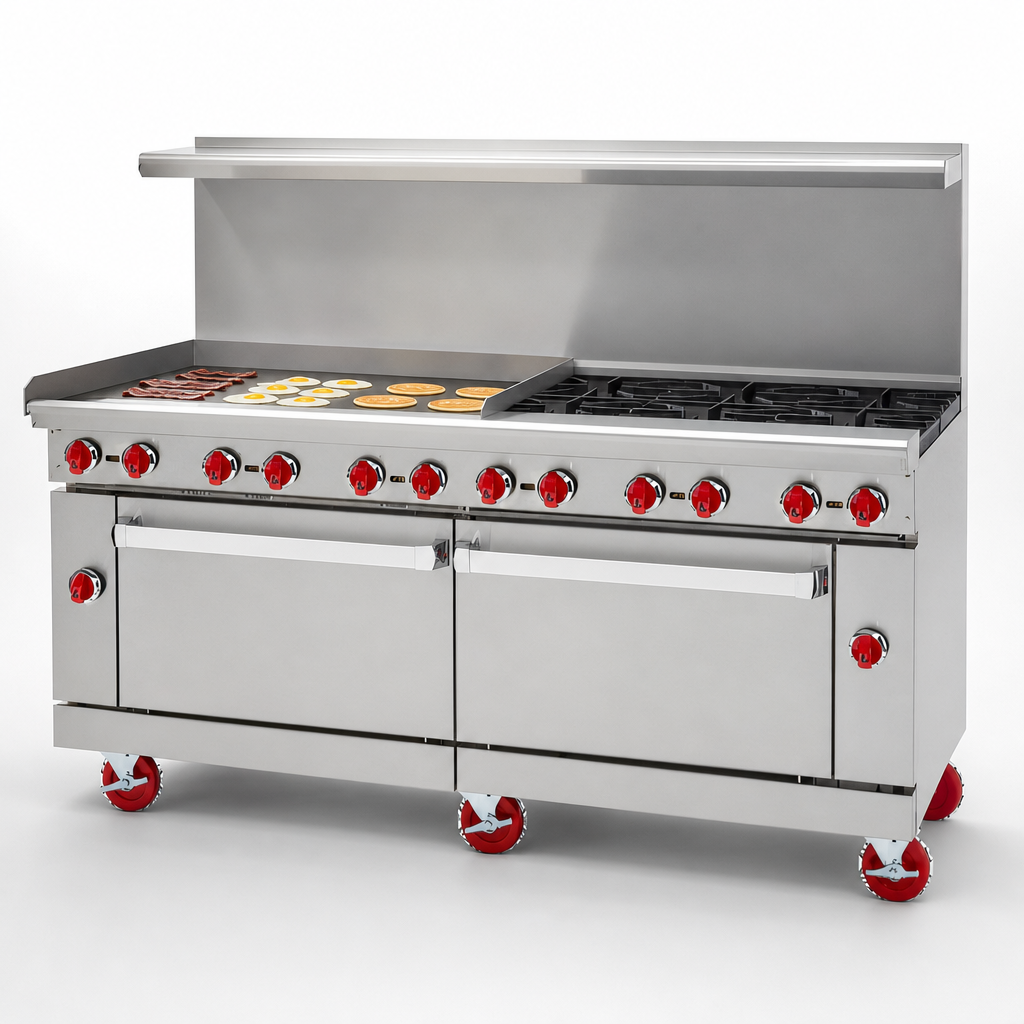

- 48" left-hand griddle with 1" thick highly-polished steel plate for fast recovery and exceptional heat retention
- Manual control valves let you create individual temperature zones across the plate
- Four 32,000 BTU lift-off open burners on the right, each with removable 12" × 12" cast-iron top grate
- Two 26-1/2" stainless steel storage bases—perfect for sheet pans, stock pots & smallwares
- 6" deep stainless landing ledge and full-width grease trough with large front-mounted drip drawer
- Stainless steel front, sides, kick plate and removable crumb trays for quick clean-up
- Choose your rear configuration at no extra cost: 6" stub back, 20" back riser, or back riser with high-shelf
- 6" chrome-plated adjustable legs standard; optional swivel casters with front brakes available
- Field convertible for Natural or Propane gas, supplied with 3/4" NPT regulator
- cETLus & ETL-Sanitation listed; designed & built in North Las Vegas, NV USA
Technical Specifications
| Model | AR-48G-4B-DSB |
|---|---|
| Overall width | 72" (1829 mm) |
| Depth (front to back) | 32 1/2" (826 mm) |
| Cook surface height | 36" (914 mm) with 6" adjustable legs |
| Open burners | 4 × 32,000 BTU/hr (128,000 BTU total) |
| Griddle | 48" W × 24" D, 1" thick steel plate – 4 × 20,000 BTU/hr (80,000 BTU total) |
| Total input | 208,000 BTU/hr (61.0 kW) |
| Base configuration | (2) 26-1/2" enclosed storage cabinets with swing doors |
| Gas inlet / manifold | 3/4" NPT (rear) • 5.0" W.C. Natural / 10.0" W.C. Propane |
| Shipping weight | ≈ 330 lb (150 kg) |
| Warranty | 2 years parts & labor (USA/Canada) |
| Certifications | cETLus, ETL-Sanitation |
Images may show optional accessories such as casters or high-shelf. Specifications are subject to change without notice.
