American Range  |  SKU: AR-48G-4B-CL-SBR

American Range AR-48G-4B-CL-SBR Gas Ranges

$14,559.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

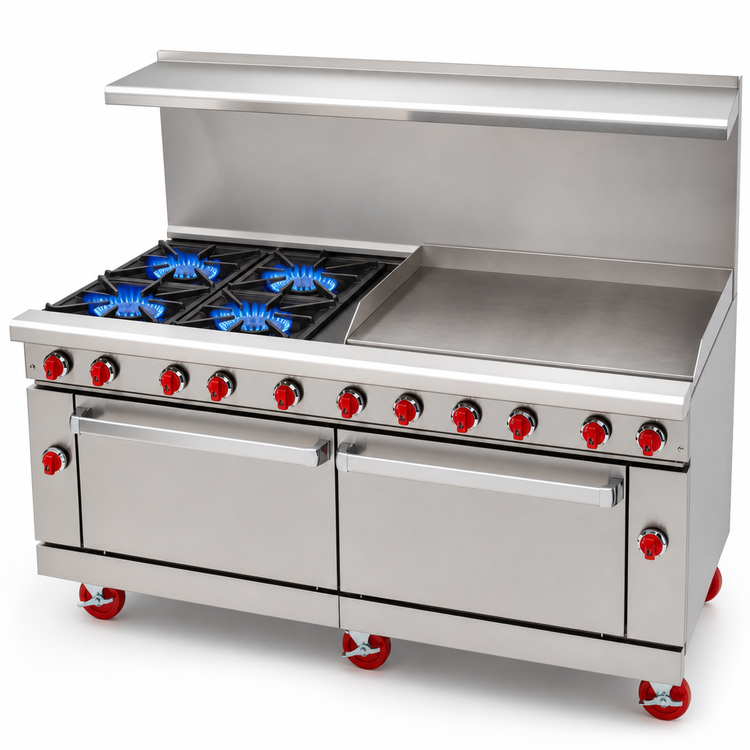

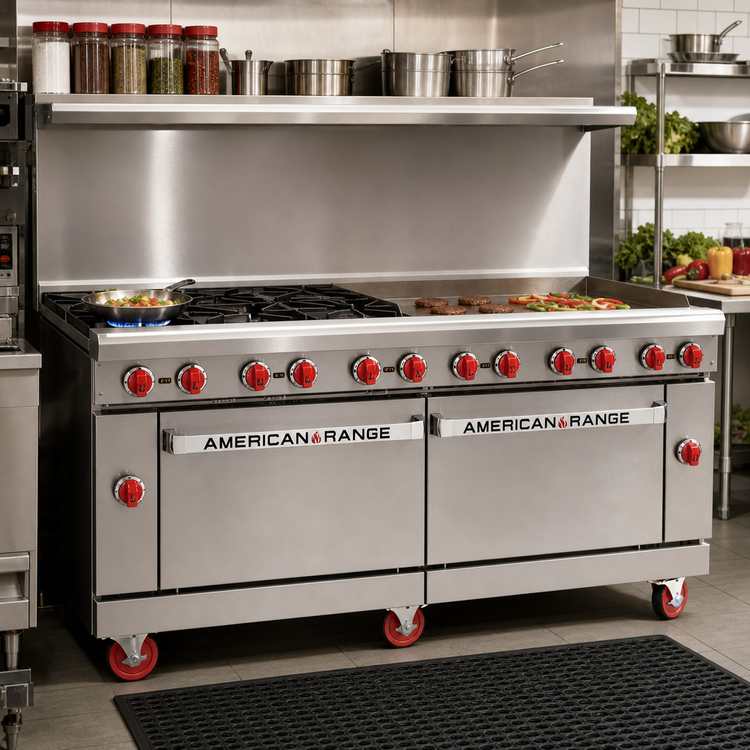

American Range 72" Gas Restaurant Range – 48" Manual Griddle, 4 Burners & Left-Side Convection Oven

Model AR-48G-4B-DSB | Made in USA

Built for the busiest commercial kitchens, this 72" American Range combines a full-size griddle, powerful open burners and a high-performance convection oven—all in one durable, stainless-steel chassis.

Key Features

  • 48" manual griddle (left) with 1" thick polished steel plate for even heat & quick recovery

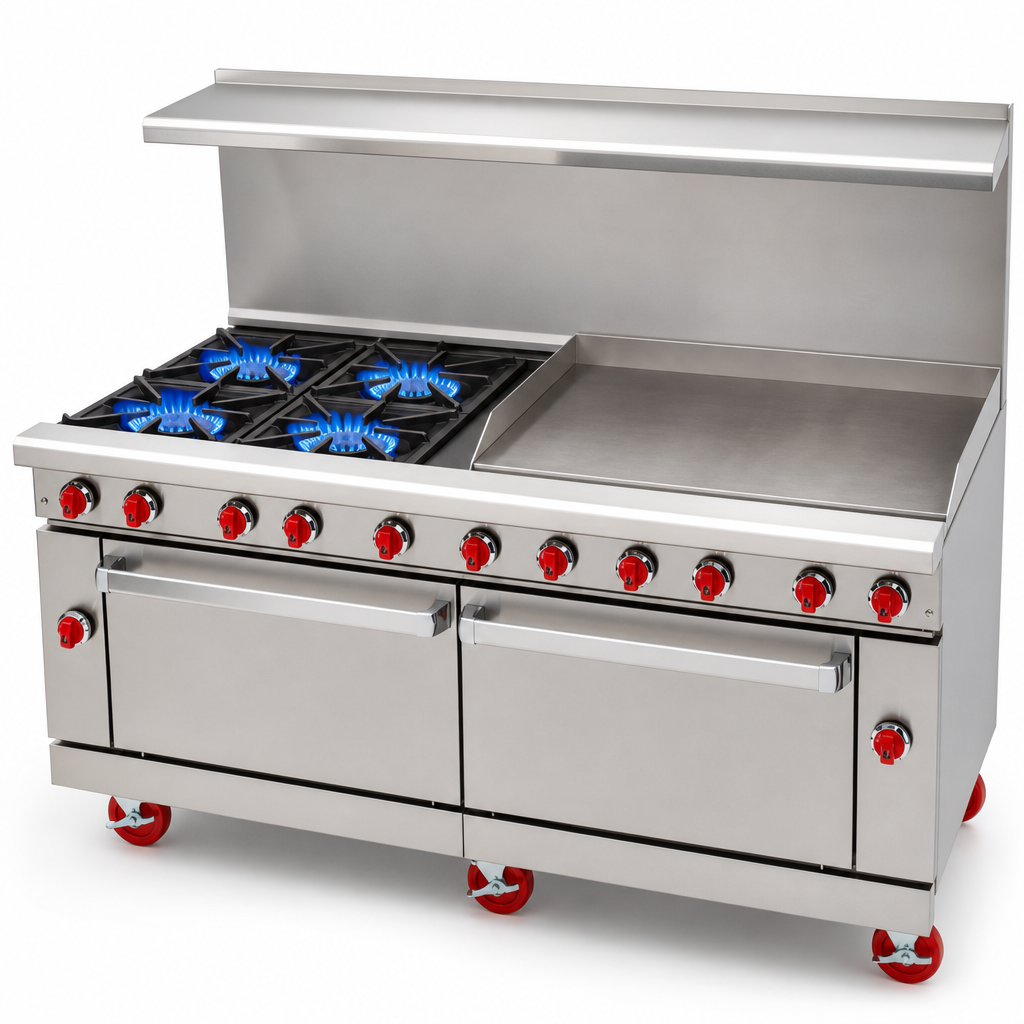

  • (4) 32,000 BTU open burners with lift-off heads & 12" × 12" cast-iron grates
  • 26-1/2" convection oven (30,000 BTU) with porcelain interior, two chrome racks & five positions
  • 26-1/2" storage base (right) keeps sheet pans and smallwares close at hand
  • Individual, cool-touch burner valves for precise flame control
  • Full-width removable drip tray speeds daily cleanup
  • Stainless-steel front, sides, landing ledge & kick plate resist corrosion
  • 6" adjustable chrome-plated legs level the unit on uneven floors
  • Choice of rear guard: 6" stub back, 20" riser, or high riser with shelf (no up-charge)
  • cETLus & ETL-Sanitation listed for safety and sanitation
  • Backed by a 2-year limited parts & labor warranty

Performance Breakdown

Open burners 4 × 32,000 BTU/h = 128,000 BTU
Griddle section 4 × 20,000 BTU/h = 80,000 BTU
Convection oven 30,000 BTU/h
Total input 238,000 BTU/h (70.0 kW)

Specifications

Overall width 72" (1829 mm)
Depth 32-1/2" (825 mm)
Cooking height 36" (914 mm)
Oven interior (W × D × H) 26-1/2" × 22-1/2" × 13-1/2"
Oven temperature range 250 °F–500 °F (121 °C–260 °C)
Gas connection 3/4" NPT rear manifold
Manifold pressure Natural 5.0" W.C.  |  Propane 10.0" W.C.
Electrical (convection fan) 120 V  /  1-Phase  /  4 A (cord & plug included)
Certifications cETLus, ETL-Sanitation
Origin Designed & built in the USA

Ideal For

  • High-volume diners, cafés & casual dining
  • Hotels, resorts & banquet operations
  • Catering commissaries and ghost kitchens
  • Schools, hospitals & institutional foodservice
Installation note: Must be installed under a vented hood and in accordance with local codes. Specify gas type (Natural or LP) when ordering.

Looking for casters, thermostat-controlled griddles or other custom options? Contact us—American Range offers a full selection of factory upgrades.

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

56.0in

Width

72.0in

Depth

32.25in

Shipping Weight

825.0lbs

Plate Thickness

1.000" = 1"

Base

(1) convection oven, (1) cabinet

Top

(4) open burners, (1) 48" griddle

Exterior Finish

stainless steel front & sides

Vent

backriser with hi-shelf

Specifications

Restaurant Range, gas, 72", (1) 48" griddle on left, 1" thick plate, manual controls, (4) 32,000 BTU open burners, (1) 26-1/2" convection oven left, (2) racks, (1) 26-1/2" storage base right, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 70.0kW, 238,000 BTU, cETLus, ETL-Sanitation, Made in USA
