American Range AR-48G-2B-CL-SBR Gas Ranges
American Range AR-48G-2B-CL-SBR Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range AR-48G-2B-CL-SBR Gas Ranges
Description
60" Gas Restaurant Range – 48" Manual Griddle, 2 Burners & Convection Oven
American Range • Model AR-48G-2B (Convection / Storage Base Combo)Built for the busiest kitchens, this American-made powerhouse merges a full-width 48" griddle with two high-performance open burners and a 26-1/2" convection oven—plus a convenient storage base to keep sheet pans and utensils close at hand. Rugged stainless-steel construction, a 1" thick griddle plate, and industry-leading BTU output deliver the durability and throughput chefs demand every day.
Top-Line Performance
- 48" manual griddle (left) with 1" thick polished steel plate & four 20,000 BTU burners for fast, even heat

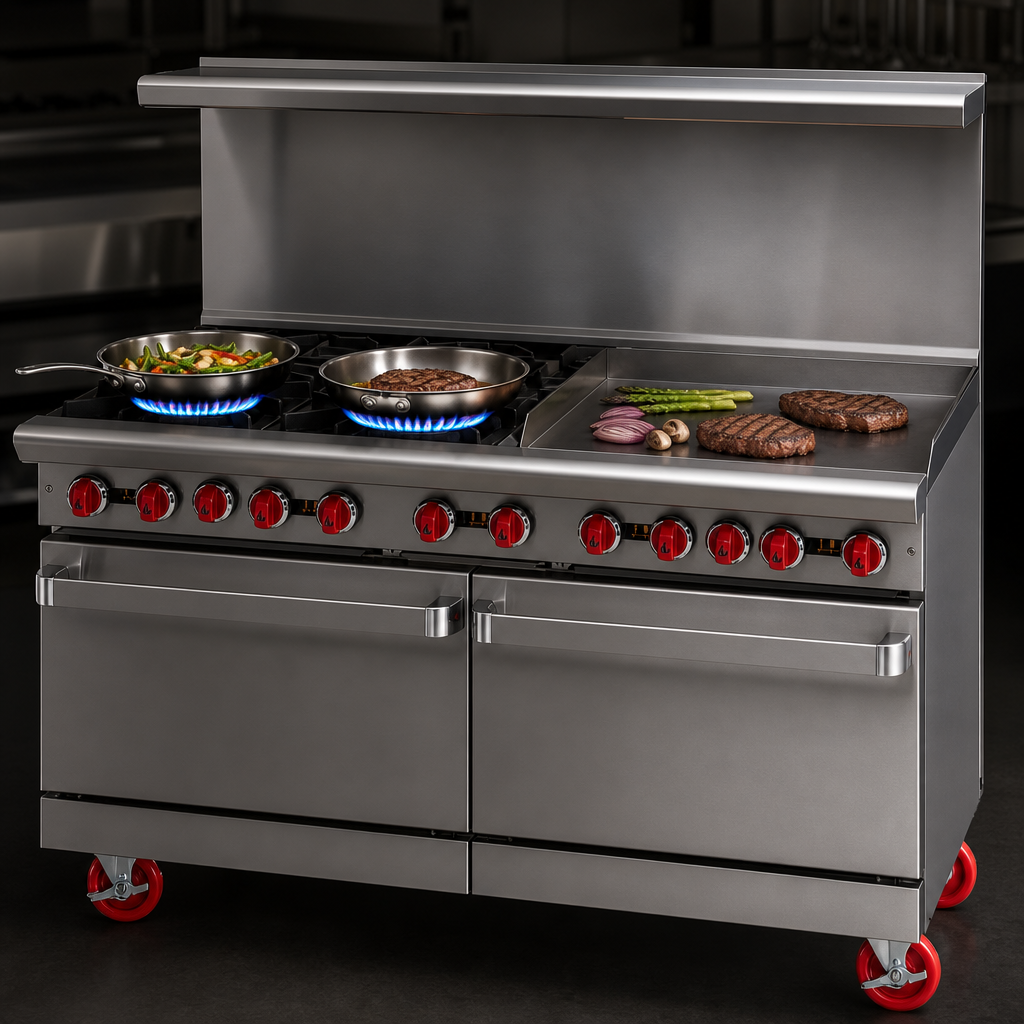

- Two 32,000 BTU open burners (right) with 12" × 12" cast-iron grates & removable drip pan
- Total input: 174,000 BTU / 51 kW
- Cool-to-the-touch die-cast burner knobs
- 6" deep front landing ledge for plating & staging
Convection Oven + Storage
- Left-side convection oven (26-1/2" wide) – 30,000 BTU steel burner, 250 – 500 °F thermostat, porcelain interior, 5-position rack guides & 2 chrome racks
- Right-side storage base (26-1/2" wide) keeps pans, trays, or smallwares organized and within reach
Construction Highlights
- All stainless-steel front, sides & high-grade components
- Choice of 6" stub back, 20" back riser, or high shelf/riser combination
- 6" chrome-plated adjustable legs (optional swivel casters available)
- Made, engineered & assembled in the USA
Specifications
| Overall width | 60 in (1524 mm) |
|---|---|
| Depth / Cooking height | 32 1/2 in (826 mm) / 36 in (914 mm) |
| Griddle plate | 48 in W × 24 in D, 1 in thick |
| Open burners | 2 × 32,000 BTU cast-iron top grates |
| Griddle burners | 4 × 20,000 BTU (one every 12") |
| Convection oven burner | 30,000 BTU |
| Total input | 174,000 BTU / 51.0 kW |
| Gas connection | 3/4" NPT (rear); 5.0" WC Nat / 10.0" WC LP |
| Electrical (oven fan) | 120 V, 1-phase, 4 A, 15-amp cord & plug supplied |
| Certifications | cETLus • ETL Sanitation (NSF) • Made in USA |
| Approx. shipping weight* | ≈ 720 lb (327 kg) |
*Shipping weight and dimensions are approximate and subject to change without notice.
