American Range AR-48G-2B-126L-SBR Gas Ranges
Description
American Range 60" Restaurant Range – 48" Griddle, 2-Burner, Standard Oven & Storage Base
Model: AR-48G-2B-DSB (Natural or LP Gas)Engineered for demanding commercial kitchens, this 60-inch American Range packs a massive 48-inch griddle, two powerful 32,000 BTU open burners, a full-size 26½" standard oven, and a convenient 26½" storage base into one versatile, Made-in-USA workhorse. Built from stainless steel inside and out, it delivers the durability, cooking power and serviceability chefs rely on—all backed by a two-year parts & labor warranty.
Highlights & Performance

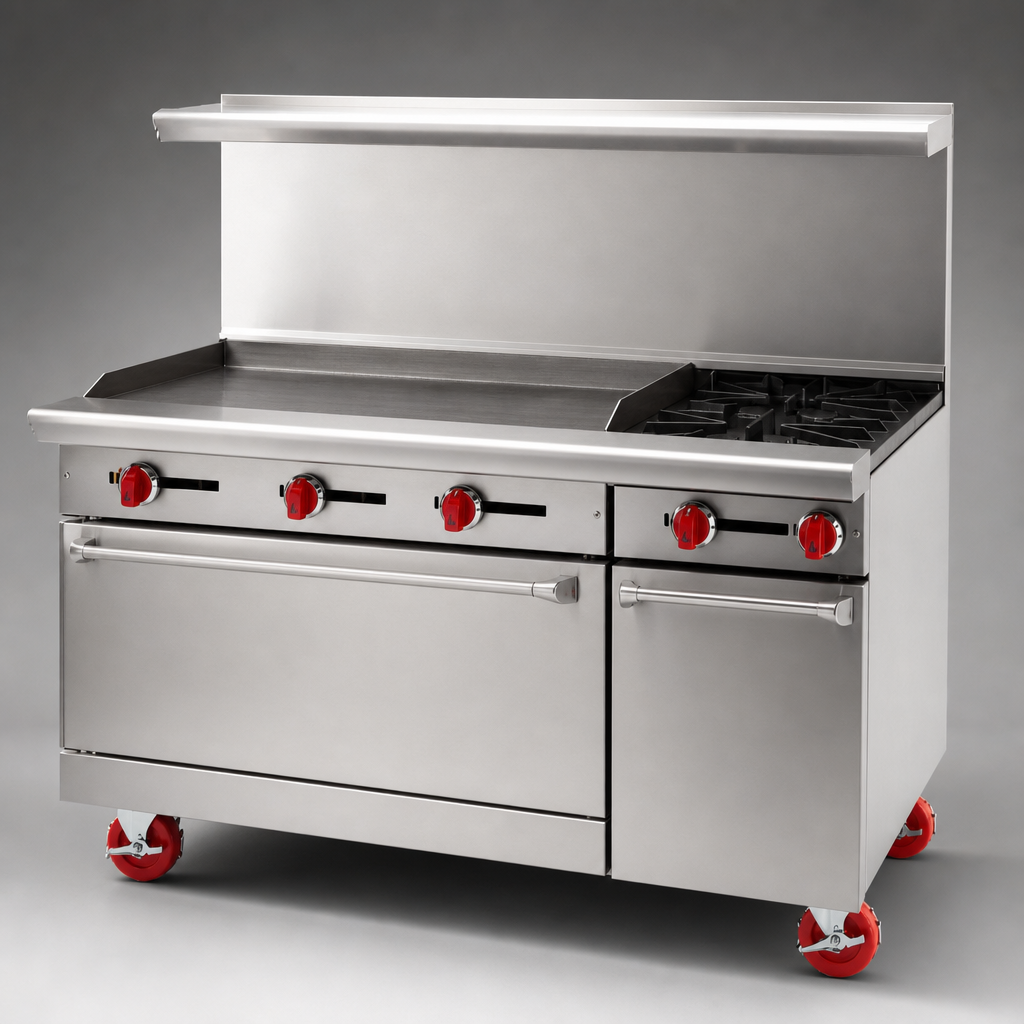

- 48" manual griddle (left side) with 1" thick steel plate & 3" wide grease trough for even heat and easy cleanup.
- (2) 32,000 BTU open burners (right front & rear) with easily removable 12" x 12" cast-iron top grates.
- 26½" standard oven (left base) rated at 35,000 BTU/hr; thermostat adjustable 250 °F – 500 °F.
- 26½" storage base (right) keeps sheet pans, skillets or smallwares close at hand.
- Stainless steel front, sides, landing ledge & removable full-width drip pan.
- Choice of 6" stub back, 20" backsplash/riser, or high shelf with riser (select when ordering).
- 6" adjustable chrome-plated legs for easy leveling or optional caster kit (sold separately).
- Certified cETLus & ETL-Sanitation.
- Built, tested and shipped from American Range’s U.S. manufacturing facility.
Technical Specs
| Exterior width | 60" (1524 mm) |
|---|---|
| Exterior depth | 32 ½" (826 mm) |
| Cooking height | 36" (914 mm) to cook surface |
| Total input (gas) | 179,000 BTU/hr • 53.0 kW |
| Open burner rating | 32,000 BTU/hr each (2 burners) |
| Griddle plate size | 48" W × 24" D × 1" T (steel) |
| Oven cavity (W×D×H) | 26 ½" W × 22 ½" D × 13 ½" H |
| Oven input | 35,000 BTU/hr |
| Oven racks | (2) chrome-plated, 3-position |
| Gas connection | ¾" NPT rear manifold (specify Natural 5.0" W.C. or LP 10.0" W.C.) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year limited parts & labor |
| Origin | Designed & built in the USA |
In the Box
- (1) 60" restaurant range with factory-installed 48" griddle, 2 open burners & storage base
- (2) chrome oven racks
- Removable stainless full-width drip pan
- User & installation manual
Product registration within 90 days of shipment extends warranty eligibility. See enclosed card or visit americanrange.com for details.
