American Range AR-4 Gas Ranges
Description

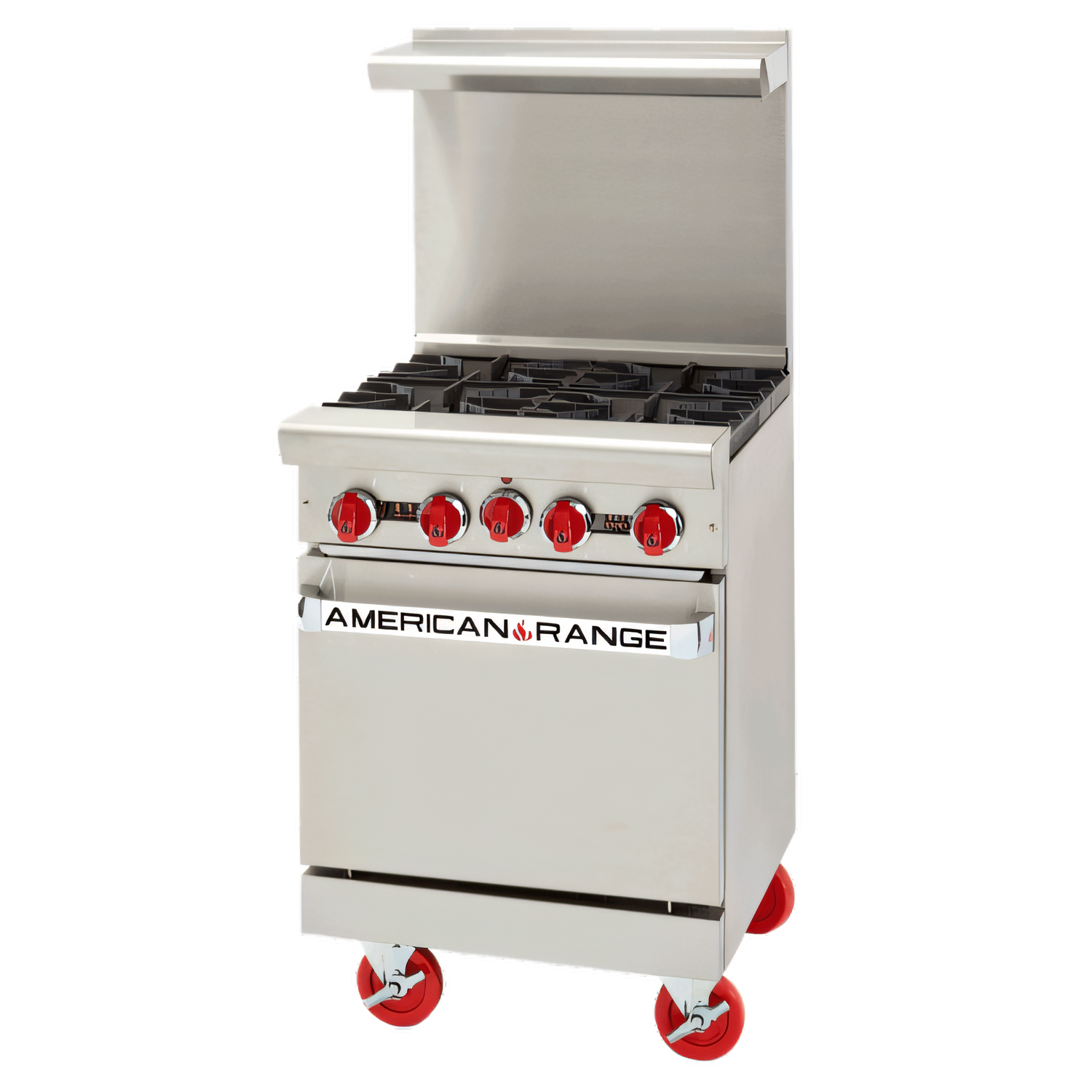

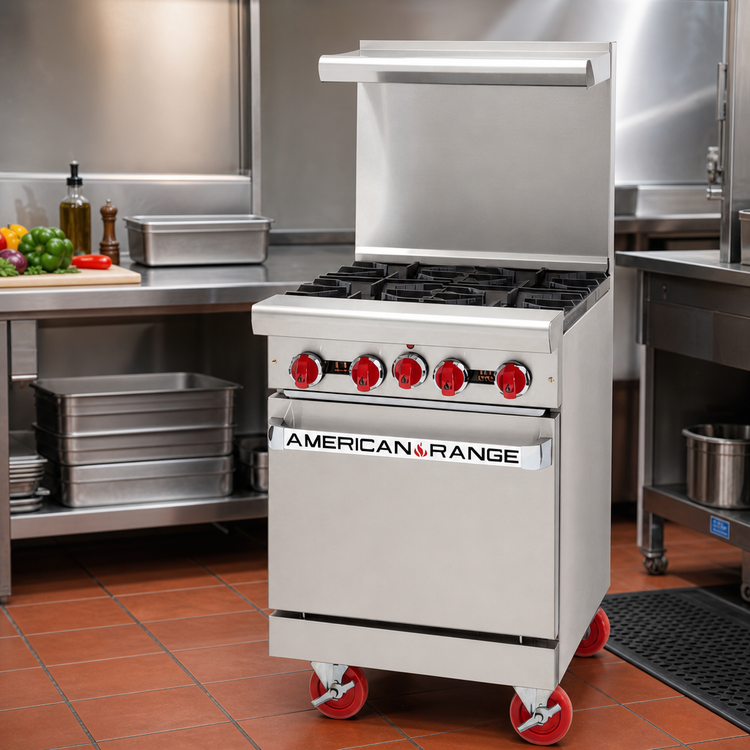

American Range 24" Gas Restaurant Range – 4 × 32,000 BTU Burners with 20" Space-Saver Oven
Model AR-4 • Total input: 155,000 BTU (46 kW) • cETLus & ETL-Sanitation • Made in USAEngineered for demanding commercial kitchens, the American Range AR-4 packs heavy-duty performance into a compact 24-inch footprint. Four powerful open burners, a full-featured space-saving oven and an all-stainless exterior give you the speed, versatility and durability that busy lines depend on—shift after shift, year after year.
Top Reasons You’ll Love It

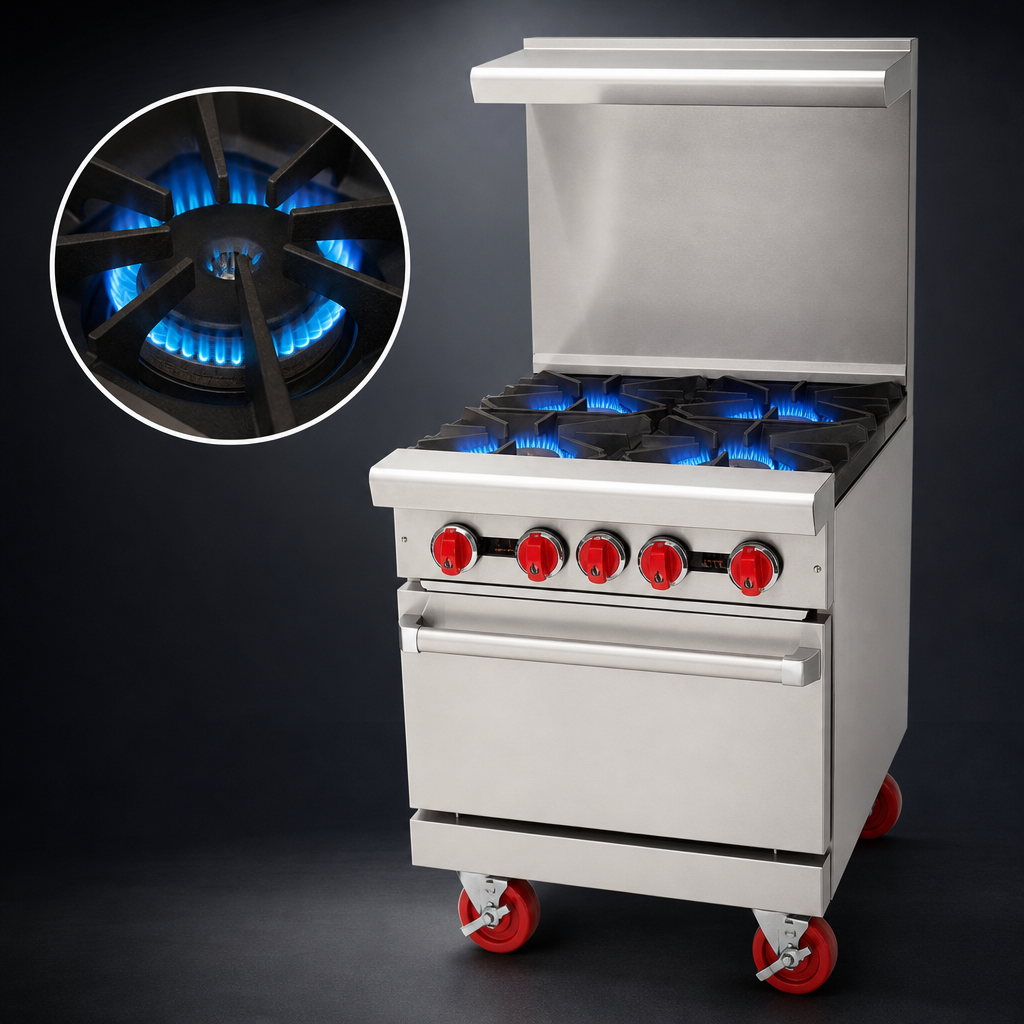

- 4 open burners, each delivering 32,000 BTU for lightning-fast sautéing, searing & boiling.
- 12" × 12" cast-iron grates keep pans stable and retain heat for consistent cooking.
- 20" space-saver standard oven (27,000 BTU) with porcelain-enameled interior for easy clean-up.
- Thermostat-controlled 250 °F – 500 °F (121 °C – 260 °C) for everything from low-temp holding to high-heat roasting.
- Two chrome-plated racks supplied; four rack positions accommodate full-size sheet pans.
- Stainless steel front, sides, 6" deep landing ledge & removable full-width drip tray stand up to daily abuse.
- Choice of backsplash: 6" stub back, 20" riser, or high riser with shelf (select at checkout).
- 6" adjustable chrome-plated legs for easy leveling and under-range cleaning.
- 100 % safety gas shut-off and pilot protection for peace of mind.
- Backed by a 2-year parts & labor limited warranty from American Range.

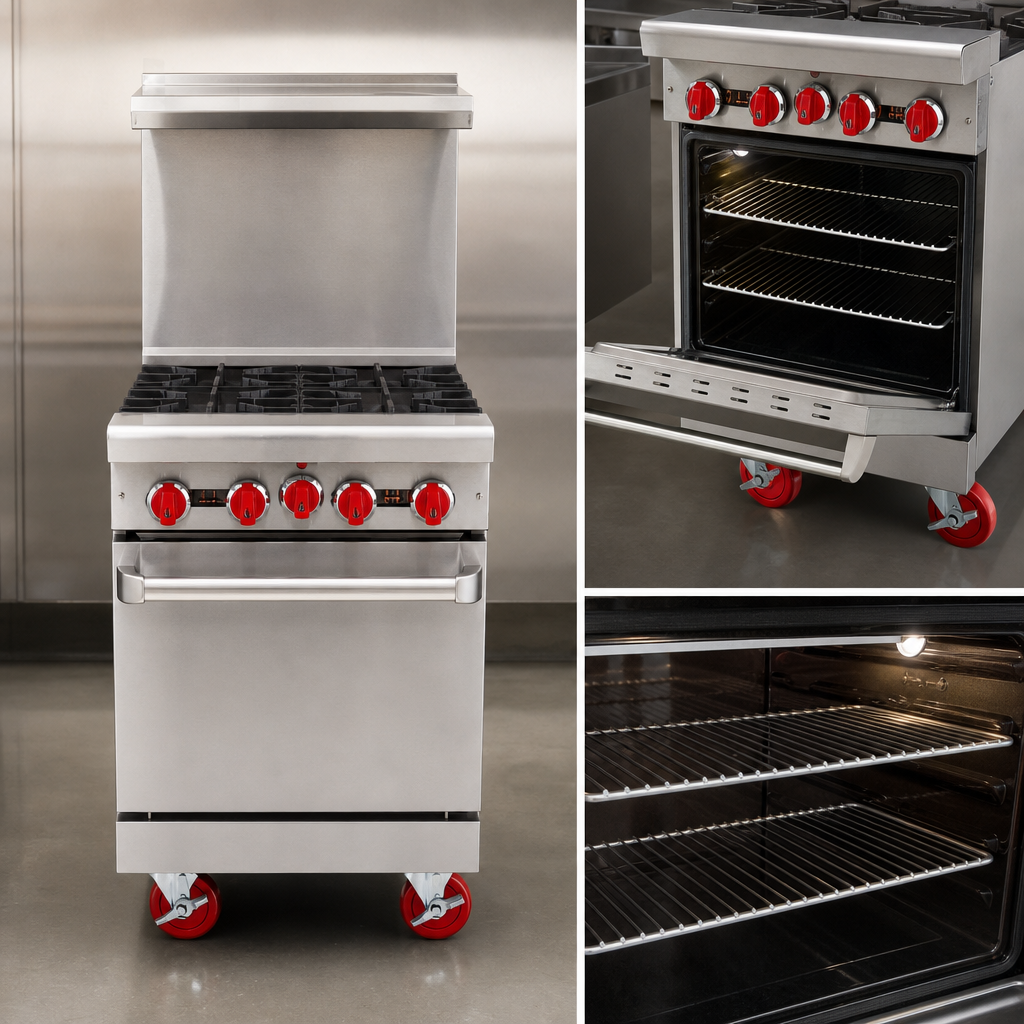

Space-Saver Oven Highlights
- Heavy-duty steel oven burner rated at 27,000 BTU/hr.
- Interior dimensions: 20"W × 26 ½"D × 13 ½"H – fits standard 18" × 26" sheet pans front-to-back.
- Spring-assisted, counter-weighted door for smooth, one-hand operation.
- Porcelain enamel interior wipes clean; no harsh chemicals required.
Technical Specifications
| Model / Size | AR-4 • 24"W × 32 ½"D × 56"H (with 20" riser) |
|---|---|
| Total BTU Input | 155,000 BTU / 46 kW |
| Open Burners | 4 × 32,000 BTU lift-off heads, cast-iron 12" × 12" grates |
| Oven Burner | 27,000 BTU tubular burner |
| Oven Temperature Range | 250 °F – 500 °F (121 °C – 260 °C) |
| Oven Racks Supplied | 2 chrome racks (4 rack positions) |
| Gas Connection | 3/4" NPT rear manifold Natural gas 5.0" WC | Propane 10.0" WC |
| Electrical (ignition) | 120 V, 1 Ph, 1 A, 3-prong cord included |
| Shipping Weight | Approx. 315 lb (143 kg) |
| Clearances* | Combustible: 2" sides, 4" rear | Non-combustible: 0" |
| Certifications | cETLus, ETL-Sanitation |
*Refer to NFPA96 or local codes for ventilation requirements.
Popular Factory Options
- 6" swivel casters (two with front brakes)
- Extra chrome oven racks
- Storage cabinet base (replaces oven)
Peace-of-Mind Warranty
American Range covers the AR-4 with a 2-year parts & labor limited warranty. Burner grates & radiants: 90 days. See full Terms of Sale and warranty registration details at AmericanRange.com/terms-of-sale.
