American Range AR-3RB Gas Ranges
Description

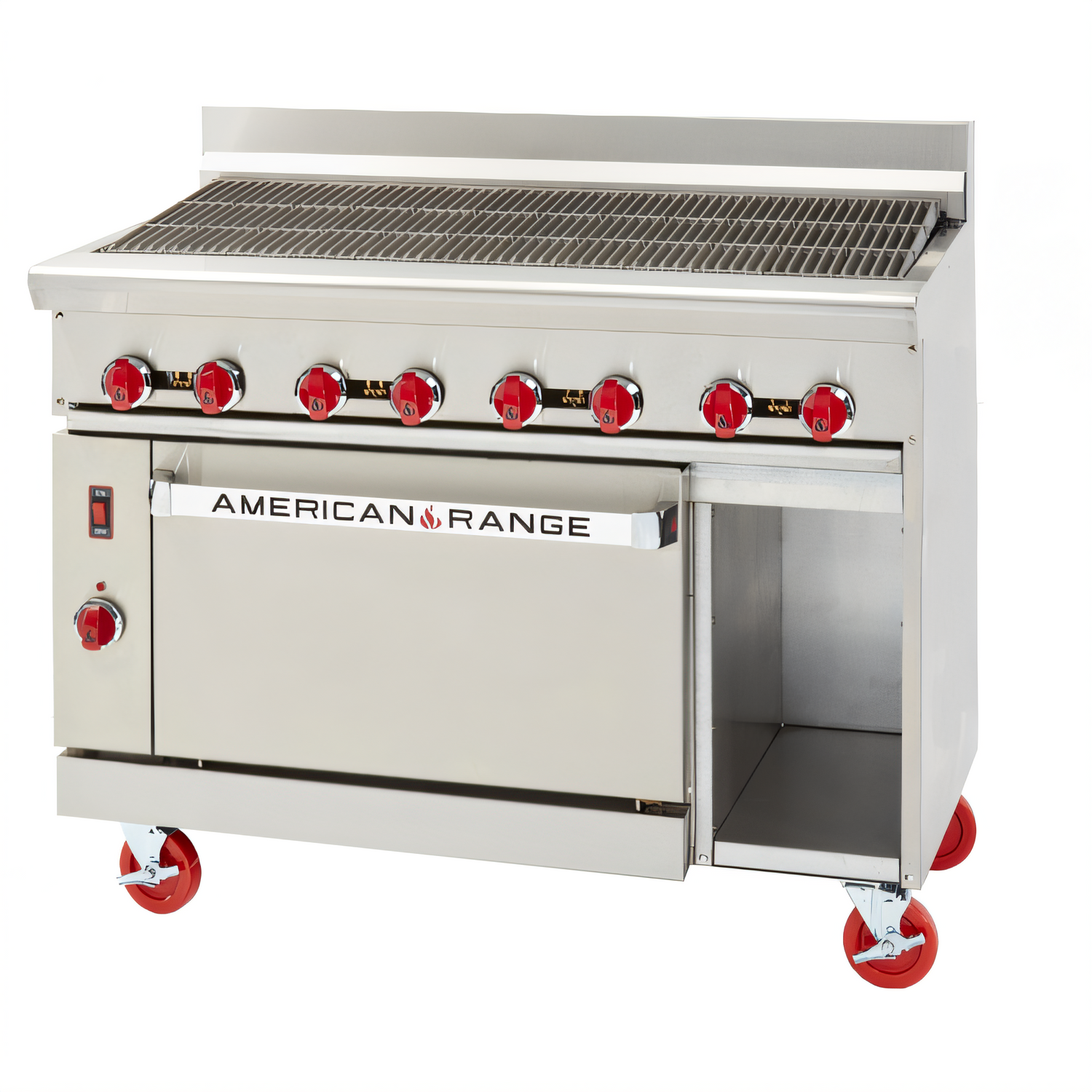

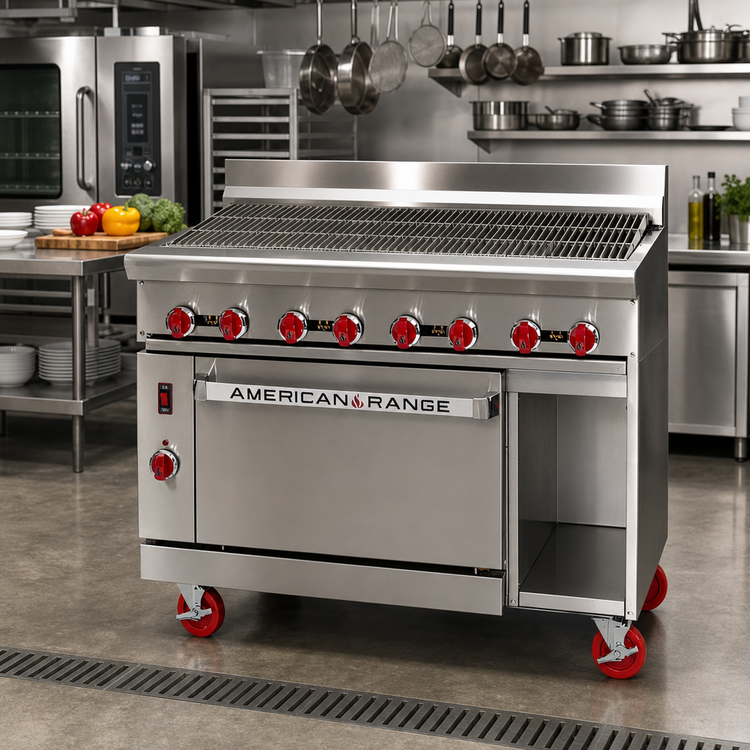

American Range 36" Gas Radiant Broiler Range – Model AR-3RB
High-output charbroiler top with 26-1/2" standard ovenBuilt for demanding commercial kitchens, the AR-3RB combines a heavy-duty 36" radiant broiler with a full-size standard oven, delivering 125,000 BTU of reliable American-made performance. From steakhouse-quality sear marks to consistent baking, this range is engineered to keep up with a busy service.
Top Highlights

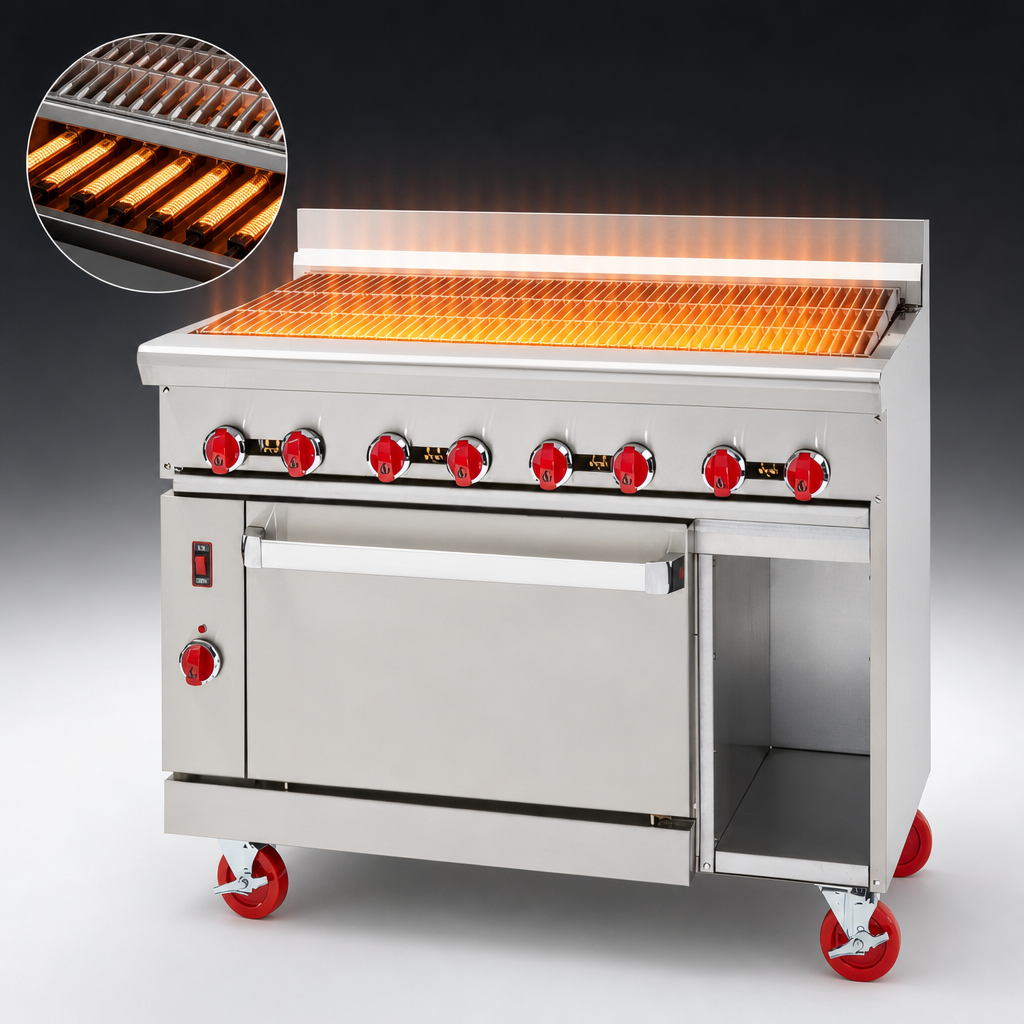

- 36" wide radiant broiler top with six 15,000 BTU steel burners (one every 6")
- Reversible, heavy-duty cast-iron grates for flat or angled broiling

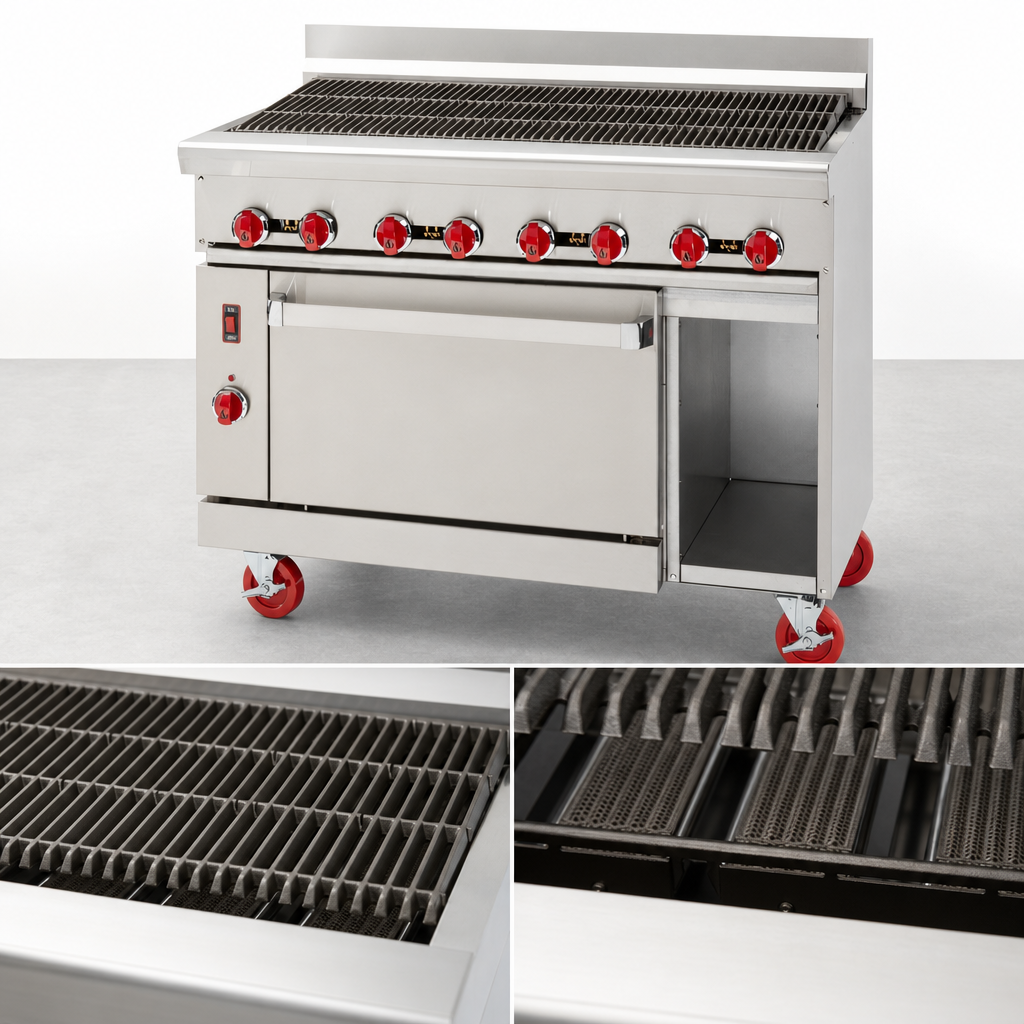

- Durable cast-iron radiants maximize heat retention and even coverage
- Individual manual gas valves & removable stainless pilots for each burner
- Full-width removable drip pan for fast clean-up
26-1/2" Standard Oven
- 35,000 BTU steel burner with thermostat from 250 °F – 500 °F (121 °C – 260 °C)
- Two chrome-plated racks, two fixed positions (extra racks optional)
- Porcelain-enameled interior and inside door panel for easy cleaning
- Spring-assisted, counter-weighted door for smooth, hands-free operation
- 100 % safety gas shut-off
Built to Last
- Stainless steel front, sides, and 6" stub back
- 6" chrome-plated adjustable legs (swivel casters optional)
- 6" deep front landing ledge keeps plates and tools within reach
- Cooking height: 38"
- Designed & manufactured in the USA
Technical Specs
| Model | AR-3RB |
|---|---|
| Overall width | 36" (914 mm) |
| Depth / Height | 32-1/2" D × 38" H (826 mm × 965 mm) |
| Total BTU | 125,000 BTU / 37 kW |
| Broiler burners | 6 × 15,000 BTU steel tube burners |
| Oven burner | 35,000 BTU steel burner |
| Oven cavity (W × D × H) | 26-1/2" × 22-1/2" × 13-1/2" (673 mm × 572 mm × 343 mm) |
| Gas connection | 3/4" NPT, rear manifold – 5.0" W.C. Natural / 10.0" W.C. LP |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year parts & labor (90-day broiler grates & radiants) |
| Origin | Made in USA |
Popular Options (Sold Separately)
- Swivel casters (set of 4, front brakes)
- Additional chrome oven racks
- LP gas configuration
Install on non-combustible flooring under an adequate ventilation hood per NFPA 96. Clearances to combustible walls: 12" sides, 4" rear.
