American Range  |  SKU: AR-36G-SB

American Range AR-36G-SB Gas Ranges

$4,806.05
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

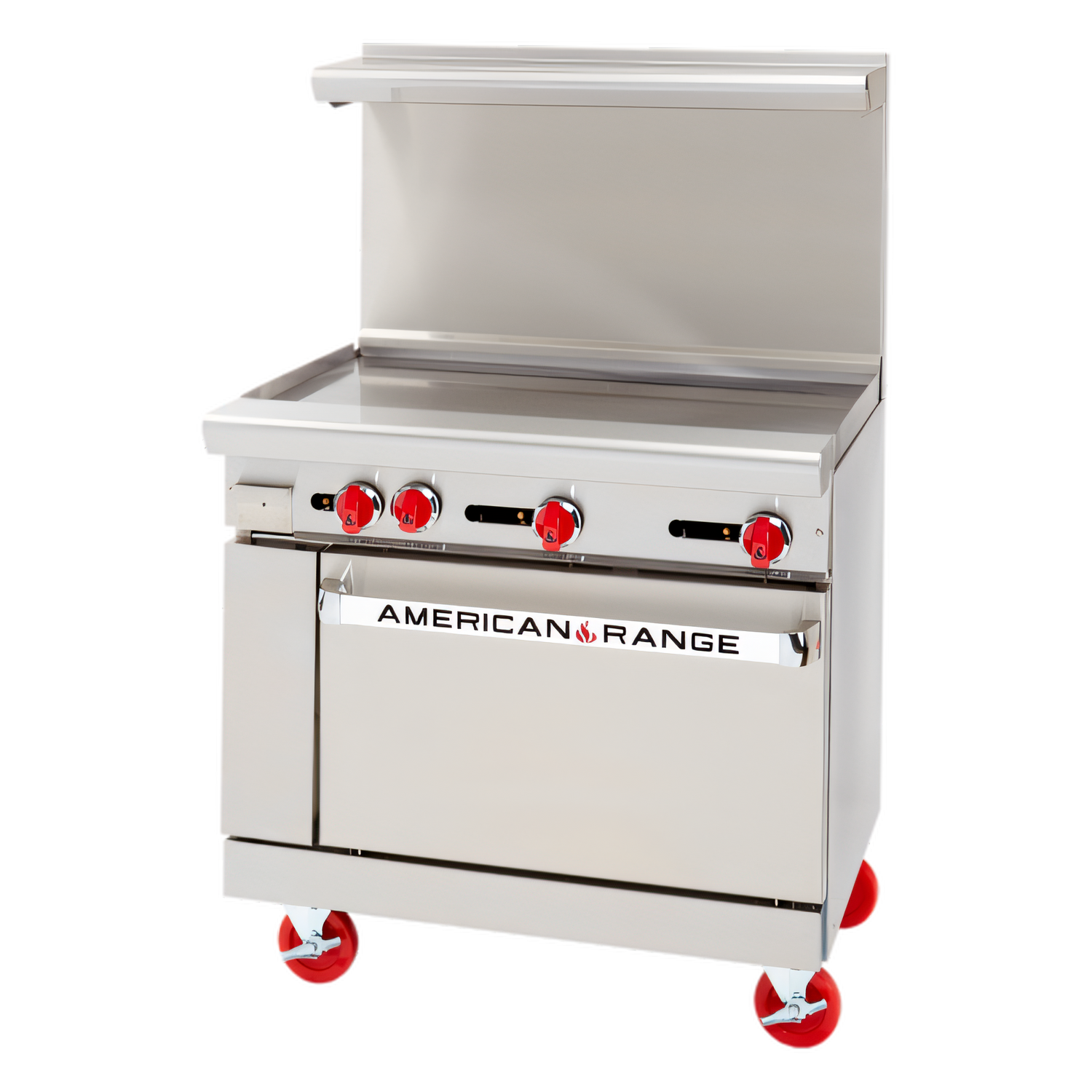

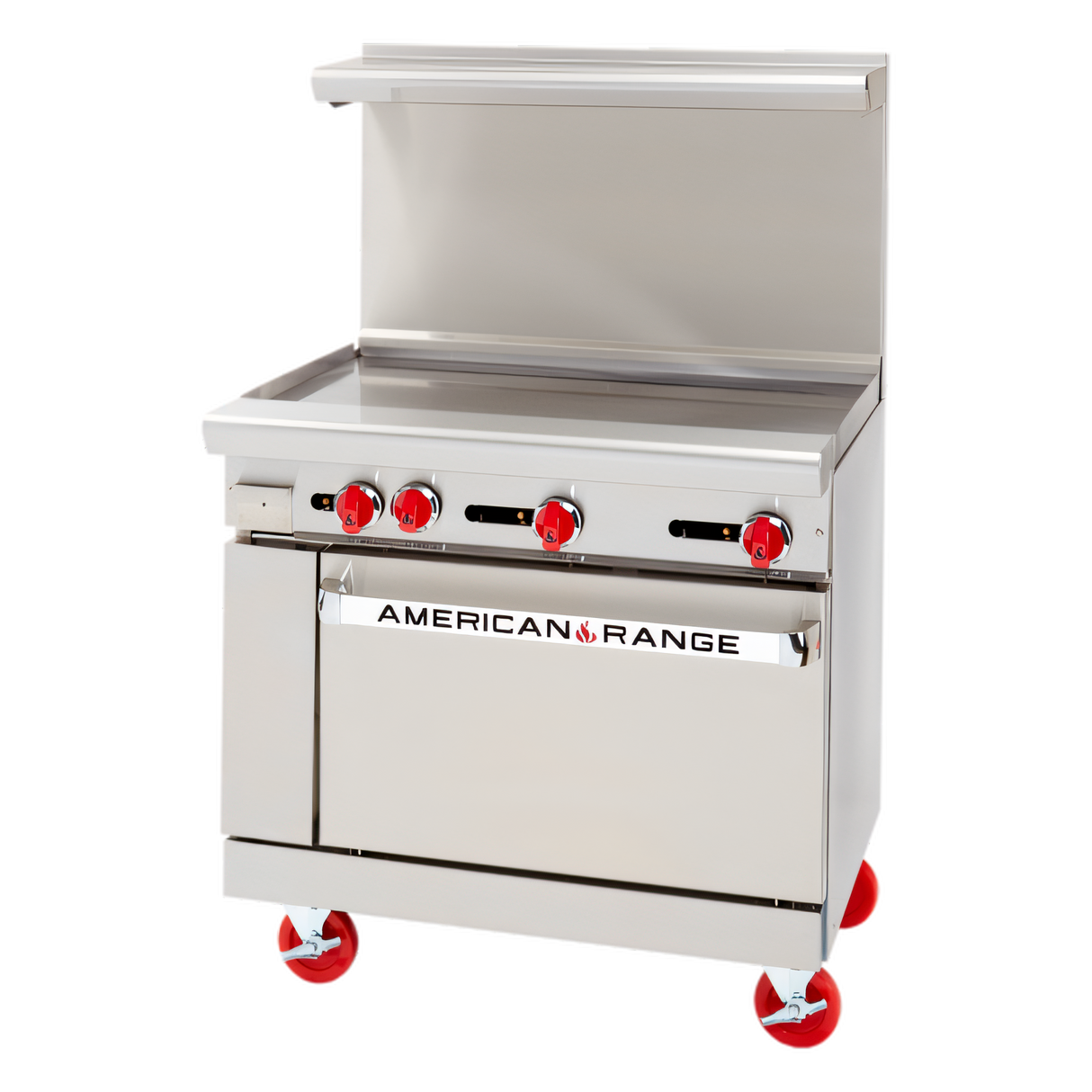

American Range 36" Gas Restaurant Range with Manual Griddle & Storage Base

Model AR-36G-SB  |  60,000 BTU  |  Natural or LP Gas

Rugged, USA-built construction meets precision griddle performance in a space-saving 36-inch footprint—perfect for high-volume diners, cafés, and ghost kitchens alike.

Key Features

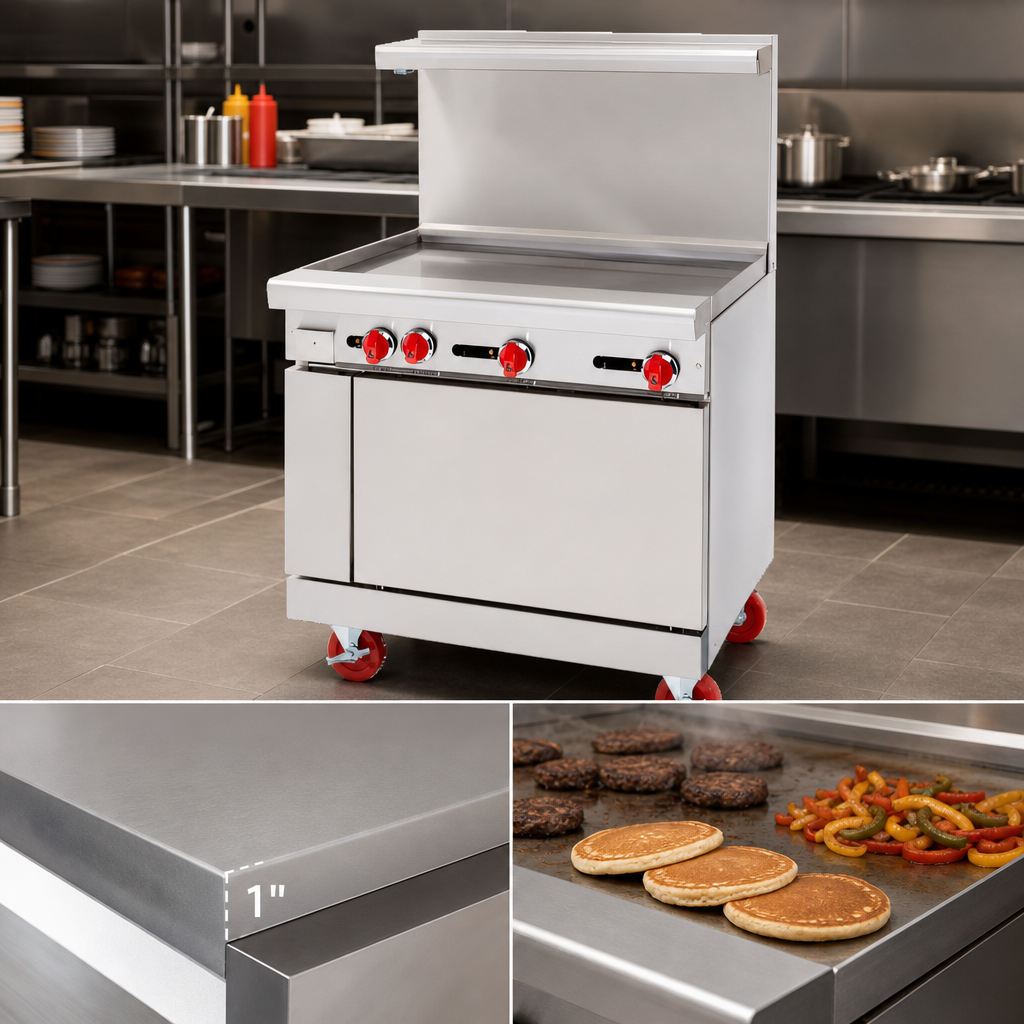

  • 1" thick polished steel griddle plate delivers superior heat retention and quick recovery.

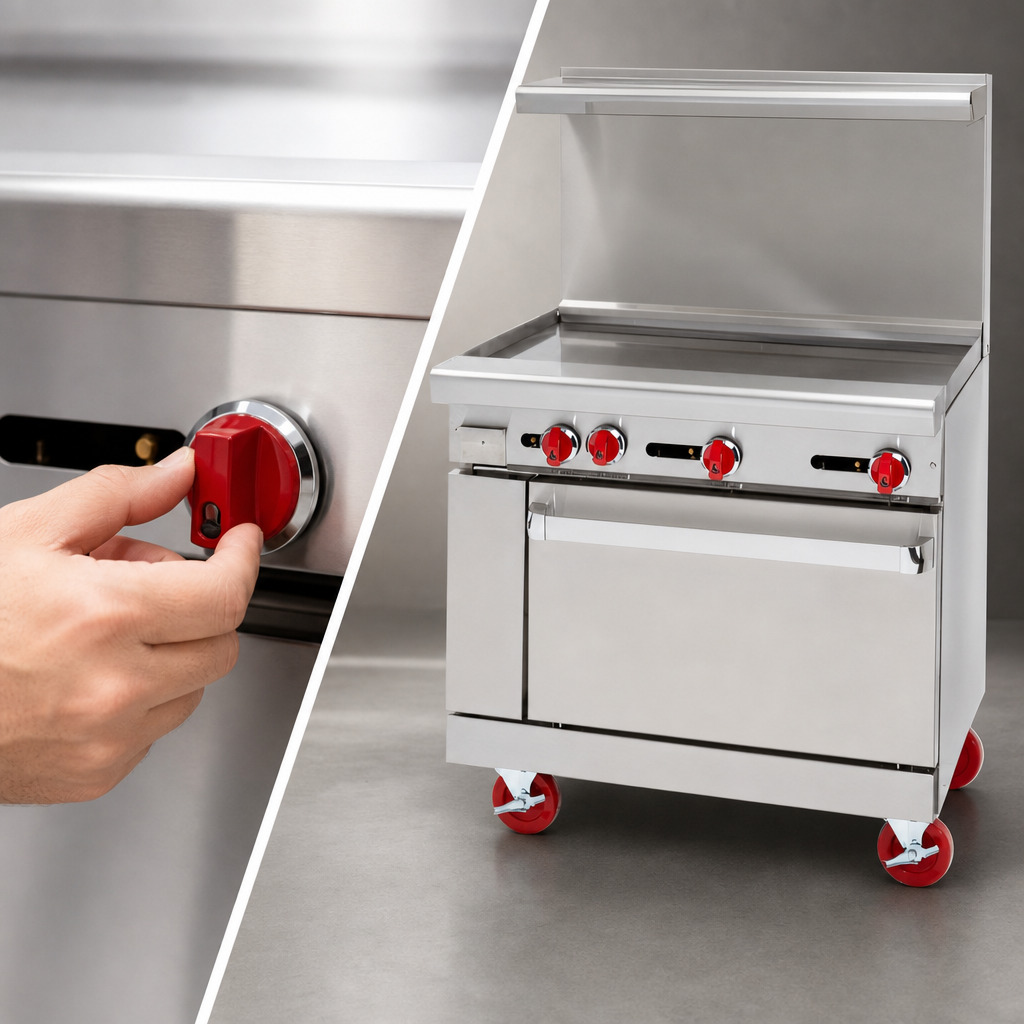

  • Three 20,000 BTU burners (one every 12") with individual manual controls for true zone cooking.
  • Extra-wide 3" grease trough and full-width drip pan speed daily cleaning.
  • 26-1/2" storage cabinet base keeps sheet pans, utensils, and dry goods at arm’s reach.
  • Stainless steel front, sides, and 6" deep landing ledge withstand the toughest kitchen abuse.
  • Choose your backsplash at no extra cost:
    • 6" stainless steel stub back
    • 20" backguard riser
    • High riser with integrated shelf
  • 6" chrome-plated adjustable legs (swivel casters optional).
  • Rear ¾" NPT gas connection with factory-supplied pressure regulator.
  • cETLus & ETL-Sanitation listed for worry-free code compliance.
  • Made in the USA and backed by a 2-year parts & labor warranty.
Specifications
Cooking Surface 36" W × 24" D griddle (914 mm × 610 mm)
Plate Thickness 1" (25 mm) polished steel
Total Input 60,000 BTU/hr  •  18.0 kW
Burner Configuration 3 manual burners @ 20,000 BTU each
Overall Dimensions* 36" W × 32-1/2" D × 56" H (with high riser)
Work Height 36" on 6" legs
Base Style 26-1/2" stainless storage cabinet
Gas Connection ¾" NPT (rear)
Manifold Pressure Natural 5.0" W.C.  •  Propane 10.0" W.C.
Clearances
(combustible / non-combustible)		 Side 12" / 0"  •  Rear 4" / 0"
Certifications cETLus, ETL-Sanitation
Country of Origin United States
Warranty 2-year parts & labor (see warranty terms for details)
Ideal For
  • Diners & breakfast spots
  • Fast-casual and QSR concepts
  • Hotel kitchens & banquets
  • Food trucks & ghost kitchens needing a compact powerhouse

*Height varies with chosen backsplash.
Installation requires adequate ventilation per NFPA 96.

Features & Specs

Manufacturer

American Range

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

56.0in

Width

36.0in

Depth

32.25in

Shipping Weight

385.0lbs

Exterior Finish

all stainless steel exterior

Plate Thickness

1.000" = 1"

Vent

backriser with hi-shelf

Base

(1) cabinet

Top

(1) griddle

Specifications

Restaurant Range, gas, 36", griddle, 1" thick plate, manual controls, (1) 26-1/2" storage base, stainless steel front, sides, choice of high shelf and riser, 20" riser or 6" stub back, 6" adjustable chrome plated legs, 18.0kW, 60,000 BTU, cETLus, ETL-Sanitation, Made in USA
