American Range AR-36G Gas Ranges
Description

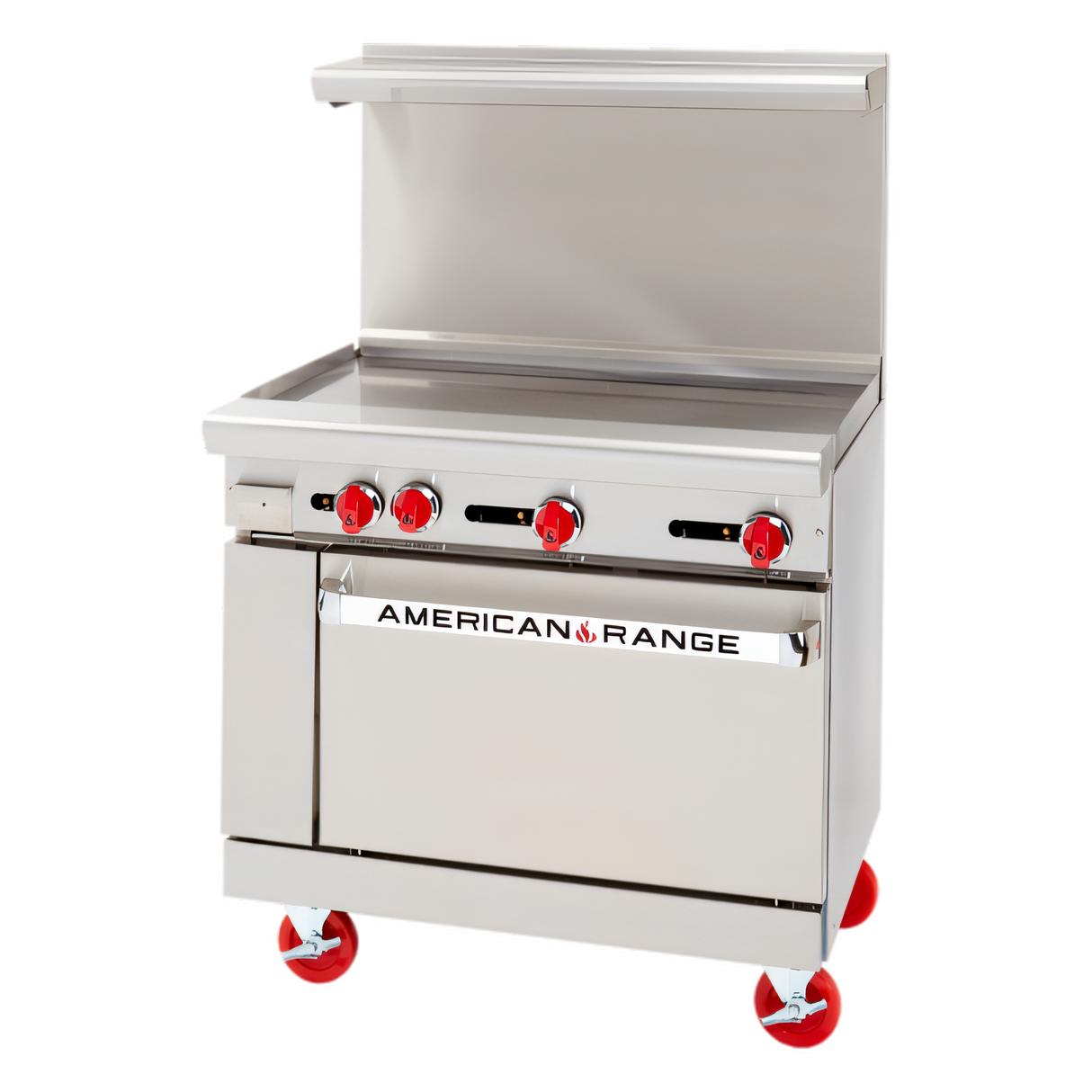

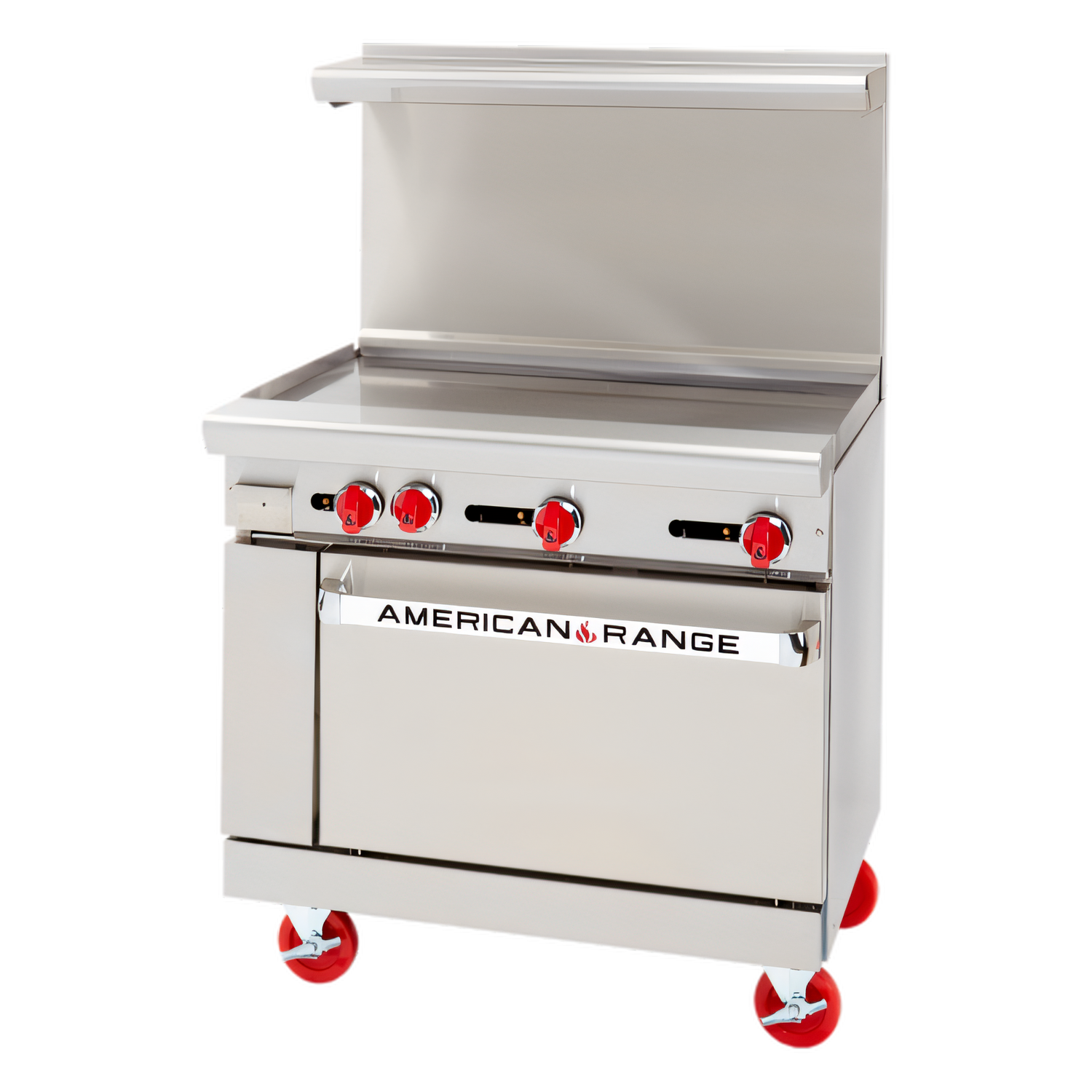

American Range 36" Gas Restaurant Range w/ 36" Manual Griddle & Standard Oven – 95,000 BTU
Model AR-36G | Made in USA | cETLus & ETL-SanitationBuilt for the rigors of a high-volume kitchen, the American Range AR-36G combines a full-width 1" thick griddle with a spacious standard oven, delivering a total of 95,000 BTU of precise, dependable heat in just 36 inches of line space.
Why You’ll Love It

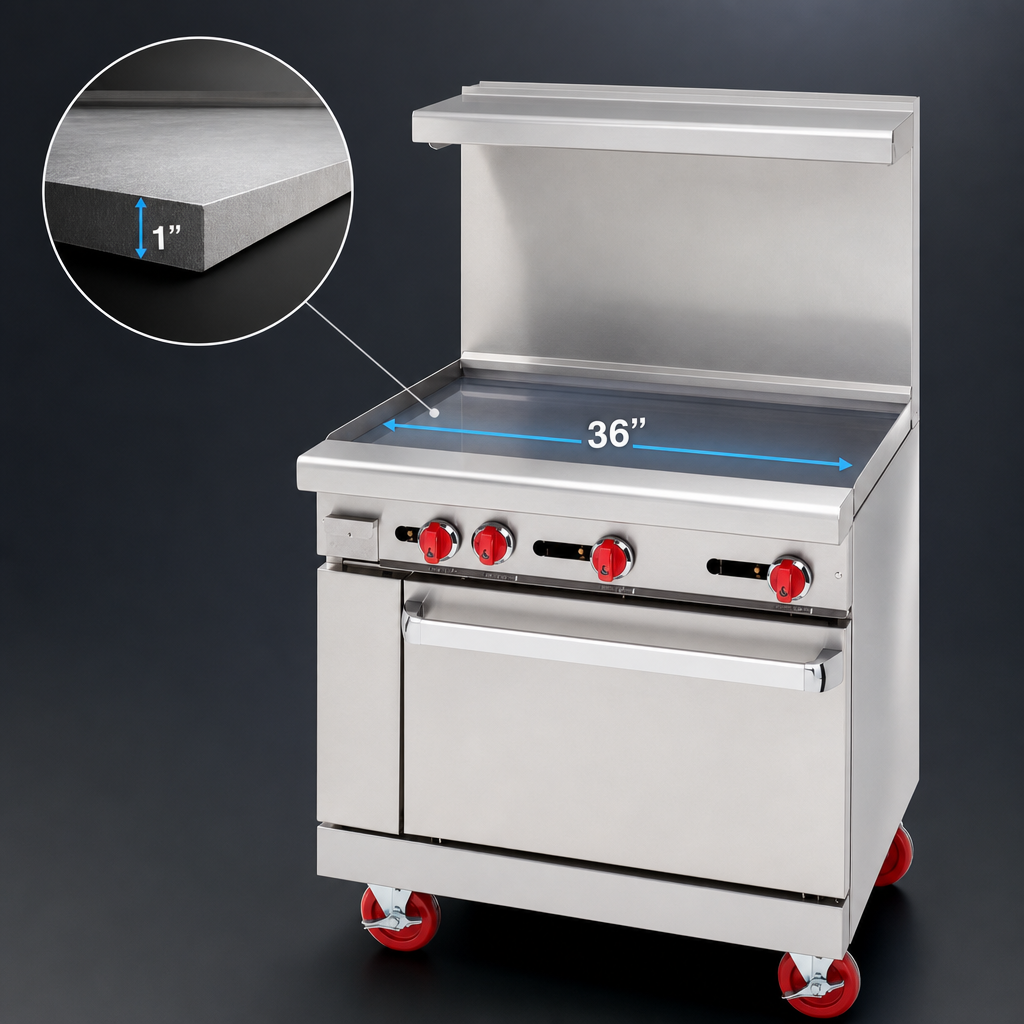

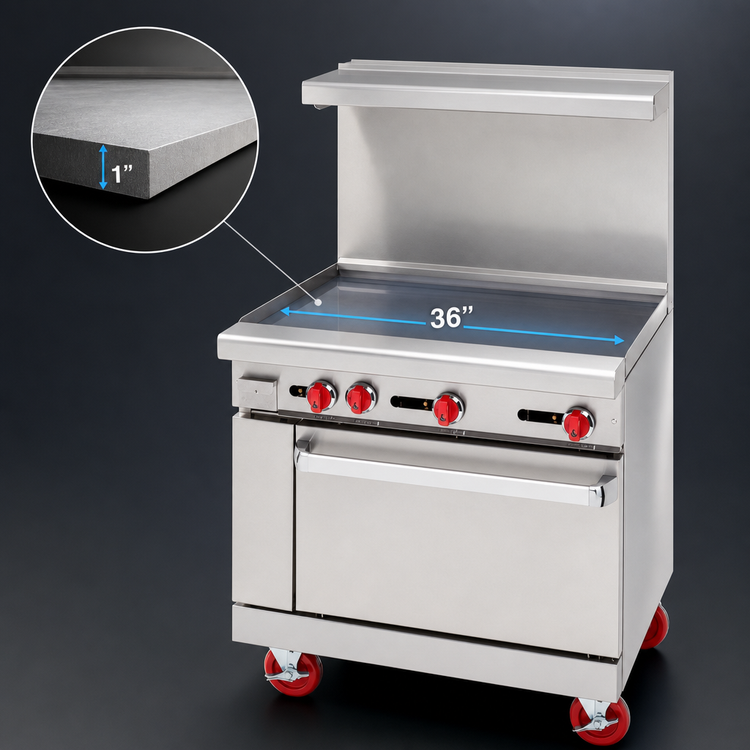

- Heavy-Duty 1" Griddle Plate – Three 20,000 BTU burners (one every 12") provide even heat across the entire 36" surface.
- Quick-Clean Design – 3" wide grease trough and a full-width removable drip pan keep service moving and cleanup simple.
- Powerful Standard Oven – 35,000 BTU steel burner, porcelain-enameled interior, and thermostat range of 250 °F-500 °F (121 °C-260 °C).
- Durable Stainless Construction – Front, sides, back-splash, and 6" landing ledge resist corrosion and look sharp on the line.
- Adjustable 6" Chrome-Plated Legs – Level the range quickly on any non-combustible floor surface.
- No-Charge Back Options – Choose a 6" stub back, 20" back riser, or high shelf & riser to match your ventilation set-up.
- Safety & Compliance – cETLus & ETL-Sanitation listed and supplied with factory-installed pressure regulator.
- Made in the USA – Engineered and fabricated in North Las Vegas for lasting performance, backed by a 2-year parts & labor warranty.
Oven Performance
- Interior dimensions: 26-1/2"W × 22-1/2"D × 13-1/2"H (673 × 572 × 343 mm).
- (2) chrome-plated racks included; two fixed rack positions.
- Spring-assisted, counter-weighted door—no adjustment required.
- 100 % gas shut-off for dependable safety.
Technical Specifications
| Width | 36" (914 mm) |
|---|---|
| Depth | 32-1/2" (825 mm) | 39-1/2" (1003 mm) with door open |
| Cooking Surface Height | 36" (914 mm) |
| Height w/ 20" Riser | 56" (1422 mm) |
| Total Input | 95,000 BTU/hr | 28.0 kW |
| Griddle Plate | 36"W × 24"D, 1" thick polished steel |
| Oven Burner | 35,000 BTU/hr steel tube |
| Temperature Range | 250 °F – 500 °F (121 °C – 260 °C) |
| Gas Connection | 3/4" NPT rear; 5" W.C. NG or 10" W.C. LP (specify when ordering) |
| Shipping Weight | ≈ 455 lb (206 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year parts & labor (90-day wear parts) |
Important: This appliance must be installed by a qualified technician on a non-combustible floor and under an approved hood system. Clearances to combustible walls must be 0" sides and 4" rear. Always specify Natural or LP gas and altitude (if > 2,000 ft) when ordering.
Full limited-warranty terms available at AmericanRange.com. Product registration must be completed within 90 days of shipment for extended coverage.
