American Range AR-36G-6B-DSB Gas Ranges
Description

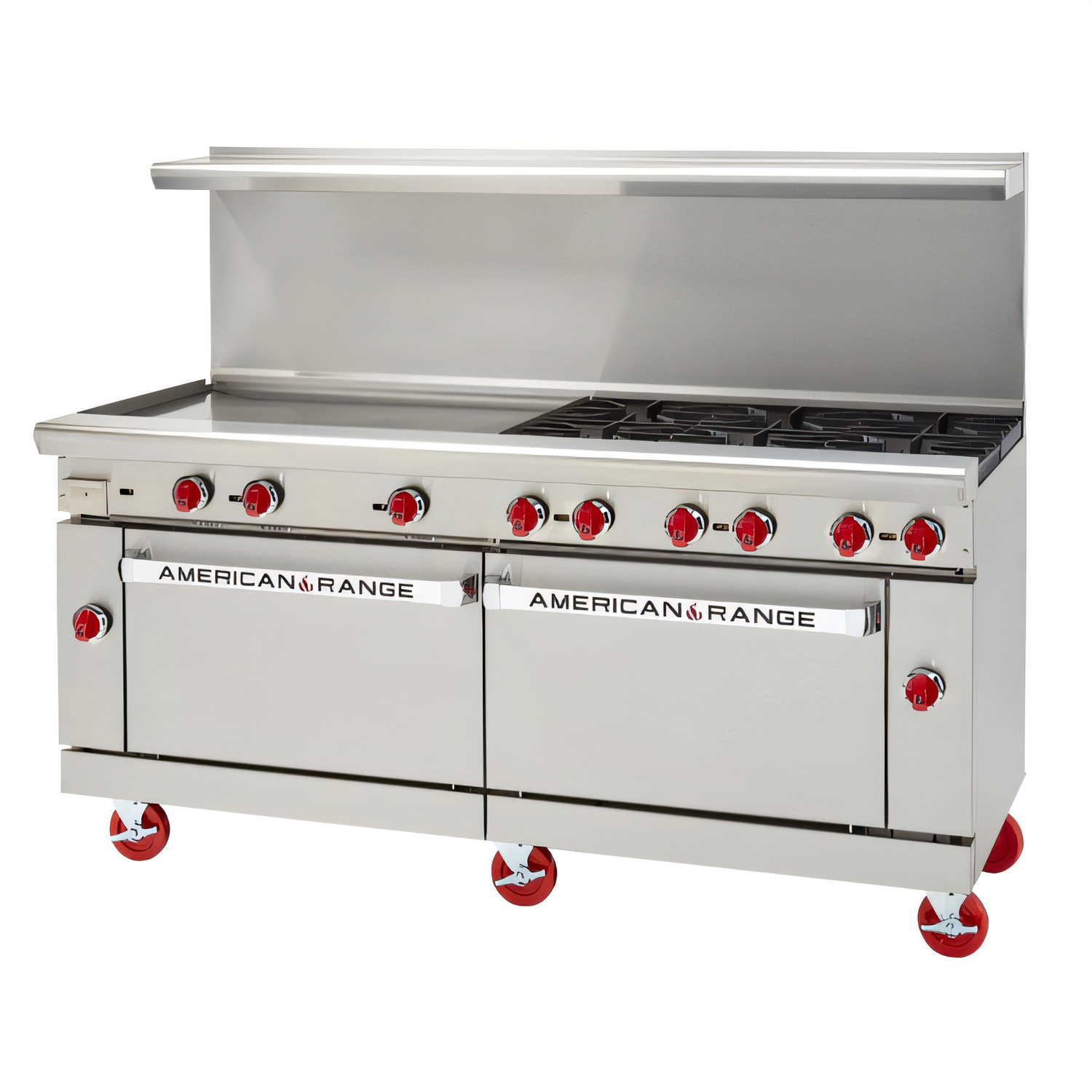

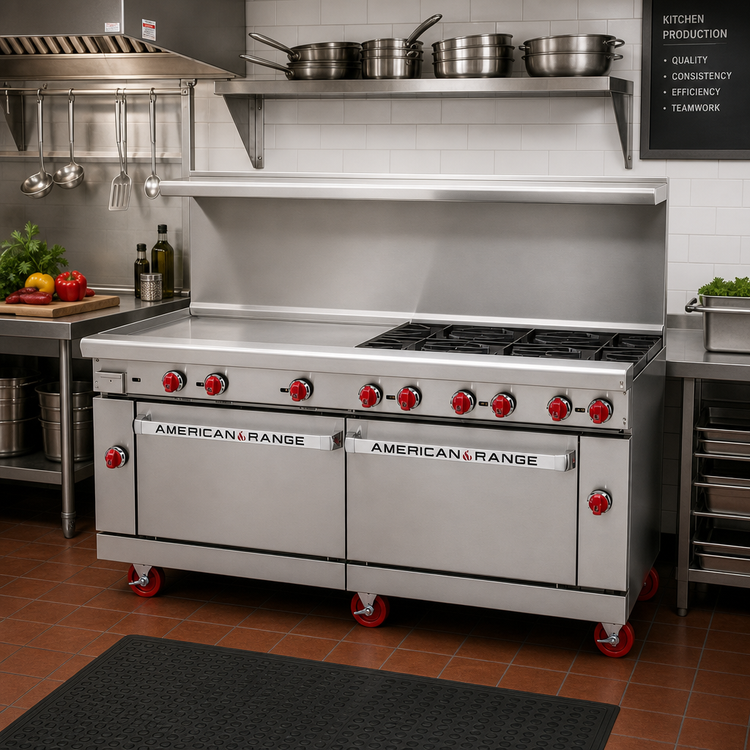

American Range 72" Gas Restaurant Range with 36" Manual Griddle & 6 Open Burners
252,000 BTU • Twin Storage Bases • Made in USATackle breakfast rushes, lunch lines and dinner service on one rugged platform. This 72-inch American Range heavy-duty restaurant range combines a 1-inch thick, 36-inch griddle plate with six high-output open burners and dual storage bases—delivering the versatility today’s commercial kitchens demand.
Key Features

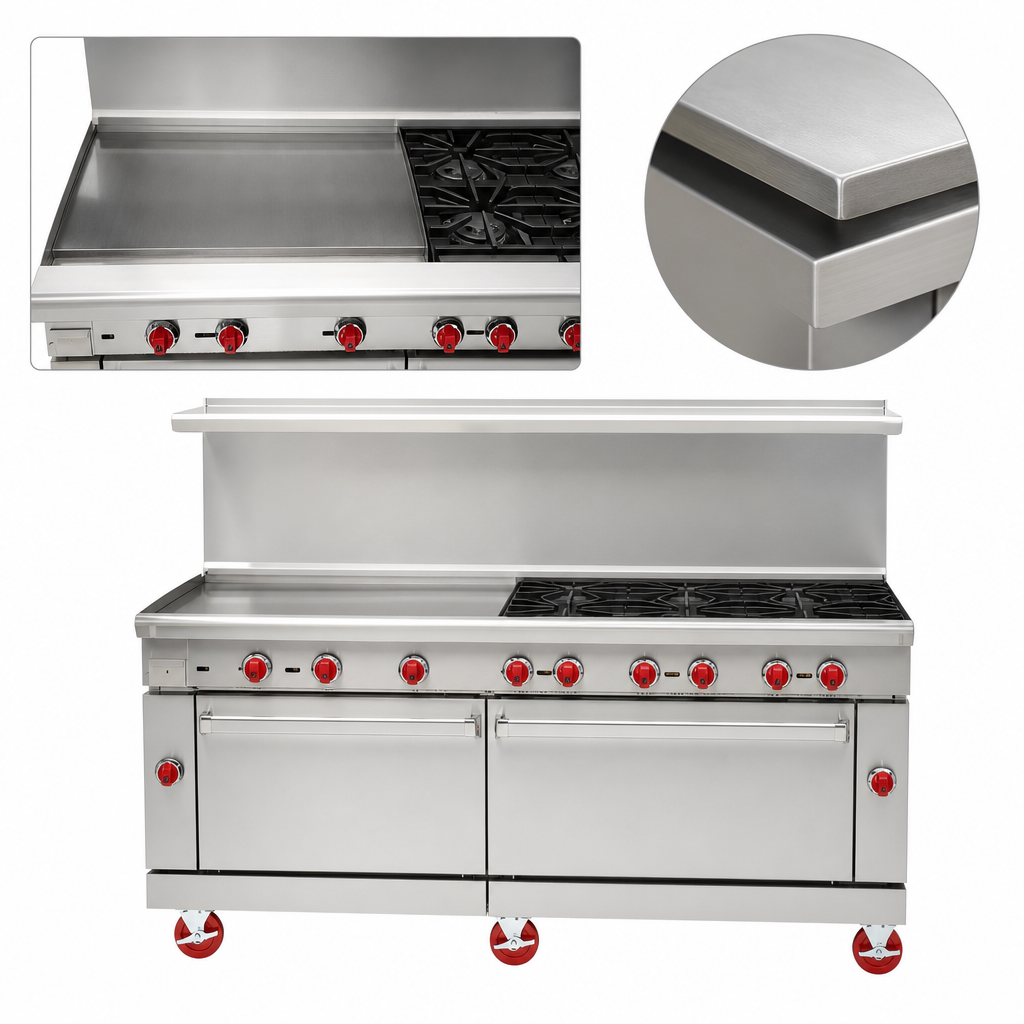

- 36" manual-control griddle (left side) with 1" thick polished steel plate for unrivaled heat retention

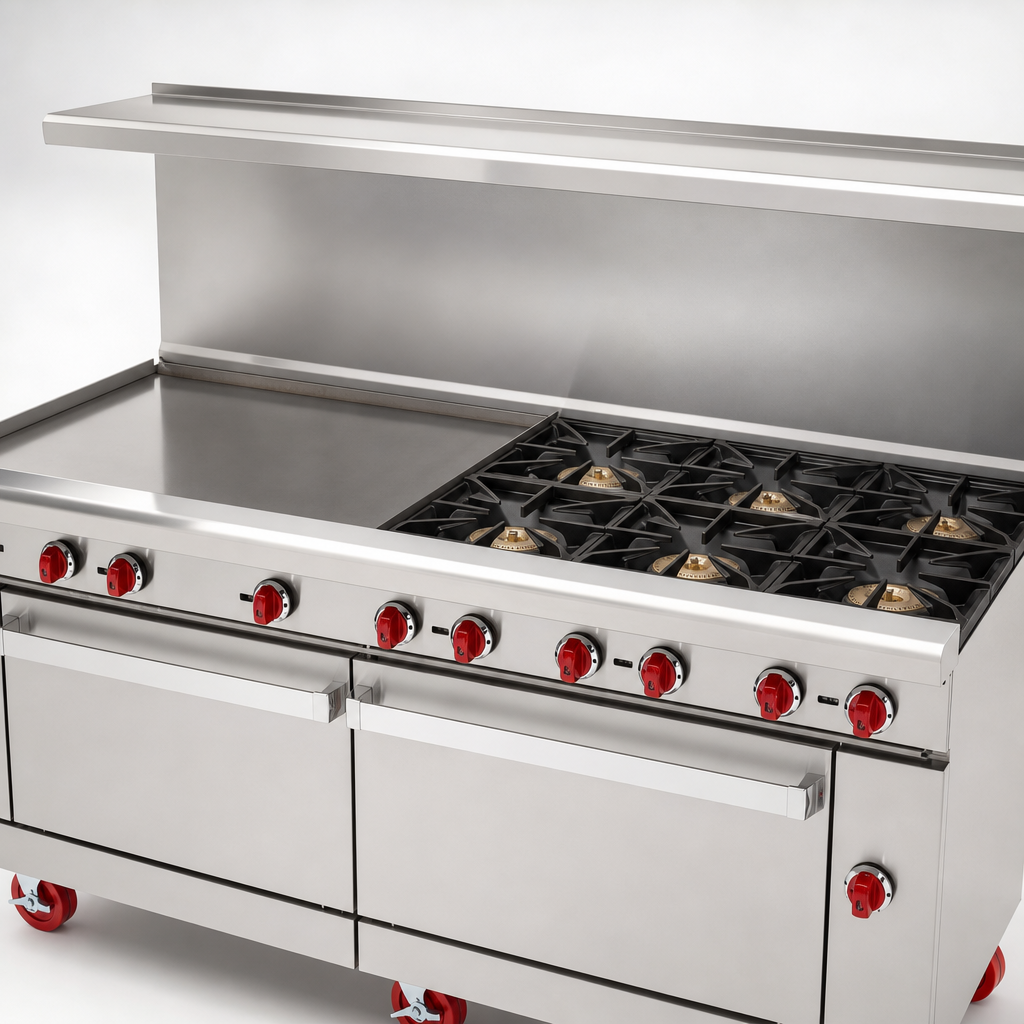

- Six 32,000 BTU open burners featuring lift-off heads and 12" × 12" cast-iron top grates
- Total input: 252,000 BTU / 74 kW (192 k BTU burners + 60 k BTU griddle)
- Two 26-1/2" wide storage bases keep sheet pans, sauté pans and utensils within arm’s reach
- All-stainless steel front, sides, and 6" deep landing ledge stand up to daily abuse
- Choose your rear flue: 6" stub back, 20" riser, or high riser with shelf (no up-charge)
- 3" grease trough and full-width removable drip tray streamline clean-up
- 6" chrome-plated adjustable legs level the unit on uneven floors
- Field convertible for Natural or LP gas; 3/4" NPT rear connection
- cETLus & ETL-Sanitation listed for commercial kitchens
- Backed by a 2-year parts & labor warranty from American Range
- Designed & built in North Las Vegas, Nevada, USA
Performance You Can Taste
From a silky hollandaise to a hard sear on a 14-ounce rib-eye, this range covers it all. High-output open burners provide instant response while the thick griddle plate delivers even, edge-to-edge heat for pancakes, burgers or fajitas—no electronics, no waiting, no compromises.
Technical Specifications
| Width | 72" (1829 mm) |
|---|---|
| Depth | 32-1/2" (826 mm) |
| Cooking height | 36" (914 mm) to grates / plate |
| Griddle surface | 36" W × 24" D × 1" thick steel |
| Open burners | 6 × 32,000 BTU (192,000 BTU total) |
| Griddle burners | 3 × 20,000 BTU (60,000 BTU total) |
| Total input | 252,000 BTU / 74 kW |
| Base configuration | Two enclosed storage cabinets (26-1/2" W each) |
| Gas connection | 3/4" NPT (rear) |
| Manifold pressure | Nat 5.0" W.C. • LP 10.0" W.C. |
| Clearances* | 0" sides & rear (non-combustible) • 6" combustibles |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-Year parts & labor (90-day griddle & burner radiants) |
Looking for convection ovens or thermostatic griddle control? Reach out—American Range can custom-configure your 72" platform to match your workflow.
