American Range AR-36G-6B-CL-SBR Gas Ranges
American Range AR-36G-6B-CL-SBR Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range AR-36G-6B-CL-SBR Gas Ranges
Description

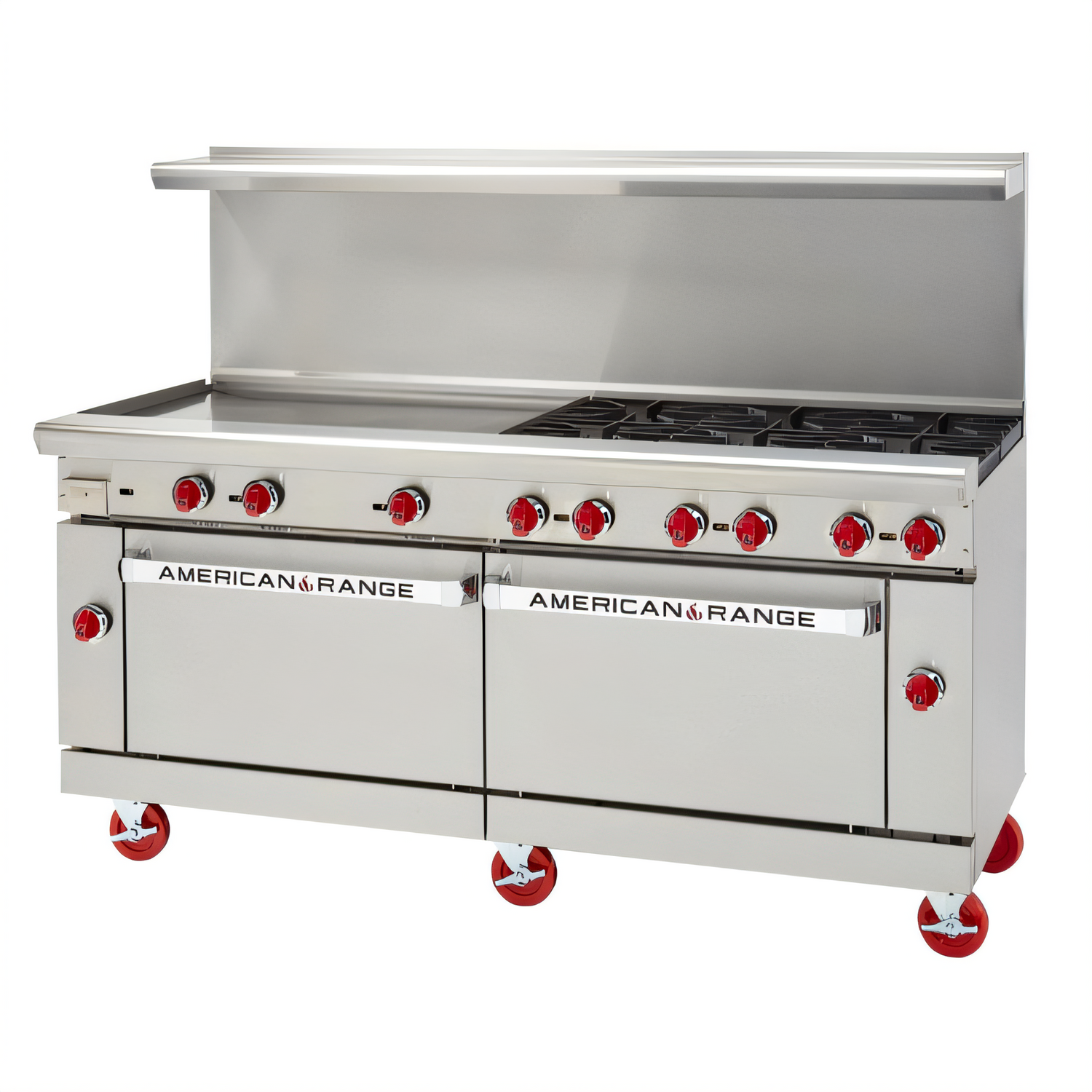

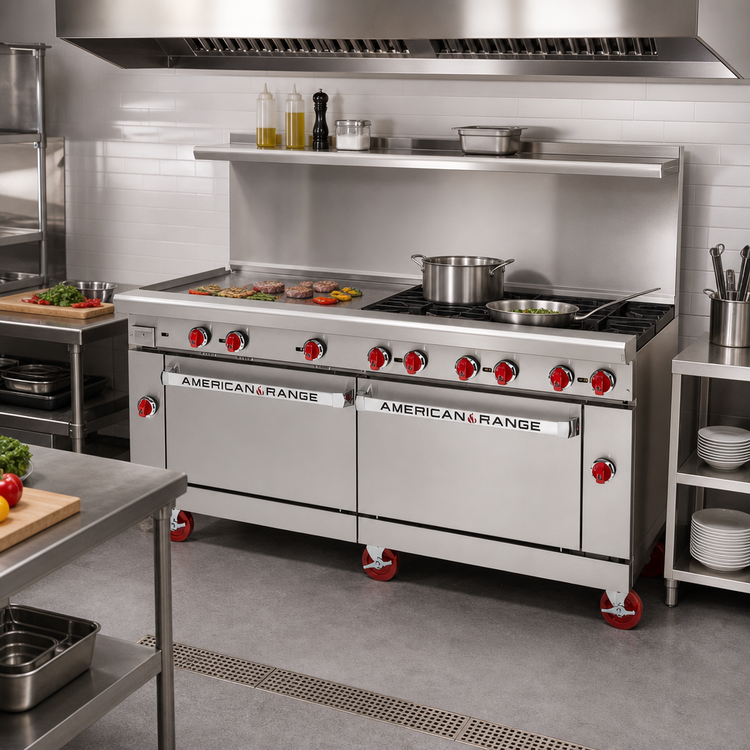

American Range 72" Gas Restaurant Range with 36" Manual Griddle, 6 Open Burners & Convection Oven
317,000 BTU • cETLus & ETL-Sanitation • Made in USABuilt for high–volume kitchens that refuse to compromise, this 72-inch American Range restaurant range combines a heavy-duty 36" griddle, six 32,000 BTU open burners, a high-performance convection oven, and a convenient storage base. All wrapped in durable stainless steel and backed by a two-year parts & labor warranty, it’s the all-in-one workhorse your line has been waiting for.
Key Features
- 6 open burners – 32,000 BTU/hr each, 12" × 12" cast-iron top grates, lift-off heads, and a full-width drip pan for fast cleanup.

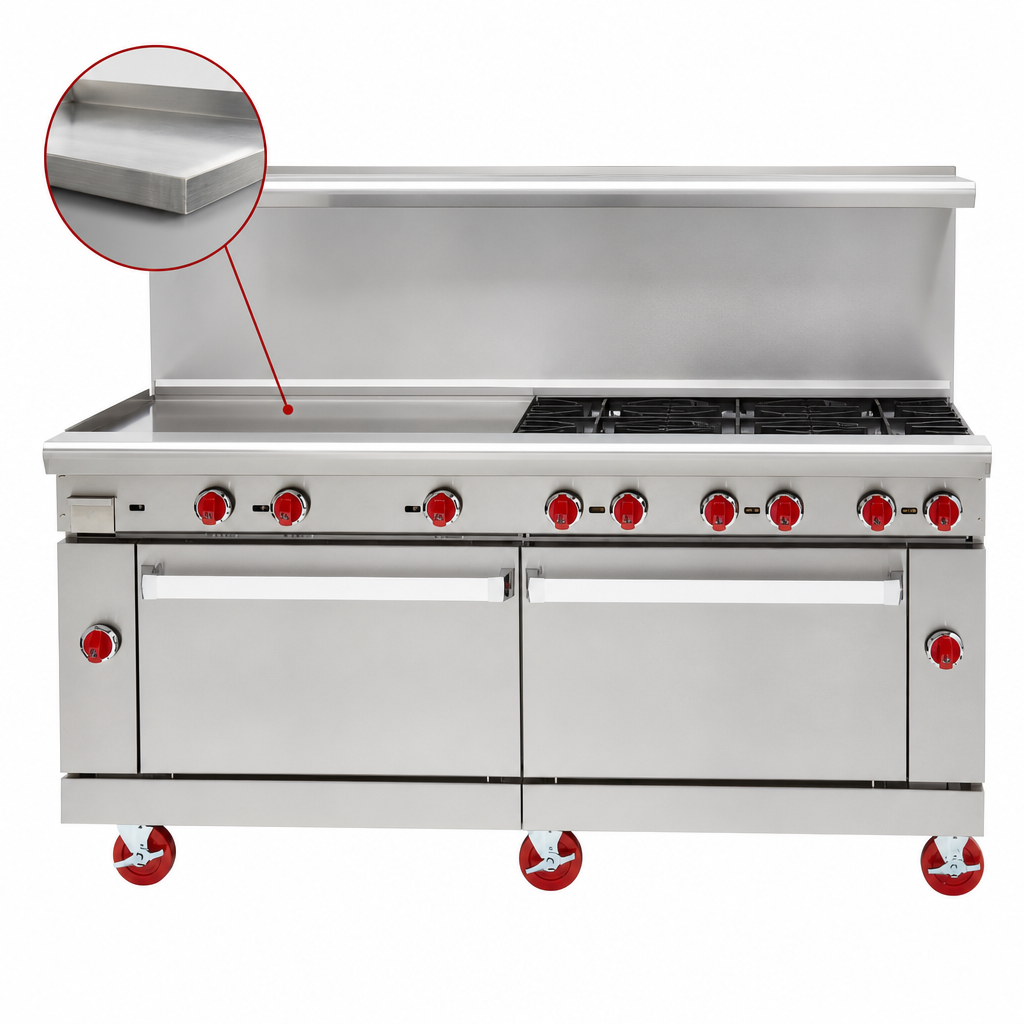

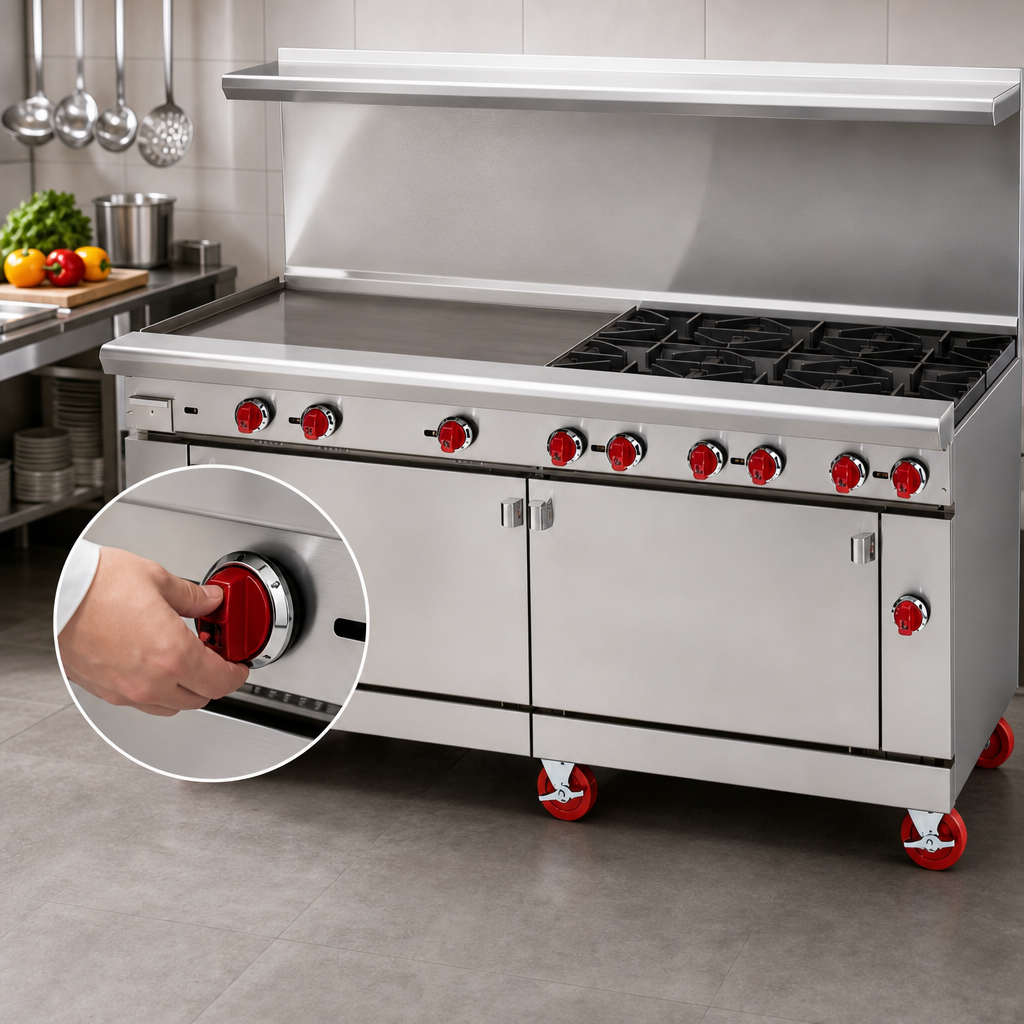

- 36" manual griddle (left) – 1" thick cold-rolled steel plate with three 20,000 BTU burners and a 3" grease trough.
- 26-1/2" convection oven (left base) – 30,000 BTU steel burner, fan-assisted heat transfer for quicker, more even baking; thermostat range 250 – 500 °F; two chrome racks with five positions.
- 26-1/2" storage base (right) – keeps hotel pans, sheet pans, lids, and utensils at arm’s reach.
- Stainless steel front, sides, 6" deep front landing ledge, and removable drip pan stand up to daily abuse.
- Adjustable 6" chrome-plated legs level the unit on uneven floors.
- Choose your back option at no additional charge: 6" stub back, 20" riser, or high riser with shelf.
- 100 % gas shut-off valve, porcelain-coated oven interior, and counter-weight oven door for operator safety.
- Two-year parts & labor warranty with nationwide service support.
Performance & Capacity
| Total BTU Output | 317,000 BTU/hr • 93.0 kW |
|---|---|
| Open Burners | 6 × 32,000 BTU/hr – cast-iron grates, removable heads |
| Griddle | 36" W plate, 1" thick, 3 × 20,000 BTU manual valves, 3" grease collector |
| Convection Oven | Interior 26-1/2" W × 22-1/2" D × 13-1/2" H, 30,000 BTU burner, 2 chrome racks, 5 rack positions, 250–500 °F thermostat |
| Storage Base | 26-1/2" wide stainless steel cabinet (non-heated) |
Dimensions & Utilities
| External Dimensions | 72" W × 32-1/2" D × 36" H to cooking surface (approx. 56" H with 20" riser) |
|---|---|
| Gas Type | Natural or LP (specify when ordering) |
| Gas Connection | 3/4" NPT rear manifold, pressure regulator included Manifold pressure: 5.0" W.C. Natural / 10.0" W.C. LP |
| Clearances (non-combustible / combustible) | Sides 0" / 6" | Rear 0" / 6" |
| Shipping Weight | Approx. 855 lb (388 kg) |
| Certifications | cETLus, ETL-Sanitation |
Need casters, a thermostatic griddle, or other factory options? Contact us for a custom quote—we’re an authorized American Range dealer.
Warranty
American Range covers this unit with a two-year limited parts & labor warranty (90-day warranty on replacement parts). Register your equipment within 90 days of shipment to activate full coverage.
