American Range AR-36G-6B-CC Gas Ranges
American Range AR-36G-6B-CC Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range AR-36G-6B-CC Gas Ranges
Description

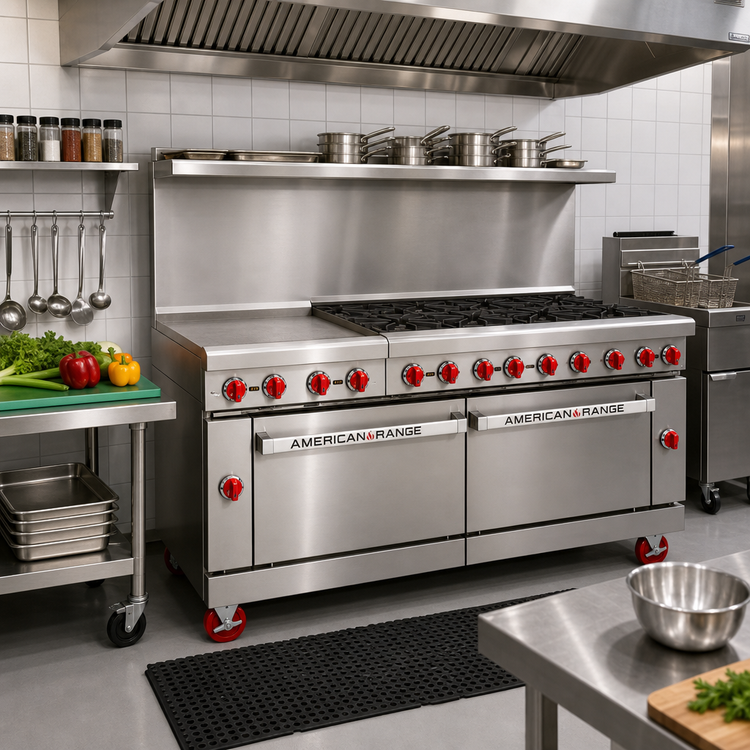

American Range 72" Gas Restaurant Range – 36" Manual Griddle + 6 Open Burners + (2) Convection Ovens
Model AR-36G-6B-CC | 312,000 BTU | cETLus & ETL-SanitationBuilt in the USA for high-volume kitchens, this 72 inch American Range combines a heavy-duty 36" griddle, six powerful open burners and two 26-1/2" convection ovens into one space-saving workhorse. From all-day breakfast service to dinner rush sautéing and baking, it delivers the versatility, heat and durability professional chefs demand.
Key Performance Features
- Six 32,000 BTU open burners with 12" × 12" cast-iron grates & individual lift-off heads for easy cleaning

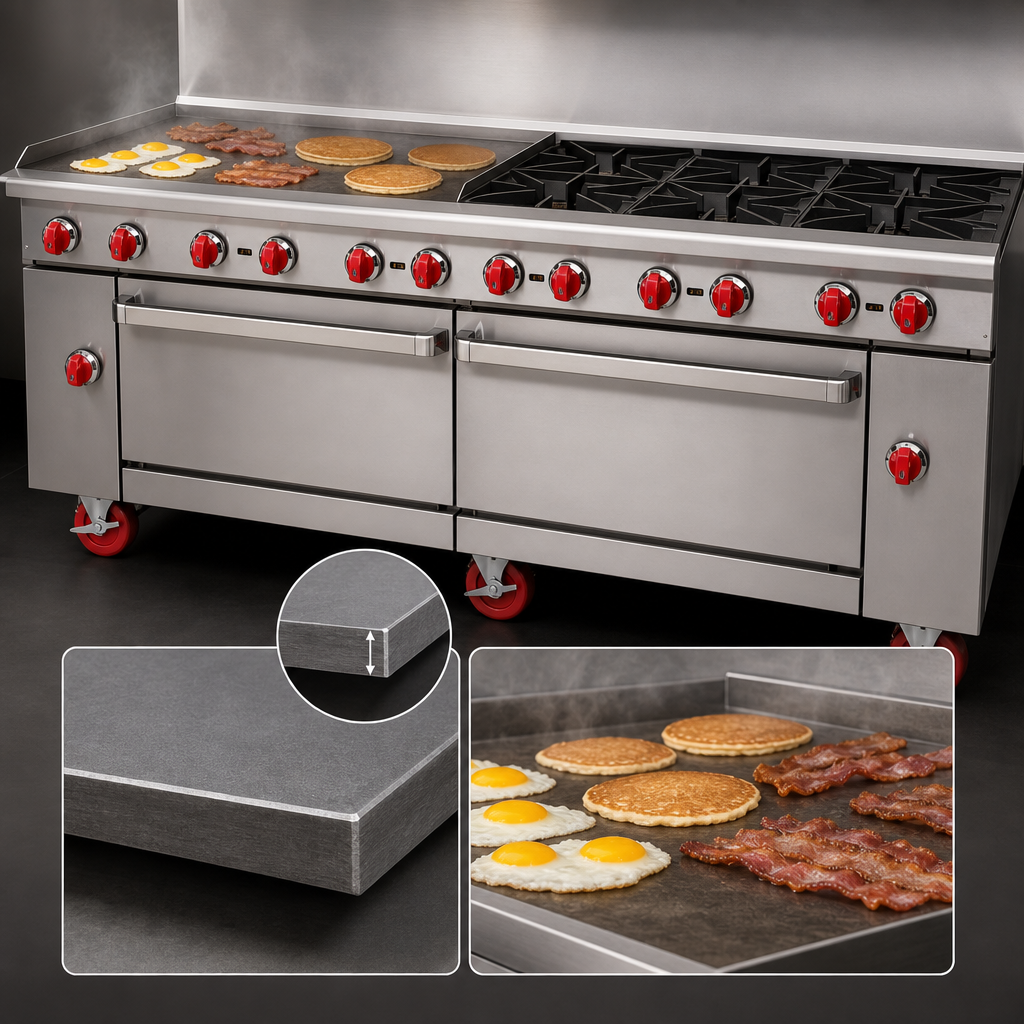

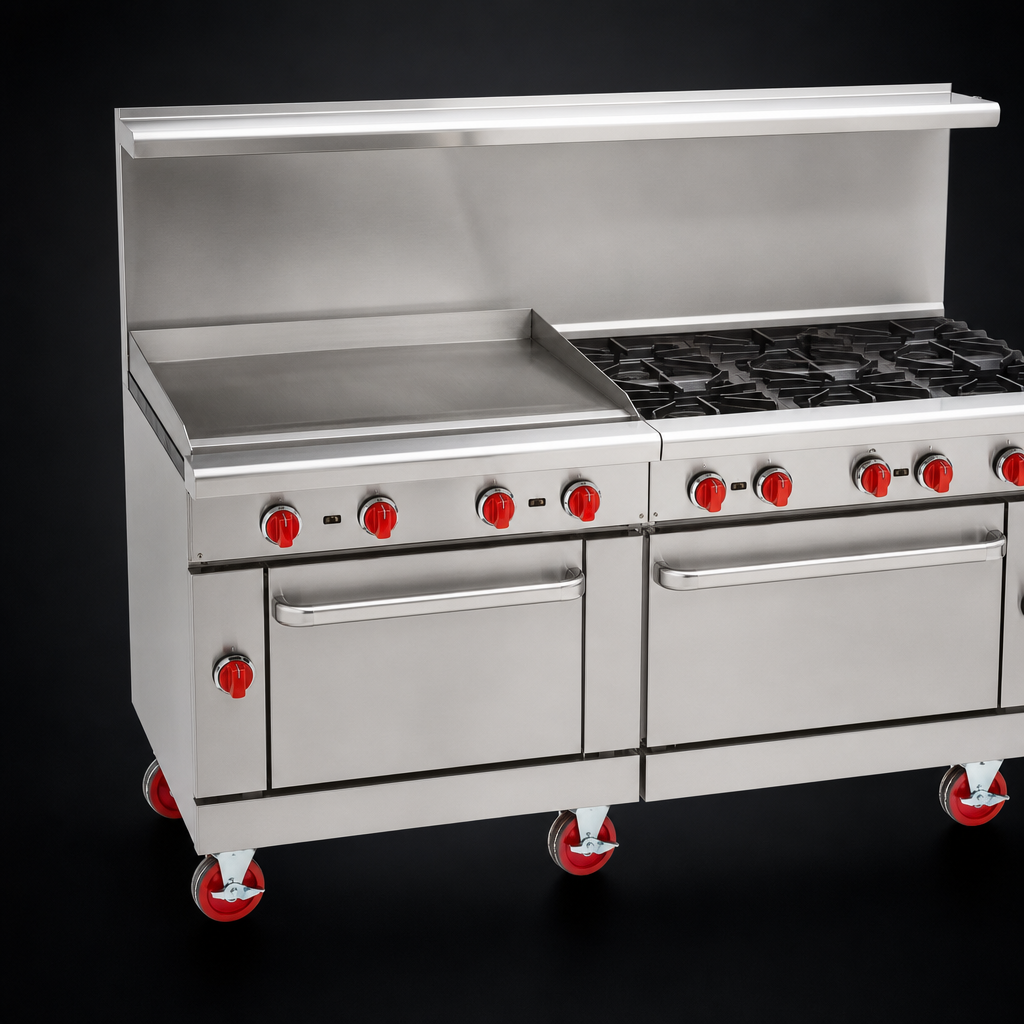

- Left-side 36" griddle with 1" thick steel plate, manual controls & 3" grease trough
- Two 30,000 BTU convection ovens (total 60,000 BTU) for faster, even baking – each supplied with 2 chrome racks
- Precise snap-action thermostats (250 °F – 500 °F / 121 °C – 260 °C) with 100 % safety gas shut-off
- Removable full-width crumb/grease drawers under every burner set
- Stainless steel front, sides, backguard & 6" deep landing ledge stand up to daily abuse
- Choose your rear configuration at no extra charge: 6" stub back, 20" riser, or full high-shelf riser
- 6" chrome-plated, adjustable legs for quick leveling on uneven floors
- Factory-tested for Natural gas; field convertible to LP (specify when ordering)
- Backed by an industry-leading 2-year parts & labor warranty
Technical Specifications
| Overall width | 72" (1829 mm) |
|---|---|
| Overall depth | 32 1/2" (826 mm) |
| Cooking height | 36" (914 mm) to cook surface |
| Total input | 312,000 BTU/hr | 92.0 kW |
| Open burners | 6 × 32,000 BTU lift-off heads |
| Griddle burners | 3 × 20,000 BTU (one every 12") – manual valves |
| Oven type / size | Convection, 26 1/2" W × 22 1/2" D × 13 1/2" H each |
| Oven burners | 2 × 30,000 BTU cast iron |
| Oven racks supplied | 2 per oven (chrome-plated) |
| Convection fan motor | 120 V, 1-phase, 4 A |
| Gas connection | 3/4" NPT rear manifold | 5.0" W.C. Natural, 10.0" W.C. LP |
| Shipping weight * | ≈ 986 lb (447 kg) |
| Certifications | cETLus, ETL-Sanitation, NSF/ANSI 4 |
| Country of origin | Made in the USA |
Ideal Applications
- Diners & cafés with all-day menus
- Full-service restaurants needing high throughput
- Catering kitchens & commissaries
- Hotel, resort or institutional foodservice operations
*Shipping weight and clearances are approximate and subject to change without notice. Consult the current American Range specification sheet for exact details.
