American Range AR-36G-6B-126L-SBR Gas Ranges
Description

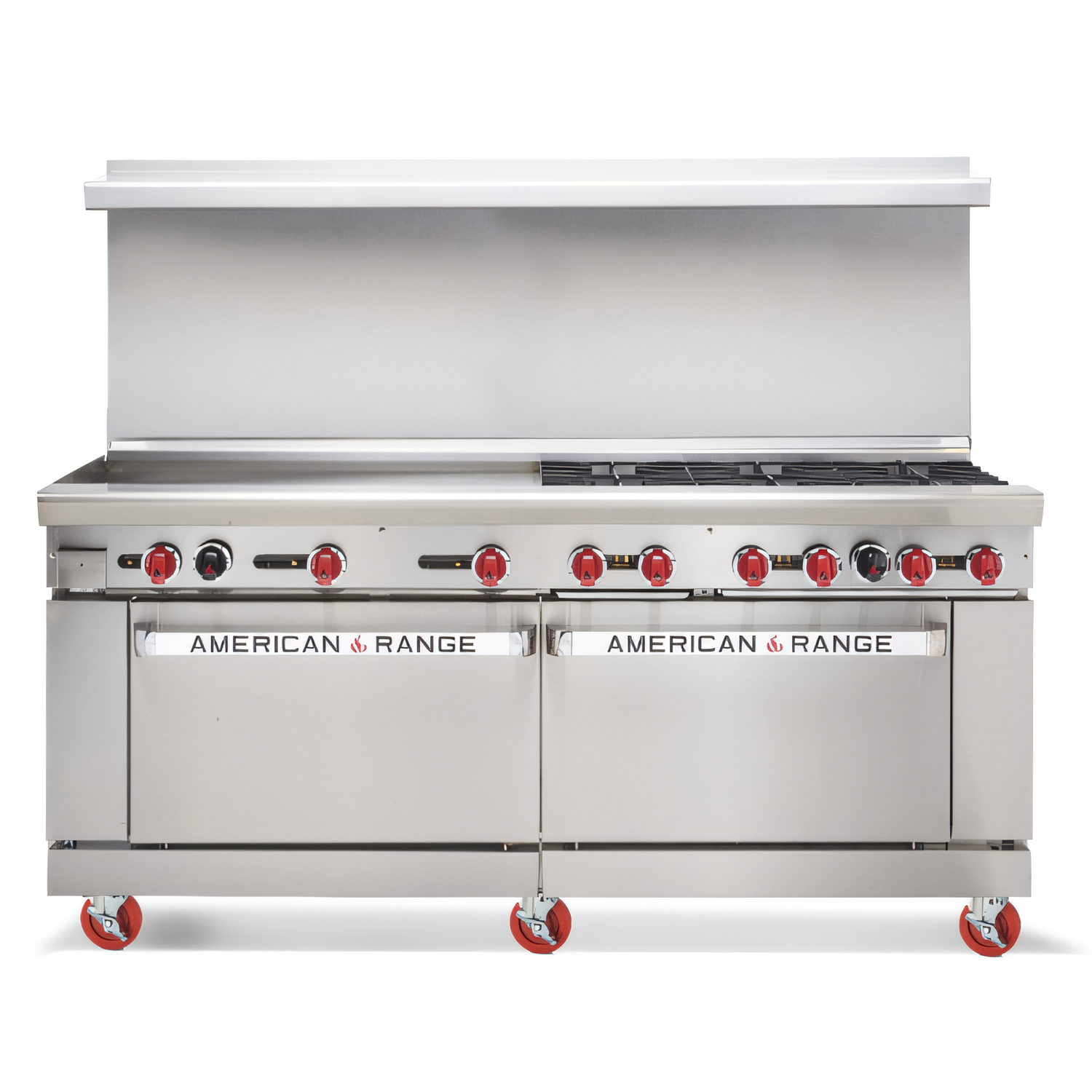

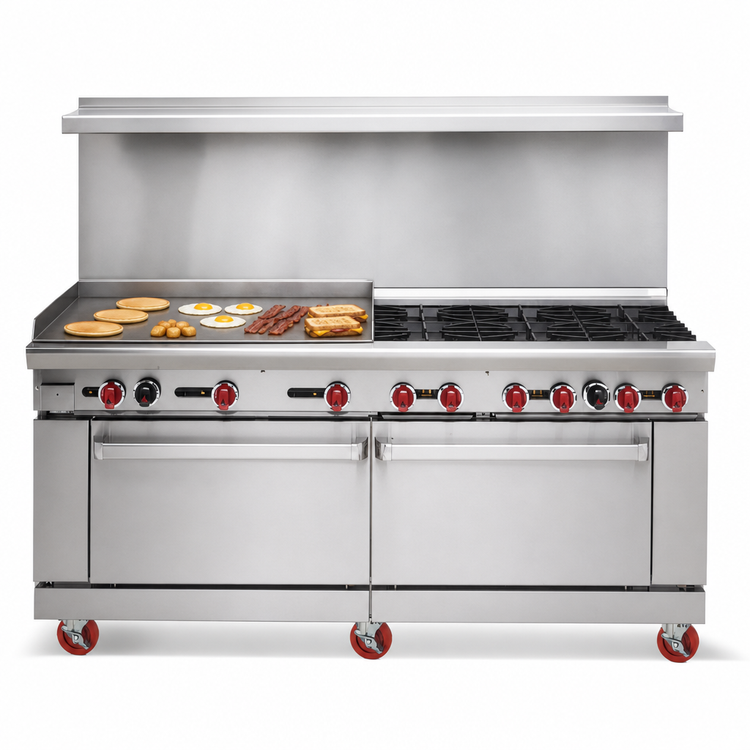

American Range 72" Restaurant Range — 36" Griddle, 6 Open Burners & Storage Base
Model AR-36G-6B-DSB | Natural or LP GasBring uncompromising power and flexibility to your cookline with this Made-in-USA 72-inch American Range restaurant range. A full-width 36" manual griddle teams up with six high-output open burners, a spacious standard oven and an integrated storage base to deliver all-day performance in one rock-solid footprint.
Key features
- Six 32,000 BTU lift-off open burners with 12" x 12" cast-iron top grates

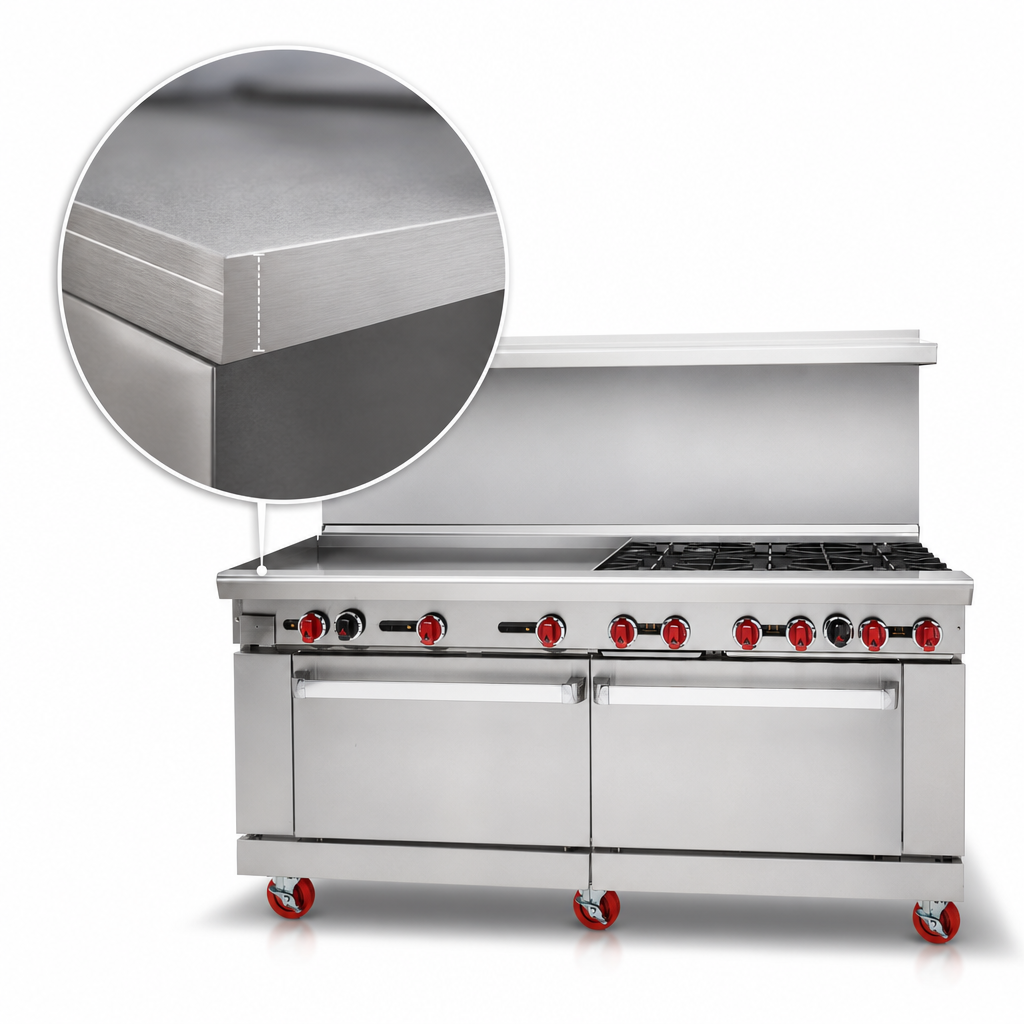

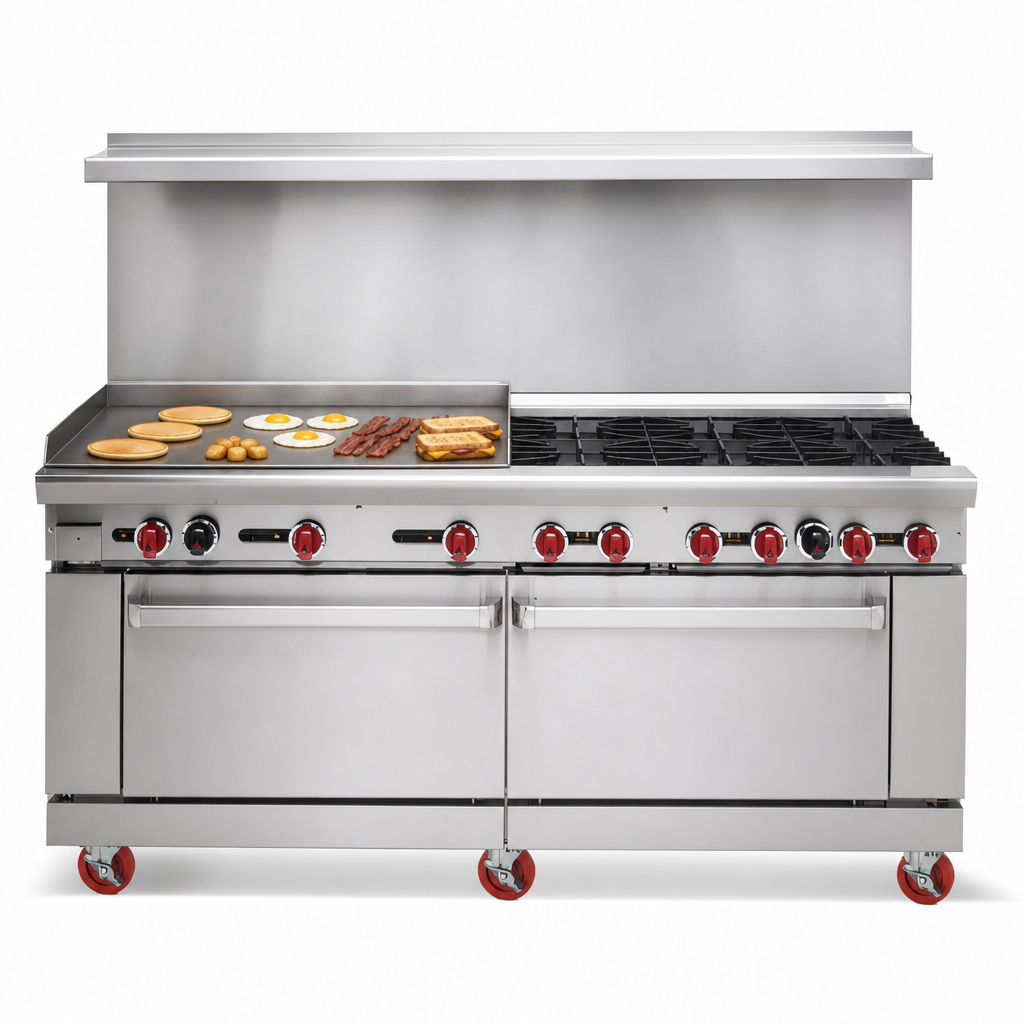

- 36" manual-control griddle (left side) with 1" thick polished steel plate for even heat & quick recovery
- 3" wide grease trough and removable drip pan speed up end-of-shift cleanup
- 26-1/2" standard oven (left) delivers 35,000 BTU with thermostat range 250 °F – 500 °F; supplied with two chrome racks
- 26-1/2" storage base (right) keeps sheet pans, smallwares or ingredients close at hand
- Total input: 287,000 BTU / 84.0 kW
- Stainless steel front, sides, kick panel & 6" deep front landing ledge stand up to daily abuse
- 6" adjustable chrome-plated legs level the unit on uneven floors
- Select your backguard at no extra charge: 6" stub, 20" riser, or high shelf & riser
- Rear 3/4" NPT gas connection with factory regulator
- cETLus & ETL-Sanitation listed for the U.S. & Canada
- Covered by a 2-year parts & labor warranty
At-a-glance specs
| Overall width | 72" (1829 mm) |
|---|---|
| Overall depth | 32 1/2" (826 mm) |
| Cooking height | 36" (914 mm) |
| Open burners | 6 × 32,000 BTU (192,000 BTU total) |
| Griddle | 36" W | 1" plate | 60,000 BTU total (manual) |
| Oven interior (L) | 26-1/2" W × 22-1/2" D × 13-1/2" H | 35,000 BTU |
| Base (R) | 26-1/2" dry storage compartment |
| Total input | 287,000 BTU / 84.0 kW |
| Gas type | Natural or Propane (LP) — specify on order |
| Manifold pressure | Nat 5.0" W.C. | LP 10.0" W.C. |
| Gas connection | 3/4" NPT (rear) |
| Certifications | cETLus, ETL-Sanitation |
| Country of origin | USA |
Why chefs choose American Range
- Relentless heat output keeps up with the lunch-to-late-night rush
- Lift-off burner heads and hinged control panel simplify service & maintenance
- Porcelain-coated oven interior wipes clean without chemicals
- Factory-tested for performance & safety before it ships
Looking for casters, a convection oven upgrade or thermostatic griddle controls? Reach out to our food-service team for a custom quote.
