American Range AR-36G-4B Gas Ranges
Description

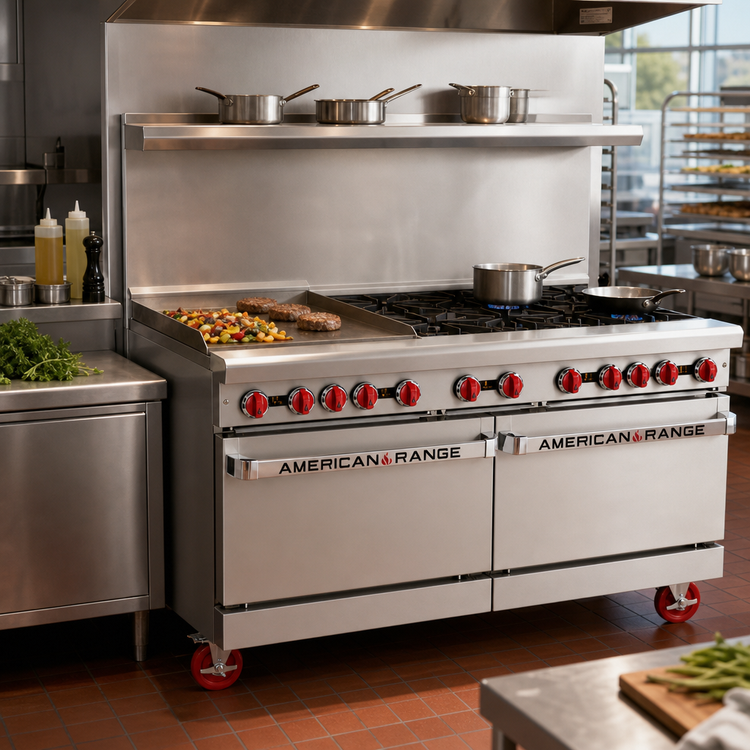

American Range 60" Gas Restaurant Range w/ 36" Griddle & 4 Open Burners
Model AR-36G-4B • Two Standard Ovens • 258,000 BTUBuilt for high-volume kitchens that refuse to compromise on versatility or durability, the American Range AR-36G-4B packs a full 36" manual griddle, four powerful open burners, and two spacious ovens into a rugged 60" footprint. Heavy-gauge stainless construction, simple manual controls, and USA craftsmanship mean this range is ready to work every shift, every day.
Key Features
- 36" manual griddle on the left with a 1" thick polished steel plate for superior heat retention

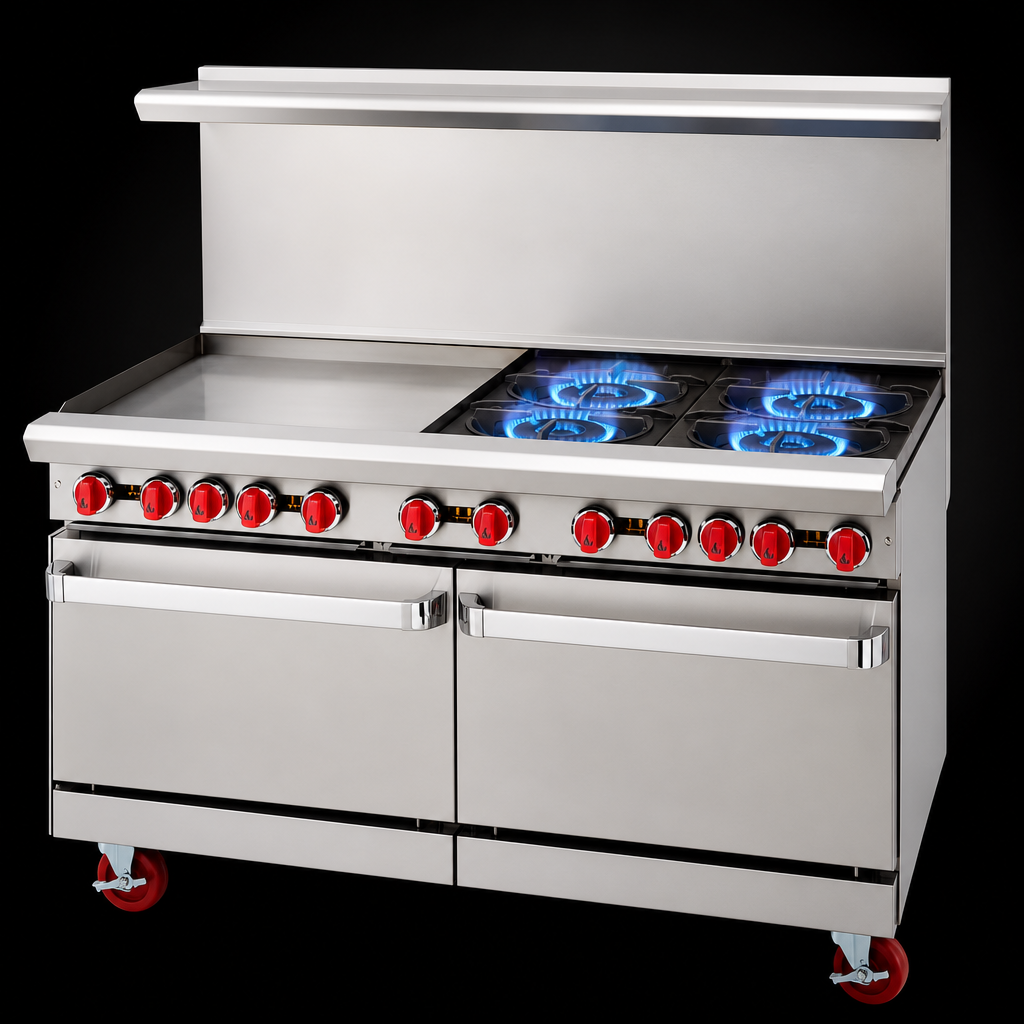

- (4) 32,000 BTU open burners on the right with 12" × 12" cast-iron grates & lift-off heads
- Two 35,000 BTU standard ovens (26 1/2" W × 22 1/2" D × 13 1/2" H) with porcelain interiors
- (2) chrome-plated racks supplied per oven, adjustable to two rack positions
- 3" grease trough, removable drip pan, and full-width crumb tray for quick clean-up
- Stainless steel front, sides, and 6" deep landing ledge withstand daily abuse
- 6" adjustable chrome-plated legs for stable, level installation
- Choice of 6" stub back, 20" riser, or high-shelf riser (select when ordering)
- cETLus & ETL-Sanitation listed; proudly made in the USA
Performance Specs
| Overall width | 60" (1524 mm) |
|---|---|
| Depth | 32 1/2" (826 mm) |
| Cooking surface height | 36" (914 mm) on 6" legs |
| Open burners | 4 × 32,000 BTU (128,000 BTU total) |
| Griddle | 36" wide, 1" plate, 3 × 20,000 BTU (60,000 BTU total) |
| Standard ovens | 2 × 35,000 BTU; thermostat 250°–500 °F |
| Total input | 258,000 BTU / 76.0 kW |
| Gas connection | 3/4" NPT (rear, left) |
| Gas type | Natural or LP (specify at checkout) |
| Certifications | cETLus, ETL-Sanitation |
| Country of origin | Made in USA |
What’s Included
- (2) chrome oven racks per oven (4 total)
- Full-width removable drip pan & grease drawer
- 6" adjustable chrome legs
- Your choice of 6" stub back, 20" riser, or high-shelf riser
Warranty
Covered by American Range’s 2-year limited parts & labor warranty (90-day warranty on replacement parts, broiler burners, grates, and radiants). Register your equipment within 90 days of shipment for additional coverage.
