American Range AR-36G-4B-DSB Gas Ranges
Description

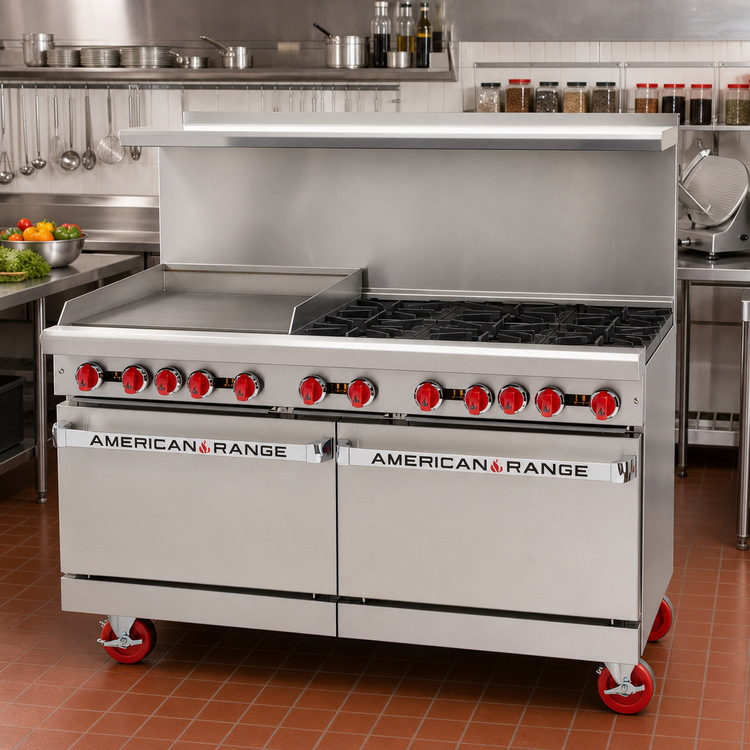

American Range 60" Gas Restaurant Range w/ 36" Griddle & 4 Open Burners
Model AR-36G-4B-DSB • 188,000 BTU • Made in USACombine high-powered open-top cooking, a full-size griddle, and built-in storage—all in one rugged, 60-inch footprint. The American Range AR-36G-4B-DSB is engineered for demanding kitchens that need versatility, speed, and years of trouble-free service.
Key Features

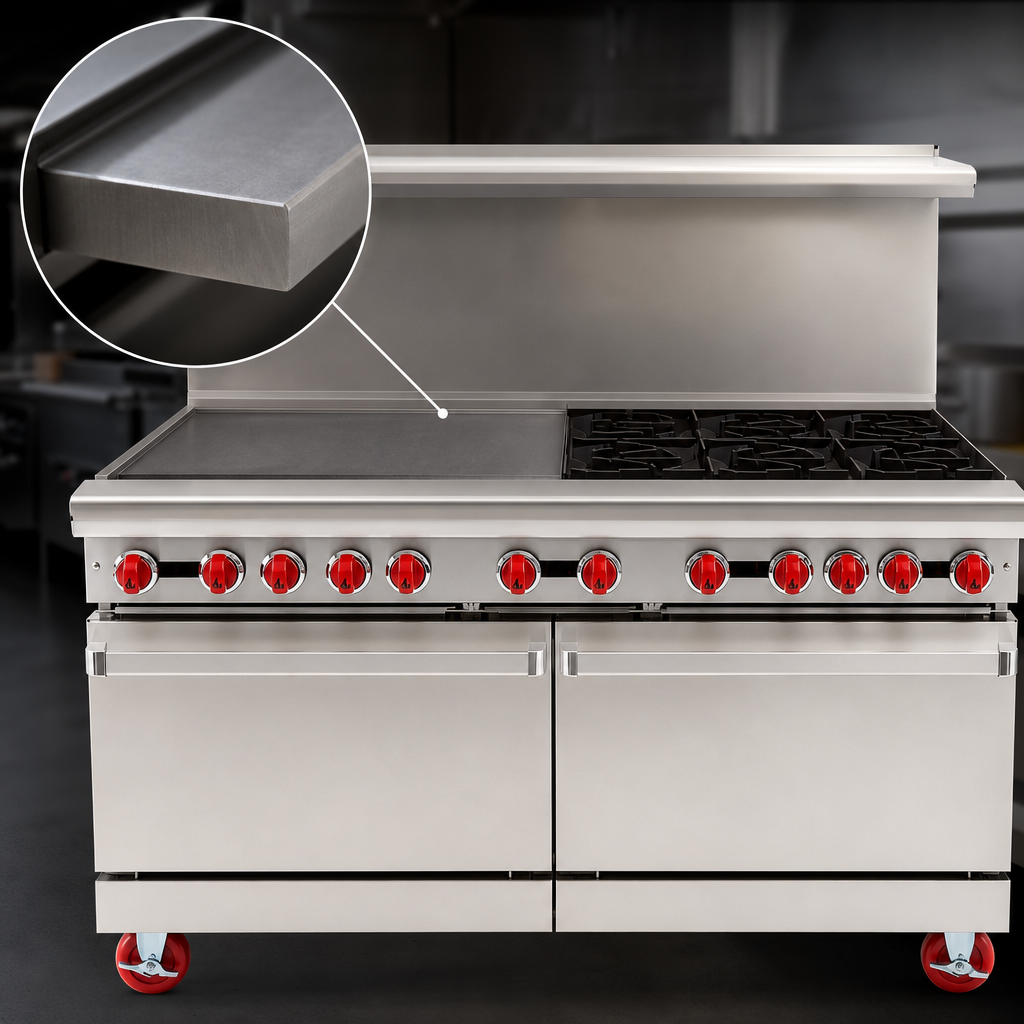

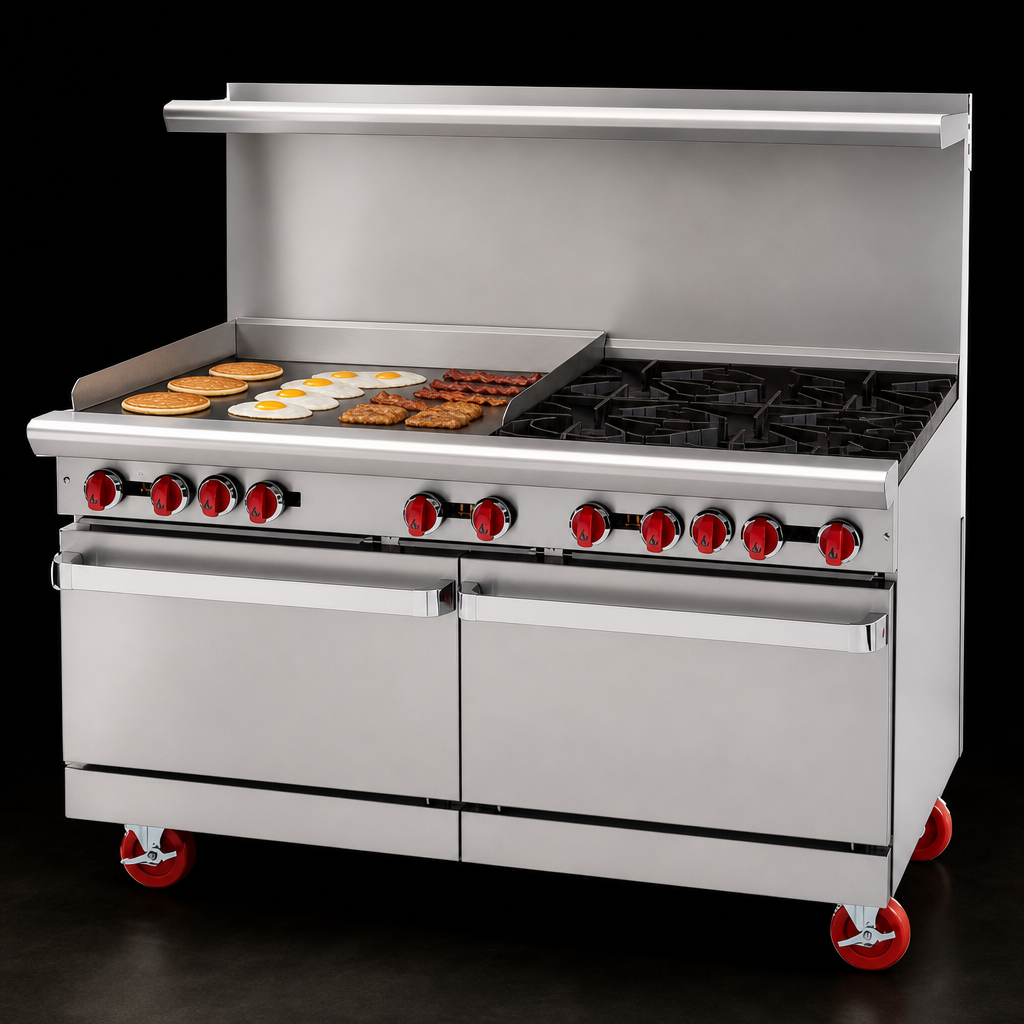

- 36" manual griddle (left side) with 1" polished steel plate and 3" grease trough.
- (4) 32,000 BTU open burners (right side) with heavy-duty 12" × 12" cast-iron grates.
- Total input: 188,000 BTU/hr (55.0 kW) for fast recovery during peak rushes.
- (2) 26-1/2" stainless steel storage bases keep sheet pans and utensils close at hand.
- Choice of 6" stub back, 20" riser, or high riser w/ shelf—no up-charge.
- All-stainless front, sides & landing ledge; 6" chrome-plated adjustable legs.
- cETLus & ETL-Sanitation listed; designed, engineered & built in the USA.
- Backed by a 2-year limited parts & labor warranty.
Performance Details
- Griddle burners: 20,000 BTU/hr each, spaced every 12" for even heat.
- Manual gas valves for every burner section—perfect for chefs who prefer hands-on control.
- Full-width, lift-out crumb/drip tray under open burners simplifies nightly clean-up.
- Cool-touch, high-temperature knobs resist cracking and deformation.
- 3/4" rear gas connection with factory regulator; field-convertible to Natural or LP gas.
Specifications
| Overall width | 60" (1524 mm) |
|---|---|
| Depth | 32 1/2" (826 mm) |
| Cooking height | 36" (914 mm) on 6" adjustable legs |
| Cooking surface | 36" griddle + (4) 12" open burners |
| Total input | 188,000 BTU/hr | 55.0 kW |
| Open burner rating | 32,000 BTU/hr each |
| Griddle burner rating | 20,000 BTU/hr each |
| Plate thickness | 1" (25 mm) steel |
| Base type | (2) 26-1/2" storage cabinets |
| Gas inlet | 3/4" NPT (rear) |
| Manifold pressure | Natural: 5" W.C. | LP: 10" W.C. |
| Listings | cETLus, ETL-Sanitation |
| Approx. shipping weight | 610 lb (277 kg) |
Popular Options & Accessories
- Swivel casters (front casters lock).
- Thermostatic griddle control with modulating thermostat.
- High shelf with plate rail (24", 30", or 36").
- Quick-disconnect gas hose kits.
Photos may show optional accessories such as casters and high shelf. Specifications subject to change without notice.
Warranty
2-year limited parts & labor warranty (90-day warranty on replacement parts and broiler components). Register your range within 90 days of shipment for maximum coverage.
