American Range AR-36G-4B-CL-SBR Gas Ranges
Description
American Range 60" Gas Restaurant Range – 36" Manual Griddle / 4 Burners / Convection-Oven-Storage Combo
Model: AR-36G-4B-DSB | Made in USABuilt for the busiest commercial kitchens, this 60-inch American Range lineup combines a heavy-duty 36" griddle, four 32,000 BTU open burners, a full-size convection oven, and a convenient storage base—all in one rugged, stainless-steel chassis. Get the versatility of a full cookline while saving valuable floor space.
Why You’ll Love It
- 218,000 BTU total output (64 kW) for rapid recovery and high-volume service.

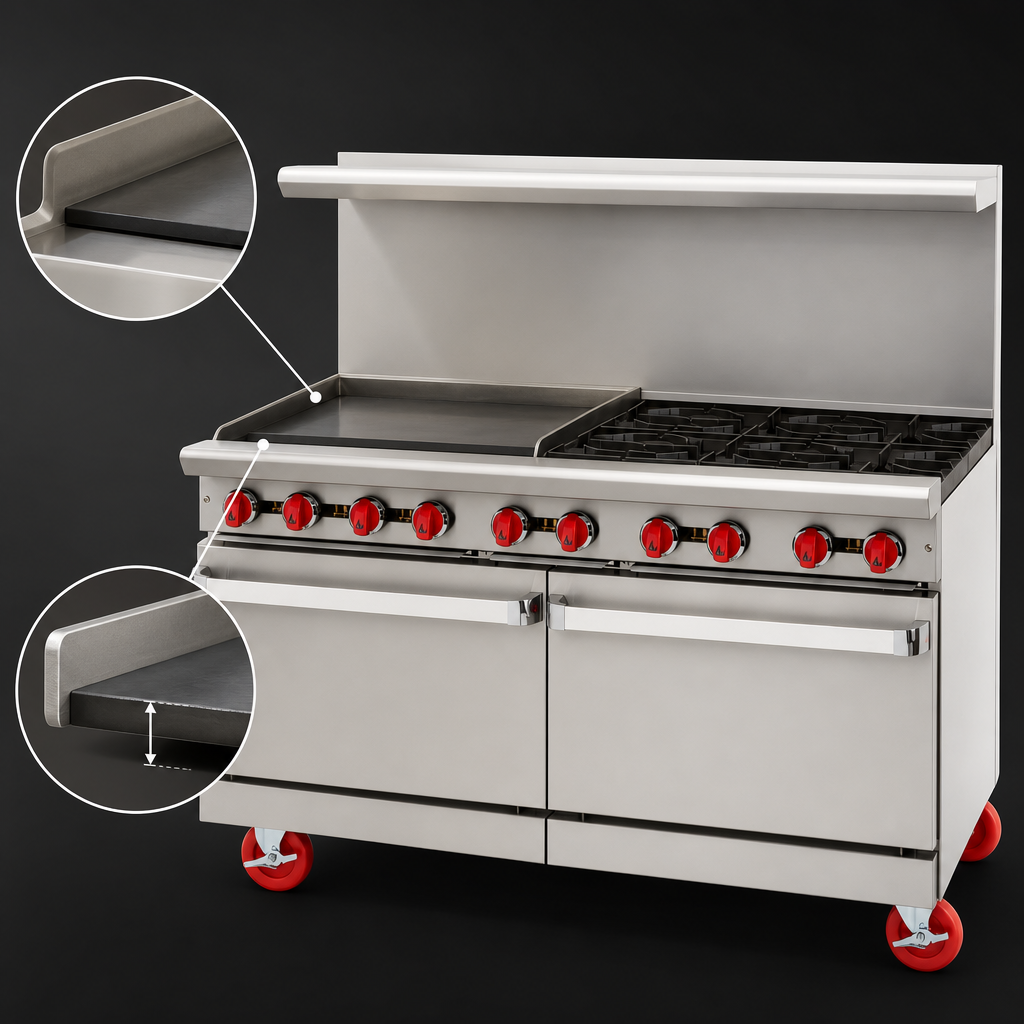

- 36" griddle on the left with a 1" thick steel plate, manual controls & 3 burners (20,000 BTU each).

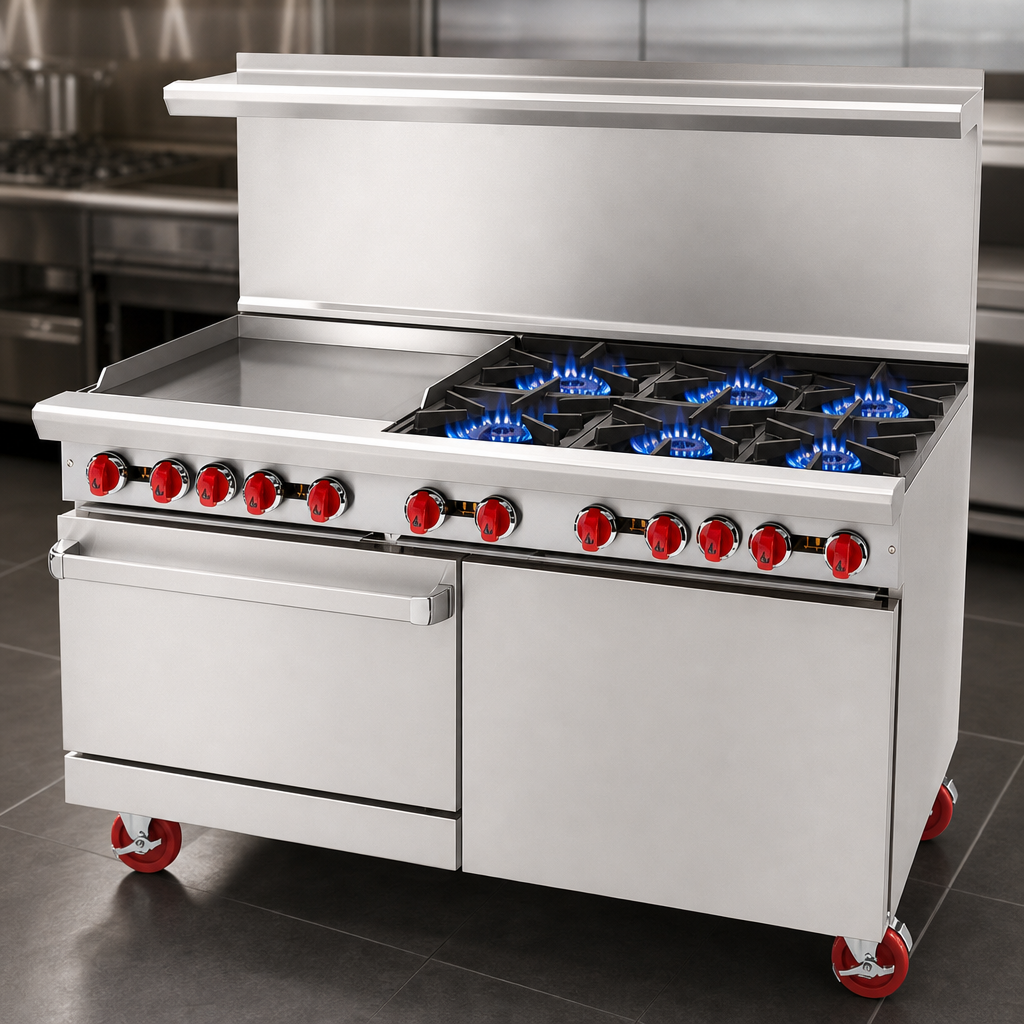

- Four 32,000 BTU open burners with 12" × 12" cast-iron grates and lift-off heads.
- 26-1/2" convection oven (left) rated at 30,000 BTU; includes 2 chrome racks & 5 rack positions.
- 26-1/2" insulated storage base (right) keeps sheet pans and smallwares within reach.
- Stainless-steel front, sides, landing ledge & removable drip trays for fast clean-up.
- 6" adjustable chrome-plated legs for perfect leveling on any surface.
- Choose your backsplash: 6" stub back, 20" riser, or high shelf & riser—no up-charge.
- Certified cETLus & ETL-Sanitation for use in commercial foodservice operations.
- Backed by a 2-year limited parts & labor warranty.
Performance & Utility
| Overall width | 60" (1524 mm) |
|---|---|
| Depth / Cooking height | 32 ½" D × 36" H |
| Open burners | 4 × 32,000 BTU lift-off (128,000 BTU) |
| Griddle section | 36" W × 24" D plate, 3" grease trough, 3 × 20,000 BTU (60,000 BTU) |
| Convection oven | 26 ½" W cavity, 30,000 BTU burner, 250 °F–500 °F thermostat, porcelain interior |
| Storage base | 26 ½" W insulated cabinet with door |
| Total gas input | 218,000 BTU/h (64.0 kW) |
| Gas connection | ¾" rear manifold (Nat. 5.0" W.C. / LP 10.0" W.C.) |
| Electrical (convection fan) | 120 V, 1 ph, 4 A, 15 A cord & plug included |
| Certifications | cETLus, ETL-Sanitation |
| Country of origin | Designed & built in the USA |
Popular Options (Sold Separately)
- Swivel caster kit – front brakes included.
- Additional chrome oven racks.
- Thermostatic griddle control package.
- Natural or LP gas configuration (specify at checkout).
Peace-of-Mind Warranty
American Range covers this unit with a 2-year limited warranty on parts & labor. Replacement parts carry a 90-day warranty. See full warranty terms in the documentation tab.
Images may show optional accessories not included with the base model. Always consult local codes and a qualified installer to verify utility requirements.
