American Range AR-36G-4B-CC Gas Ranges
Description
American Range AR-36G-4B-CC
60" Gas Restaurant Range with 36" Manual Griddle, 4 Open Burners & Dual Convection Ovens
Built in the USA for the busiest commercial kitchens, the American Range AR-36G-4B-CC delivers maximum menu flexibility in a single 60-inch footprint. Sear, sauté, grill and bake simultaneously thanks to a 36" heavy-duty griddle, four 32,000 BTU open burners and two full-size 26 ½" convection ovens—all wrapped in an easy-to-clean stainless-steel chassis.
Highlights
- 248,000 BTU total input (73.0 kW)

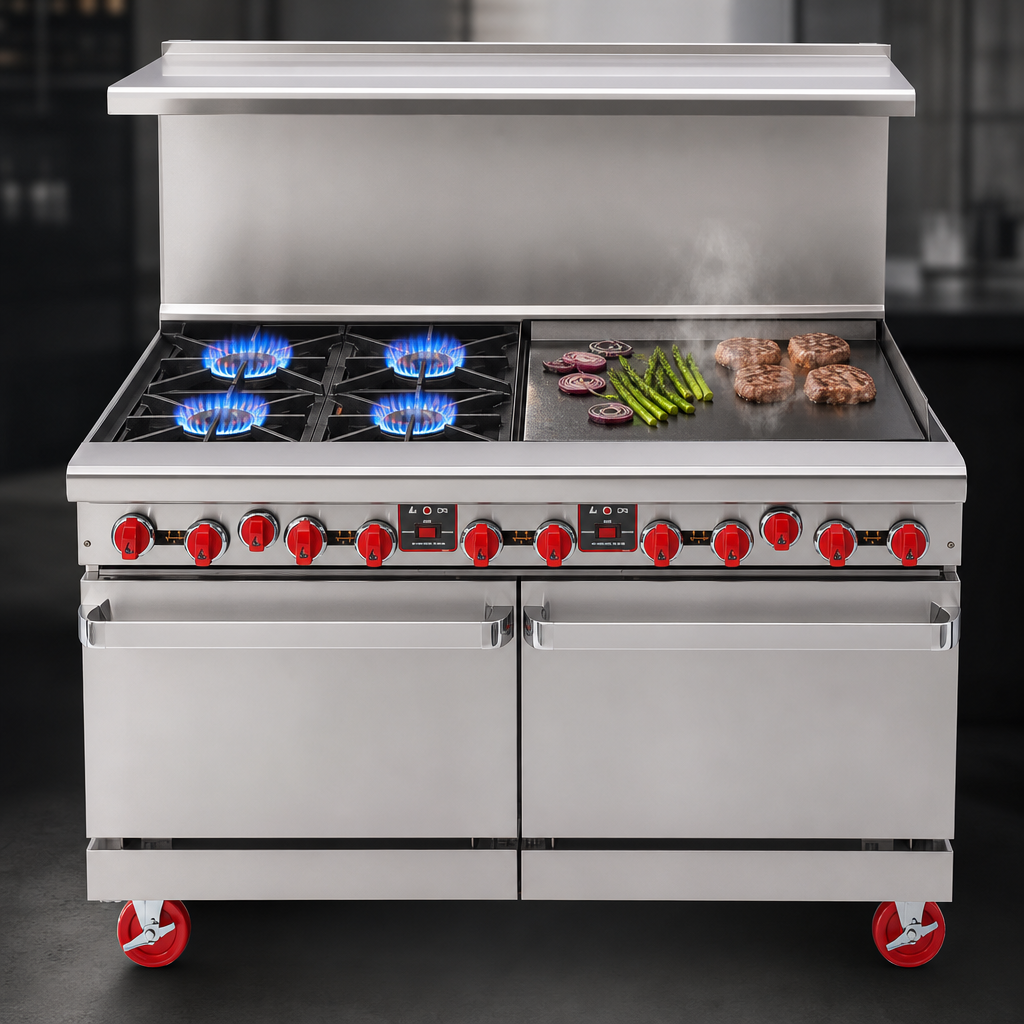

- (4) 32,000 BTU open burners with 12" x 12" lift-off cast-iron grates

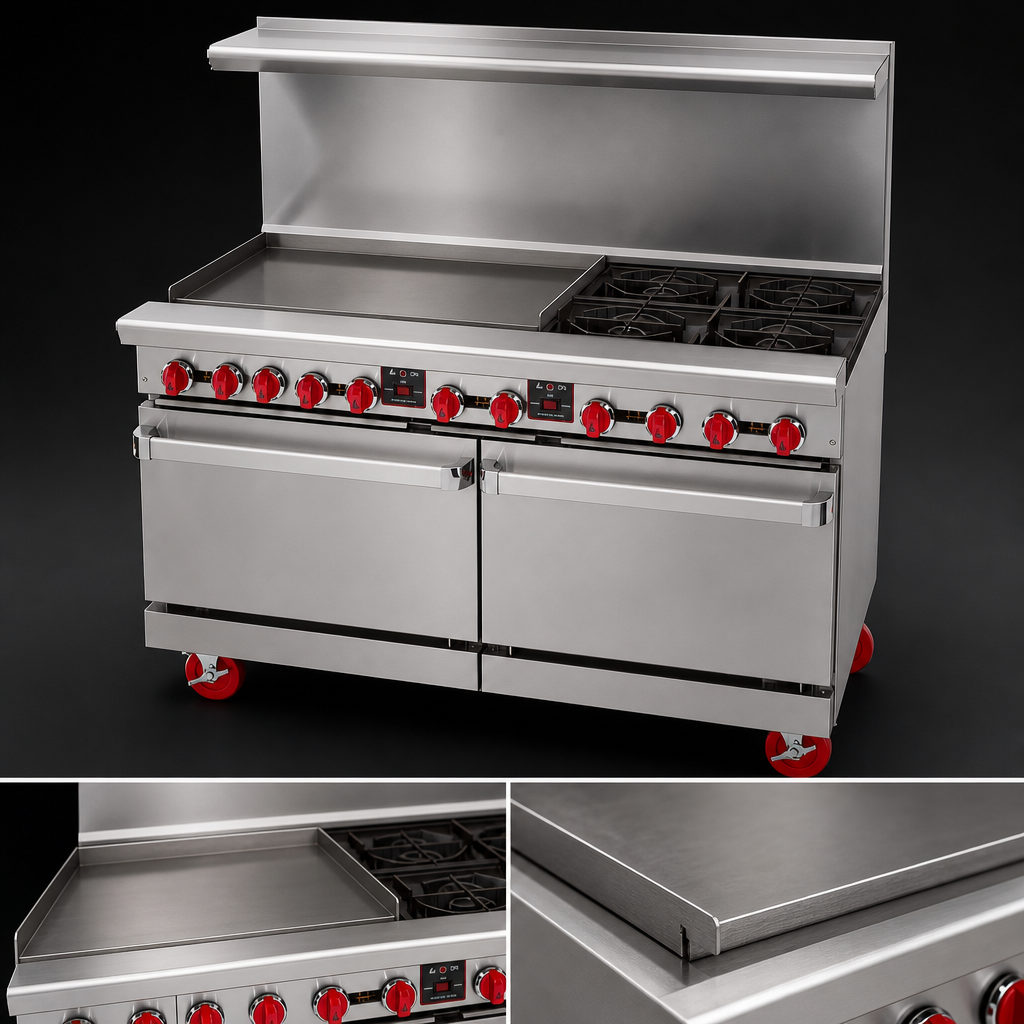

- 36" wide, 1" thick polished steel griddle plate with manual controls
- (2) 30,000 BTU convection ovens—each fits full-size sheet pans front-to-back
- Chrome-plated, 5-position oven rack guides with 2 racks supplied per cavity
- Stainless-steel front, sides, landing ledge & removable full-width crumb tray
- Choose your backsplash: 6" stub back, 20" riser, or high shelf/riser (no up-charge)
- 6" adjustable chrome-plated legs (casters optional)
- cETLus & ETL Sanitation listed; designed & built in the USA
- Two-year limited parts & labor warranty (90 days on replacement parts)
Specifications
| Model | AR-36G-4B-CC |
|---|---|
| Overall width / depth / height | 60" W x 32 ½" D x 56" H * (to top of standard 20" riser) |
| Cooking height | 36" |
| Open burners | (4) x 32,000 BTU lift-off heads |
| Griddle | 36" W x 24" D, 1" thick steel plate, manual valves |
| Ovens | (2) Convection, 30,000 BTU each, 250–500 °F thermostat |
| Rack positions / racks supplied | 5 / 2 per oven (chrome-plated) |
| Total gas input | 248,000 BTU /hr (73.0 kW) |
| Gas connection | ¾" NPT rear |
| Manifold pressure | Natural 5.0" W.C. | Propane 10.0" W.C. |
| Convection fan power | 120 V, 1 ph, 4 A (3-prong cord included) |
| Certifications | cETLus, ETL Sanitation |
| Origin | Made in USA |
Perfect for
- Diners & casual restaurants needing breakfast-to-dinner versatility
- High-volume kitchens short on line space
- Catering hubs and commissaries producing multiple menu items at once
Two-year limited parts & labor warranty. Register your unit within 90 days of shipment to activate extended coverage. See full terms at americanrange.com/terms-of-sale.
