American Range AR-36G-2B Gas Ranges
Description
American Range AR-36G-2B 48" Gas Restaurant Range
36" Manual-Control Griddle • 2 x 32,000 BTU Open Burners • Dual 20" Space-Saver OvensGive your cookline maximum menu flexibility without giving up floor-space. The American Range AR-36G-2B packs a full-size 36" griddle, two high-performance open burners and two independent space-saver ovens into a 48" footprint—making it the ideal workhorse for diners, cafés, bars, and high-volume restaurants that demand reliability, power and a lasting made-in-USA build.
Why You’ll Love It

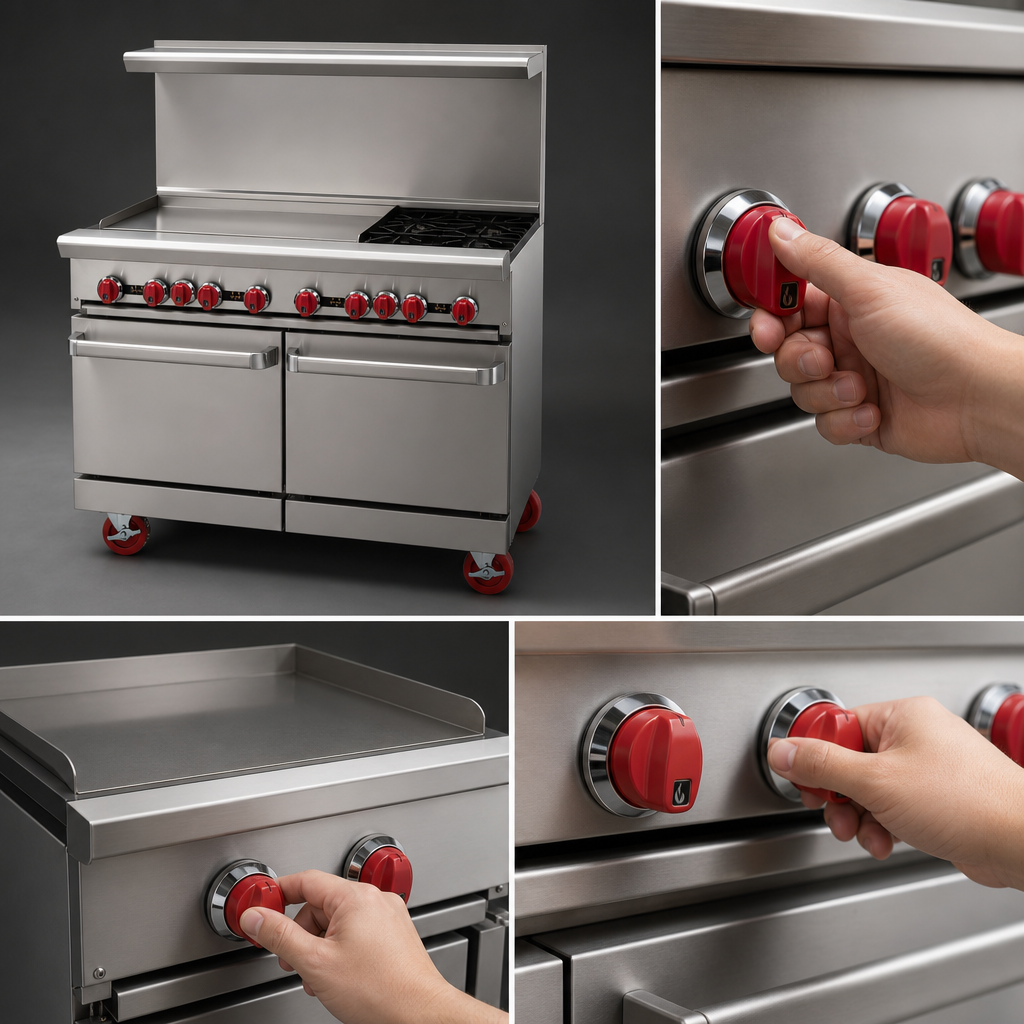

- Versatile cooking surface – 36" wide, 1" thick steel plate handles pancakes to smash-burgers; manual valves give you direct flame control.
- Serious searing power – 3 griddle burners deliver 20,000 BTU each (60,000 BTU total) for fast recovery and even heat.
- Open-top flexibility – Two 32,000 BTU lift-off burners with heavy-duty 12" x 12" cast-iron grates for sauté, stockpots or sauce work.
- Twin 20" space-saver ovens – Each porcelain-lined cavity fits full-size sheet pans front-to-back and includes two chrome racks.
- Precision baking/roasting – Snap-action thermostats adjustable 250 °F – 500 °F with 27,000 BTU steel tube burners.
- Built for the long haul – All-stainless front, sides & 6" deep landing ledge; 6" adjustable chrome-plated legs.
- Configurable backguard – Choose 6" stub, 20" riser or 20" high shelf/riser at no extra charge.
- cETLus & ETL-Sanitation listed; Designed & built in the USA.
At-a-Glance Specs
| Model | AR-36G-2B |
|---|---|
| Overall width / depth / height* | 48" W × 32 ½" D × 56" H (w/ high shelf) *36" cook-top height on 6" legs |
| Cooking equipment |
• 36" griddle, 1" plate, manual control • 3 griddle burners @ 20,000 BTU each • 2 open burners @ 32,000 BTU each |
| Ovens (2) |
Space-saver style – 20" W × 26 ½" D × 13 ½" H interior 27,000 BTU burner each, 250 °F – 500 °F thermostat 2 chrome racks per oven; 4 position guides |
| Total Input | 178,000 BTU /hr (52.0 kW) |
| Gas connection | 3/4" NPT; Natural 5.0" W.C. or LP 10.0" W.C. |
| Shipping weight | Approx. 645 lb (293 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year parts & labor (90-day on selected components) |
What’s Included
- Full-width removable stainless drip pan under burners
- 6" adjustable chrome legs (casters optional)
- Choice of: 6" stub back, 20" riser, or 20" high shelf & riser
- Pressure regulator & manual gas shut-off
Popular Add-Ons (sold separately)
- Swivel casters (front brakes)
- Thermostatic griddle with modulating valves
- Storage-cabinet base in lieu of ovens
- Additional chrome oven racks
Need help configuring your range? Chat with us or call and our equipment specialists will build the perfect setup for your kitchen.
