American Range  |  SKU: AR-2RB

American Range AR-2RB Gas Ranges

$6,804.38
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Cutsheet Cutsheet Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

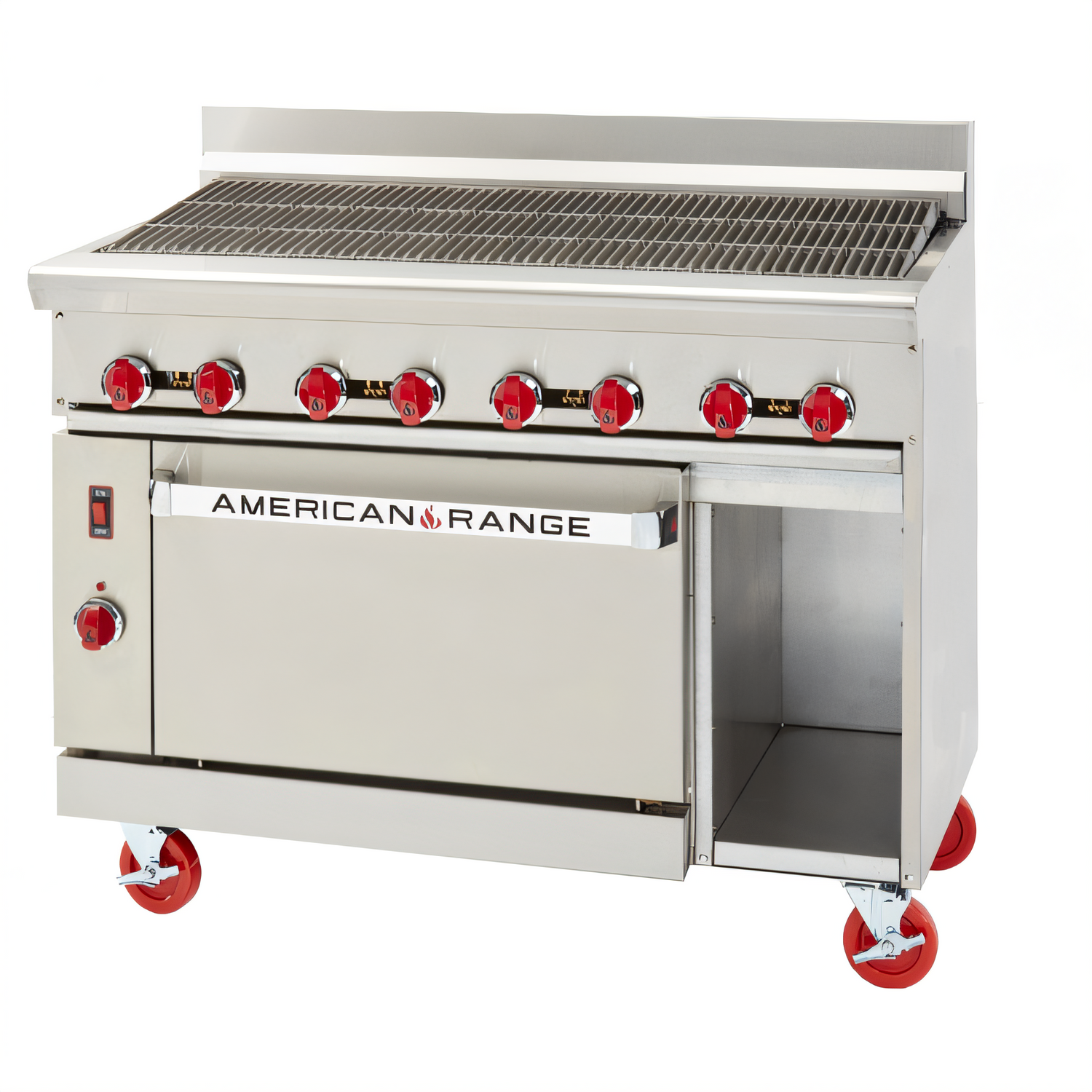

American Range AR-2RB 24" Gas Radiant Charbroiler Range with 20" Space Saver Oven – 87,000 BTU

Built in the USA • cETLus & ETL-Sanitation Listed

Maximize cooking horsepower in a minimal footprint. The American Range AR-2RB pairs a high-performance 60,000 BTU radiant charbroiler with a 27,000 BTU space-saving oven, giving busy kitchens grill-house flavor and dependable baking capacity in just 24 inches.

Key Features

  • Compact 24" (610 mm) body fits tight cook lines, food-trucks & concessions.

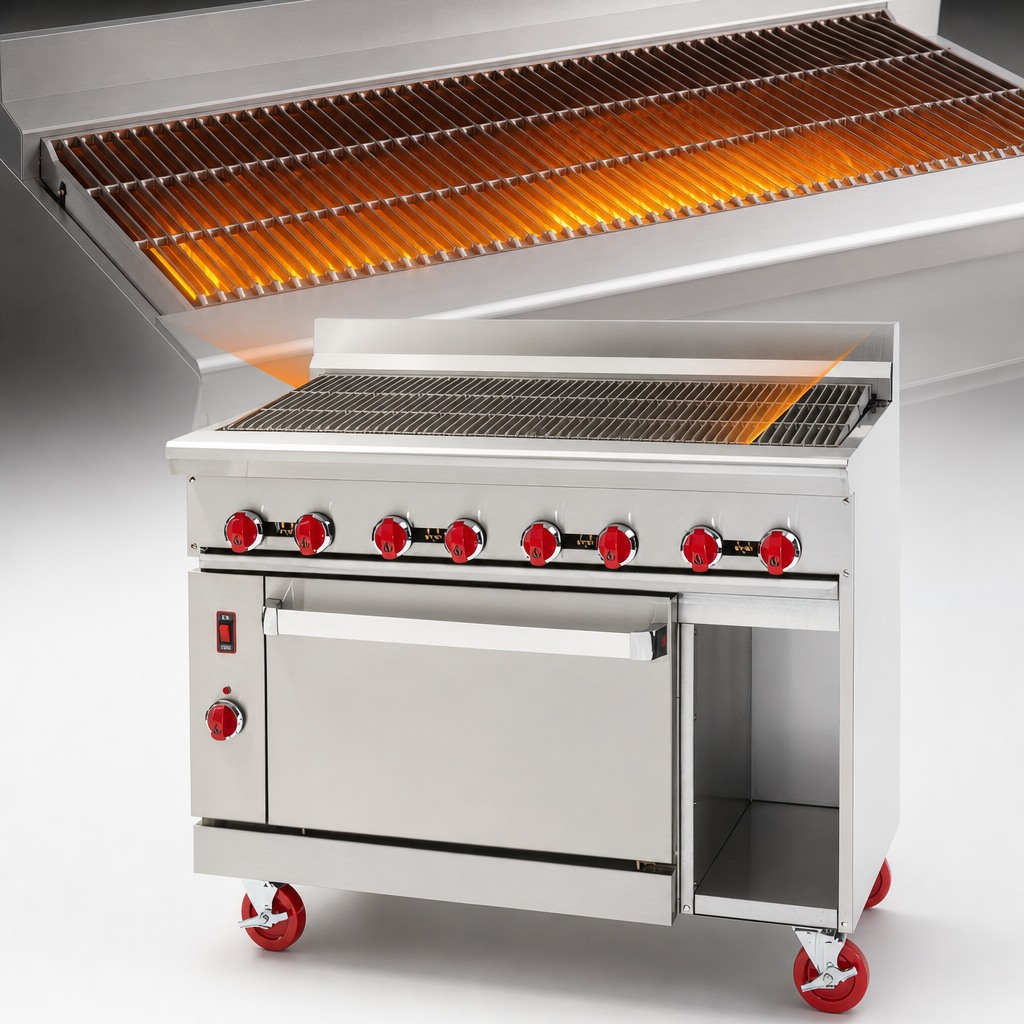

  • 4 × 15,000 BTU steel burners under cast-iron radiants for even, high-heat searing.

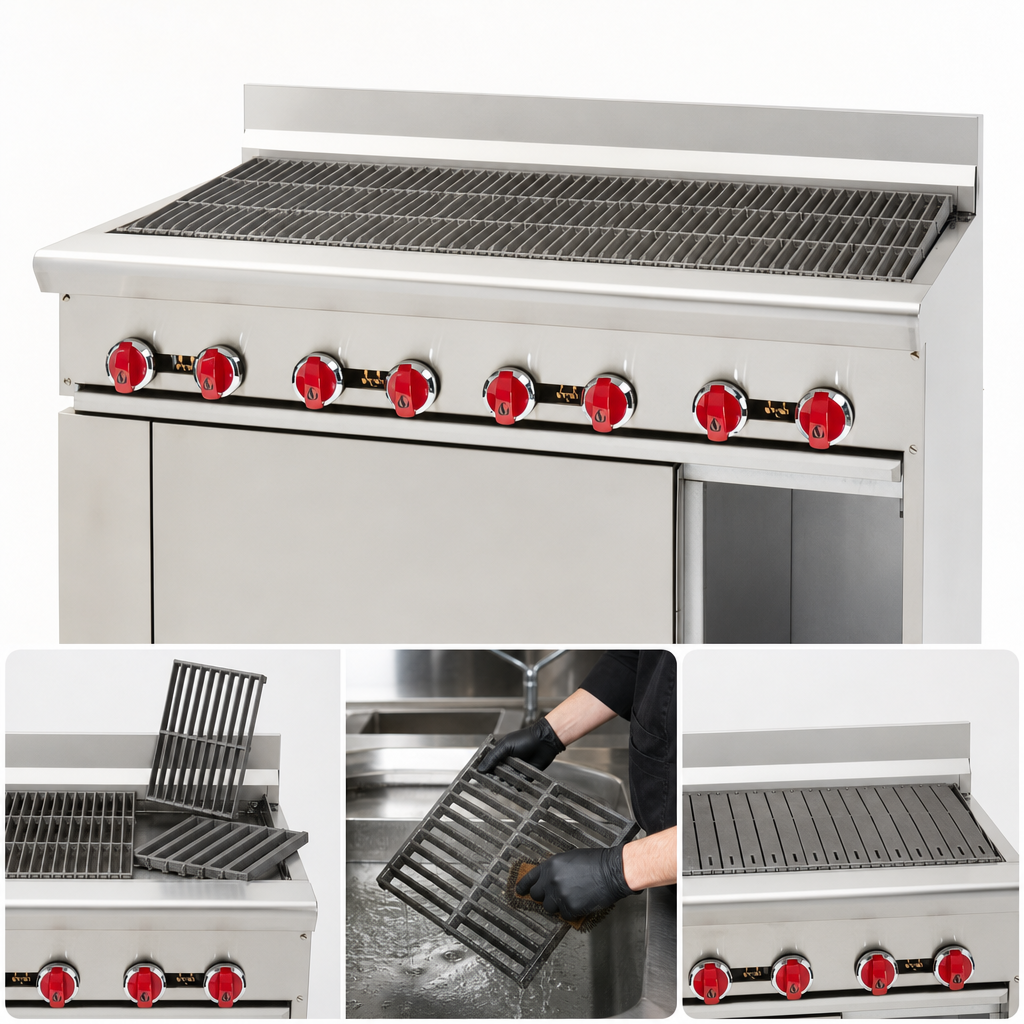

  • Heavy-duty reversible cast-iron grates (flat / angled) for perfect grill marks.
  • Independent cool-touch manual valves — full control in 6" zones.
  • 20" space saver oven (27,000 BTU) with porcelain interior & 2 chrome racks.
  • Temperature-accurate thermostat 250 °F – 500 °F (121 °C – 260 °C).
  • Spring-assisted door stays balanced and seals tight every time.
  • Stainless steel front, sides & 6" stub back withstand daily commercial abuse.
  • 6" adjustable chrome-plated legs for easy leveling (casters optional).
  • Full-width removable drip pan & lift-off pilots speed daily cleanup.
  • Backed by a 2-year parts & labor warranty (90 days for burners, grates & radiants).

Perfect For

  • Independent & chain restaurants
  • Ghost / cloud kitchens
  • C-stores & concessions
  • Mobile kitchens & food trucks

Specifications

Model AR-2RB
Overall Width 24" / 610 mm
Overall Depth 32 1/2" / 826 mm (to front landing ledge)
Cooking Height 38" / 965 mm (with 6" legs)
Charbroiler Output 60,000 BTU (17.6 kW)
Oven Output 27,000 BTU (7.9 kW)
Total Gas Input 87,000 BTU (≈26 kW)
Oven Interior (W×D×H) 20" × 26 1/2" × 13 1/2" (508 × 673 × 343 mm)
Rack Positions 2 fixed
Gas Connection 3/4" NPT rear manifold
Manifold Pressure Natural 5.0" W.C. • Propane 10.0" W.C.
Controls Manual valves (top) + 250–500 °F oven thermostat
Certifications cETLus • ETL-Sanitation
Construction Stainless steel front, sides, 6" stub back; chrome legs
Warranty 2-year parts & labor
Shipping Weight Approx. 400 lb / 181 kg
Country of Origin Made in USA

What’s Included

  • American Range AR-2RB gas radiant charbroiler range
  • (2) Chrome-plated adjustable oven racks
  • Full-width removable drip pan
  • 6" chrome-plated adjustable legs
  • Factory-installed rear pressure regulator
  • Owner’s manual & warranty registration
Installation Notice: This appliance must be installed, gas-supplied and vented in accordance with local codes by a qualified technician. Proper commercial ventilation and fire suppression are required.

Looking for a larger size or convection oven base? Contact our food-service experts for custom configurations and lead times.

Features & Specs

Manufacturer

American Range

Certifications

ETL-Sanitation, Made in USA

Height

44.0in

Width

24.0in

Depth

32.25in

Shipping Weight

400.0lbs

Base

(1) space saver oven

Top

(1) charbroiler

Vent

backriser

Exterior Finish

stainless steel front & sides

Specifications

Restaurant Range, gas, 24", charbroiler, cast iron radiants, reversible top grates, manual controls, (1) 20" space saver oven, (2) racks, stainless steel front, sides & 6" stub back, 6" chrome plated legs, 26.0kW, 87,000 BTU, cETLus, ETL-Sanitation, Made in USA
