American Range AR-24G-SB Gas Ranges
Description

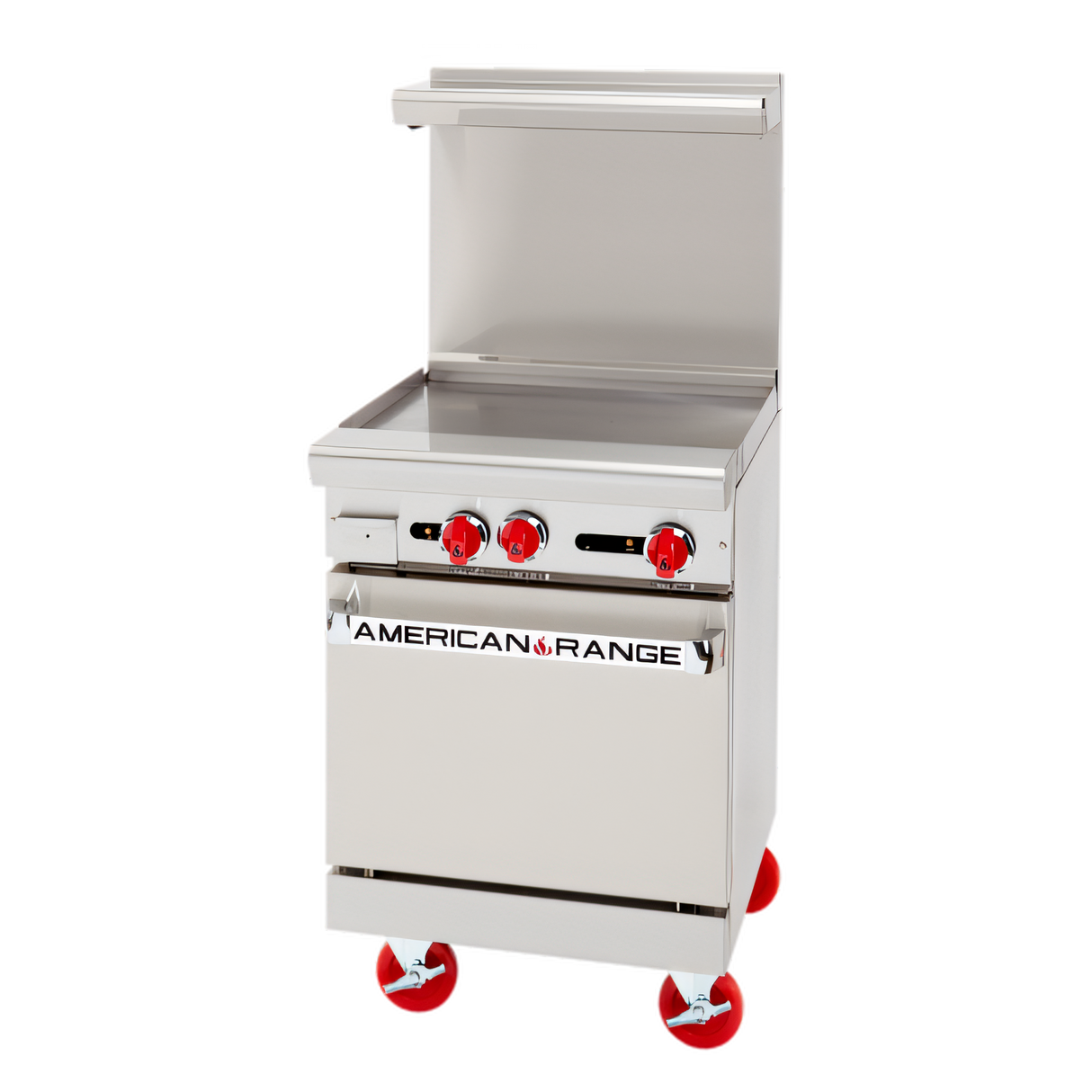

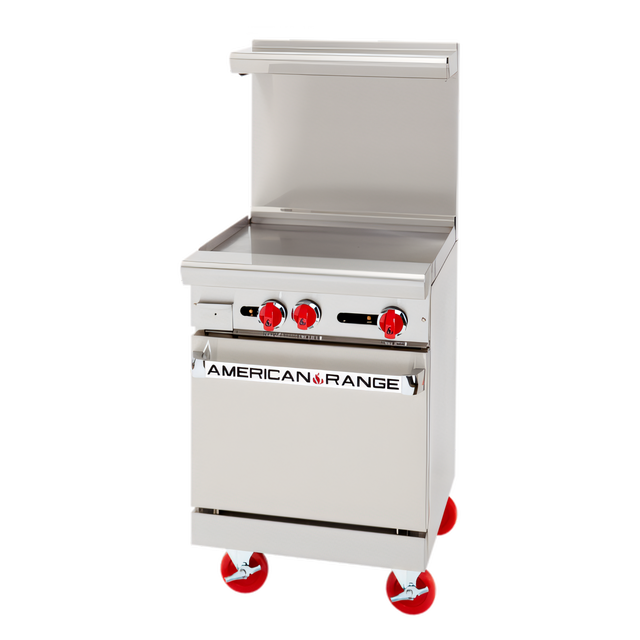

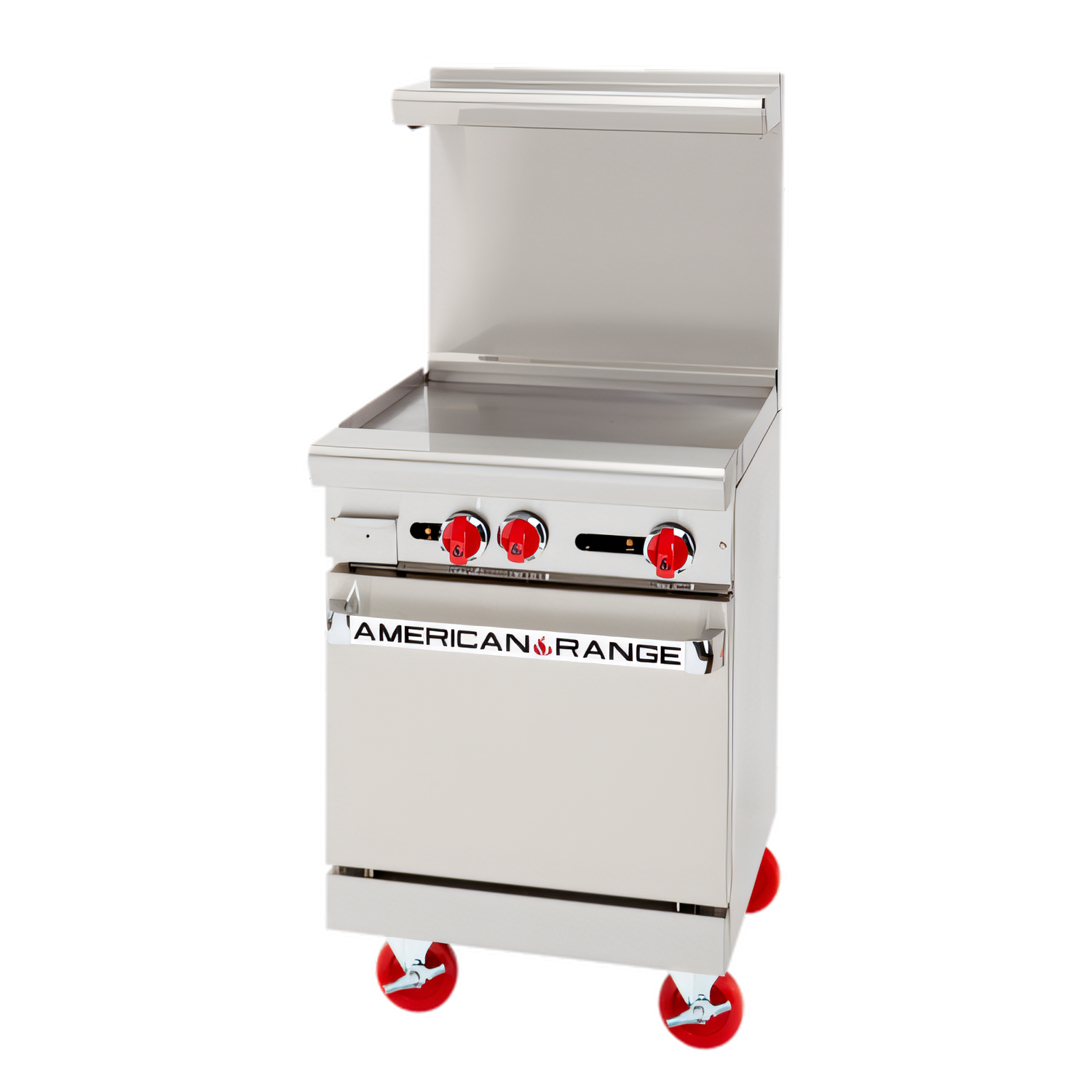

American Range AR-24G-SB
24" Manual Griddle-Top Restaurant Range with Storage Base
Built & engineered in the USA, the AR-24G-SB packs full-size performance into a 24 inch footprint. A heavy 1" thick steel griddle, rugged manual controls and a stainless storage cabinet make it the perfect solution for short-order lines, food trucks, cafés and satellite kitchens that need American Range quality without the bulk of a full cookline.
Why you’ll love it

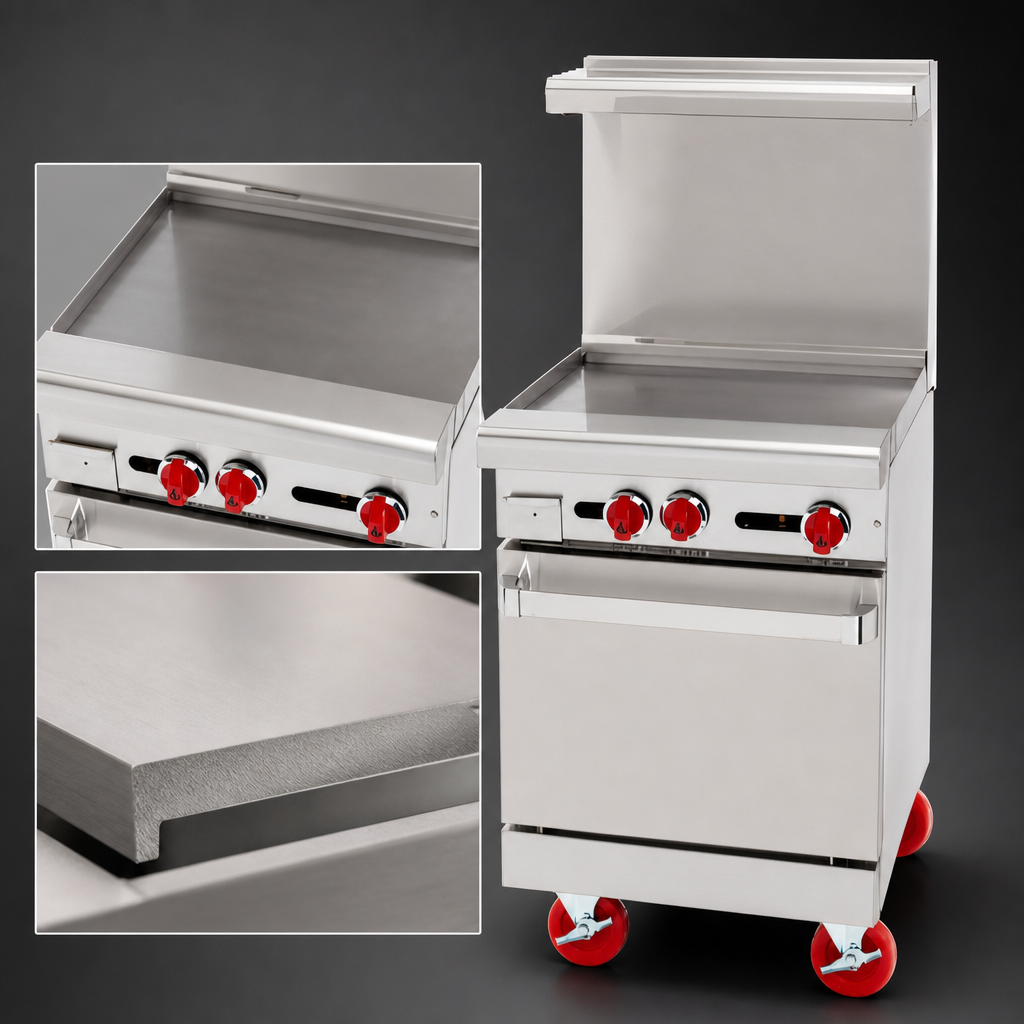

- 1" (25 mm) thick polished steel griddle plate delivers even heat & fast recovery.
- Two 20,000 BTU burners (one every 12") for a total of 40,000 BTU / 12 kW.

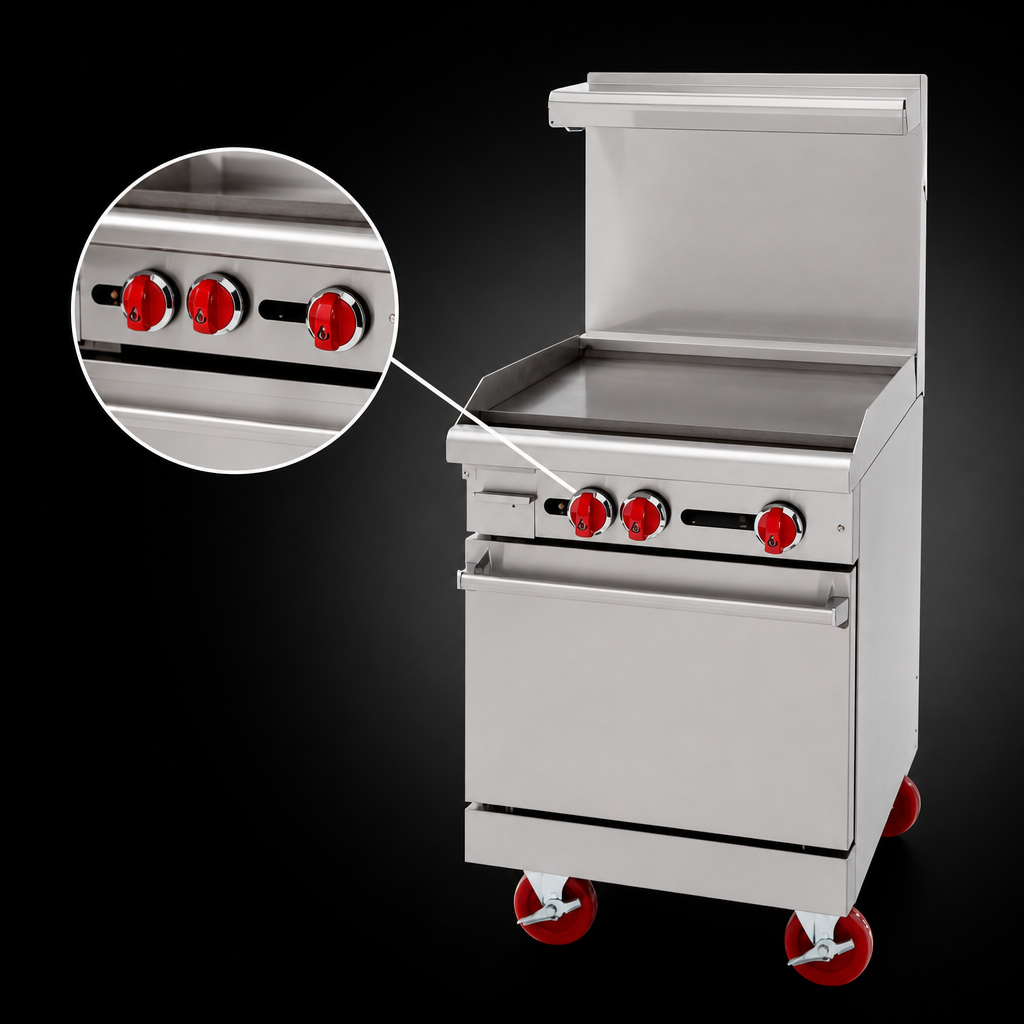

- Precise manual gas valves – simple, durable & field-serviceable.
- 3" wide grease trough & large capacity collector speed up end-of-shift clean-up.
- Stainless steel front, sides, landing ledge & cabinet door for long-term corrosion resistance.
- 20" (508 mm) full-height storage base keeps sheet pans, utensils or dry goods within reach.
- Choice of backguard at no extra charge:
- 6" stub back
- 20" riser
- 20" high riser with shelf
- 6" chrome-plated, adjustable legs – level the unit on uneven floors.
- cETLus & ETL-Sanitation listed for gas safety and NSF/ANSI 4 hygiene compliance.
- Backed by a 2-year parts & labor warranty.
At-a-glance specs
| Model | AR-24G-SB (Manual Griddle Top, Storage Base) |
|---|---|
| Gas input | 40,000 BTU /hr (12.0 kW) |
| Burners | 2 × 20,000 BTU stainless U-type |
| Griddle size | 24" W × 21" D (610 × 533 mm) |
| Griddle plate | 1" (25 mm) thick polished steel |
| Overall width | 24" (610 mm) |
| Overall depth | 32 ½" (826 mm) |
| Cooking height | 36" (914 mm) on 6" legs |
| Base | 20" (508 mm) stainless storage cabinet |
| Gas connection | ¾" NPT rear manifold
Manifold pressure: 5.0" WC (Natural) / 10.0" WC (LP) |
| Shipping weight | ≈ 275 lb (125 kg) |
| Certifications | cETLus, ETL-Sanitation, Made in USA |
| Warranty | Two-year limited, parts & labor |
Installation notes
- Zero -inch clearance to non-combustible walls.
- For combustible construction leave 12" (305 mm) at sides & 4" (102 mm) at rear.
- An approved commercial hood & ventilation system is required.
- No electrical connection needed.
Register your unit within 90 days of shipment to qualify for extended coverage. Full warranty terms available on the American Range website.
