American Range AR-24G-8B Gas Ranges

American Range AR-24G-8B – 72" Gas Restaurant Range

Built in the USA for serious, high-volume kitchens, the American Range AR-24G-8B packs a 24" heavy-duty griddle, eight powerful open burners and two full-size standard ovens into one rock-solid, 72" footprint. All-stainless construction, cast-iron grates and a thick 1" griddle plate deliver the durability you need, while a 2-year parts & labor warranty backs you up service after service.

Key Features & Benefits

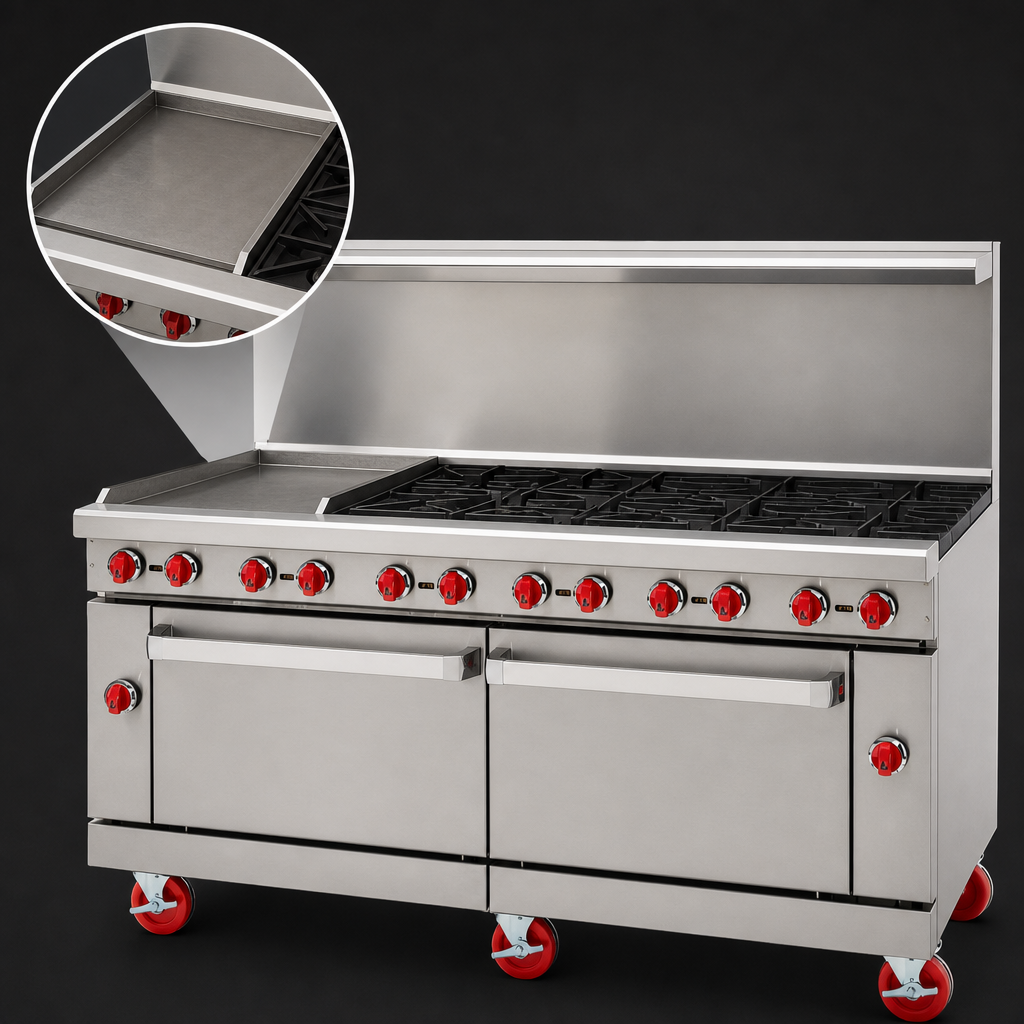

• Integrated 24" manual griddle (left-side) with 1" thick polished steel plate and 3" grease trough.

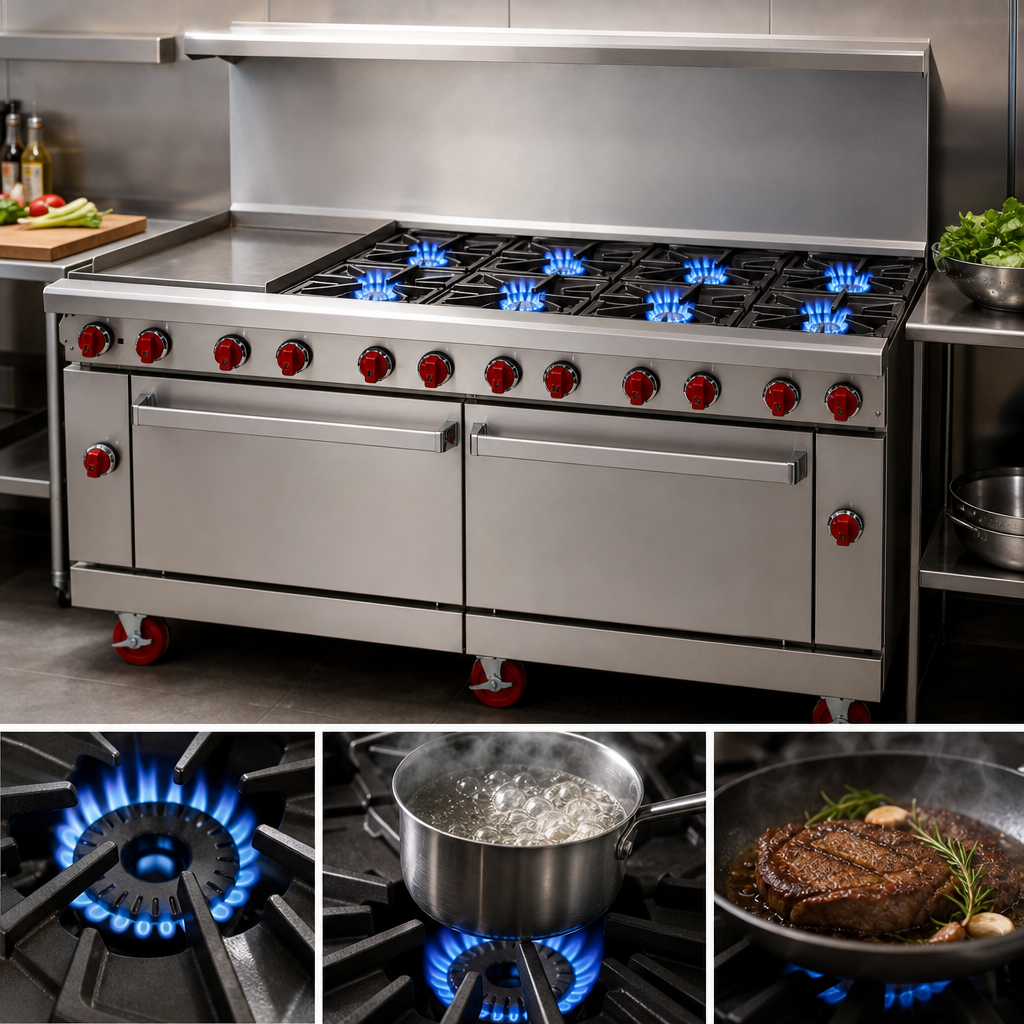

• Eight 32,000 BTU lift-off open burners with 12" × 12" cast-iron grates and removable full-width drip pan.
• Two 26-1/2" standard ovens, each with 35,000 BTU steel burner, porcelain interior and two racks.
• Thermostatic oven control ranges from 250 °F – 500 °F for precise, even baking and roasting.
• Stainless steel front, sides, back riser and 6" deep front landing ledge stand up to everyday abuse.
• Choice of 6" stub back, 20" riser, or 20" riser + high shelf at no extra charge to match your line-up.
• 6" chrome-plated adjustable legs provide a comfortable 36" cooking height.
• Field convertible for Natural Gas or LP; 3/4" rear gas connection & pressure regulator included.
• cETLus & ETL-Sanitation listed for peace of mind and code compliance.
• Backed by a 2-year limited parts & labor warranty.

Griddle Performance

• 1" thick steel plate stores and spreads heat evenly for consistent browning.
• One 20,000 BTU burner every 12" delivers quick recovery during peak periods.
• Wide 3" front grease catcher with removable trough simplifies daily clean-up.

Oven Highlights

• Porcelain-enamel interiors for fast wipe-down.
• Spring-assisted, counter-weighted doors stay open wherever you set them.
• 100 % safety gas shut-off for added protection.
• Two chrome racks per oven; fixed rack positions for dependable sheet-pan loading.

Technical Specifications

Need convection ovens, casters or a thermostatic griddle? Reach out—American Range can factory-configure this unit to suit your line.

Certifications & Warranty

• cETLus listed for gas safety
• ETL-Sanitation certified to NSF standards
• Designed & built in the USA
• 2-year limited parts & labor warranty (registration within 90 days of shipment recommended)

Perfect For

• High-volume restaurants & diners
• Hotels, resorts & institutional kitchens
• Catering halls and banqueting operations
• Food-truck commissaries and ghost kitchens needing maximum versatility
