American Range | SKU:
AR-24G-8B-CL-SBR
American Range AR-24G-8B-CL-SBR Gas Ranges
$13,338.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
American Range AR-24G-8B-CL-SBR Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
American Range AR-24G-8B-CL-SBR Gas Ranges
$13,338.00
Unit price
/
Unavailable
Description
American Range 72" Gas Restaurant Range – 24" Griddle & 8 Open Burners
Model AR-24G-8B-DSB | Left-Side Convection Oven • Right-Side Storage BaseBuilt and engineered in the USA, this 72-inch American Range restaurant range unites a high-output 24" manual griddle, eight 32,000 BTU open burners, and a full 26-1/2" convection oven in one rugged, stainless-steel chassis. From breakfast rush to dinner service, it gives chefs the power, speed, and versatility required for high-volume kitchens without sacrificing valuable line space.
Highlights
- Eight lift-off cast-iron open burners rated at 32,000 BTU each

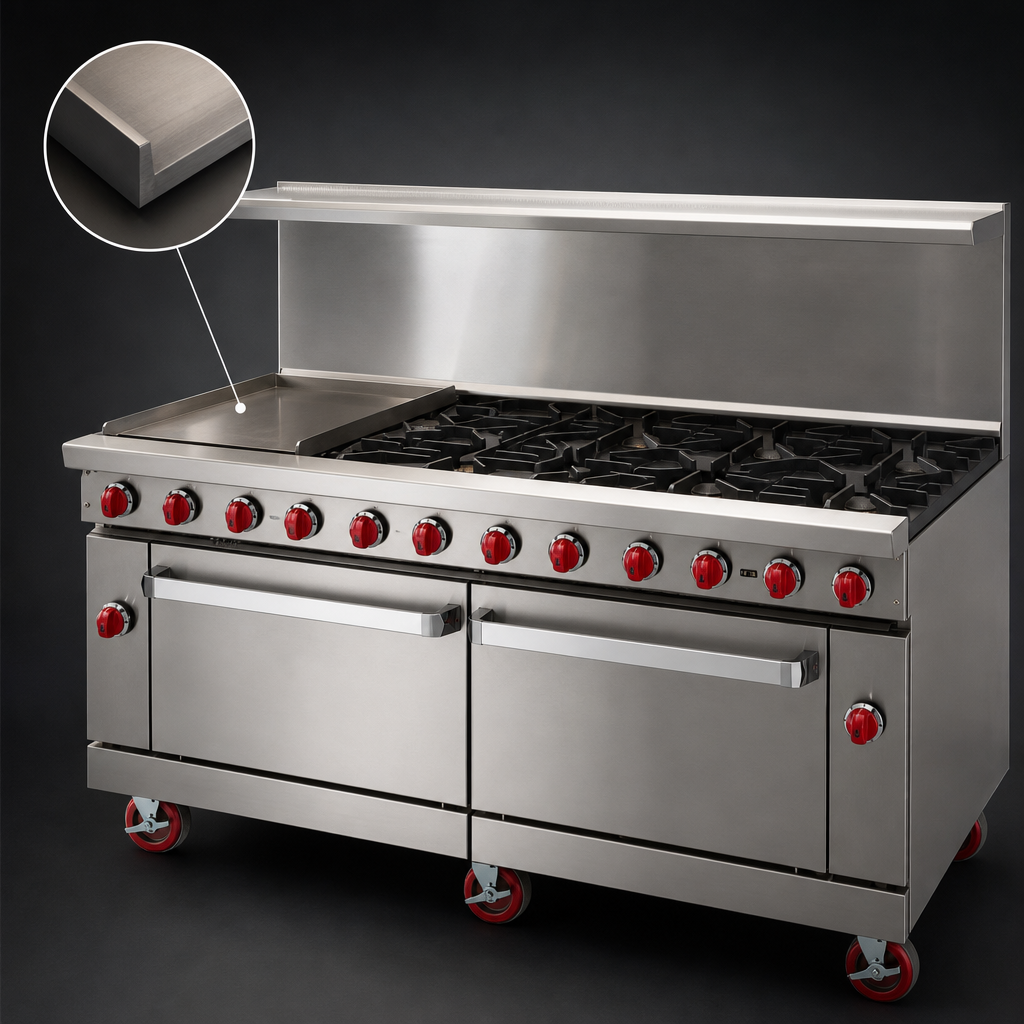

- 24" wide, 1" thick steel griddle plate on the left with manual controls & 3" grease trough
- 26-1/2" convection oven (30,000 BTU) for faster, even baking – supplied with 2 chrome racks & 5 positions
- 26-1/2" storage base on the right keeps sheet pans, pots, and smallwares within reach
- Total input: 326,000 BTU / 96.0 kW
- Stainless steel front, sides, backriser & high-shelf for long-lasting durability and easy cleanup
- Adjustable 6" chrome-plated legs level the unit on any floor
- 100 % safety gas shut-off valve plus rear gas connection with pressure regulator
- Field convertible for Natural or LP gas (specify when ordering)
- cETLus & ETL-Sanitation listed – meets ANSI/NSF standards
- Backed by a 2-year limited parts & labor warranty
Ideal For
- High-volume restaurants & diners
- Hotels, resorts & casinos
- Catering halls & banquet facilities
- Schools, universities & institutional foodservice
Technical Specifications
| Overall width | 72" (1829 mm) |
|---|---|
| Depth | 32 1/2" (826 mm) |
| Cooking height | 36" (914 mm) |
| Griddle size / plate | 24" W × 24" D – 1" thick steel |
| Open burners | 8 × 32,000 BTU lift-off burners |
| Griddle burners | 2 × 20,000 BTU (under plate) |
| Convection oven | 30,000 BTU steel burner • 250 °F–500 °F thermostat |
| Total input | 326,000 BTU (96.0 kW) |
| Oven interior (W×D×H) | 26 1/2" × 22 1/2" × 13 1/2" (673 × 572 × 343 mm) |
| Electrical (fan motor) | 120 V • 1 ph • 4 A • 6 ft cord & plug included |
| Gas connection | 3/4" NPT rear manifold (5.0" W.C. NG • 10.0" W.C. LP) |
| Shipping weight | ≈ 700 lb (318 kg) |
| Certifications | cETLus, ETL-Sanitation |
| Country of origin | Made in the USA |
Important: Installation must be performed by a licensed professional in accordance with
all local codes. Product images may show optional accessories (casters, thermostat control griddle, etc.) that are not
included with the base model.
Features & Specs
Features & Specs
Manufacturer
American Range
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
56.0in
Width
72.0in
Depth
32.25in
Shipping Weight
795.0lbs
Top
(8) open burners, (1) 24" griddle
Vent
backriser with hi-shelf
Plate Thickness
1.000" = 1"
Exterior Finish
stainless steel front & sides
Base
(1) convection oven, (1) cabinet
Specifications
Restaurant Range, gas, 72", (1) 24" griddle on left, 1" thick plate, manual controls, (8) 32,000 BTU open burners, (1) 26-1/2" convection oven on left, (1) 26-1/2" storage base on right, (2) racks per oven, stainless steel front, sides & high shelf, 6" chrome plated legs, 96.0kW, 326,000 BTU, cETLus, ETL-Sanitation, Made in USA
