American Range AR-24G-8B-CL-126R Gas Ranges
Description
72" Gas Restaurant Range – 8 Burners, 24" Griddle & Double 26-1/2" Ovens
American Range • Model AR-24G-8B-CC • Made in USABuilt for the pace of a high-volume kitchen, this American Range 72-inch restaurant range combines powerful open burners, a thick-plate griddle and both convection and standard ovens in a single, stainless-steel workstation.
Highlights

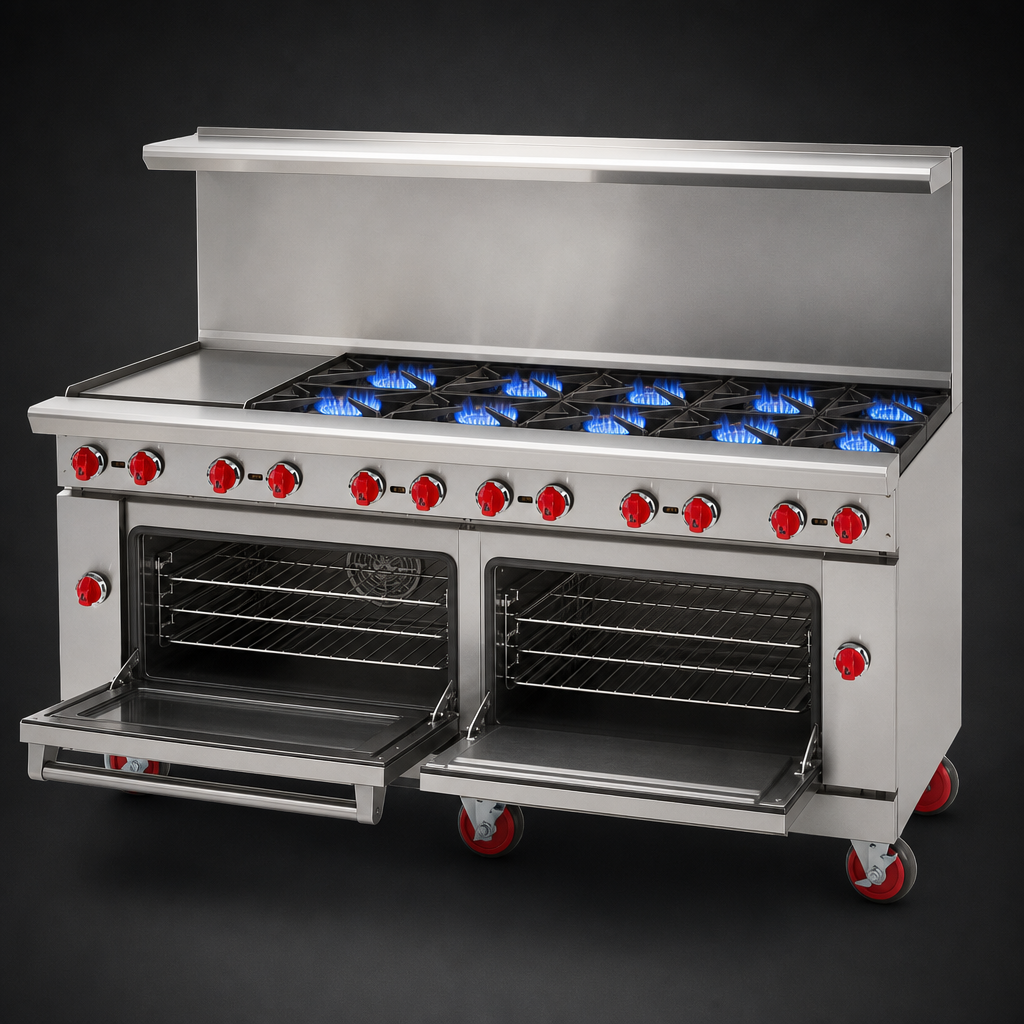

- (8) 32,000 BTU open burners with lift-off heads & 12" × 12" cast-iron grates

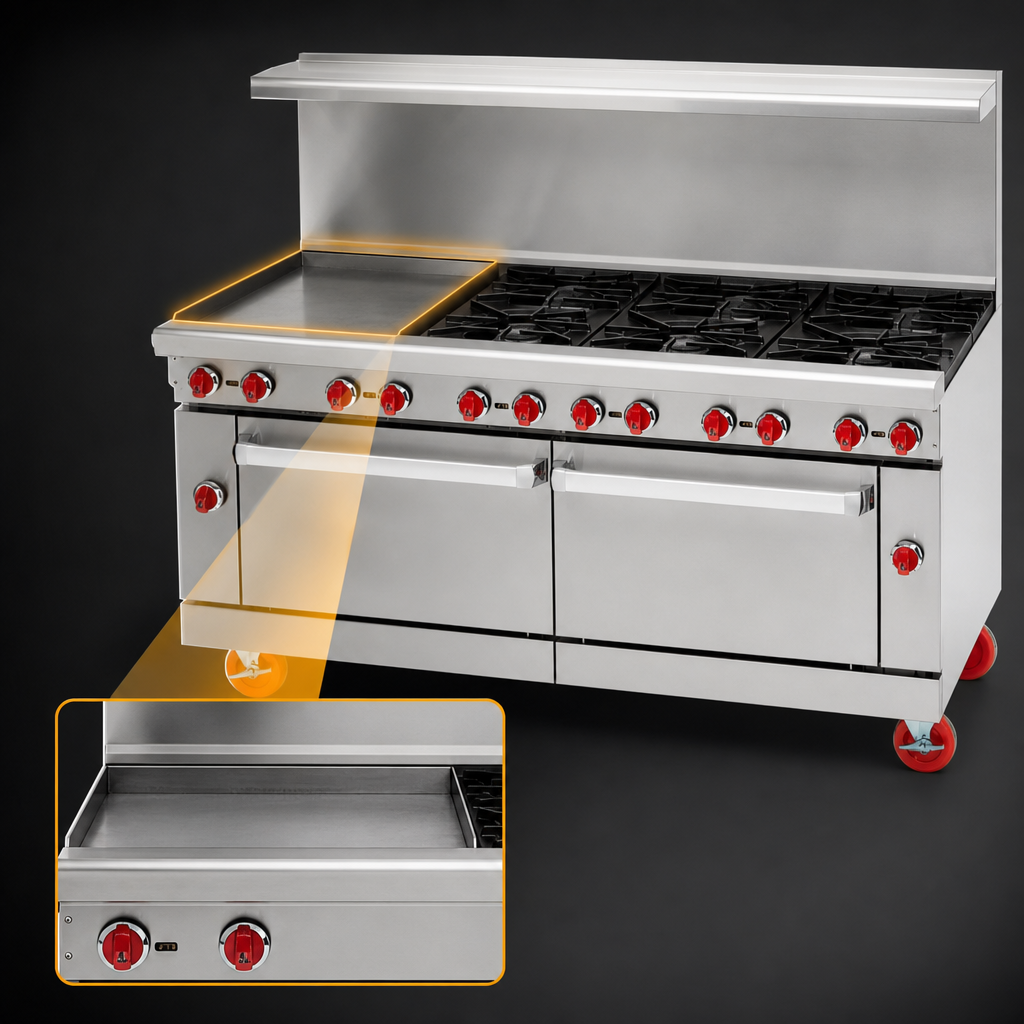

- 24" manual-control griddle (left-mounted) featuring a 1" thick polished steel plate & 3" welded grease trough
- Left 26-1/2" convection oven, 30,000 BTU burner, 250 °F–500 °F thermostat, chrome rack guides & 2 racks
- Right 26-1/2" standard oven, 35,000 BTU burner, 250 °F–500 °F thermostat & 2 racks
- Total input: 361,000 BTU (106 kW)
- Stainless steel front, sides, kick plate & 6" deep front landing ledge
- Choice of 6" stub back, 20" riser, or high shelf with riser (select at checkout)
- 6" adjustable chrome-plated legs; swivel casters available
- Full-width removable drip pan for rapid cleanup
- cETLus & ETL-Sanitation listed • 2-year parts & labor warranty
Performance You Can Rely On
American Range manufactures every burner, valve and weld in its U.S. facilities for maximum durability. High-efficiency convection airflow shortens cook times while the standard oven on the right delivers traditional, even baking. With well over 350,000 BTU of combined firepower, this range powers through the busiest dinner rush without breaking a sweat.
Specifications
| Overall width | 72" (1829 mm) |
|---|---|
| Depth (incl. ledge) | 32-1/2" (825 mm) |
| Cooking height | 36" (914 mm) on 6" legs |
| Open burners | 8 × 32,000 BTU |
| Griddle plate | 24" W × 31-1/2" D, 1" thick steel |
| Left oven cavity | 26-1/2" W × 22-1/2" D × 13-1/2" H (convection) |
| Right oven cavity | 26-1/2" W × 22-1/2" D × 13-1/2" H (standard) |
| Temperature range | 250 °F – 500 °F (121 °C – 260 °C) |
| Total input | 361,000 BTU / 106 kW |
| Gas connection | ¾" NPT rear manifold – Natural or LP |
| Clearance – combustibles | 0" sides • 6" rear (or per local code) |
| Certifications | cETLus, ETL-Sanitation |
| Origin | Designed & built in the USA |
What’s Included
- (2) chrome oven racks per cavity (4 total)
- Removable grease drawer under burners
- Your choice of stub back, riser or high shelf package
- User, installation & parts manuals
Register your range within 90 days of shipment to activate the extended limited warranty. Full terms available at americanrange.com/terms-of-sale.
Need a different configuration? American Range builds every unit to order—contact us for custom burner, griddle or oven combinations.
