American Range AR-24G-8B-CC Gas Ranges
Description
American Range 72" Gas Restaurant Range
Model AR-24G-8B-CC – 24" Griddle, 8 Open Burners, (2) Convection Ovens
Built for high-volume kitchens that refuse to compromise on versatility, this 72 inch American Range heavy-duty restaurant range combines a full-size 24" manual-control griddle, eight 32,000 BTU open burners, and dual 26 ½" convection ovens— delivering a massive 420,000 BTU of cooking power in one rock-solid, USA-made platform.
Why You’ll Love It
- True workhorse capacity – cook, sear, grill & bake simultaneously on one 72" line-up
- Power to spare – 8 lift-off open burners at 32,000 BTU each for instant, even heat

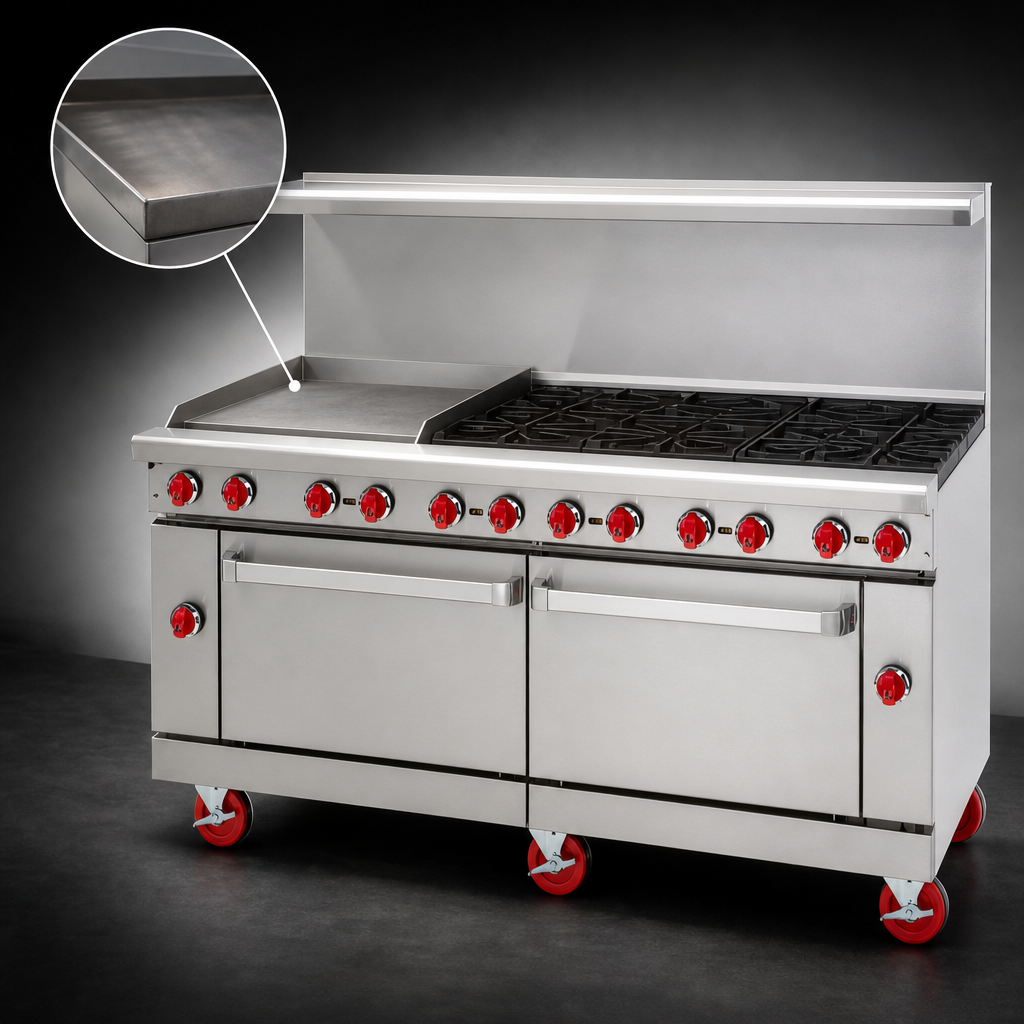

- 1" thick steel griddle plate (left-side) retains heat for consistent caramelization; 3" grease trough & large drip drawer simplify cleanup
- Twin convection ovens (30,000 BTU each) circulate hot air for 25-30 % faster, more even baking & roasting
- Flexible back options – choose 6" stub, 20" high riser, or 6"/20" riser with shelf at no extra charge
- Rugged construction – stainless steel front, sides & landing ledge with heavy-duty 12" × 12" cast iron top grates
- Field-adjustable 6" chrome legs for easy leveling and cleaning under the range
- Safety first – 100 % gas-shutoff ovens, cool-to-the-touch knobs, & cETLus / ETL-Sanitation approvals
- Peace-of-mind warranty – 2-year parts & labor limited warranty, backed by American Range’s nationwide service network
At-a-Glance Specs
| Overall width / depth / height* | 72" W × 32 ½" D × 56" H (to top of optional 20" riser) |
|---|---|
| Cooking surface height | 36" |
| Open burners | 8 × 32,000 BTU lift-off, no-drip design (256,000 BTU total) |
| Griddle | 24" W × 22" D, 1" thick steel plate, manual valves, 20,000 BTU/hr |
| Ovens (2) | Convection • 30,000 BTU ea. • 26 ½" W × 22 ½" D × 13 ½" H cavity • 5 rack positions / 2 chrome racks included |
| Total input | 420,000 BTU (124 kW) |
| Gas connection | 3⁄4" NPT manifold • Natural or LP (specify when ordering) |
| Construction | Stainless front, sides, riser & landing ledge • Porcelain oven interior |
| Listings | cETLus, ETL-Sanitation, Made in USA |
| Warranty | 2-year limited parts & labor 90-day limited on broiler components & replacement parts |
*Height shown with 6" adjustable legs & 20" riser. 6" stub back also available.
Installation & Operation Highlights
- Manifold pressure: 5.0" W.C. Natural | 10.0" W.C. Propane
- Requires 120 V, 1-phase, 4-amp cord for convection fan
- Rear gas connection & factory-installed pressure regulator provided
- Minimum 2" side & 6" rear clearance from combustible walls (8" with high shelf)
- Commercial ventilation system required; consult NFPA 96 guidelines
Upgrade your cookline with the all-in-one performance of the American Range AR-24G-8B-CC—engineered for chefs who demand power, precision and durability every service.
