American Range AR-24G-8B-126L-SBR Gas Ranges
Description
American Range 72" Gas Restaurant Range – 24" Griddle & 8 Burners
Model reference: AR-24G-8B-DSB (Griddle-Left / Standard Oven-Left / Storage Base-Right)Engineered and built in the USA for the toughest commercial kitchens, this 72 inch American Range packs a 24 inch, 1 inch-thick steel griddle, eight 32,000 BTU lift-off open burners and a 26 ½ inch standard oven into one powerful workhorse. Heavy-gauge stainless steel construction, a choice of backsplash / shelving options, and cETLus & ETL Sanitation approvals make it the dependable centerpiece of your cookline.
Top Reasons Chefs Choose It

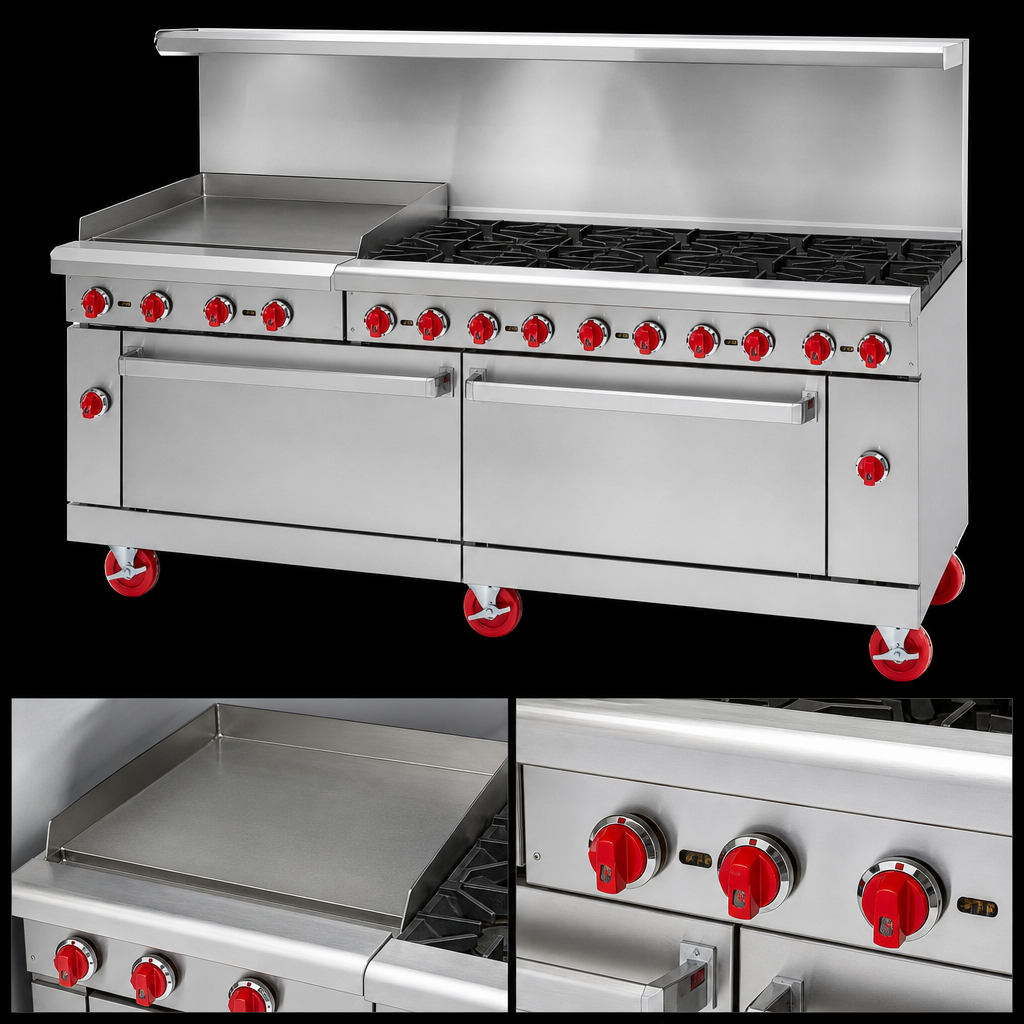

- 24" manual-control griddle (1" thick) on the left with 3" welded grease trough & large collector.
- Eight 32,000 BTU open burners with 12" × 12" cast-iron top grates.
- One 26 ½" standard oven (35,000 BTU) – two chrome racks, porcelain interior, 250 °F – 500 °F thermostat.
- 26 ½" fully enclosed stainless steel storage base on the right keeps sheet-pans and utensils close.
- Stainless steel front, sides, back & 6" deep landing ledge stand up to daily abuse.
- Removable full-width drip tray under burners for fast clean-up.
- 6" adjustable chrome-plated legs; optional casters available.
- Select your backguard: 6" stub, 20" high riser, or high riser with shelf (no up-charge).
- Two-year parts & labor warranty – backed by nationwide service network.
- Made in the USA; cETLus & ETL-Sanitation listed for commercial use.
At-a-Glance Specs
| Overall width | 72" (1829 mm) |
|---|---|
| Depth / Cooking height | 32 ½" D × 36" H work surface |
| Griddle | 24" W × 32 ½" D, 1" thick steel plate, manual controls |
| Open burners | 8 × 32,000 BTU lift-off heads (total 256,000 BTU) |
| Standard oven | 26 ½" W cavity, 35,000 BTU; 2 racks, 3 positions; 250 °F – 500 °F |
| Storage base | 26 ½" W fully enclosed cabinet (unheated) |
| Total input | 331,000 BTU / 97.0 kW * (Natural or LP) |
| Gas connection / pressure | ¾" NPT; 5.0" W.C. Natural, 10.0" W.C. LP |
| Certifications | cETLus, ETL-Sanitation |
| Country of origin | Designed & built in the USA |
*BTU totals are nominal and may vary slightly by gas type.
What’s Included
- 6" stub back – upgrade to 20" riser or high-shelf riser at no additional charge.
- Two chrome oven racks.
- Removable drip/crumb tray.
- Adjustable 6" chrome legs.
- Factory-installed pressure regulator & ¾" rear gas manifold.
Popular Add-Ons (sold separately)
- Swivel casters (set of four, front brakes).
- Thermostatic griddle upgrade.
- Extra oven racks or rack guides.
- Quick-disconnect gas hose kit.
Looking for spec sheets or CAD blocks? Reach out via the “Contact Us” link on our store page and we’ll be happy to help.
