American Range AR-24G-6B Gas Ranges
Description

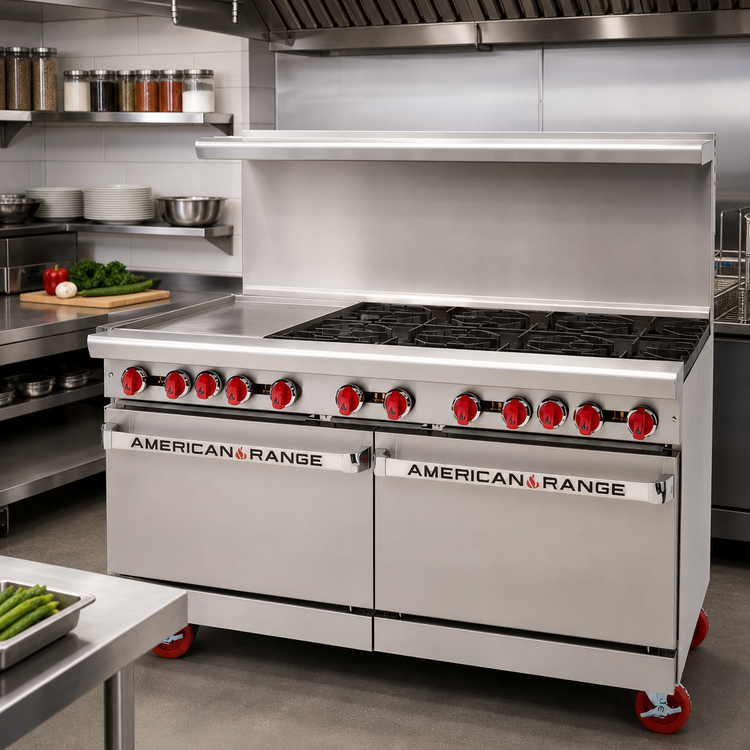

American Range AR-24G-6B 60" Gas Restaurant Range
24" Manual Griddle • 6 Open Burners • Twin Standard OvensBuilt in the USA for the toughest commercial kitchens, the American Range AR-24G-6B combines a heavy-duty 1" steel griddle, six 32,000 BTU open burners, and two full-size ovens in a single 60-inch lineup. Sauté, sear, grill, and bake—all at the same time—with 302,000 BTU of total firepower and the reliability of a 2-year parts & labor warranty.
Key Features
- Six 32,000 BTU open burners with lift-off 12" × 12" cast-iron grates

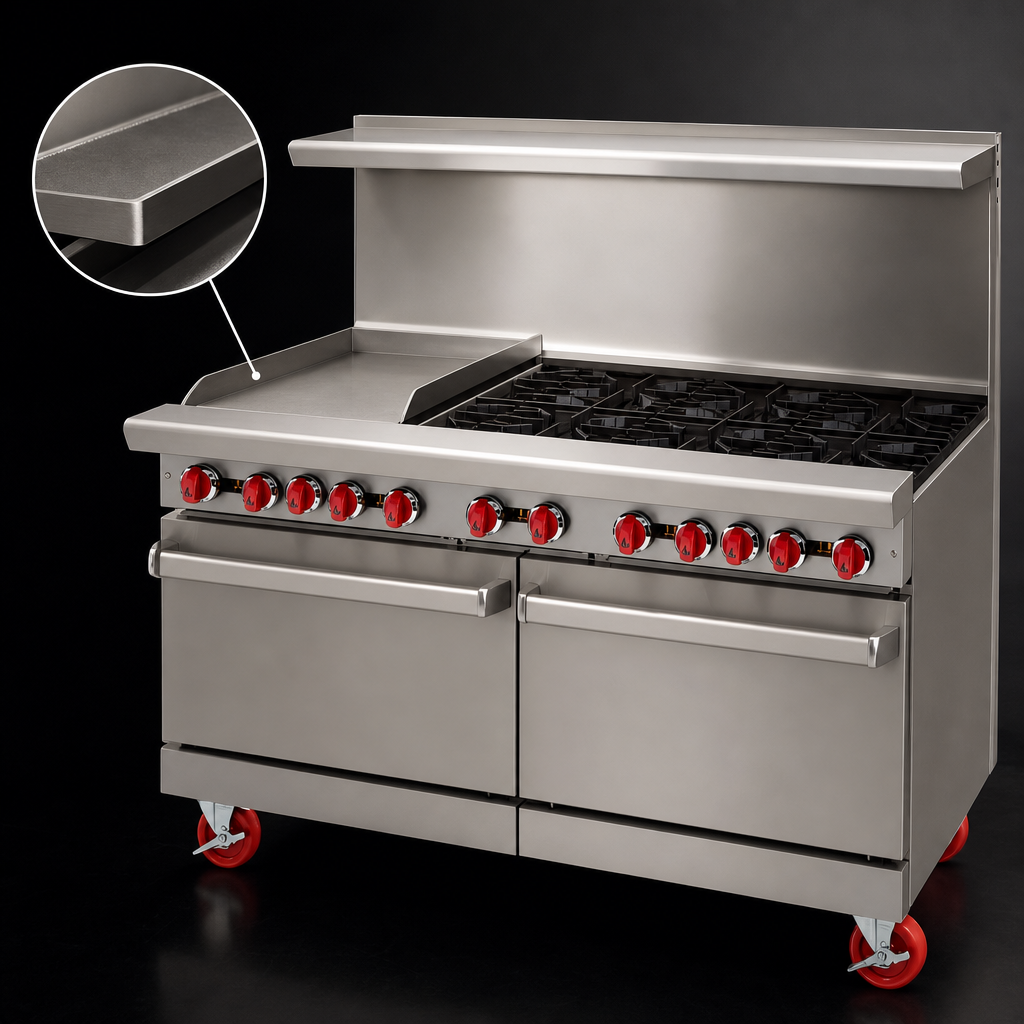

- 24" (610 mm) manual-control griddle on the left with 1" thick plate & 3" grease trough
- Two 26-1/2" standard ovens (35,000 BTU each) with porcelain interiors & five rack positions
- Stainless steel front, sides, landing ledge and removable full-width drip pan
- Choice of 6" stub back, 20" riser, or high shelf with riser—no up-charge
- 6" adjustable chrome-plated legs (optional swivel caster set available)
- Total input: 302,000 BTU / 89.0 kW with rear ¾" NPT gas connection & pressure regulator
- cETLus & ETL-Sanitation listed for commercial use
- Designed & built in North Las Vegas, Nevada—Made in the USA
Oven Performance
- Thermostat range: 250 °F – 500 °F (121 °C – 260 °C)
- Two chrome-plated racks per oven (4 total)
- Spring-assisted, counter-balanced doors stay open at any angle
- 100 % safety gas shut-off valve
Specifications
| Model | AR-24G-6B |
|---|---|
| Overall width | 60" / 1524 mm |
| Overall depth | 32-1/2" / 826 mm (34" / 864 mm to landing ledge) |
| Cooking height | 36" / 914 mm |
| Griddle size | 24" W × 21" D, 1" thick plate |
| Open burners | 6 × 32,000 BTU (192,000 BTU) |
| Griddle burners | 2 × 20,000 BTU (40,000 BTU) |
| Oven burners | 2 × 35,000 BTU (70,000 BTU) |
| Total input | 302,000 BTU / 89.0 kW |
| Oven cavity (each) | 26-1/2" W × 22-1/2" D × 13-1/2" H |
| Included racks | 2 per oven (4 total) |
| Gas connection | ¾" NPT (rear) |
| Gas type | Natural or LP (specify when ordering) |
| Shipping weight | ≈ 735 lb / 333 kg |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2-year limited parts & labor |
Looking for extra versatility? Ask about optional thermostatic griddle controls, convection oven bases, or storage cabinet bases.
Full warranty terms are available at the American Range website. Specifications are subject to change without notice.
