American Range AR-24G-6B-DSB Gas Ranges
Description

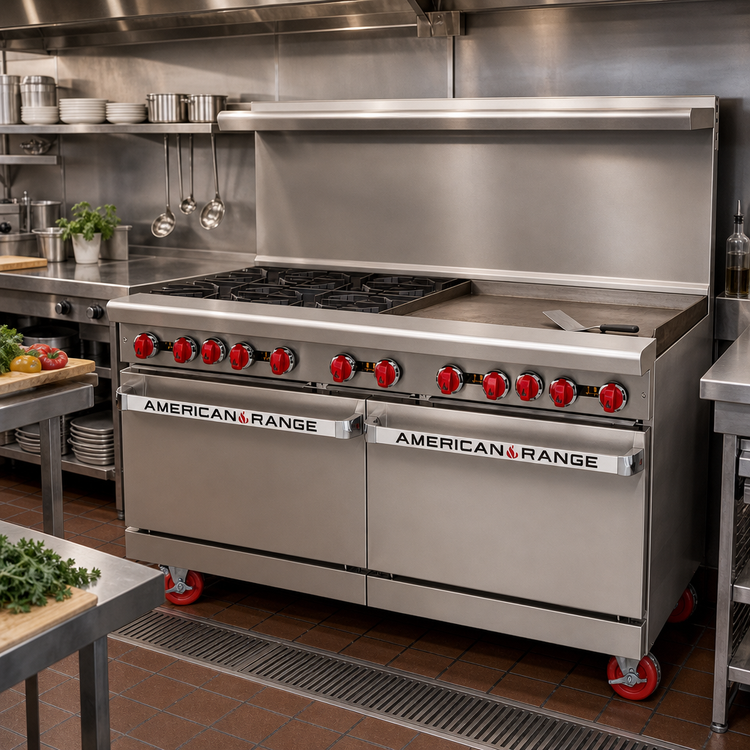

American Range 60" Gas Restaurant Range w/ 24" Manual Griddle & 6 Open Burners
Model AR-24G-6B-DSB | 232,000 BTU (68 kW) | Made in USABring powerhouse performance and all-day reliability to the cookline with this American-made, 60 inch restaurant range. A 1″ thick steel griddle, six 32,000 BTU open burners and a dual 26-1/2″ storage base deliver the versatility chefs need in busy kitchens—while the stainless exterior, lift-off burner heads and full-width drip trays make cleanup fast and simple.
Key Performance Features
- Six 32,000 BTU open burners with 12″ × 12″ cast-iron grates & lift-off burner heads

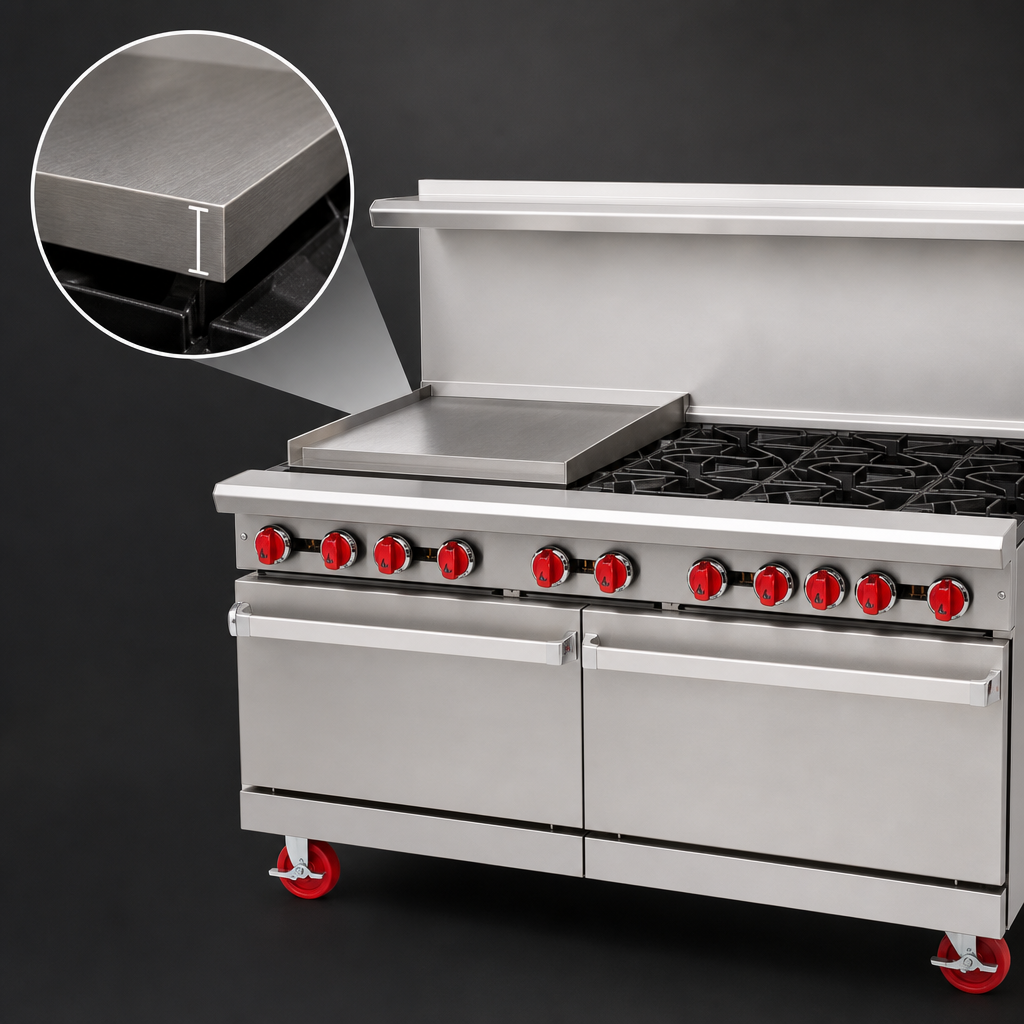

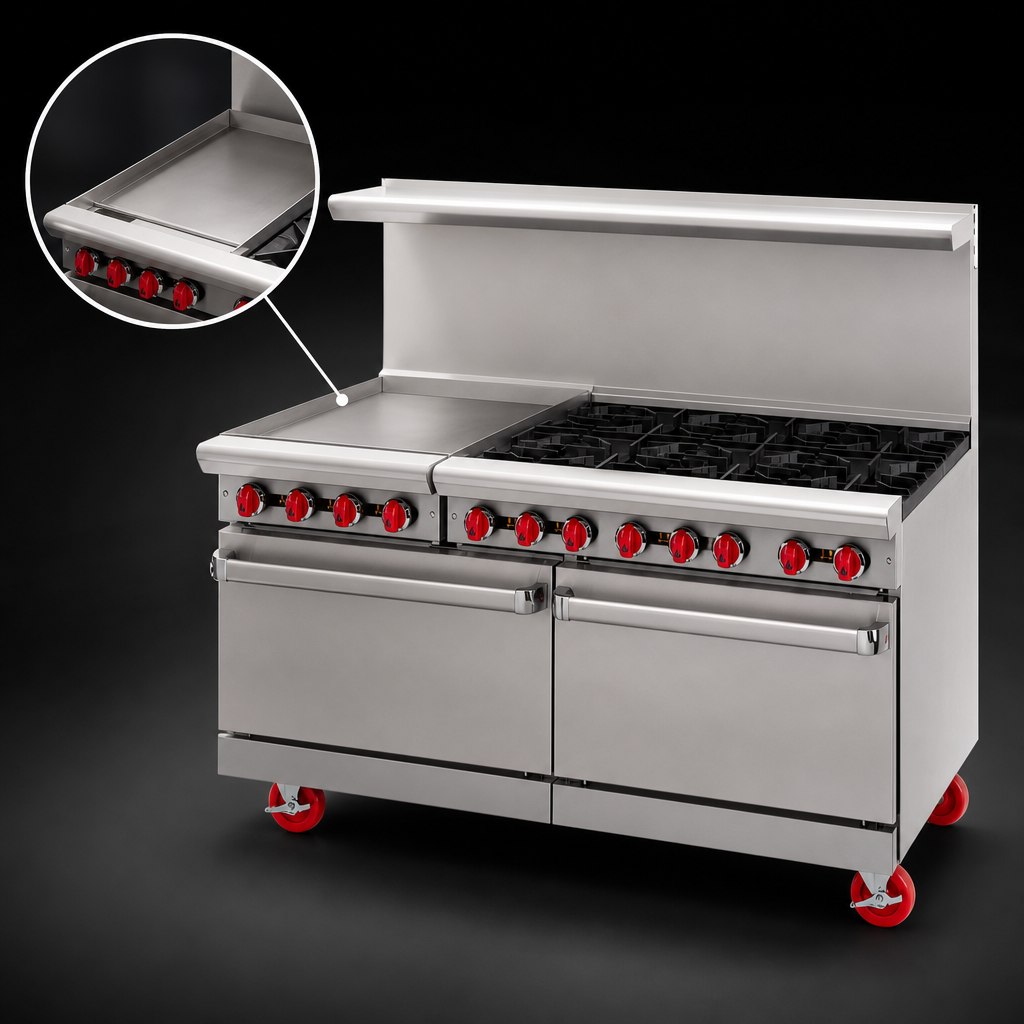

- 24″ manual griddle (left) with 1″ polished steel plate, two 20,000 BTU burners & 3″ grease trough
- Dual 26-1/2″ storage bases keep sheet pans, smallwares or dry goods close at hand
- Stainless steel front, sides and landing ledge stand up to heavy commercial use
- Removable full-width drip pan under open-burner section for fast, tool-free cleaning
- Choice of backguard: 6″ stub back, 20″ riser, or high riser with shelf (select when ordering)
- 6″ chrome-plated, adjustable legs level the unit on uneven floors
Built for Real-World Kitchens
- Heavy-duty chassis and welded frame construction
- Cool-to-the-touch, red-accented burner control knobs
- Rear 3/4″ NPT gas connection with factory-installed pressure regulator
- cETLus & ETL-Sanitation listed for gas and sanitation safety
- Designed, engineered & manufactured in the United States
Technical Specifications
| Model | AR-24G-6B-DSB |
|---|---|
| Gas Type | Natural or Propane (field convertible) |
| Total Input | 232,000 BTU/hr • 68.0 kW |
| Open Burners | 6 × 32,000 BTU lift-off burners |
| Griddle Section | 24″ W × 22″ D, 1″ thick; manual controls (20,000 BTU each 12″ section) |
| Base Configuration | Two 26-1/2″ storage cabinets (hinged doors) |
| Exterior Material | Stainless steel front, sides, high-strength aluminized chassis |
| Overall Dimensions | 60″ W × 32-1/2″ D × 36″ H to cooktop (add 6″–24″ for chosen riser) |
| Shipping Weight | ≈ 595 lb (270 kg) |
| Gas Connection | 3/4″ NPT (19 mm) — 5.0″ W.C. NG / 10.0″ W.C. LP manifold pressure |
| Certifications | cETLus, ETL-Sanitation |
Factory Warranty
Includes a 2-year limited parts & labor warranty (90-day warranty on replacement parts). See American Range terms for complete details and registration information.
